Description
Technical specifications

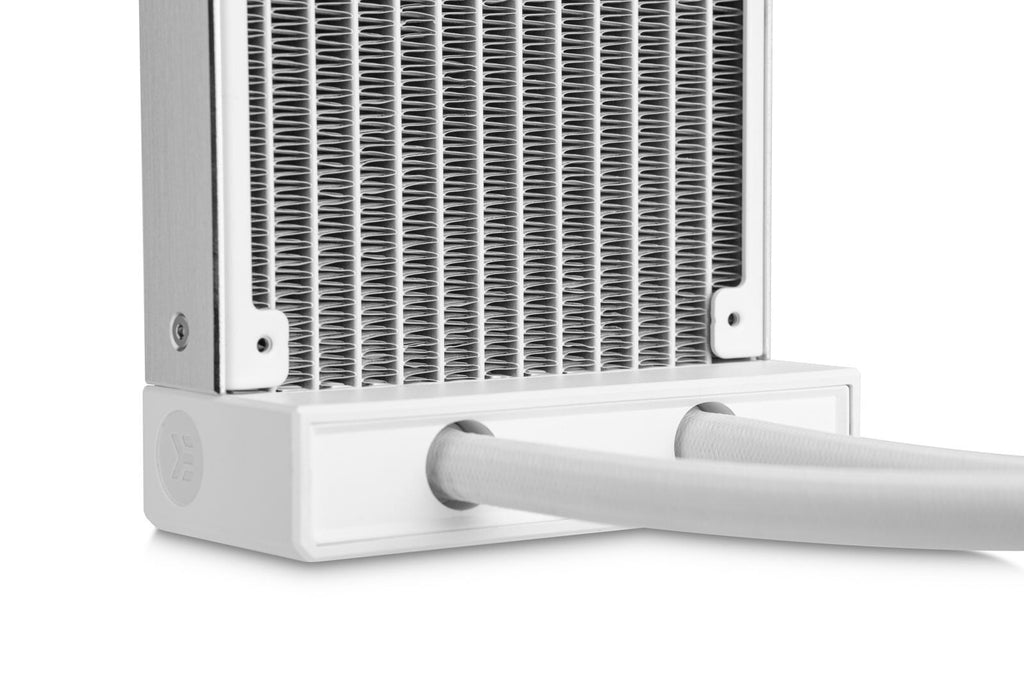

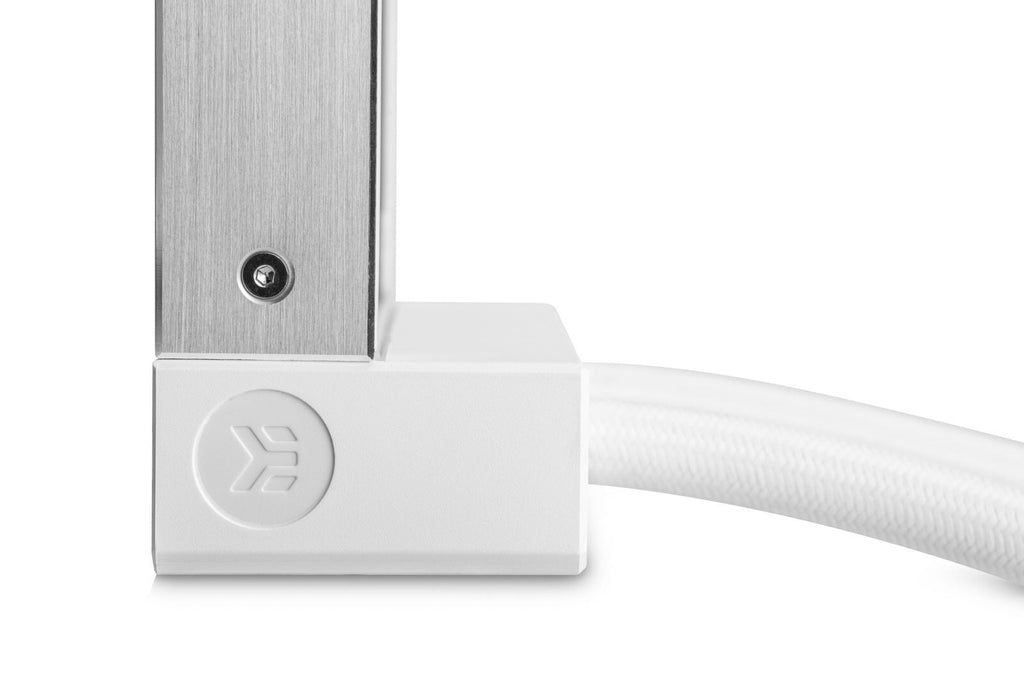

-Radiator dimensions: 400 x 124 x 27 mm
-Radiator Material: Aluminum-
Fan Compatibility: 120mm-

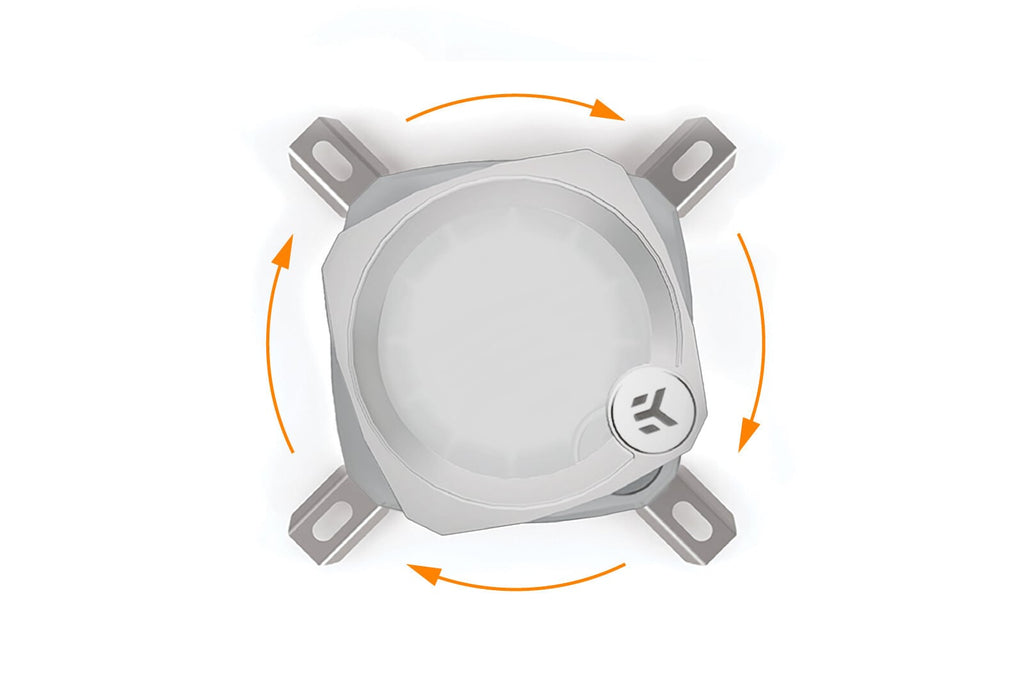

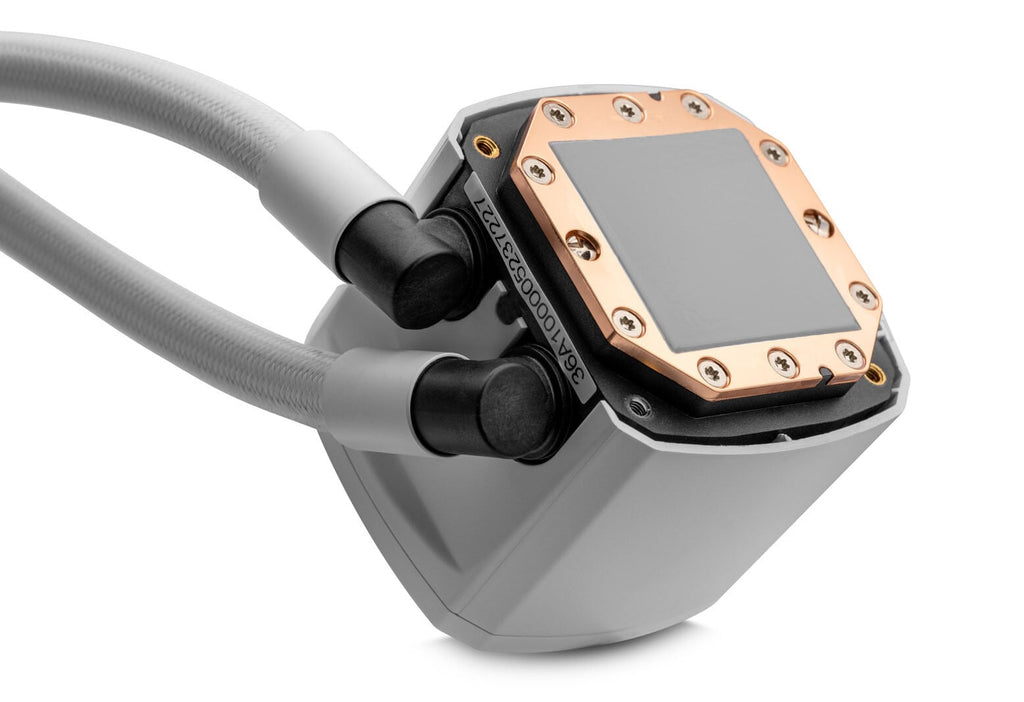

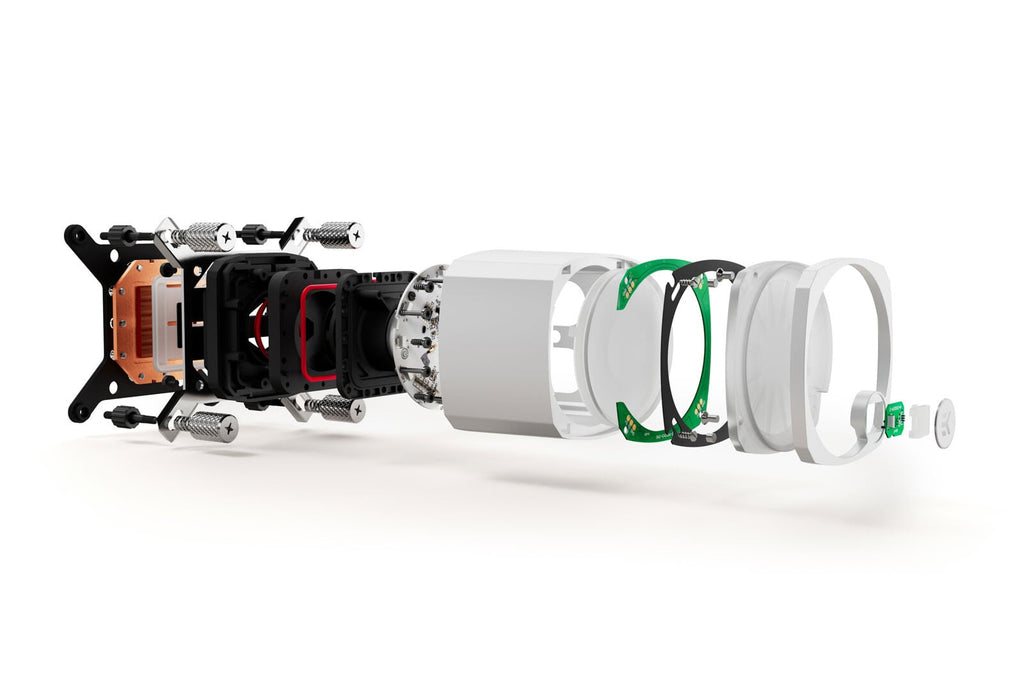

Pump unit dimensions: 82.3 x 69.2 x 61.6 mm -
Pump unit materials: ABS housing, ABS top ring-
Pump speed range: 3100 RPM ± 10%
-Pump PWM range: 20 - 100%
-Pump Unit RGB Type: 5V Digital (Addressable) -
Pinout: 5V, D, Null, Ground Pump RGB Cable Length: 500mm -

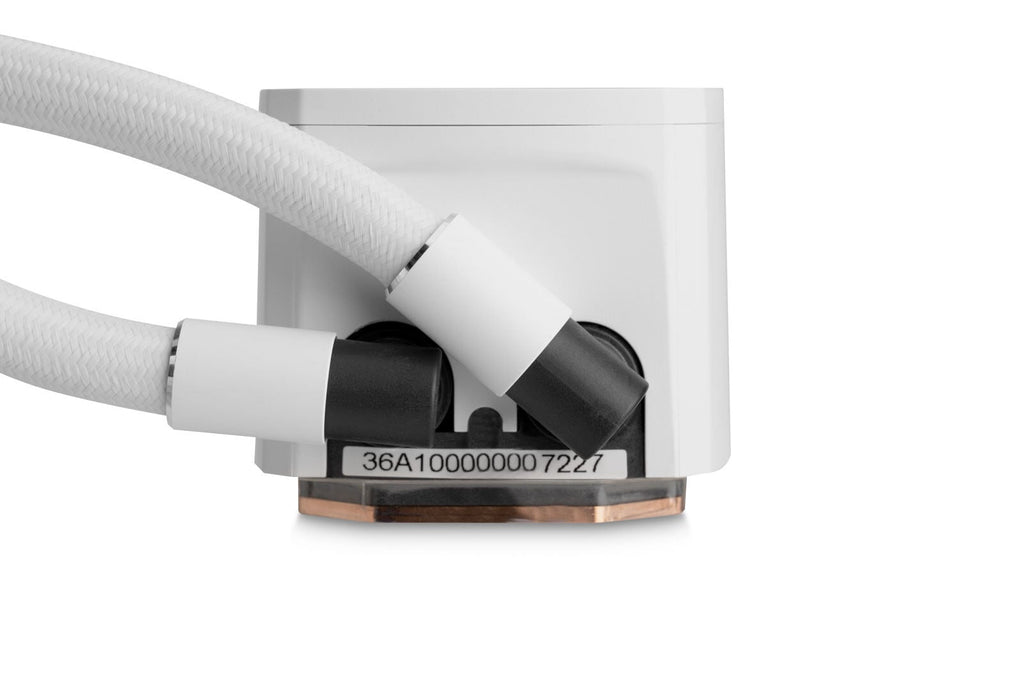

Pipe material: ultra-low evaporation rubber with nylon braided sleeve - pipe
Length: 400mm
-Fan dimensions: 120 x 120 x 25 mm-
Fan speed range: 550 - 2300 ± 10% -
Fan noise level: 36 dB (maximum speed)
-Fan air volume: 72 CFM = 122,33 cubic meters/hour (maximum speed)
-Fan RGB Type: 5V Digital (Addressable) Pin Assignment: 5V, D, Null, Ground
System Requirements:
-4-pin PWM header for pump and fan operation
-3-pin addressable 5V D-RGB header
Attached:

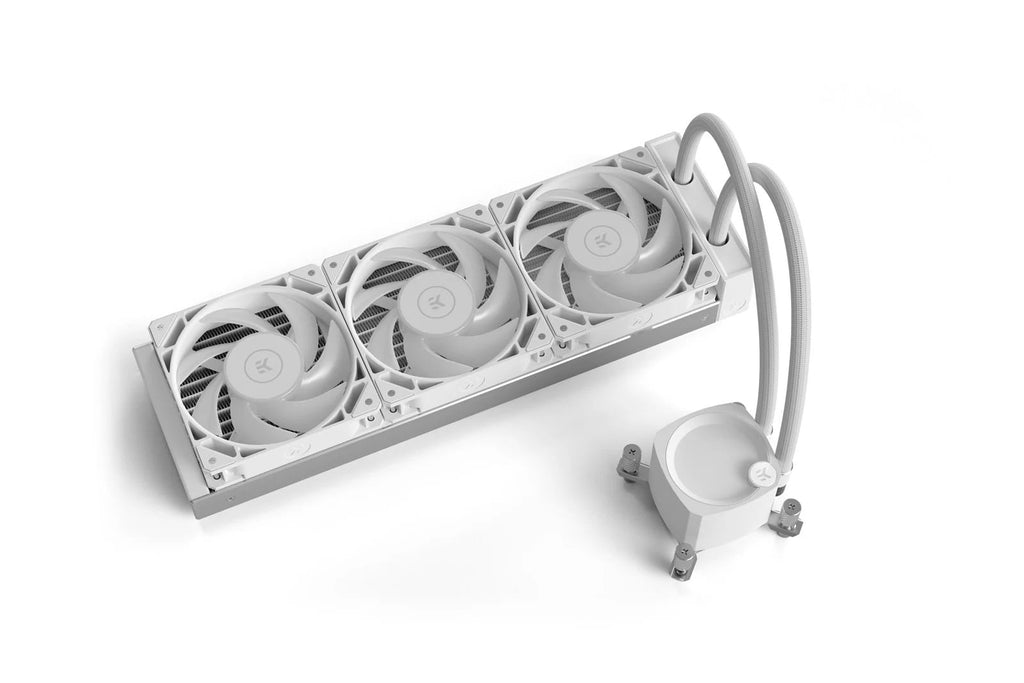

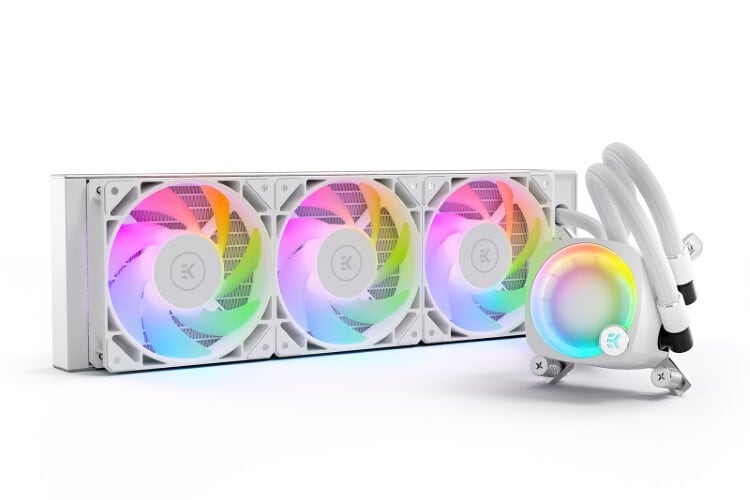

-EK-Nucleus AIO CR360 Lux D-RGB device
-EK-FPT FAN 120 D-RGB Full Pressure Technology Fan (3x) -
Installation kit
-User manual
Compatible CPU sockets:
-Intel LGA sockets: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066 + next generation Intel socket, 1700
- AMD sockets: AM4, AM5
