Specification
|
| model | EB-L730U |
| Projection type | RGB three TFT LCDs simultaneously aggregated for image projection |
| Power specifications | AC100V-120V/AC200V-240V |
| LCD panel | |
| (1) Dimensions | 0.67-inch TFT LCD |
| (2) Number of pixels | 2,304,000 dots (1920 x 1200) x 3 |
| Projection brightness | |
| White brightness (Light Output) | 7000 lumens |
| Color Light Output | 7000 lumens |
| Standard resolution | WUXGA 1920×1200 |
| Highest supported resolution | 4096×2160 |
| HDTV compatibility | 480i~4K |
| video pixel | Scan density 1200 items |
| Projection screen size | 50″ to 500″ |
| Projection method | 360 degrees without direction restrictions |
| Video compatibility | Suitable for NTSC/PAL/SECAM system |
| Computer compatible | Suitable for PC/WQXGA/WUXGA/UXGA/SXGA/XGA/SVGA |

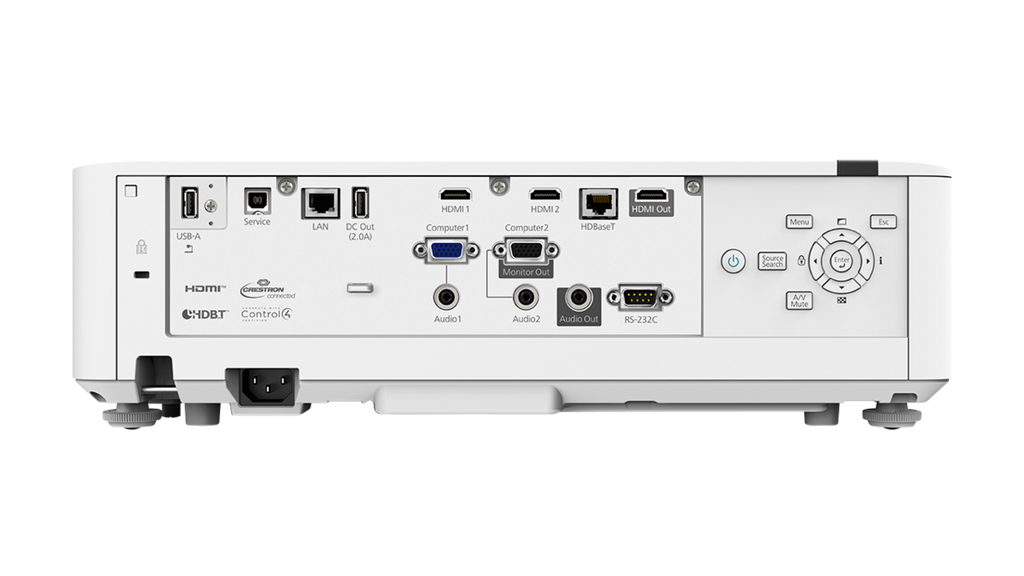

| Video interface input | |
| Computer (D-sub-15pin) | 2 |
| HDMI | 2(HDCP2.3) |
| HD-BaseT | 1 |
| Video interface-output | |
| Computer (D-sub-15pin) | 1 (shared Computer 2) |
| HDMI | 1 |
| Audio interface-input | |
| Stereo mini | 2 |
| Audio interface-output | |
| Stereo mini | 1 |
| USB | |
| Type A (PC Free, wireless module) | 1 |
| Type A (5V2A power supply) | 1 |
| Type B | 1 |
| RS232 | 1 |
| RJ45 | 1 |
| Wireless LAN | Built-inWireless |
| Screen Mirroring | Yes |
| trumpet | 10W x 1 |
| safety device | With overheating automatic power-off protection device |
| projection lens | |
| (1)Focusing method | Manual zoom and manual focus adjustment |
| (2)Focal length | F:1.5-1.7, f:20.0-31.8 mm |
| (3)Magnification ratio | 1-1.6 |
| (4)Throw ratio | 1.35~2.2 |
| Projection screen ratio (width:length) | 16:10 |
| Lens shift range | |
| Vertical (horizontally centered) | -50% to +50% |
| Horizontal (centered vertically) | -20% to +20% |
| Digital keystone correction | Vertical plus or minus 30 degrees, horizontal plus or minus 30 degrees |
| Bulb life | 20,000 / 20,000 / 30,000 hours (Normal / Quiet / Extended) |
| Contrast | over 2,500,000:1(Dynamic contrast:ON) |
| Peripheral to center brightness ratio | 86% |
| Color reproduction | Up to 1.07 billion colors |
| Screen adjustment – screen zoom | Built-in partial magnification function of projection screen |
| Light source type | Laser Diode |
| Light source energy consumption | 232W |
| Filter model | ELPAF56 |
| Use ambient temperature | 0-45 degrees Celsius |
| Fan noise value | 38dB/27dB (Normal/Eco) |
| Safety certification | UL60950-1 CSA-C22.2 |
| Electromagnetic compatibility | FCC part 15B class B EMC Directive |
| Environmental specifications | |
| Power consumption 100-120V | 358W / 267W (Normal/Quiet,Extended) |
| Power consumption 220-240V | 345W / 258W (Normal/Quiet,Extended) |
| Current consumption 100-240V | 3.6 – 1.6 A |
| Sleep state consumes power | 0.3W |
| weight | 8.3kg |
| Width x depth x height (cm) excluding tripod | 44 x 30.4 x 12.2 |
| Width x depth x height (cm) including tripod (maximum) | 44 x 33.9 x 13.6 |
| Random accessories | Power cord (3m), wireless remote control, battery x2, instruction manual set, warranty card, Cable cover |
