Description
Suitable for SMEs, SOHO or schools
EB-U50 uses Epson's own 3LCD projection chip with a resolution of WUXGA. It also has extremely high color brightness, built-in Wi-Fi function and comprehensive input terminals. With its stylish appearance and outstanding image quality, it is especially suitable for small and medium-sized enterprises, SOHO or For school use.
High durability, stable quality and guaranteed, making it safer to use in businesses/schools

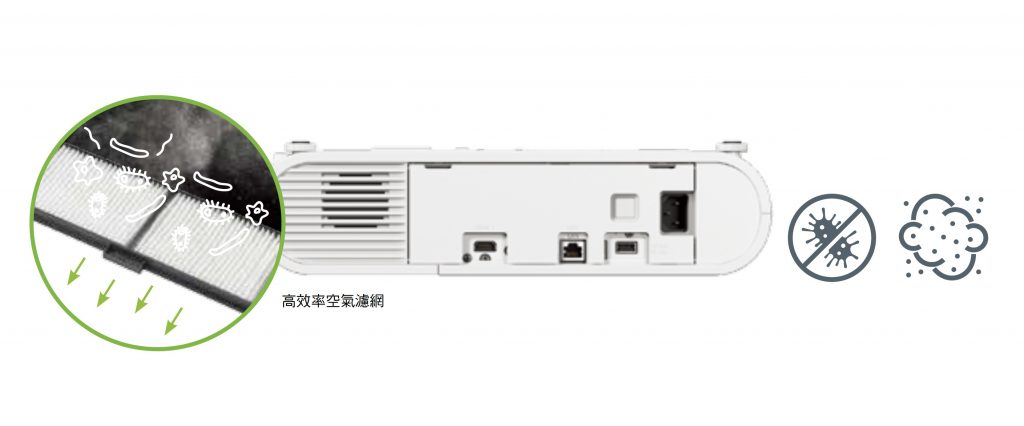

Epson EB-X50/U50 projectors can effectively prevent the intrusion of dust and foreign objects, with advanced filter design and dust-proof structure casing to enhance durability. The electrostatic filter effectively blocks dust and chalk dust particles from entering the projector. This helps ensure that the air circulating inside the projector is clean, increasing durability.
Extra high color brightness output
EB-U50 has an ultra-high color brightness output of 3,700 lumens, WUXGA (16:10) resolution, and 16,000:1 contrast ratio, ensuring that the images output by the projector have more accurate colors, brighter images, and more natural skin tones. and color gradation changes to create truly outstanding picture quality.
Foreign engineering reference
Extra long lamp and filter life
The EB-U50's lamp and filter have a lifespan of up to 10,000 hours, which greatly saves time and money in replacing lamps and filters.
Enhanced functions and more flexible operation
EB-U50 is equipped with many considerate and practical functions and is easy to operate, allowing users to greatly increase meeting efficiency.
–Auto Source Search
When the computer is connected to the projector, the projector will automatically detect the computer source and project.
–Auto Power On
In standby mode, when the EB-U50 receives a computer signal, it will automatically turn on the power. The process does not require the use of a remote control or pressing the power button on the machine body, which is very convenient.
– The home screen "Home Screen" displays the settings most commonly used by users, such as audio sources and wireless network status, for the convenience of users. When no source is connected, the projector will automatically enter the "Home Screen". In addition, the EB-U50 is also equipped with a home button. During projection, users only need to lightly press the "Home" button on the body or remote control to immediately return to the familiar "home screen". Easy to control.
Built-in Wi-Fi wireless network components
EB-U50 has built-in Wi-Fi wireless network function. Just plug in the projector to search and connect to wireless networks. When the projector is connected to a wireless network, users can use the iOS and Android smart device application "Epson iProjection" or the computer software "EasyMP Network Projection" to transfer photos and files stored in the smart device, or real-time images from the computer, Wirelessly transmit to the projector for output and perform cloud projection.
Multiple computers project simultaneously
EB-U50 also supports the "Multi PC Projection" function. The projector can connect up to 50 computers in a network, and allows one of the computers to act as a "moderator". The computer can select and manage up to 4 connected computers to project images, wirelessly control and The connection is simple and convenient, making meetings more efficient.
The built-in edge blending function <br>can seamlessly combine multiple projectors to form an extra-large projection screen.
Support screen splitting function
The EB-U50 is equipped with Epson's Split Screen function, which allows users to display two independent sources side by side on the same projection screen.
Carefully designed body Power-saving and durable <br>In terms of body design and function, the EB-U50's compact body (364 x 87 x 248 mm) is convenient for users to carry around for projection, while also providing maximum freedom of placement. The exhaust port is located on the front of the projector to prevent people sitting next to the projector from being disturbed by the hot air exhausted by the projector. In terms of lamp life, in Eco mode, the EB-U50 lamp has a service life of up to 17,000 hours. The frequency of lamp replacement is greatly reduced, the average cost of use is lower, and it is more environmentally friendly.
| Projection type | RGB three TFT LCDs simultaneously aggregated for image projection | |
| Power specifications | AC100V-120V/AC200V-240V | |
| LCD panel | (1) Dimensions | 0.67 inch TFT LCD |
| (2) Number of pixels | 2,304,000 dots (1920 x 1200) x 3 | |
| Projection brightness | ||
| White brightness (Light Output) | 3700 lumens | |
| Color Light Output | 3700 lumens | |
| Standard resolution | WUXGA 1920×1200 | |
| Support resolution | UXGA 1600×1200/SXGA+ 1400×1050 | |
| HDTV compatibility | 480i~1080P | |
| video pixel | Scan density 1200 lines | |
| Projection screen size | 30″ to 300″ (0.87 – 9.02 m) | |
| Projection method | Front projection, rear projection, ceiling hanging | |
| Video compatibility | Suitable for NTSC/PAL/SECAM systems | |
| Computer compatible | Suitable for PC/WUXGA/UXGA/SXGA/XGA/SVGA/VGA | |

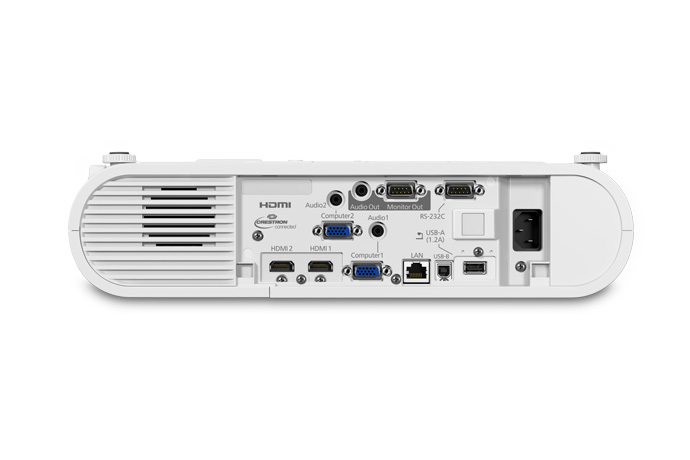

| Video interface computer (D-sub-15pin) input | 2 | |
| InputHDMI | 2 | |
| Video interface computer (D-sub-15pin) | 1(Input source is computer 1 only) | |
| enter | ||
| Audio Interface – Enter Stereo mini | 2 | |
| Audio Interface – Output Stereo mini | 1 | |
| USB | Type A | 1(USB Memory, USB Document Camera, for Wireless LAN unit, Firmware update) |
| Type B | 1 (USB Display, Control, Firmware update) | |
| RS232 | 1 | |
| RJ45 | 1 | |
| Wireless | built-in | |
| trumpet | 5W x 1 | |
| safety device | With overheating automatic power-off protection device | |
| projection lens | (1) Focusing method | Manual zoom and manual focus adjustment |
| (2) Focal length | F:1.5-1.71, f:20.42-24.5 mm | |
| (3) Magnification ratio | 1-1.2 | |
| (4) Throw ratio | 1.38~1.68 | |
| Projection screen ratio (width: length) | 16:10 | |
| Digital keystone correction | Vertical plus or minus 30 degrees, horizontal plus or minus 30 degrees (automatic vertical plus or minus 30 degrees) | |
| Bulb life | 17,000/10,000 hours(Eco/Normal) | |
| Contrast | 16000:1(Auto iris: on) | |
| Peripheral to center brightness ratio | 87% | |
| Color reproduction | Up to 1.07 billion colors | |
| Picture adjustment – picture zoom | Built-in partial magnification function of projection screen | |
| Light source energy consumption | 200W UHE bulb | |
| Bulb model | ELPLP97 | |
| Filter model | ELPAF59 | |
| Use ambient temperature | 0-40 degrees Celsius | |
| Fan noise value | 37dB/28dB (Normal/Eco) | |
| Safety certification | CNS14336-1 | |
| Electromagnetic compatibility | CNS13438 | |
| Environmental specifications | ||
| Power consumption 100-120V | 298W / 226W (Normal/Eco) | |
| Power consumption 220-240V | 285W / 218W (Normal/Eco) | |
| Sleep state consumes power | 0.3W | |
| Current (100 – 240 V AC 50/60 Hz) | 2.9-1.3A | |
| weight | 3.1kg | |
| Width X Depth X Height (cm) excluding tripod | 36.4 x 24.8 x 8.7 | |
| Width X Depth X Height (cm) including tripod (maximum) | 36.4 x 24.8 x 9.5 | |
| Random accessories | Power cord, VGA cable, wireless remote control, battery x2, instruction manual set, warranty card, interface cover | |
