Description

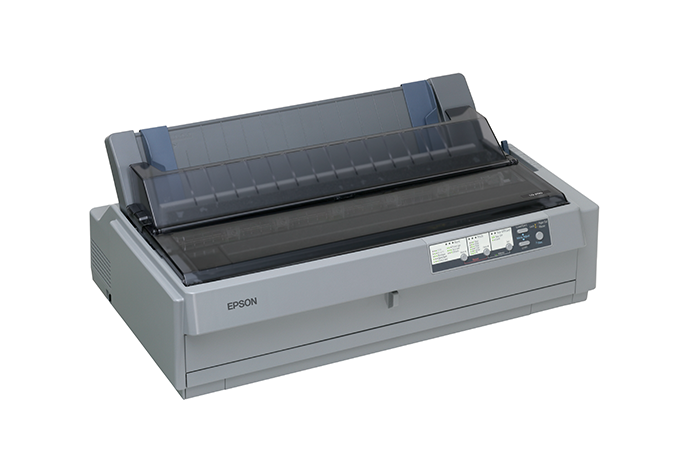

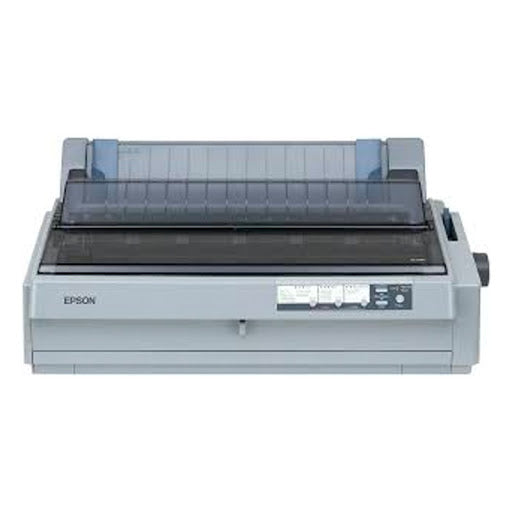

Epson LQ-2190
describe:
- High-throughput 24-pin A3 dot matrix printer
- In response to customers' pursuit of print volume and print quality, the Epson LQ-2190 dot matrix printer strikes a balance between the two, with longer print head life and more durable ribbons. In addition, it can print invoices, delivery orders, inventory lists, stickers, etc., with complete functions.
- 24 needles, 136 positions
- Print speed: 480 cps
- 1 original + 5 copies
- Print head life is up to 400 million times/pin
- Ribbon life is up to 15 million words
- USB and Parallel interface, optional 10 / 100 Base Tx Ethernet
generally:
Operating system: Windows 2000 / Me /XP / Vista / 7 / 8 / 8.1 / 10
Volume: 128 KB Shell color: 1 original + 5 copies Size: ESC/P2 and IBM PPDS emulation
Characters and lines:
Character sets: 14 international character sets, 1 legal character set, 1 italic and 12 graphic character sets Scalable fonts: Epson Roman / Sans Serif / Roman T / Sans Serif H
Barcode font: EAN-13
EAN-8
Interleaved 2 of 5
UPC-A
UPC-E
Code 39
Code 128
POSTNET
Coda bar (NW-7)
Industrial 2 of 5
Matrix 2 of 5
reliability:
Print head life: 400 million lines MTBF: 20,000 hours
Printing features:
Standard: Italic table
PC437 (US Standard Europe)
PC850 (Multilingual)
PC860 (Portuguese)
PC861 (Icelandic)
PC863 (Canadian-French)
PC865 (Nordic)
BRASCII
Abicomp
Roman 8
ISO Latin 1
PC 858
ISO 8859-15
Barcode: EAN-13
EAN-8
Interleaved 2 of 5
UPC-A
UPC-E
Code 39
Code 128
POSTNET
Coda bar (NW-7)
Industrial 2 of 5
Matrix 2 of 5
Bitmap fonts: Epson Draft / Epson Courier / Epson Roman / Epson Sans Serif / Epson Prestige / Epson Script / OCR-B / Orator / Orator-S / Epson Script C
Scalable fonts: Epson Roman / Sans Serif / Roman T / Sans Serif H
Electronic specifications:
Operation: 46W Rated voltage: AC 220 - 240V Rated frequency: 50 - 60 Hz
Consumables:
Ribbon Cartridge Black: 15 million characters - C13S015531
Printing technology:
Printing method: Dot matrix printer Pin count: 24
Dimensions and weight:
Weight: 13kg
Paper material:
Envelope: No.6, No.10
Thickness: 0.16-0.52mm (0.0063"" - 0.0205"") (Total)
Paper path:
Manual insertion: front or rear entry/ejection Tractor: front or rear entry/ejection Tractor: front or rear or bottom entry, ejection
Options:
Options: Epson net 10/100 Base TX Int. Print Server - C824352
Tractor - C800322
Serial I/F Card Type-B - C824432
