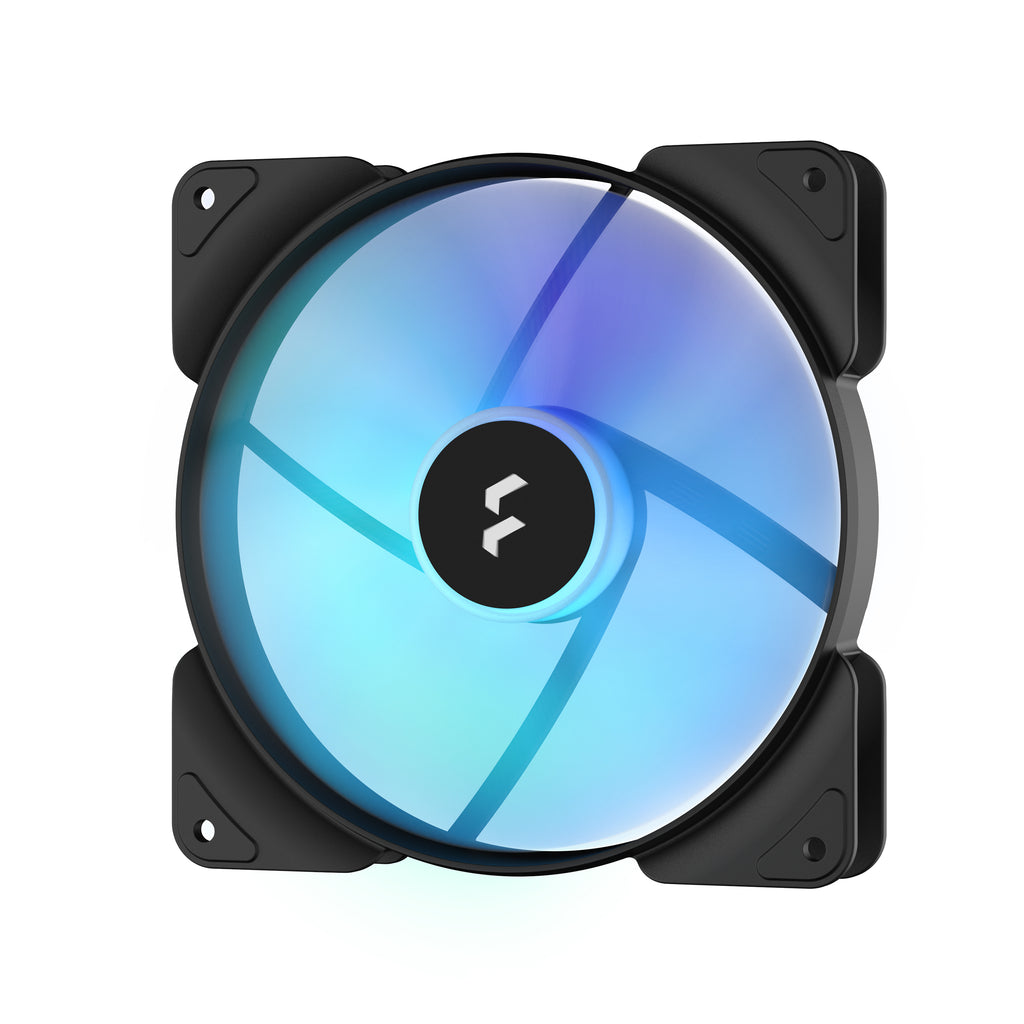

Fractal Design Aspect 14 RGB PWM Black Frame Case Fan (FD-F-AS1-1405)
Roll over image to zoom in Click on image to zoom
Fractal Design Aspect 14 RGB PWM Black Frame Case Fan (FD-F-AS1-1405)

Fractal Design Aspect 14 RGB PWM Black Frame Case Fan (FD-F-AS1-1405)

FRACTAL DESIGN
Price:
HK$149.00

Description

Aspect 14 RGB PWM

Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built -in chaining support to simplify cable management.


  • Less turbulence thanks to aerodynamic stator struts
  • 6 individually addressable hub-mounted RGB LEDs
  • PWM control with a wide RPM speed range

Specifications

  • Size
    140x140x25mm
  • Screw hole pattern
    125x125mm
  • LED type
    Addressable RGB
  • Power connector
    4-pin
  • Bearing
    Rifle
  • Number of blades
    7
  • Rotational speed
    500-1700RPM
  • Noise level
    <10 – 35.5 dB(A)
  • Max airflow (CFM)
    20 – 78 CFM
  • Max airflow (m³/h)
    34 – 132.5 m³/h
  • Max pressure
    0.30 – 2.05 mm H2O
  • Fan typical input power
    2.16 W
  • Fan max input current
    0.24A
  • Fan input voltage
    12 V
  • Minimum startup voltage
    7V
  • LED rated voltage
    5 V
  • LED rated current
    0.3 A
  • LED Rated input power
    1.5W
  • MTTF
    90.000 hours
  • Unit weight
    155 g
  • Cable length
    500mm
  • Cable type
    Black/White ribbon (allows chaining)

Other

  • Package contents
    Aspect Fan 4x Fan screw (12x in 3-pack)
  • Package weight
    185g/3-pack: 471g
  • Packaging dimensions including hanging tabs
    143 x 212 x 30 mm / 3 pack: 143 x 212 x 87 mm
  • Packaging dimensions excluding hanging tab (WxHxD)
    143 x 170 x 30 mm / 3 pack: 143 x 170 x 87 mm
  • EAN
    Black - 7340172703372 / White - 7340172704027 / Black 3-pack - 7340172703549
  • UPC
    Black - 843276103378 / White - 843276104023 / Black 3-pack - 843276103545
  • JAN
    Black - 4537694287548 / White - 4537694303149/ Black 3-pack - 4537694288330
  • Product code
    Black - FD-F-AS1-1405 / White - FD-F-AS1-1409 / Black 3-pack - FD-F-AS1-1406
