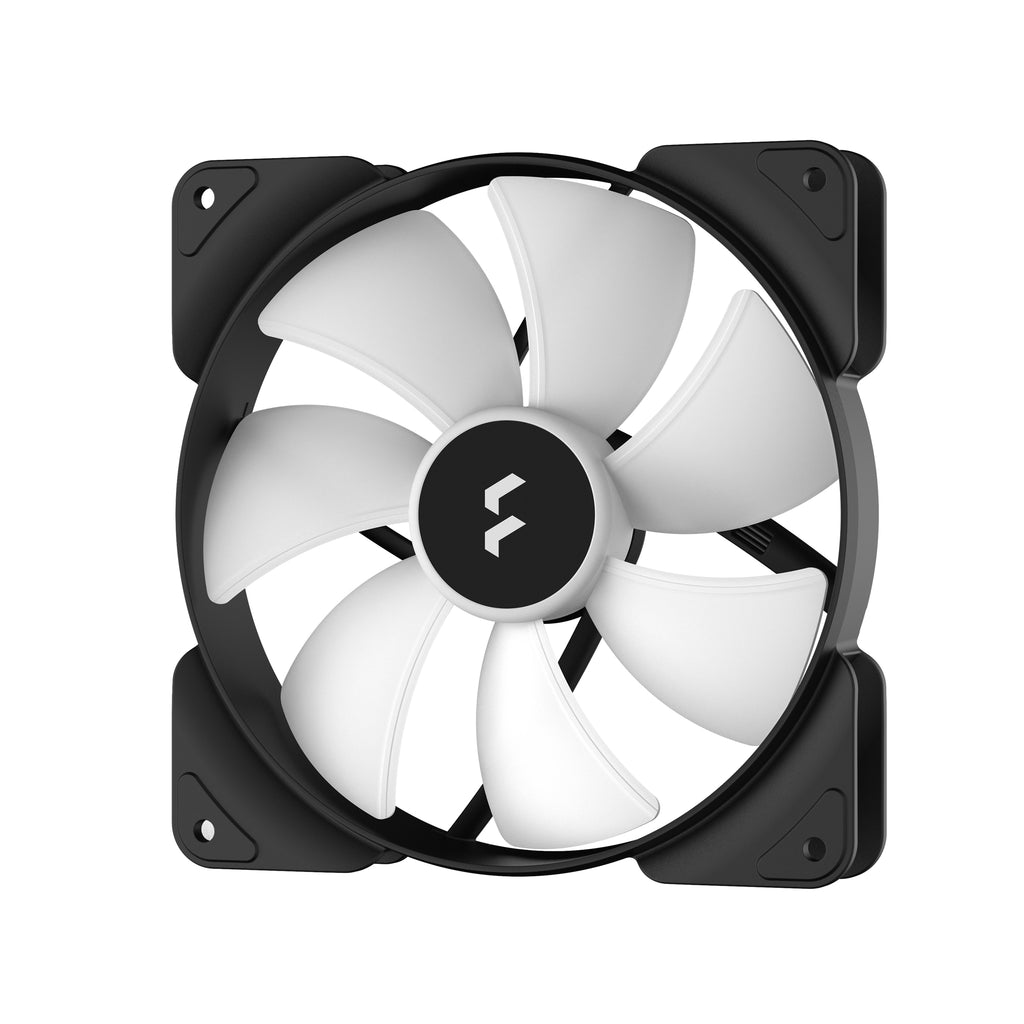

Fractal Design Aspect 14 RGB PWM White Frame Case Fan (FD-F-AS1-1409)

Fractal Design Aspect 14 RGB PWM White Frame Case Fan (FD-F-AS1-1409)

Fractal Design Aspect 14 RGB PWM White Frame Case Fan (FD-F-AS1-1409)

Fractal Design Aspect 14 RGB PWM White Frame Case Fan (FD-F-AS1-1409)

Fractal Design Aspect 14 RGB PWM White Frame Case Fan (FD-F-AS1-1409)

Roll over image to zoom in Click on image to zoom

Fractal Design Aspect 14 RGB PWM White Frame Case Fan (FD-F-AS1-1409)

Fractal Design Aspect 14 RGB PWM White Frame Case Fan (FD-F-AS1-1409)

Fractal Design Aspect 14 RGB PWM White Frame Case Fan (FD-F-AS1-1409)

Fractal Design Aspect 14 RGB PWM White Frame Case Fan (FD-F-AS1-1409)

In living color

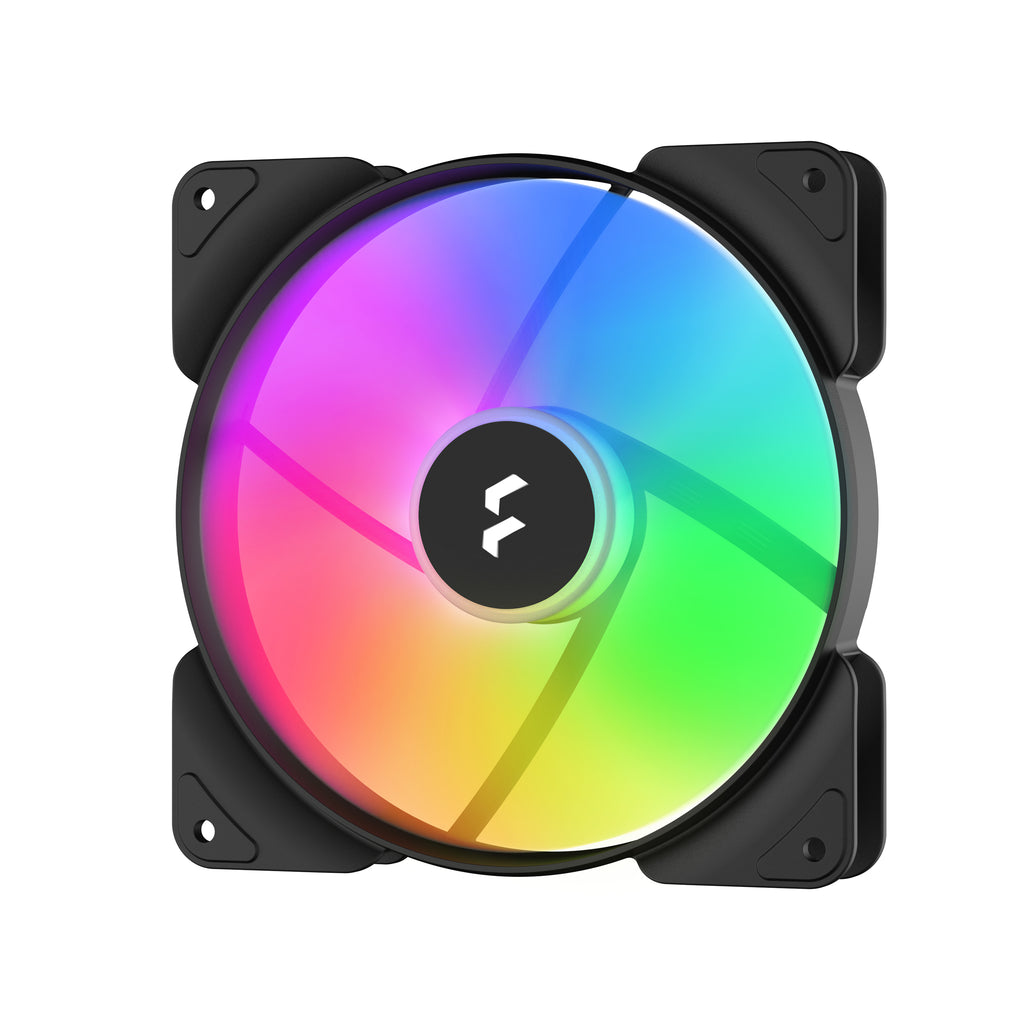

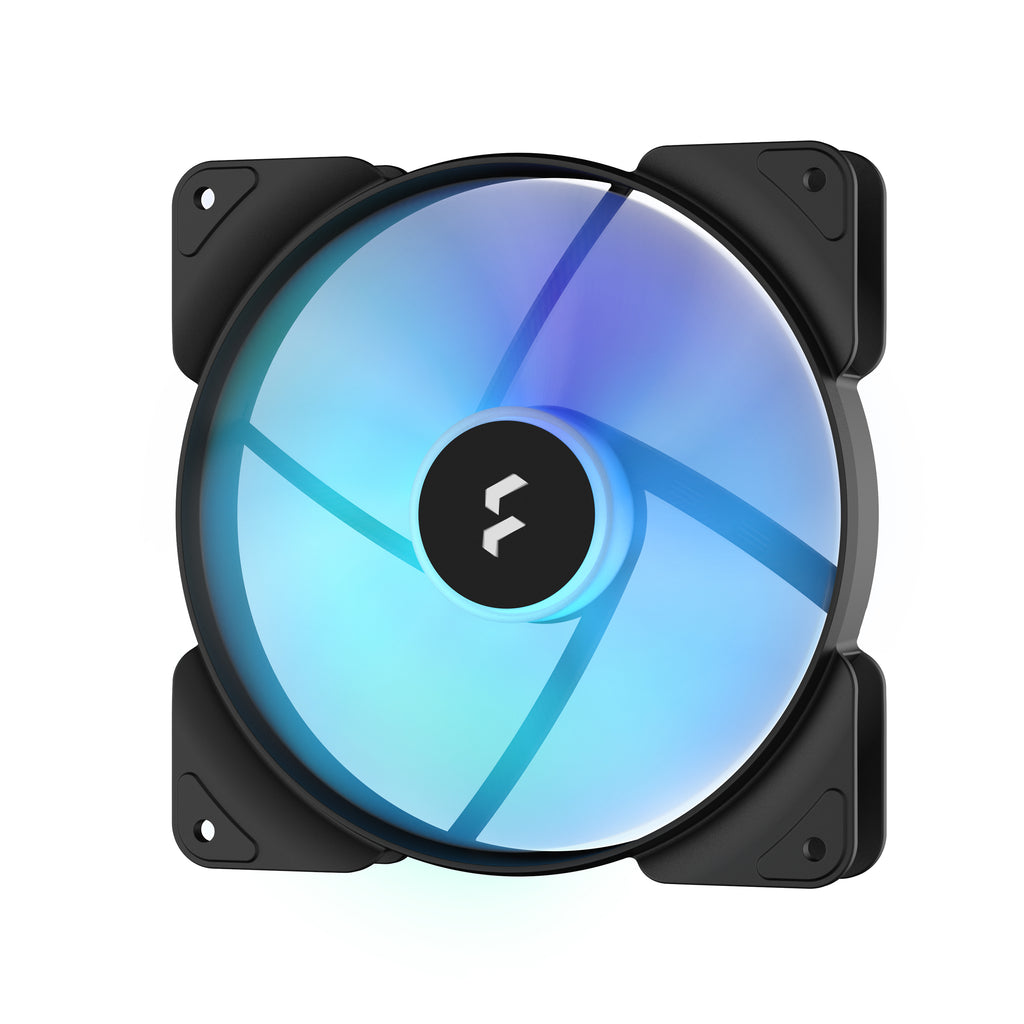

Let your system shine with six individually addressable hub-mounted RGB LEDs

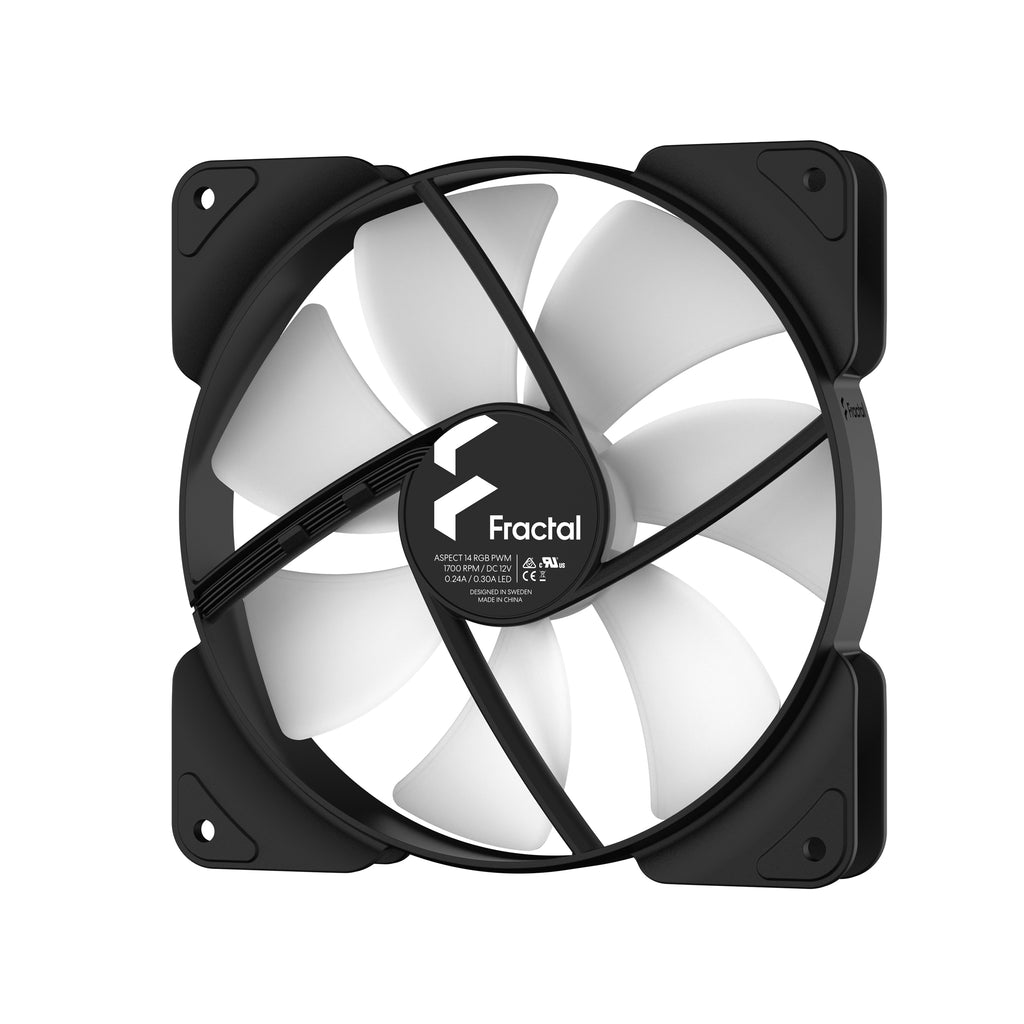

The aerodynamic stator struts decrease turbulence and noise caused by flowing air
The Aspect frame offers aesthetics without compromising on performance

Extensive support

Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma

Rifle bearings

More efficient than the standard sleeve bearings

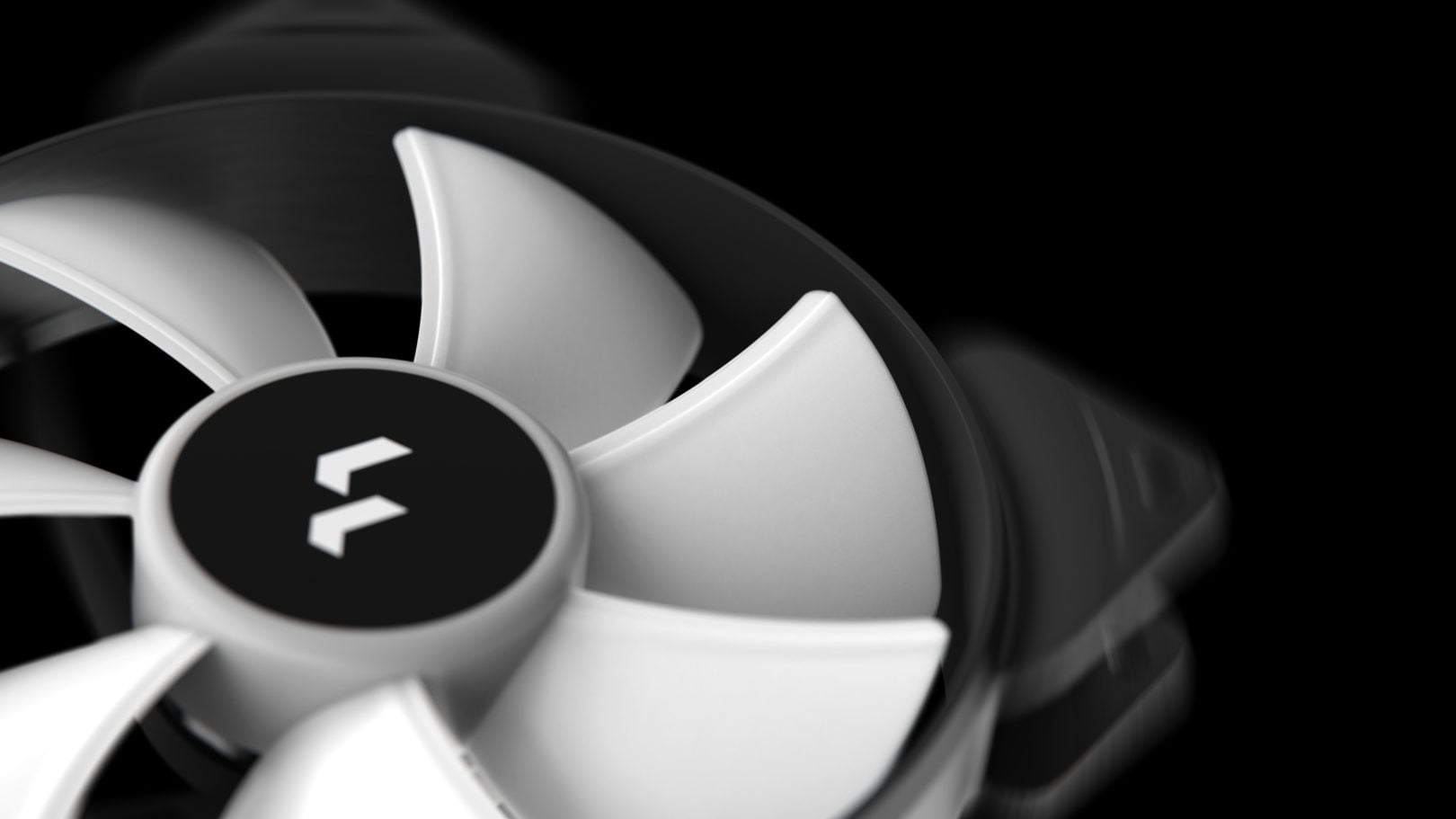

Trip Wire Technology

Introducing a micro-turbulent layer for enhanced blade efficiency

Chain feature

Simplify cable management by using the Aspect chain feature for multiple units

Specifications

Size

140x140x25mm
Screw hole pattern

125x125mm
LED type

Addressable RGB
Power connector

4-pin
Bearing

Rifle
Number of blades

7
Rotational speed

500-1700RPM
Noise level

<10 – 35.5 dB(A)
Max airflow (CFM)

20 – 78 CFM
Max airflow (m³/h)

34 – 132.5 m³/h
Max pressure

0.30 – 2.05 mm H2O
Fan typical input power

2.16 W
Fan max input current

0.24 A
Fan input voltage

12 V
Minimum startup voltage

7V
LED rated voltage

5 V
LED rated current

0.3A
LED Rated input power

1.5 W
MTTF

90.000 h
Unit weight

155g
Cable length

500mm
Cable type

Black/White ribbon (allows chaining)
