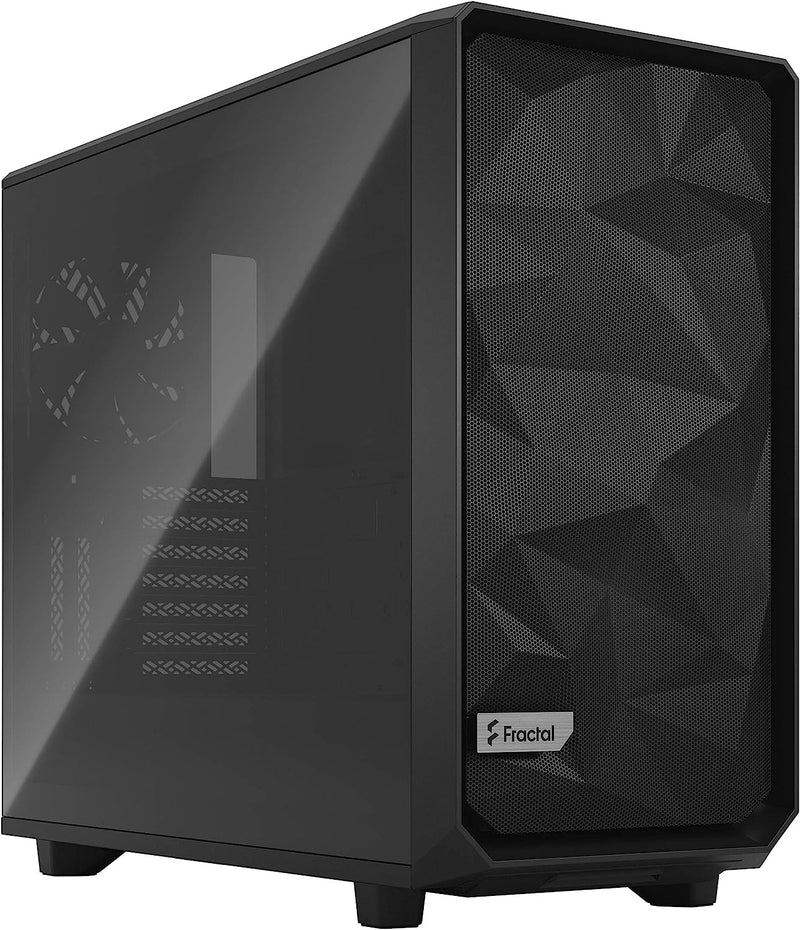

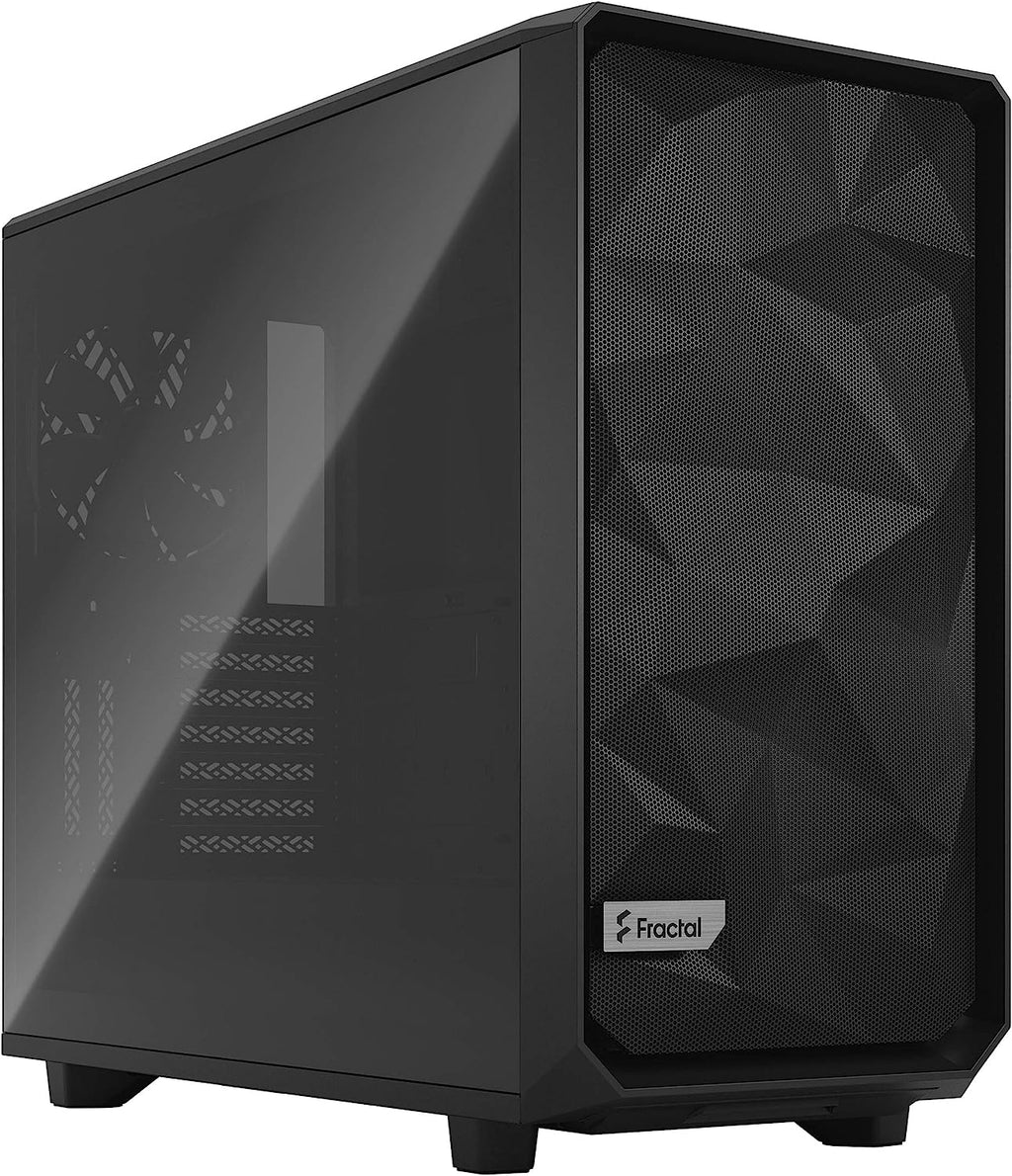

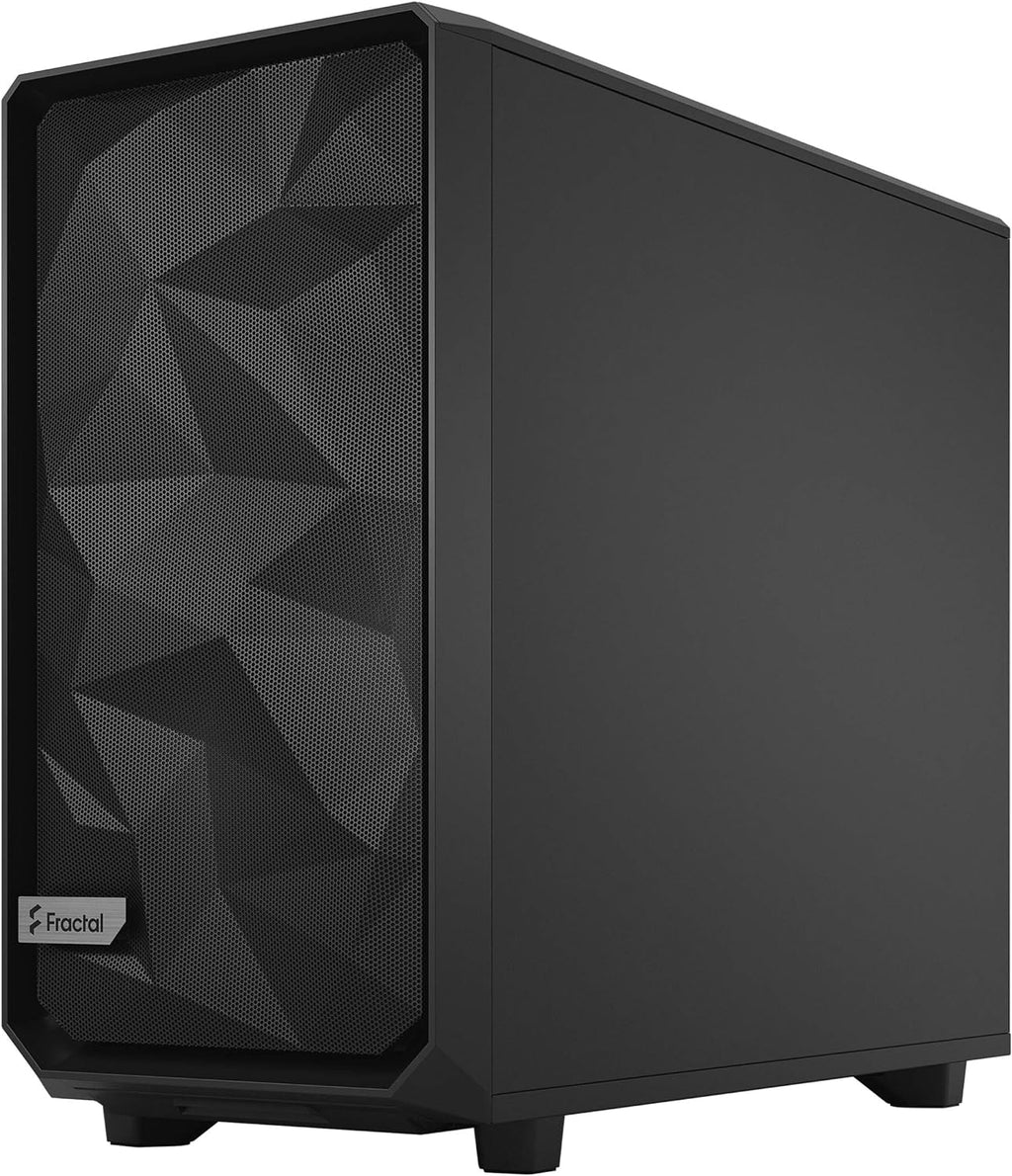

Fractal Design Meshify 2 Black Light Tint Tempered Glass ATX Case FD-C-MES2A-03

Specifications

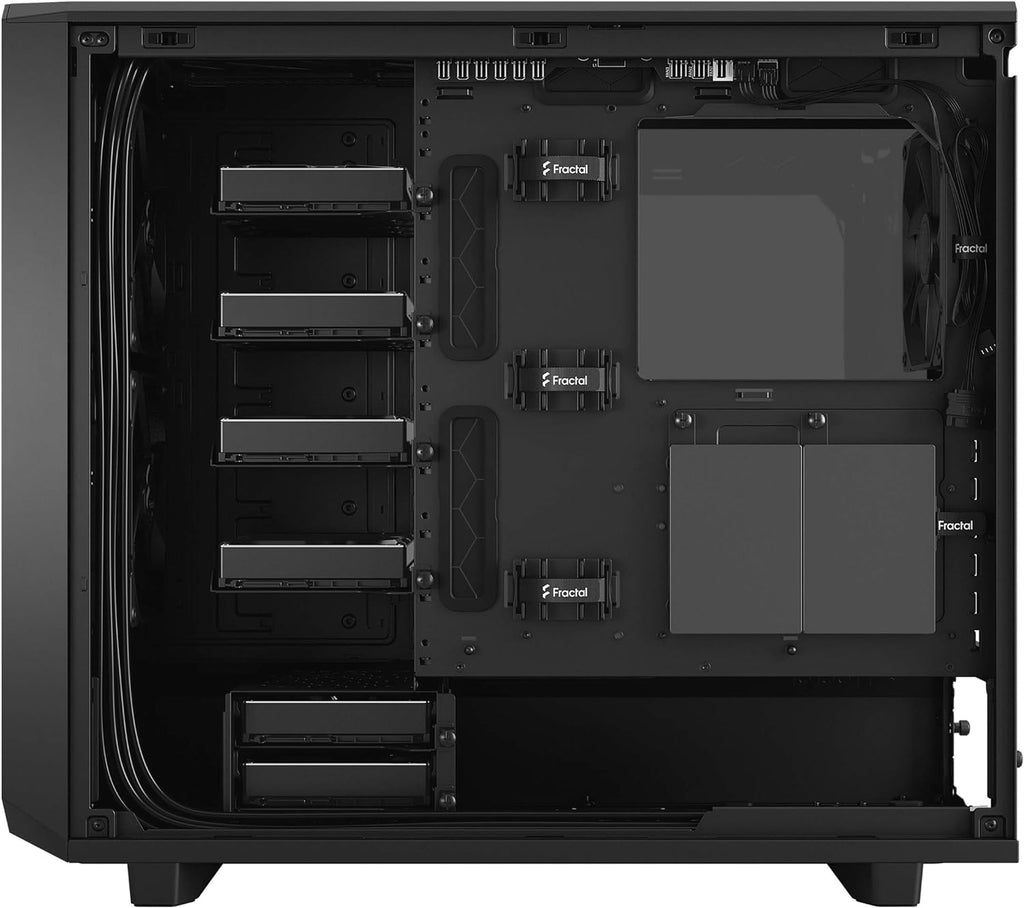

• Universal mount for 3.5”/2.5” drives
  6 x included, 14 maximum + 1 multi bracket
• Holder for 2.5” drives
  2 included, 4 maximum

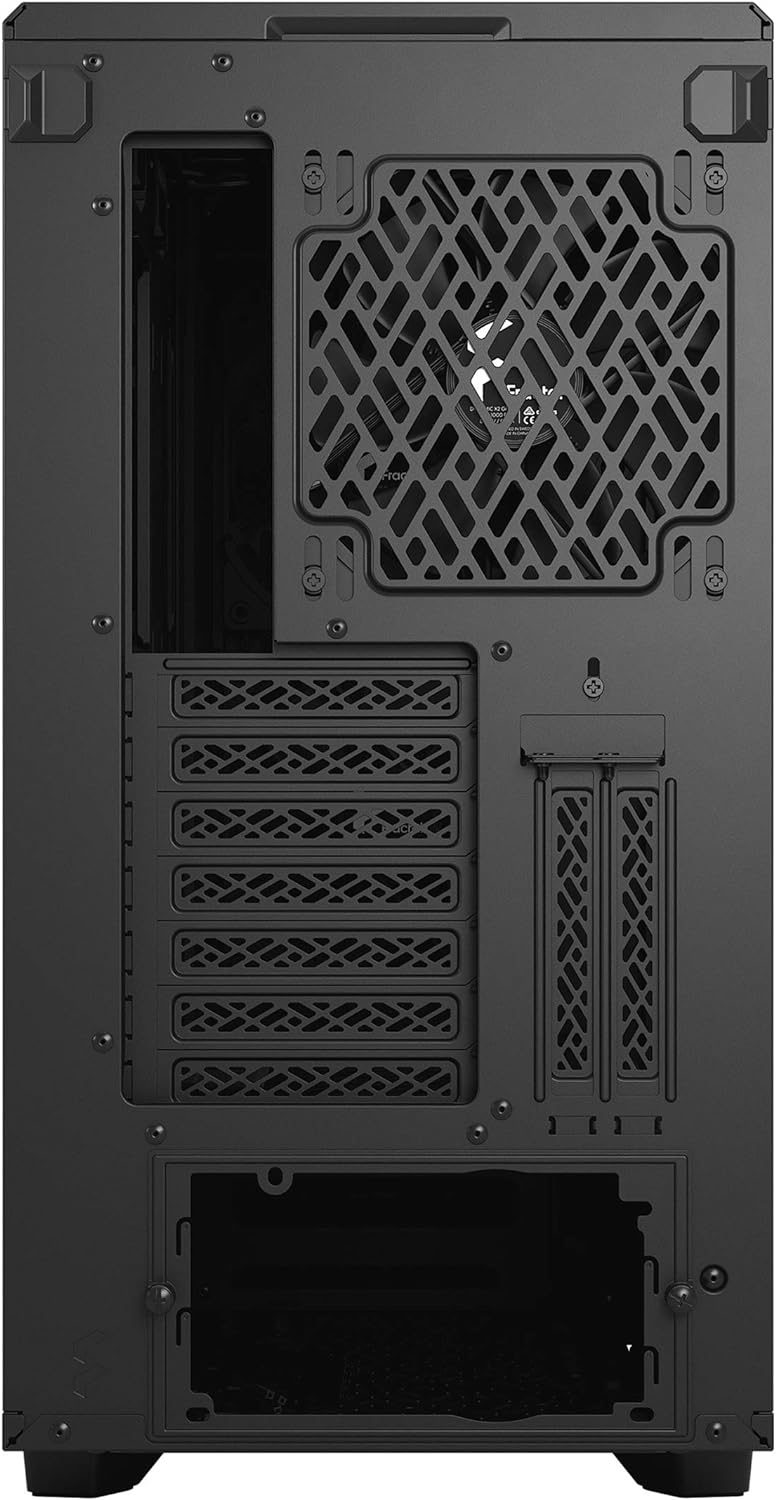

• Slots for expansion cards
  7+2

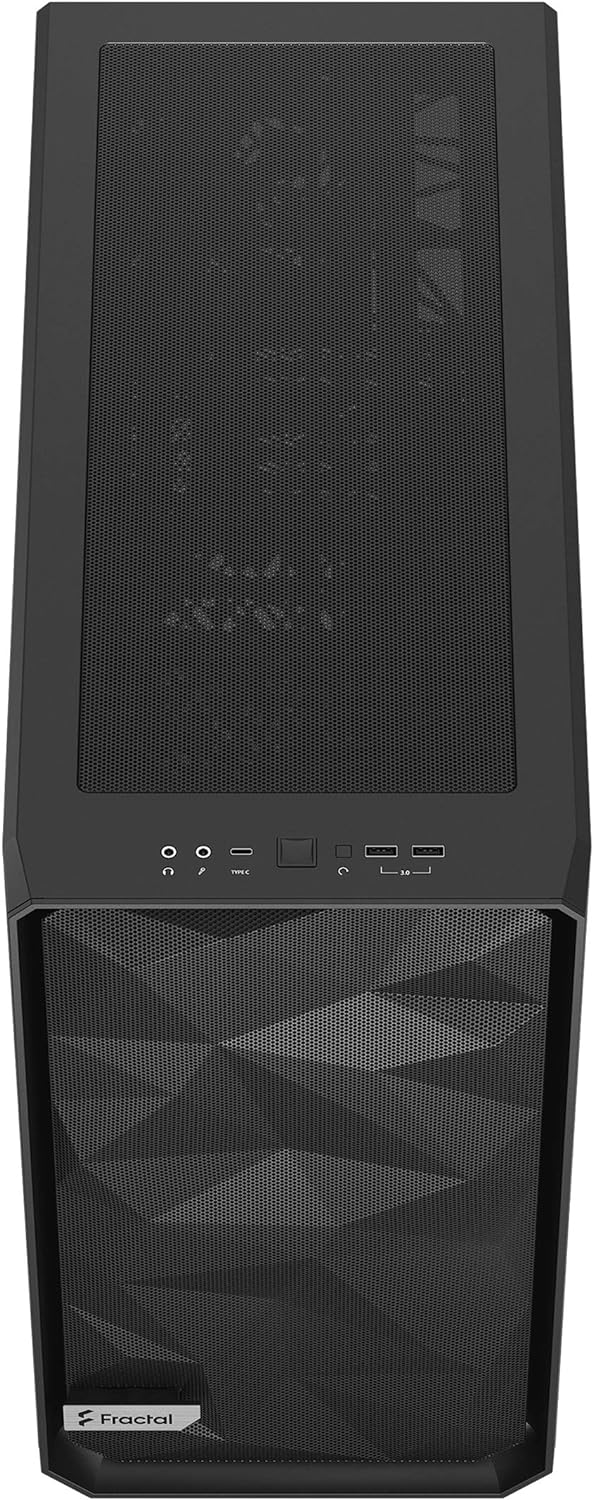

• Front connections
  1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, audio I/O, power button, reset button
• Fan positions
  9x 120/140mm
• Fan front
  3 x 120/140mm (2 x Dynamic X2 GP-14 included)
• Fan top
  3x120/140mm
• Rear fan
  1 x 120/140mm (1 x Dynamic X2 GP-14 included)
• Fan floor
  2x120/140mm

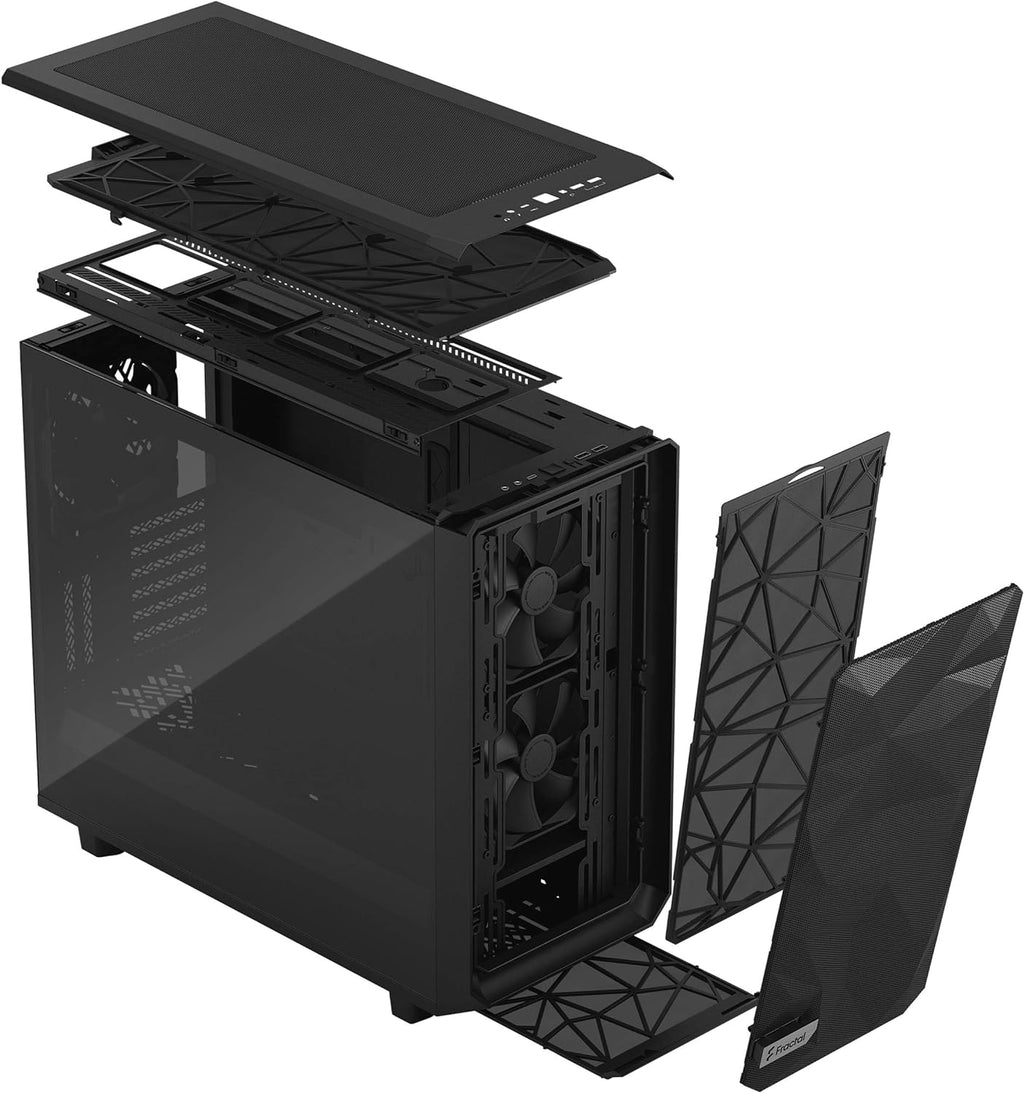

• dust filter
  Top, front, bottom
• Velcro straps
  Yes
• Rubberized cable glands
  Yes
• Loss-proof knurled screws
  HDD & SDD mounts, PSU bezel
• Side section on the left
  Slightly tinted tempered glass
• Side panel on the right
  steel

compatibility

• Motherboard compatibility
  E-ATX (max 285 mm)/ATX/mATX/Mini-ITX
• Power supply form factor
  ATX
• Max. length PSU
  250mm (when HDD cage installed)
• Max lengthGPU
  Storage Layout: 290 mm, Open Layout: 470 mm (445 mm when front fan installed)
• Max. height CPU cooler
  185mm
• Radiator front
  Up to 360/280mm
• Radiator top
  Up to 360/420mm
• Radiator rear
  120mm
• Radiator floor
  Up to 240/280mm
• Space for cable management
  30mm

Dimensions

• Housing dimensions (LxWxH)
  542x240x474mm
• Housing dimensions without feet, screws, etc.
  541x240x454mm
• Package Dimensions (LxWxH)
  634x542x324mm
• Weight
  Solid: 10.1kg TG: 10.5kg
• Weight package
  Solid: 12.8 kg TG: 13.2 kg
• volume
  58.95 liters
