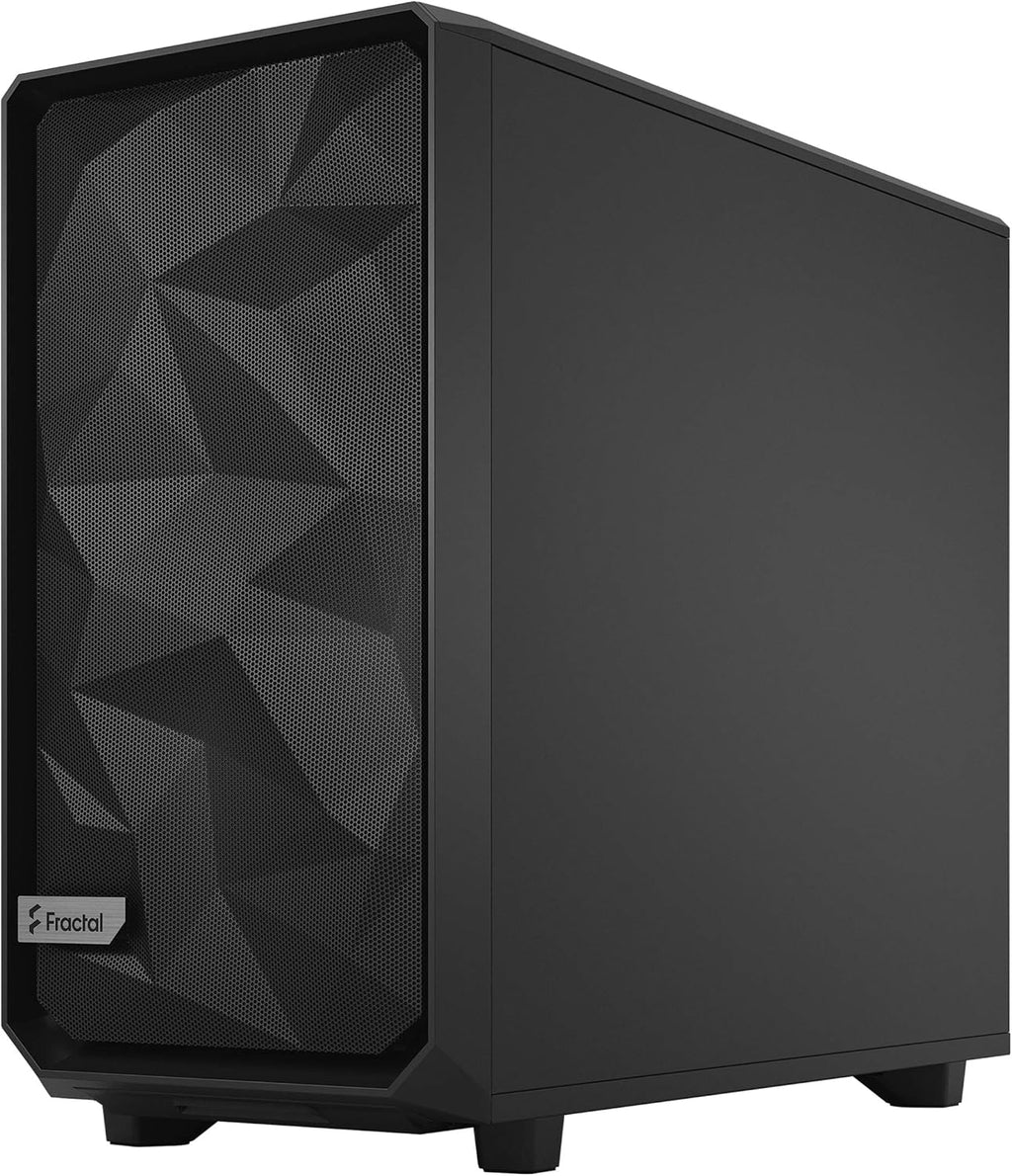

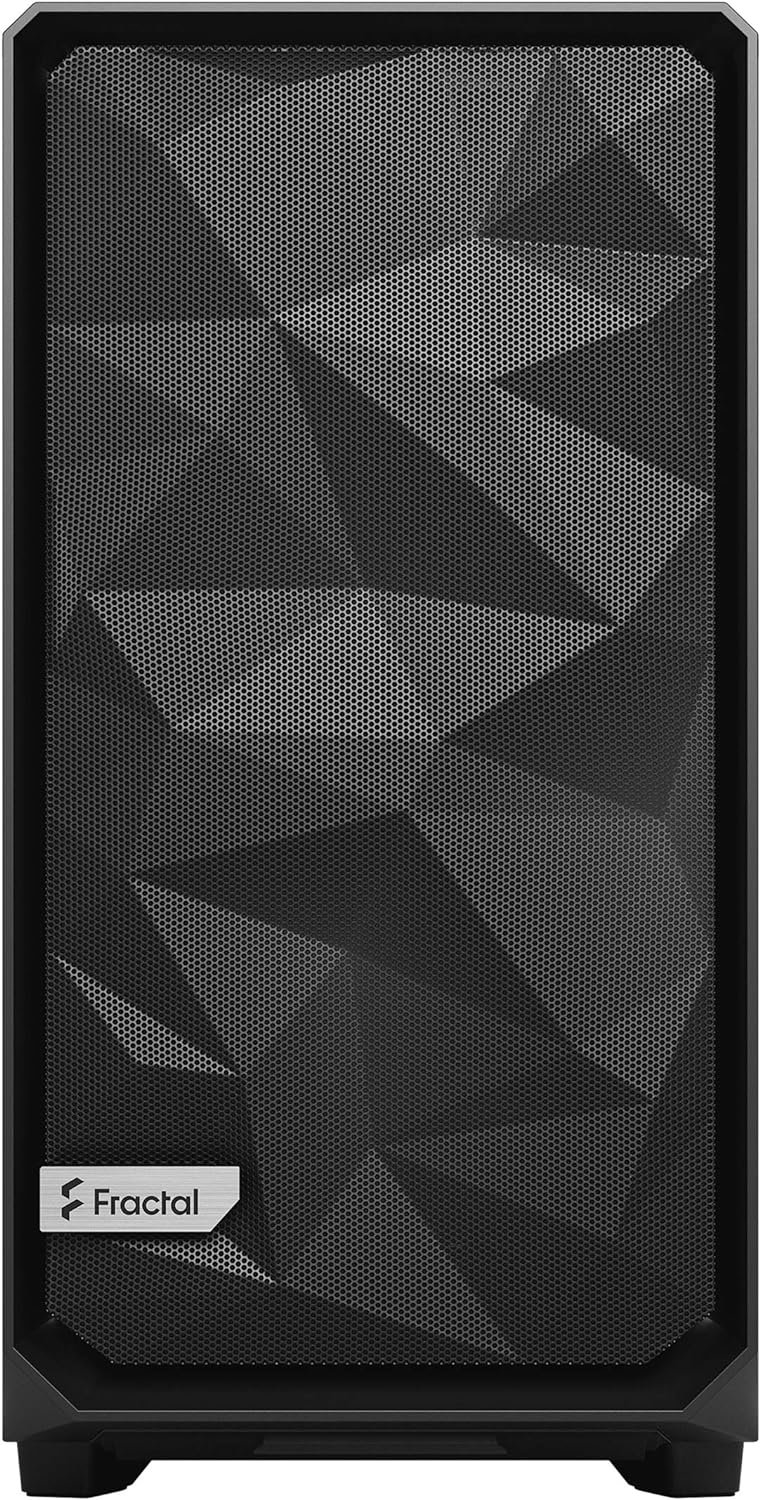

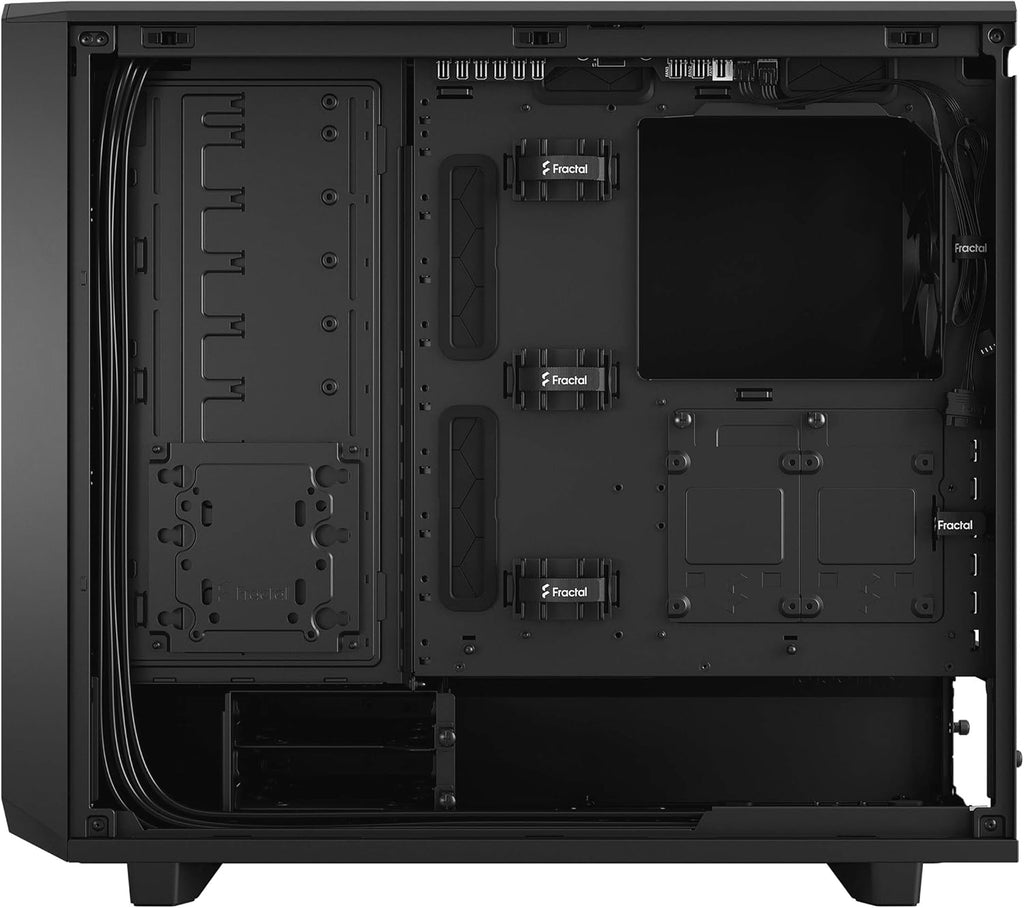

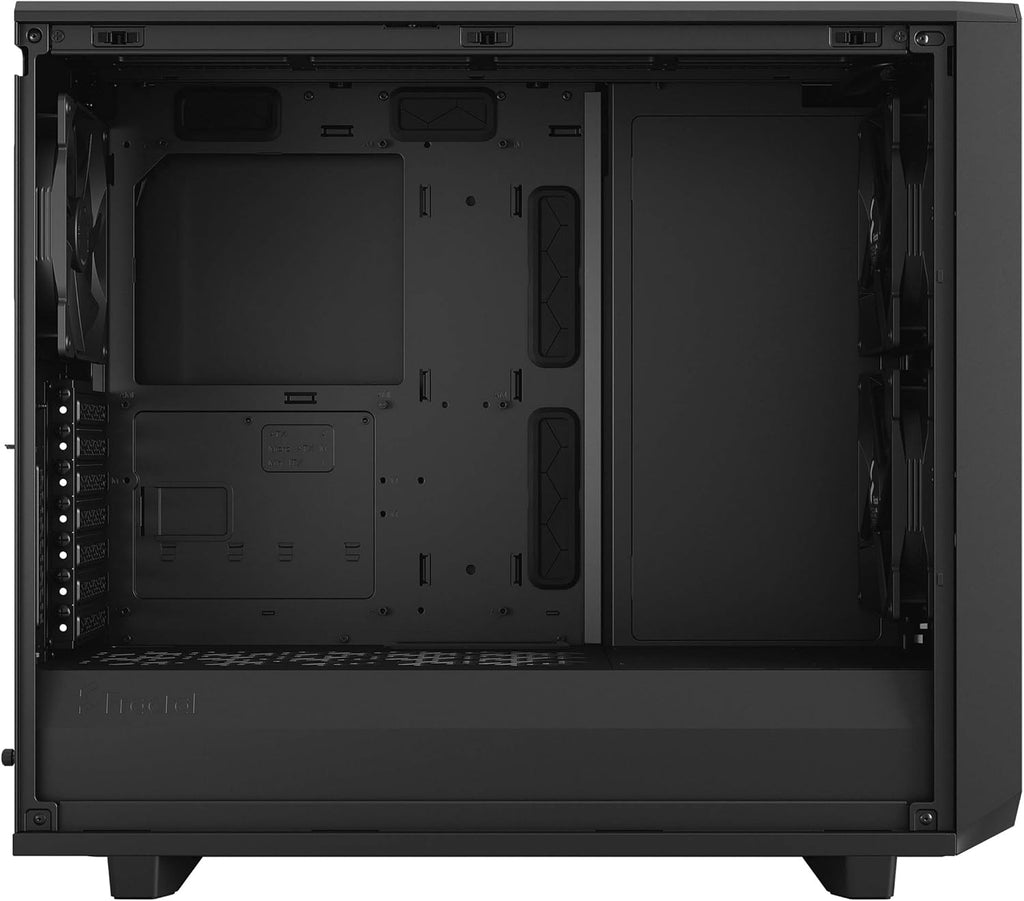

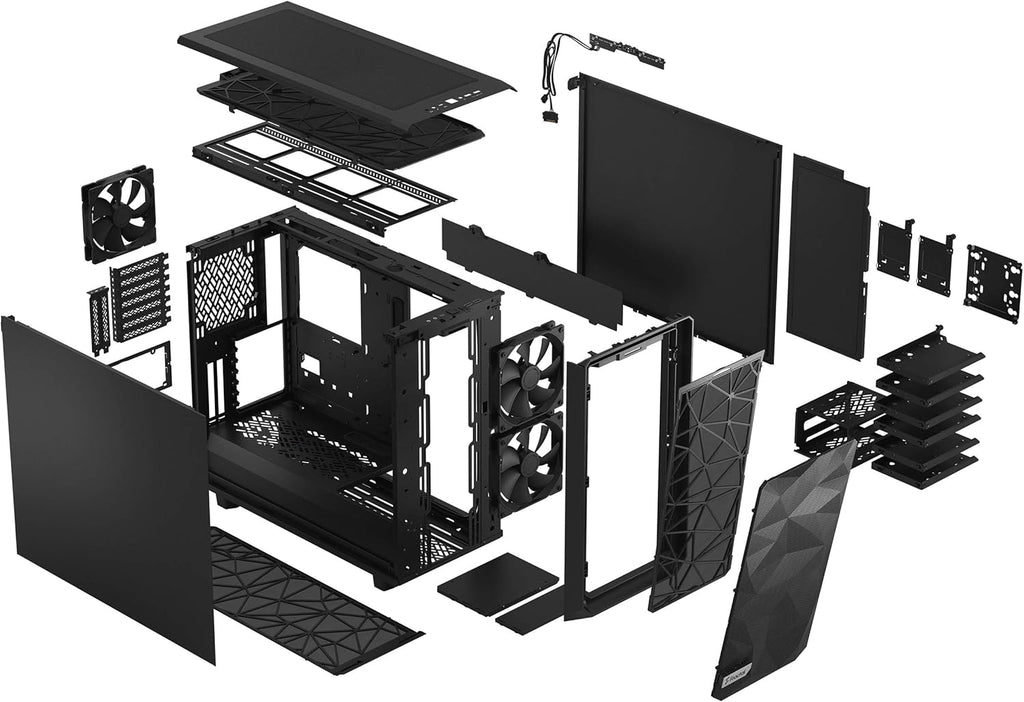

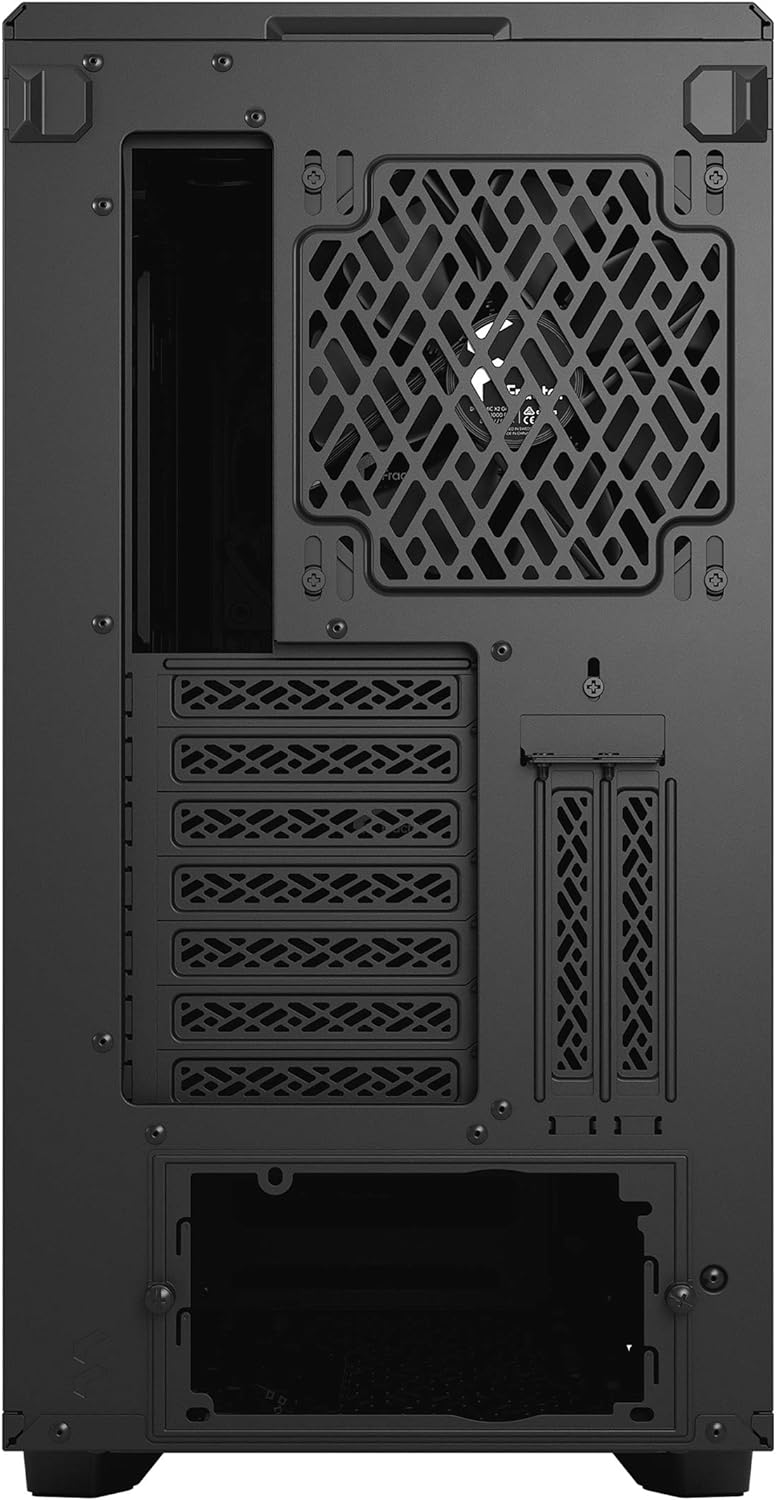

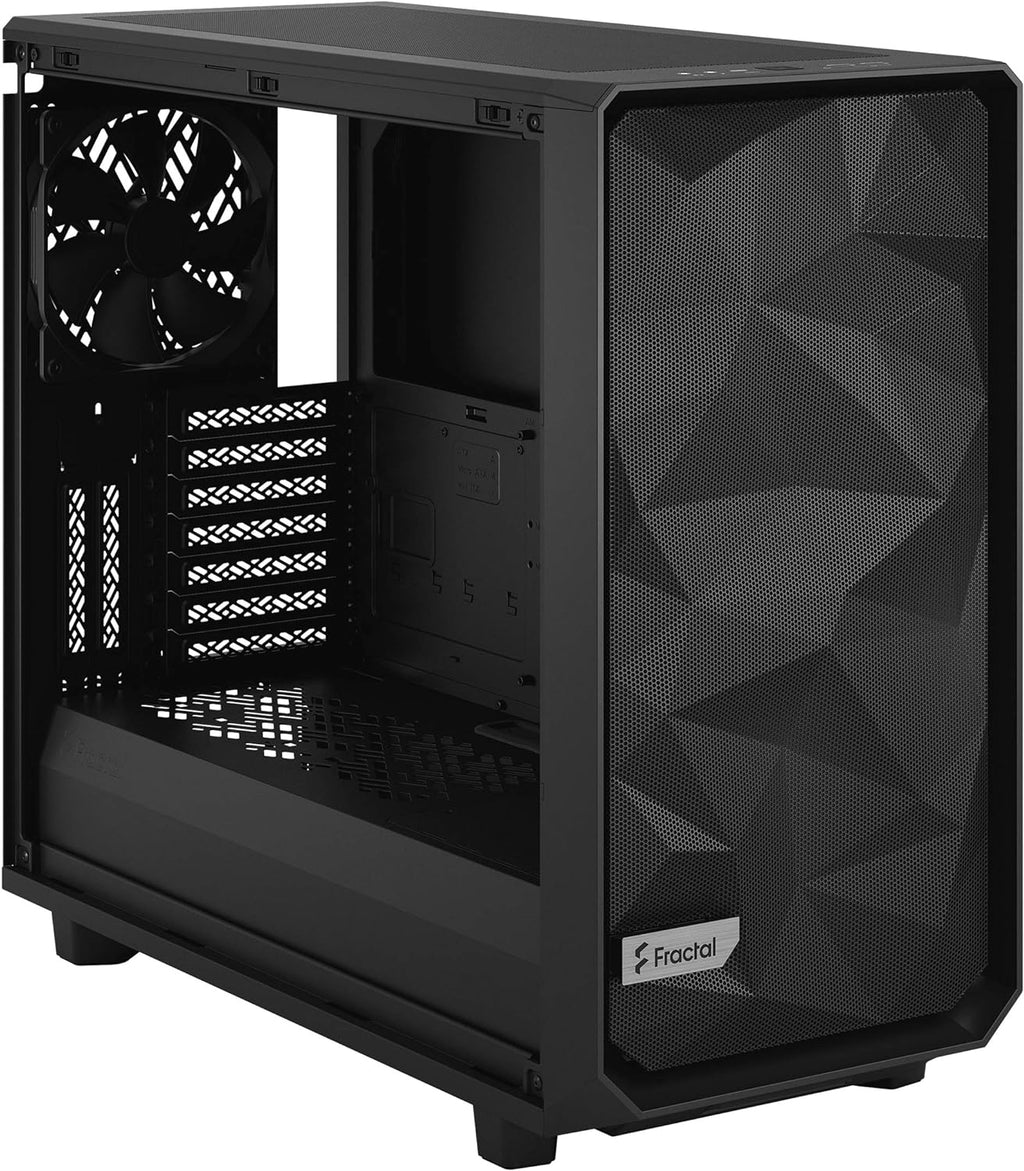

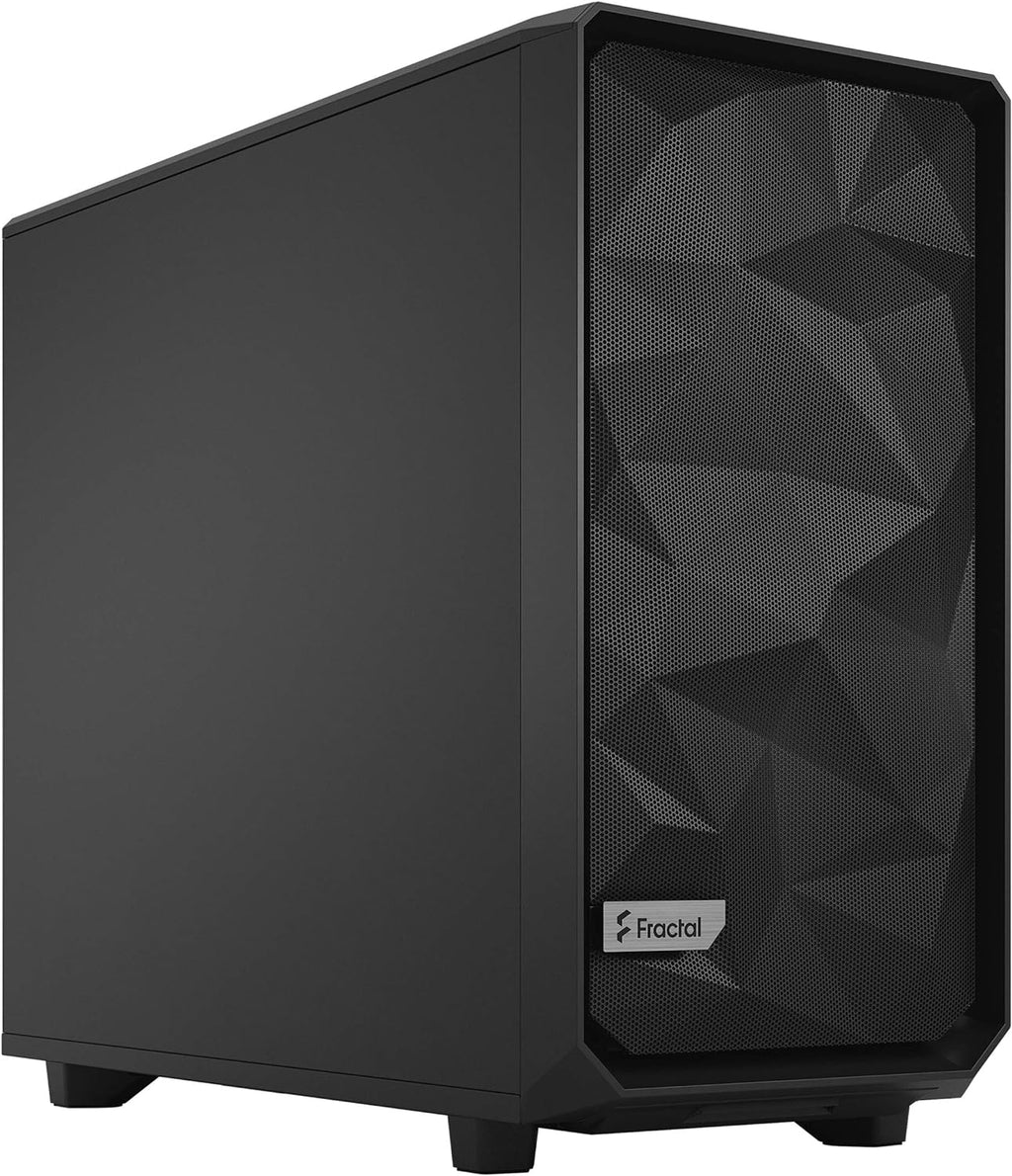

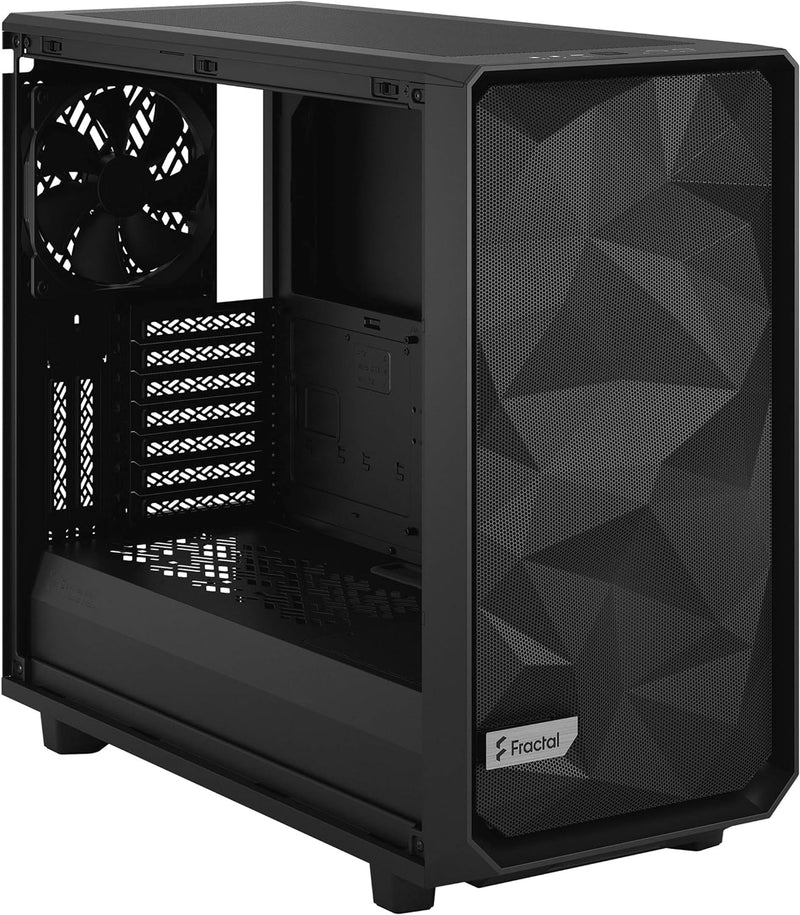

Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Roll over image to zoom in Click on image to zoom
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01
Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01

Fractal Design Meshify 2 BLACK Solid ATX Case FD-C-MES2A-01

FRACTAL DESIGN
Price:
HK$1,100.00

Description

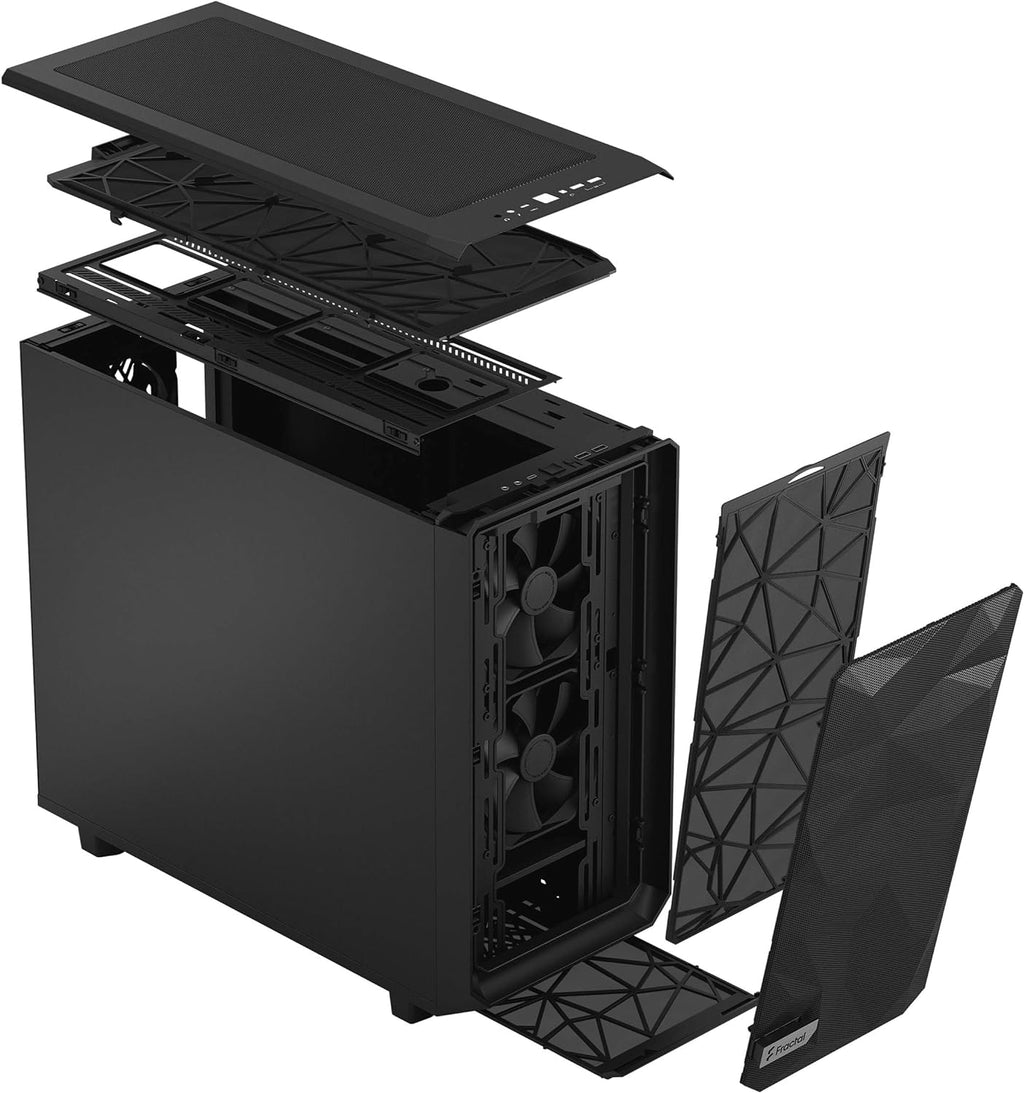

Detachable Front Filter

superlative storage

Extremely Flexible

Meshify 2 A+ 4

meshify 2

Specifications

  • 3.5"/2.5" Universal drive mounts
    6 included, 14 positions total + 1 Multibracket
  • Dedicated 2.5" drive mounts
    2 included, 4 positions total
  • Expansion slots
    7 + 2

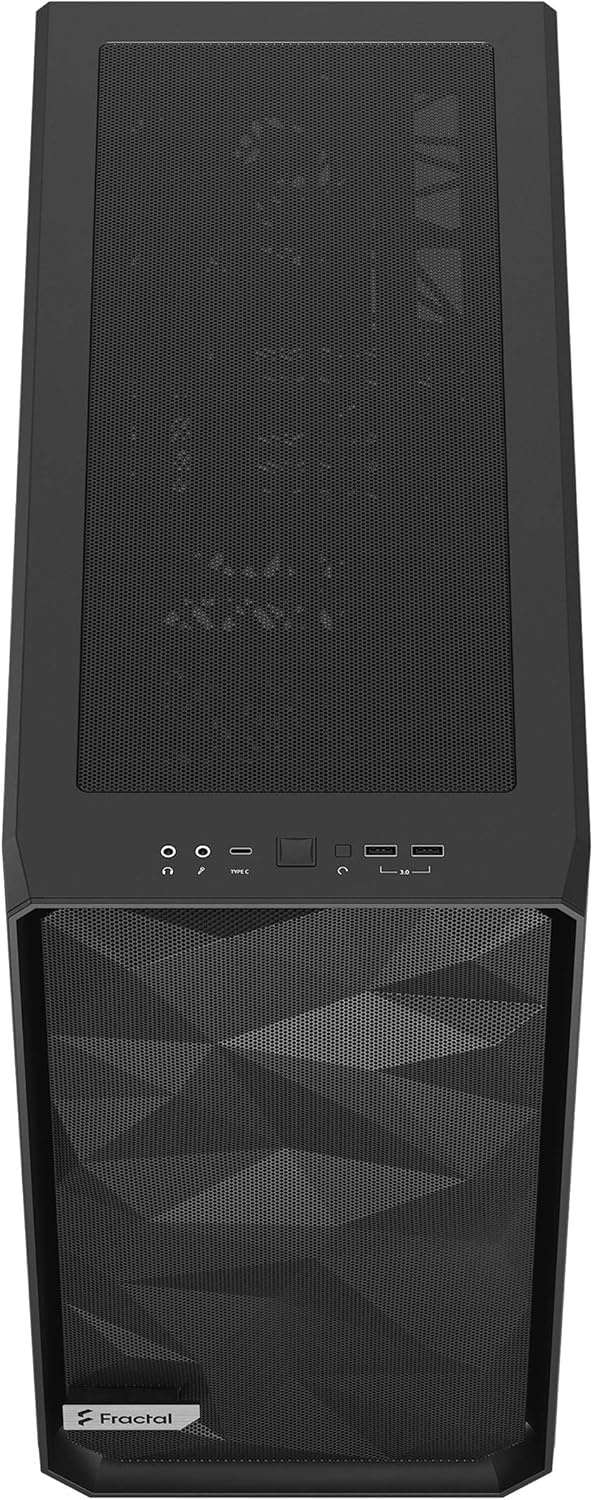

  • Front interface
    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
  • Total fan mounts
    9x 120/140 mm
  • Front fan
    3x 120/140 mm (2x Dynamic X2 GP-14 included)
  • Top fan
    3x 120/140 mm
  • Rear fan
    1x 120/140 mm (1x Dynamic X2 GP-14 included)
  • Bottom fan
    2x 120/140 mm
  • Dust filters
    Top, front and bottom
  • Fixed velcro straps
    Yes
  • Cable routing grommets
    Yes
  • Captive thumbscrews
    HDD, SSD and PSU brackets
  • Left side panel
    Steel
  • Right side panel
    Steel

Compatibility

  • Motherboard compatibility
    E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX
  • Power supply type
    ATX
  • PSU max length
    250 mm (with HDD cage installed)
  • GPU max length
    Storage layout: 315 mm Open layout: 491 mm (467 mm w/ front fan)
  • CPU cooler max height
    185 mm
  • Front radiator
    Up to 360/280 mm
  • Top radiator
    Up to 360/420 mm
  • Rear radiator
    120 mm
  • Bottom radiator
    Up to 240/280 mm
  • Cable routing space
    30 mm

Dimensions

  • Case dimensions (LxWxH)
    542 x 240 x 474 mm
  • Case dimensions w/o feet/protrusions/screws
    541 x 240 x 454 mm
  • Package dimensions (LxWxH)
    634 x 542 x 324 mm
  • Net weight
    Solid: 10.1 kg TG: 10.5 kg
  • Gross weight
    Solid: 12.8 kg TG: 13.2 kg
  • Volume
    58.95 liters

Other

  • Package contents
    Meshify 2 Case, User manual, Large accessory box - HDD trays. Small accessory box
