Fractal Design Torrent Nano Black Mini-ITX Case FD-C-TOR1N-04


Price:
Sale priceHK$950.00

Description

Fractal Designs Torrent Nano Solid Black SFF Chassis

Fractal Design Torrent NANO

SUPERB COOLING IN A SMALL FORM FACTOR Meet the Torrent Nano Black, crafted to air cool your small build as efficiently as possible. Boasting an unobstructed base intake, open-air front panel, 180mm Dynamic PWM fan which has been custom designed to maintain maximum cooling efficiency with low noise output. Capable of housing a range of additional fans or even up to a 280mm radiator if liquid cooling is more your thing. If your chasing performance and fancy saving some desk real-estate the Torrent Nano from Fractal Designs will be a perfect fit.

Top-Tier Cooling Performance

Open grill design

OPEN GRILLE DESIGN Fractal Design Torrent Nano has an open grille and internal layout which supports a massive included 180 mm fan. The open interior provides breathing room for components and maximizes performance for air and water cooling.

Streamlined Inside and Out

Fan support

FAN COMPATIBILITY

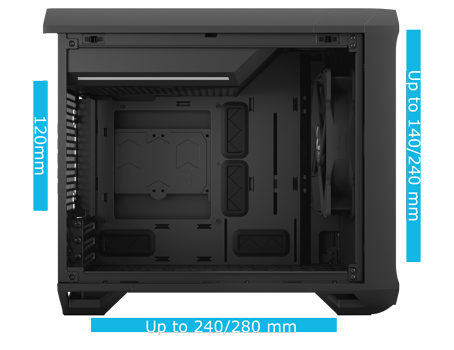

Radiator support

RADIATOR COMPATIBILITY

MAXIMUM GPU COOLING POTENTIAL As performance evolves, so must cooling. The Torrent Nano boasts insane cooling potential despite it's compact size. It's open layout interior, expansive base intakes and support for large bottom fans or radiators enables you to ramp up the performance whilst still keeping your components cool and allowing your systems to breathe.

Fractals Biggest Fan!

Dynamic X2 GP-18

DYNAMIC X2 GP-18 The Dynamic X2 GP-18 is a powerful 180 mm fan that packs a mean punch in the air-flow department. Massive blades, stout 38 mm thickness, and a wide 300-1200 RPM range with PWM control allow the GP-18 to yield remarkably high airflow while remaining exceptionally quiet.

Quick Start With A Clean Finish

Burst shot

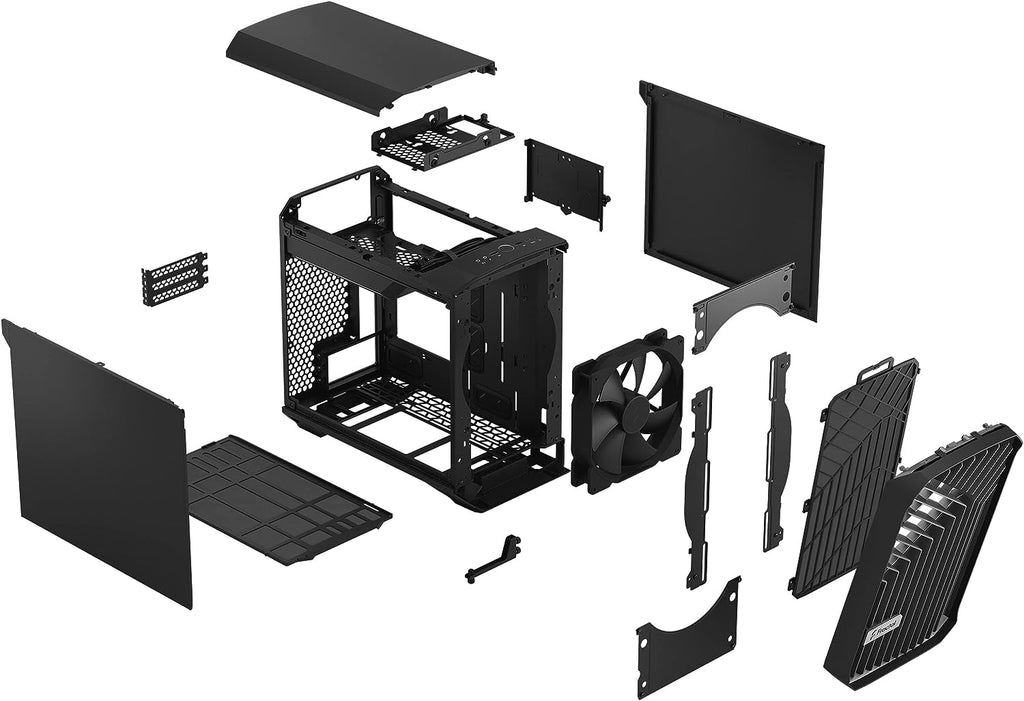

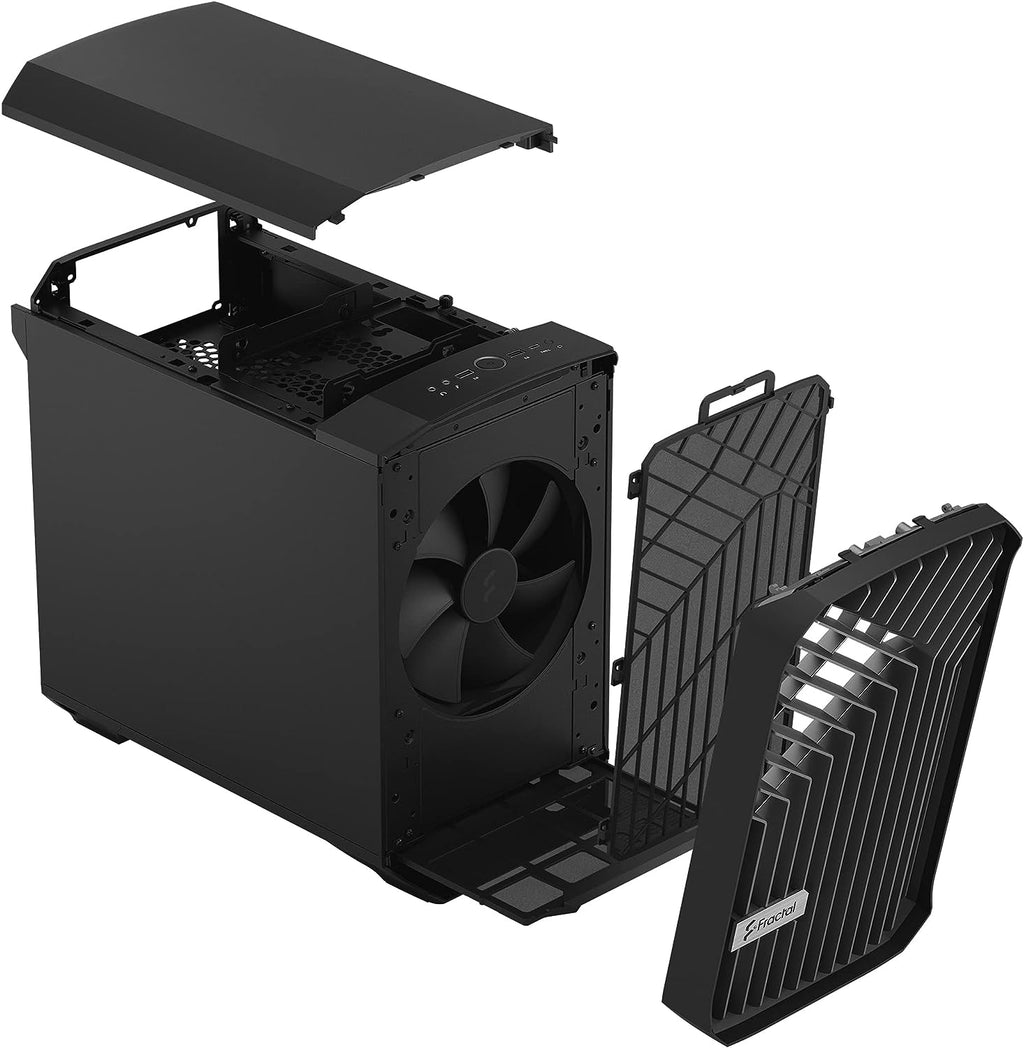

EASY INSTALLATION AND MAINTENANCE Boasting a handy cable management system, removable top bezel, sturdy, vibration-damped drive tray supporting a single HDD or dual SSDs with two optional mounting positions and dedicated SSD bracket with room for 2x 2.5” drives included the Torrent Nano holds many of the features of it's bigger brother.

Specifications

Core Chassis Specifications
Case Edition Torrent Nano
Case Form Factor Mini-ITX
Motherboard Form Factor
  • Mini-DTX
  • Mini-ITX
Reverse Connection Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1xMic In
  • 2x USB 3.0
  • 1x USB 3.1 Gen2 Type-C
Drive Bays
  • 2 x 2.5" Internal
  • 1 x 2.5"/ 3.5" Internal
Standard Expansion Slots 3
Vertical Expansion Slots
Fans & Filters
Fan Bays 5x120mm/4x140mm/1x180mm
Fans Included 1x180mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
Liquid Cooling Support
Front Radiator Compatibility 1 x 140/240mm
Top Radiator Compatibility
Bottom Radiator Compatibility 1 x 240/280mm
Rear Radiator Compatibility 1x120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 165mm
Max GPU Card Length 335mm
Cable Routing Space 29mm
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Color
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location Top Mount, Rear
Max PSU Length 200 mm
Chassis Physical Specifications
Color Black
Chassis Construction Materials Steel
Dimensions 222 x 374 x 417 (WxHxD mm)
Weight 6.0 kg (Approx)
