Description
Compliant with Intel ATX 3.1 specification
According to the latest ATX3.1 specification and PCIe-5.1, the power supply can maintain the maximum total power offset.
High power, high compatibility
This series is equipped with a native PCIe-5.1 interface and also supports 2 PCIe 6+2Pin interfaces for graphics cards. In addition, it also supports two slots of CPU connectors for higher performance.
Gold certified high conversion efficiency
Certified by the world-class organization 80 PLUS®, Gold certified for lower power loss, less heat and quieter operation.
Compact power supply dimensions: 140 x 150 x 86 mm
At 140mm in length, it's relatively shorter than industry standards, making it ideal for compact PCs or space-constrained environments without compromising performance.
Full module wiring design
Makes power supply installation simple and allows users to use only the cables they need, improving airflow and reducing system clutter.
105°C Japanese large capacitor
Use high-quality Japanese electrolytic capacitors to extend service life and maximize reliability and performance

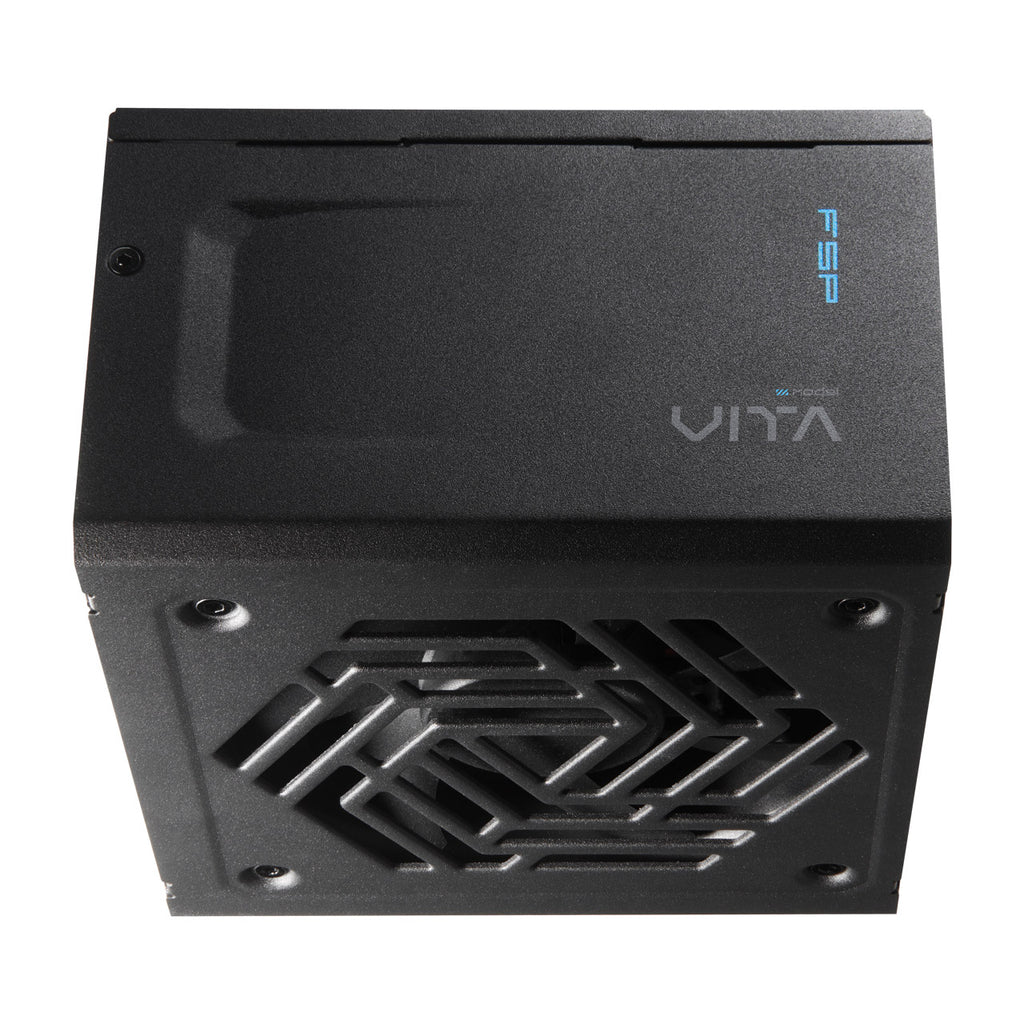

120 mm hydraulic bearing (HYB) fan
Premium bearings minimize fan noise while providing maximum cooling performance.

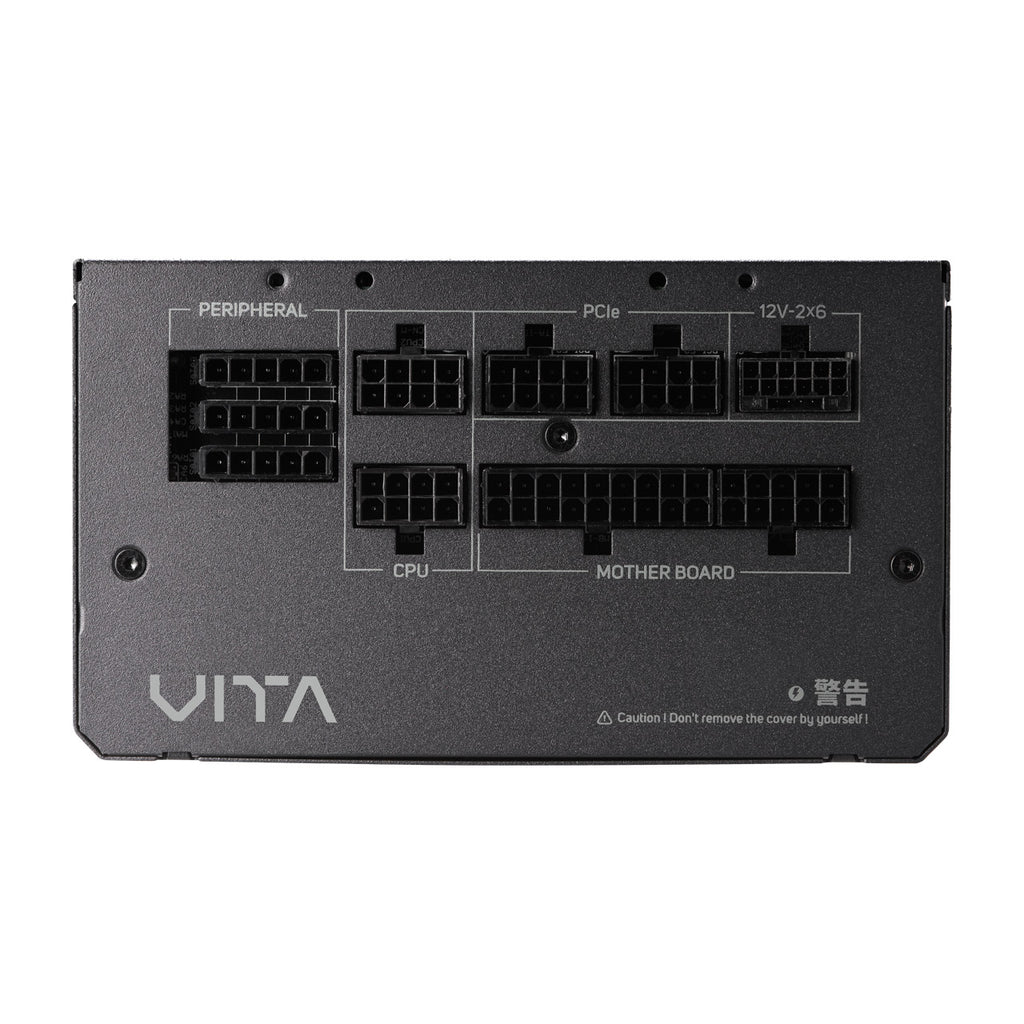

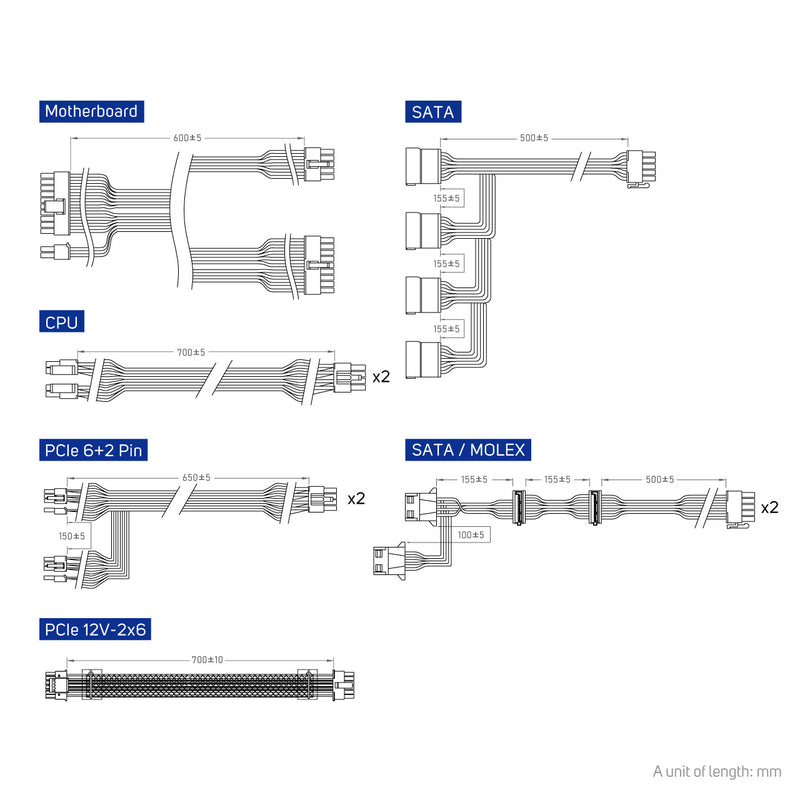

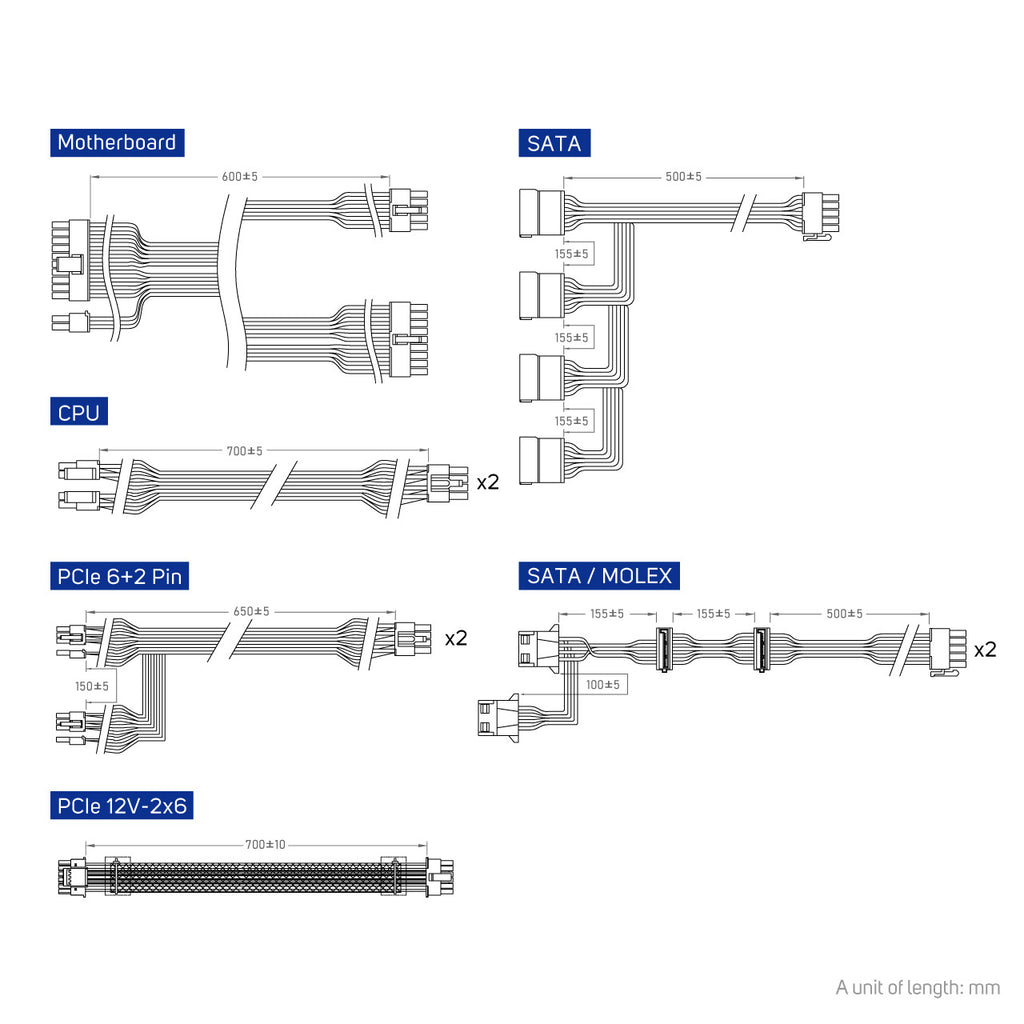

Cables
 |
 |
 |
 |
 |
 |
|
| MB 20+4PIN | CPU 4+4 PIN | PCIe 12V-2x6 | PCIe 6+2 PIN | SATA | MOLEX | |
| interface | 1 | 2 | 1 | 4 | 8 | 4 |
AC/DC
|
AC input |
100-240Vac~ 10-5A 50-60Hz (Not for China) | ||||
| 200-240Vac~ 10-5A 50-60Hz (Only for China) | |||||
| DC output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Maximum output current | 20A | 20A | 62.5A | 0.3A | 3A |
| Maximum combined power | 100W | 750W | 3.6W | 15W | |
| rated power | 750W | ||||
SPECIFICATION
| model | VITA-750GM |
|---|---|
| rated power | 750W |
| Specification | ATX12V V3.1 |
| 80 PLUS certified | Gold |
| Input voltage | 100-240V |
| Input Current | 10-5A |
| input frequency | 50-60Hz |
| PFC | Active ≧ 0.9 |
| efficiency | Conversion efficiency ≥90% |
| Fan type | HYB fan, 120mm |
| Dimensions (L x W x H) | 140×150×86mm |
| operating temperature | 40°C |
| Protect | OCP, OVP, SCP, OPP, UVP, OTP |
