Compliant with ATX 3.0 and PCIe Gen 5.0 standards
(Compatible with ATX 3.1 standard)

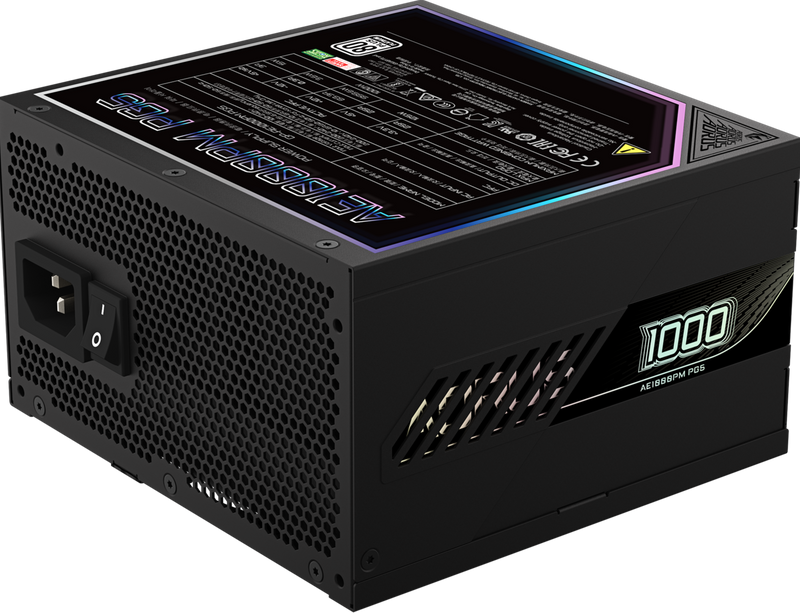

AE1000PM PG5 can withstand up to 3 times the GPU overload instantaneous output and 2x the total power overload instantaneous output. It fully complies with the Intel ATX 3.0 standard, supports up to 200% power overload instantaneous output, and reaches 70% low load efficiency. In addition, the included high-quality native 16pin cable can fully support the latest PCIe Gen 5.0 graphics cards and provide up to 600W of power supply.
Reduced size design
GIGABYTE's engineering expertise in thermal dissipation and material selection allowed the power supply to be shrunk to an impressive 14 centimeters, making it easy to install even in space-constrained cases.
Specification
-
-

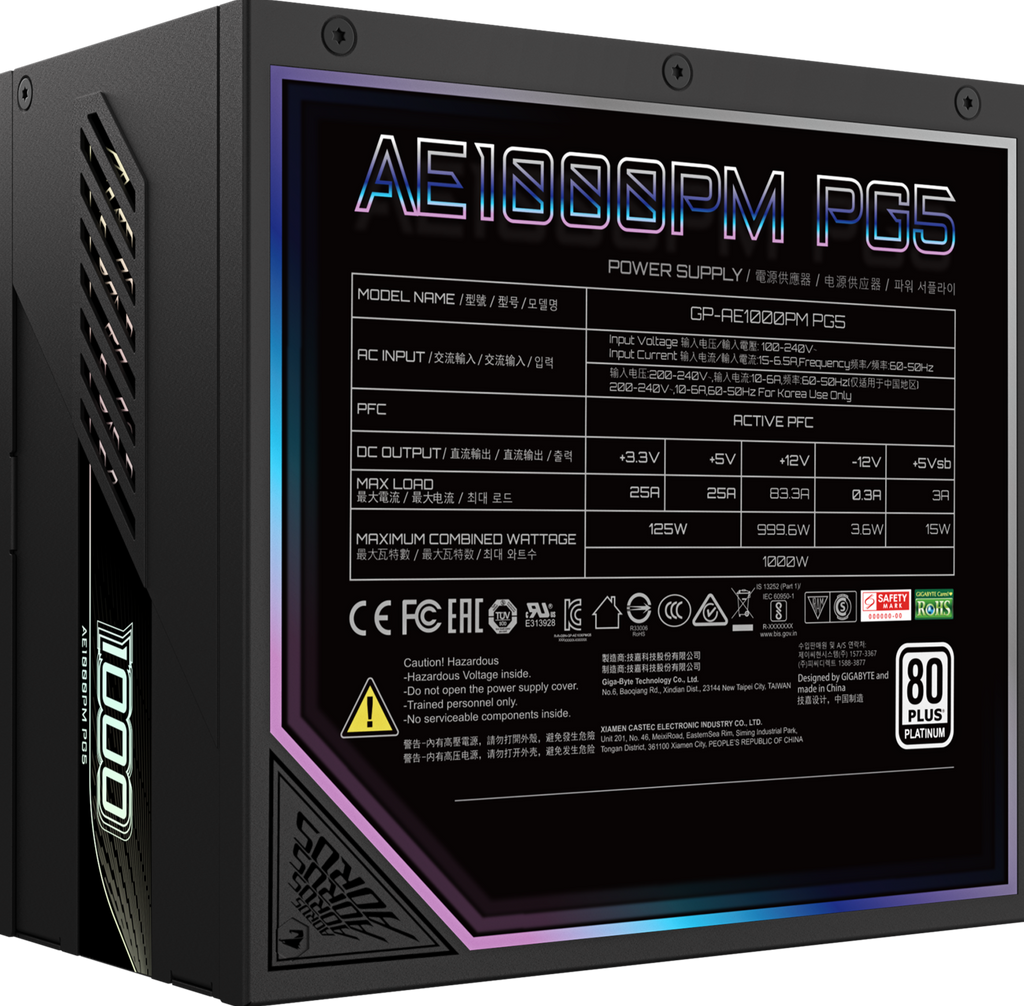

Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
-
Active PFC (>0.9 typical)
-
-
-
-
-
-

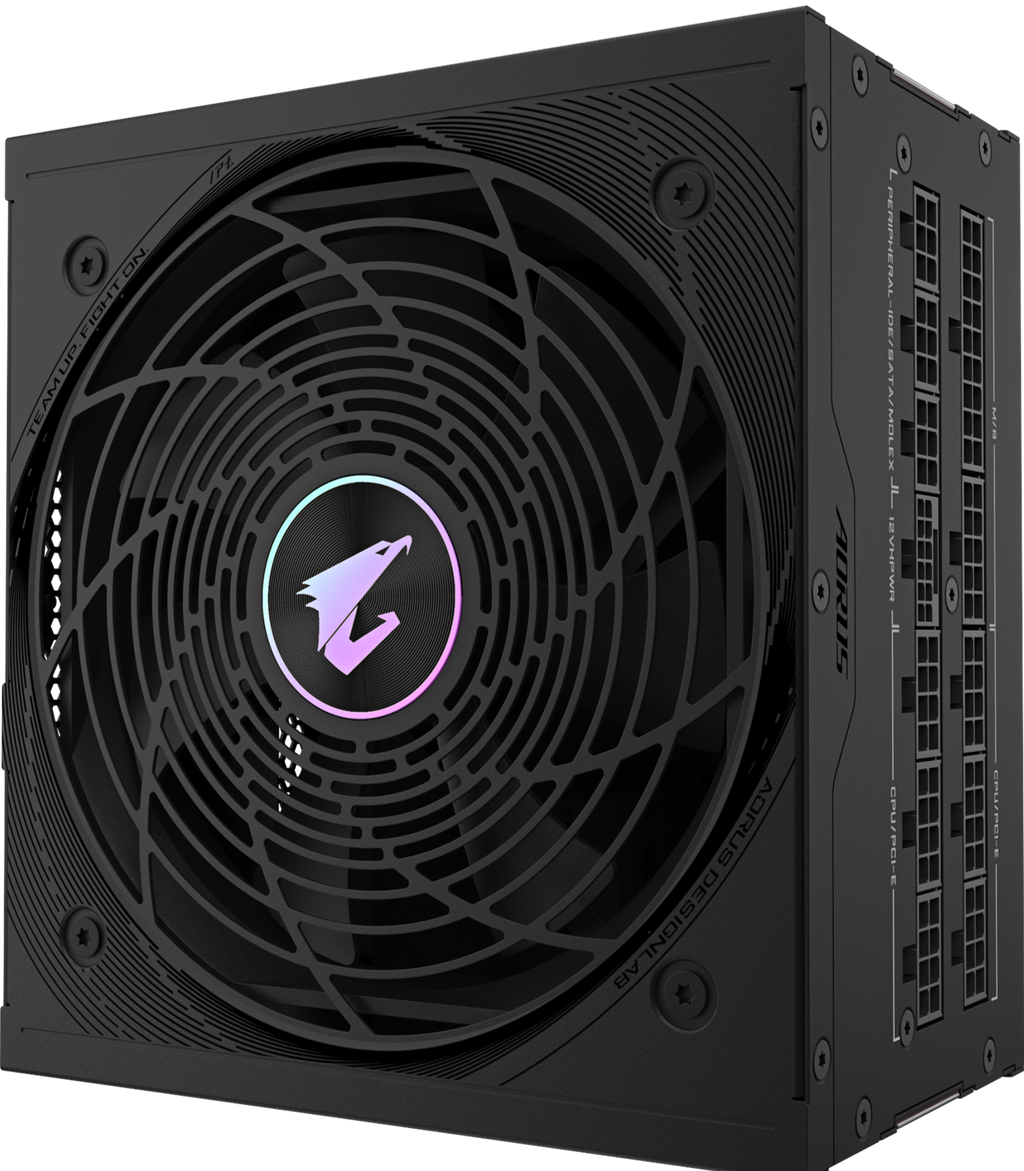

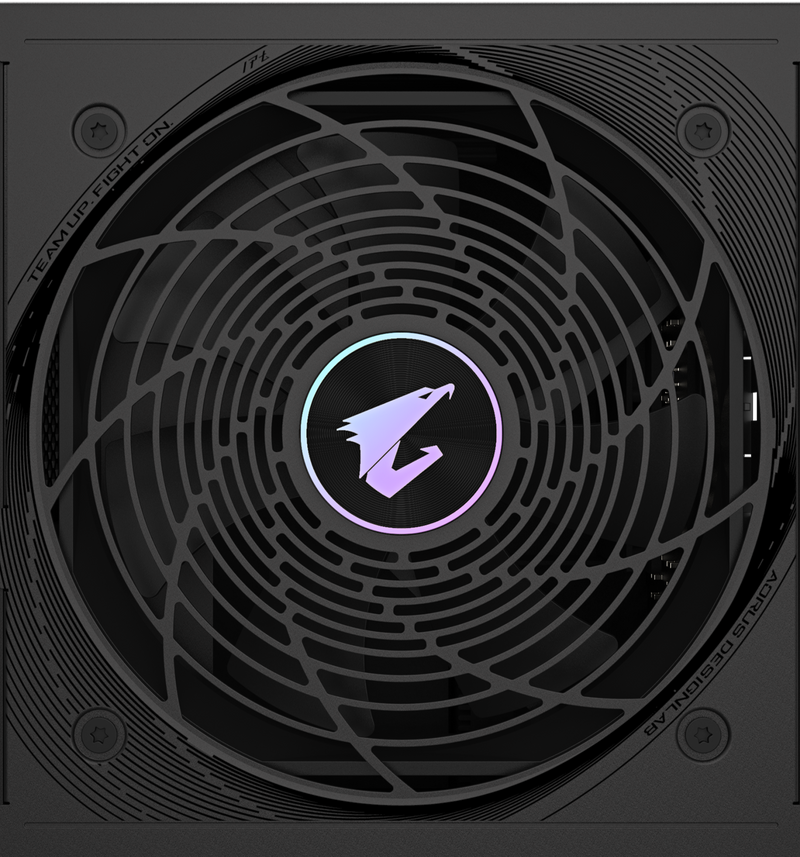

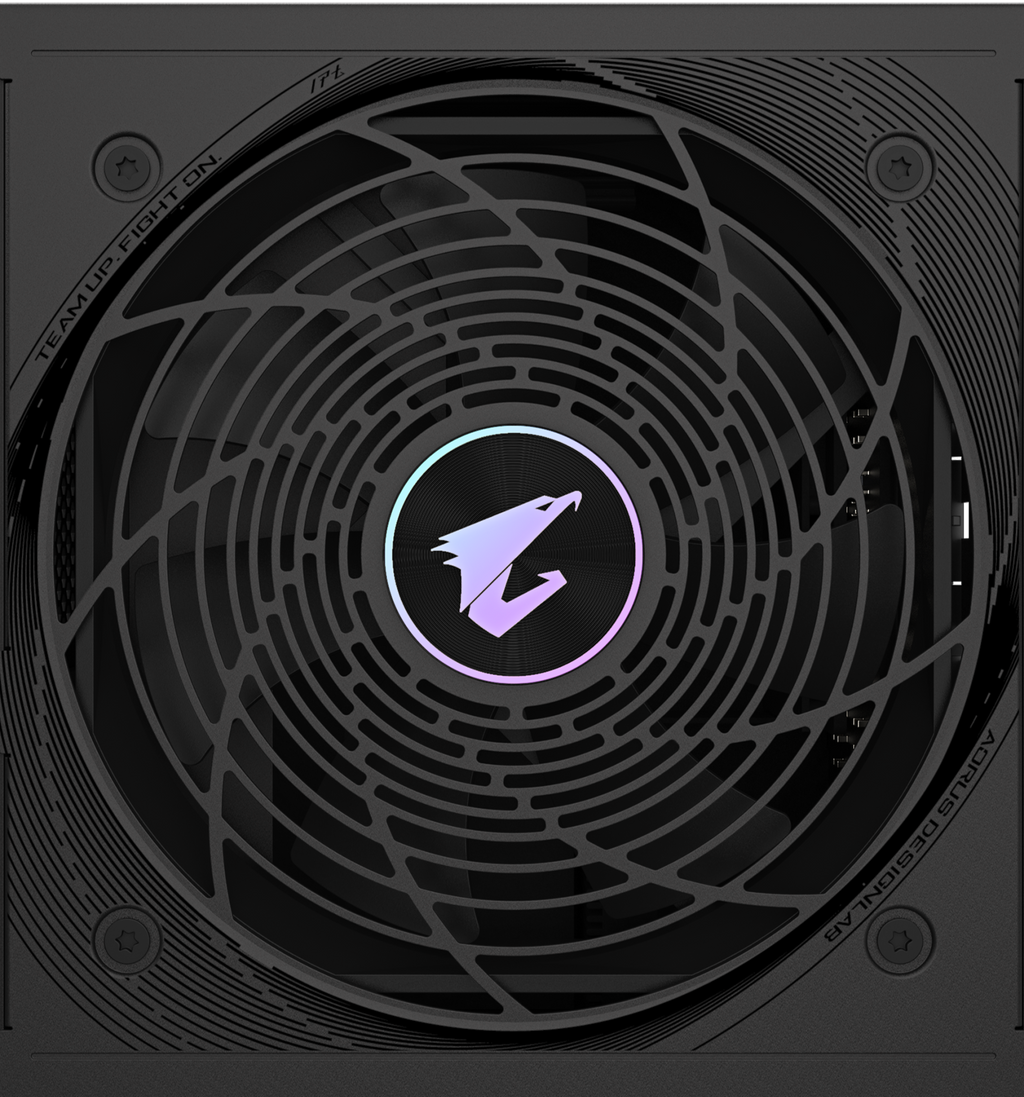

120mm Fluid Dynamic Bearing (FDB) Fan
-
-
-
-
-
-
-
-

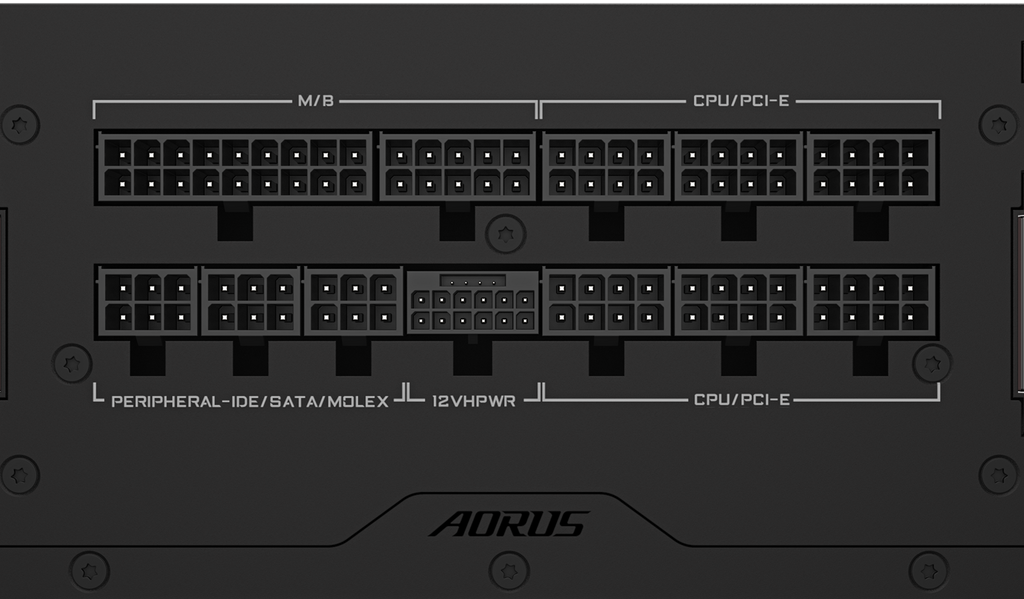

ATX/MB 20+4 Pin x 1: 650mm*1
CPU/EPS 4+4 Pin x 2: 700mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 6: 650mm+150mm*2, 750mm*2
SATA x 8: 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4: 500mm+150mm+150mm+150mm*1
