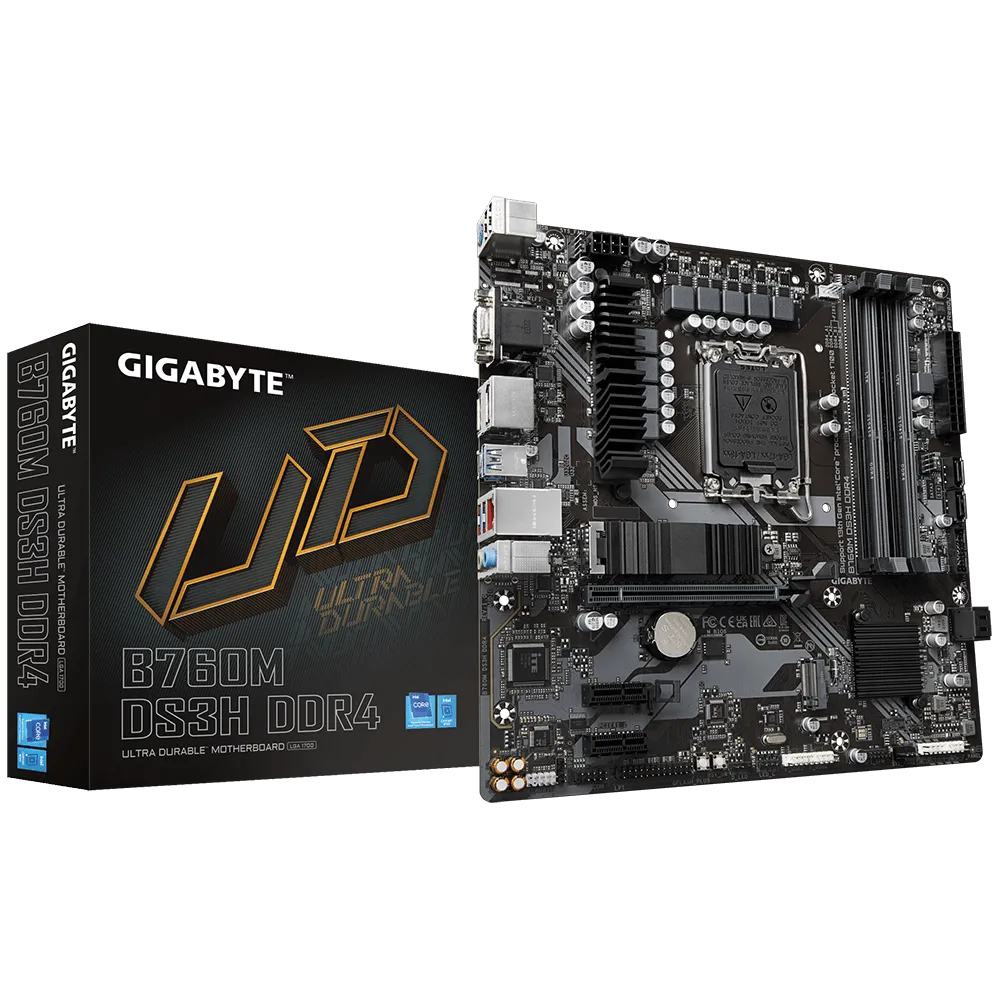

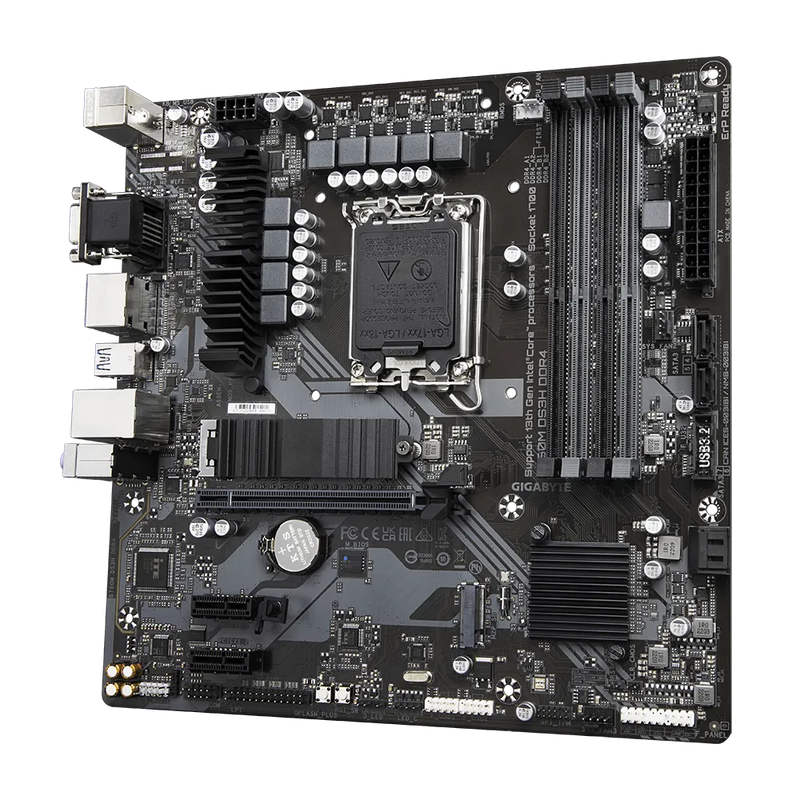

GIGABYTE B760M DS3H DDR4,LGA 1700 mATX Motherboard

1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel ^® Core™, ^Pentium® Gold and Celeron ^® Processors
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

1. ^Intel® B760 Express Chipset

1. Support for DDR4 5333(OC)/ 5133(OC)/ 5000(OC)/ 4933(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4300( OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3666(OC)/ 3600(OC)/ 3466(OC)/ 3400( OC)/ 3333(OC)/ 3300(OC)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Integrated Graphics Processor- ^Intel® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports.
3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
   * Support for DisplayPort 1.2 version and HDCP 2.3
4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
   * Support for DisplayPort 1.2 version.

(Graphics specifications may vary depending on CPU support.)

Support for up to quad-display at the same time

1. Realtek ^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out

1. Realtek ^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
   * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Chipset:

1. 1x USB Type- ^C® port on the back panel, with USB 3.2 Gen 2 support
2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
3. 2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

1. 4 x USB 2.0/1.1 ports available through the internal USB headers

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 2 x M.2 Socket 3 connectors
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
14. 1 x serial port header
15. 1 x parallel port header
16. 1 x S/PDIF Out header
17. 1 x Q-Flash Plus button
18. 1 x reset button
19. 1 x reset jumper
20. 1 x Clear CMOS jumper

1. 2 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 1 xD-Sub port
4. 1 x HDMI port
5. 2 x DisplayPorts
6. 3 x USB 3.2 Gen 1 ports
7. 1x USB Type- ^C® port, with USB 3.2 Gen 2 support
8. 1 x RJ-45 port
9. 3 x audio jacks

1. ^iTE® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 128Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus

1. ^Norton® Internet Security (OEM version)
2. LAN bandwidth management software

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

1. Micro ATX Form Factor; 24.4cm x 24.4cm
