Description
Key Features
- Intel® Thunderbolt™ 5 Certified add-in card
- Intel® JHL9580 Thunderbolt™ 5 controller
- Dual Thunderbolt™ 5 Ports (USB Type-C™)
- Deliver up to 80 Gb/s bi-directional bandwidth, or up to 120Gb/s single-direction bandwidth.
- Provides maximum support for DisplayPort™ 2.1 with 8K at 60Hz*
- Daisy-chain up to 10 Devices (5 devices per port)
- Support PD3.1 standard (up to 100W)
* To enable DP2.1 functionality, specific cables are required.
* THUNDERBOLTS 5 add-in card availability may vary based on local distribution.
* THUNDERBOLTS 5 add-in card availability may vary based on local distribution.

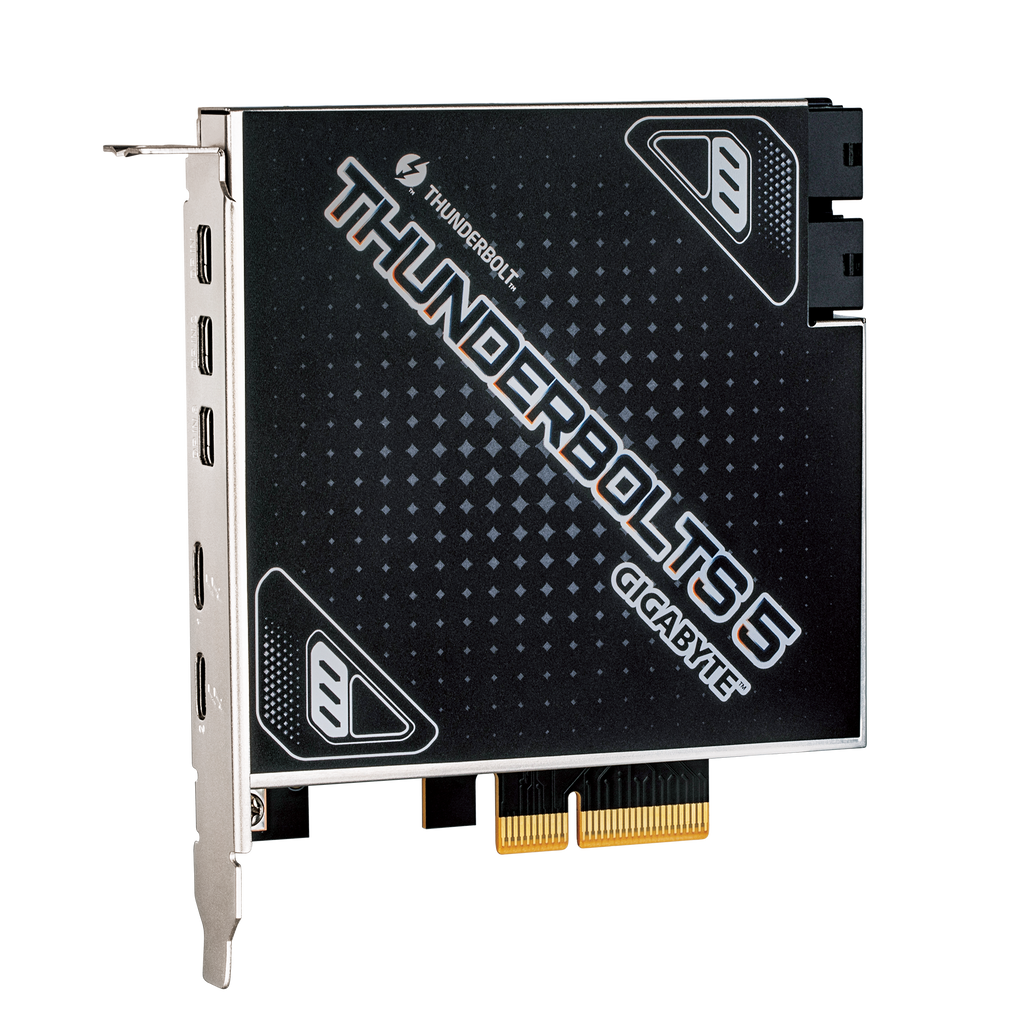

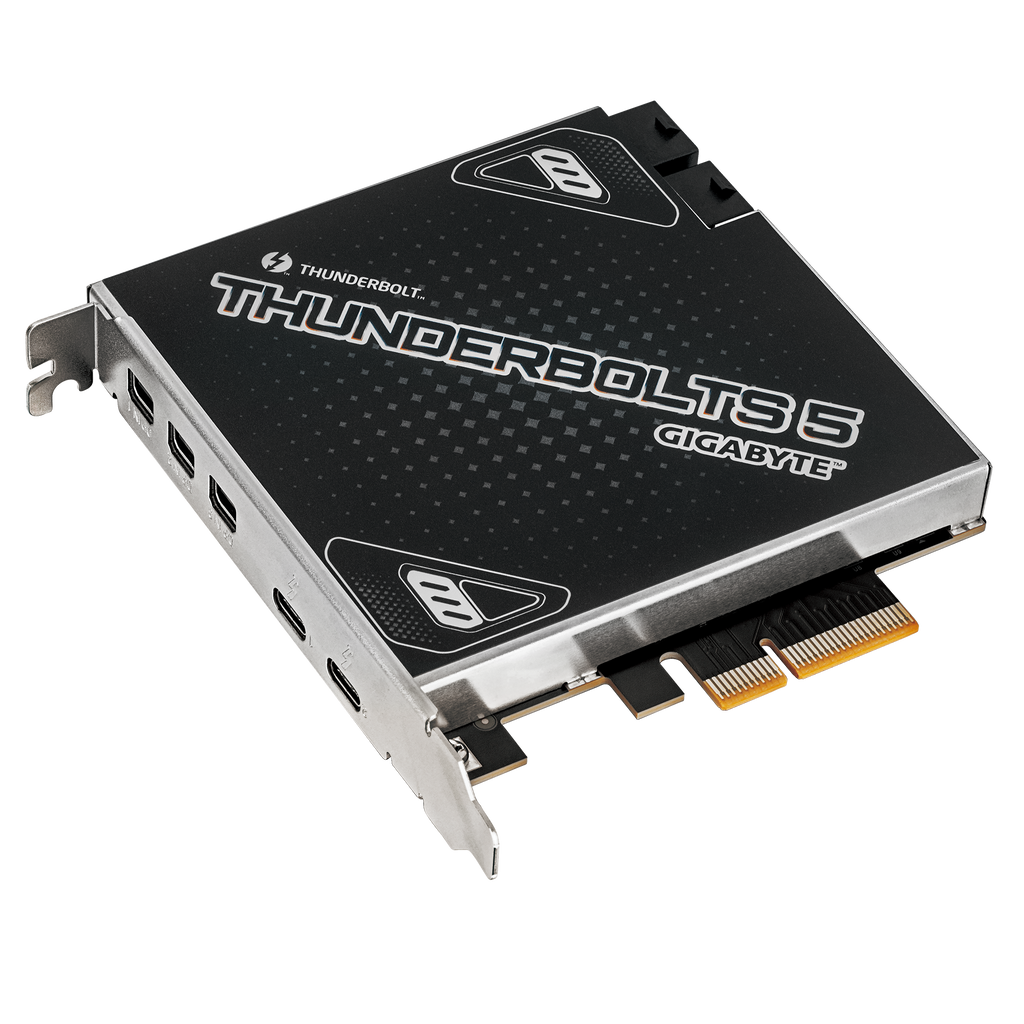

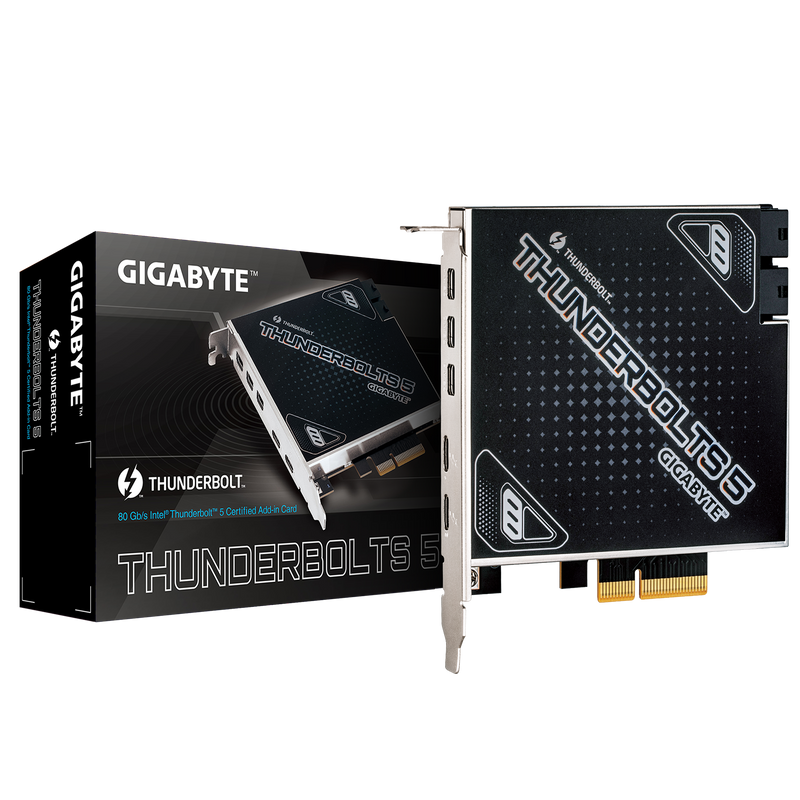

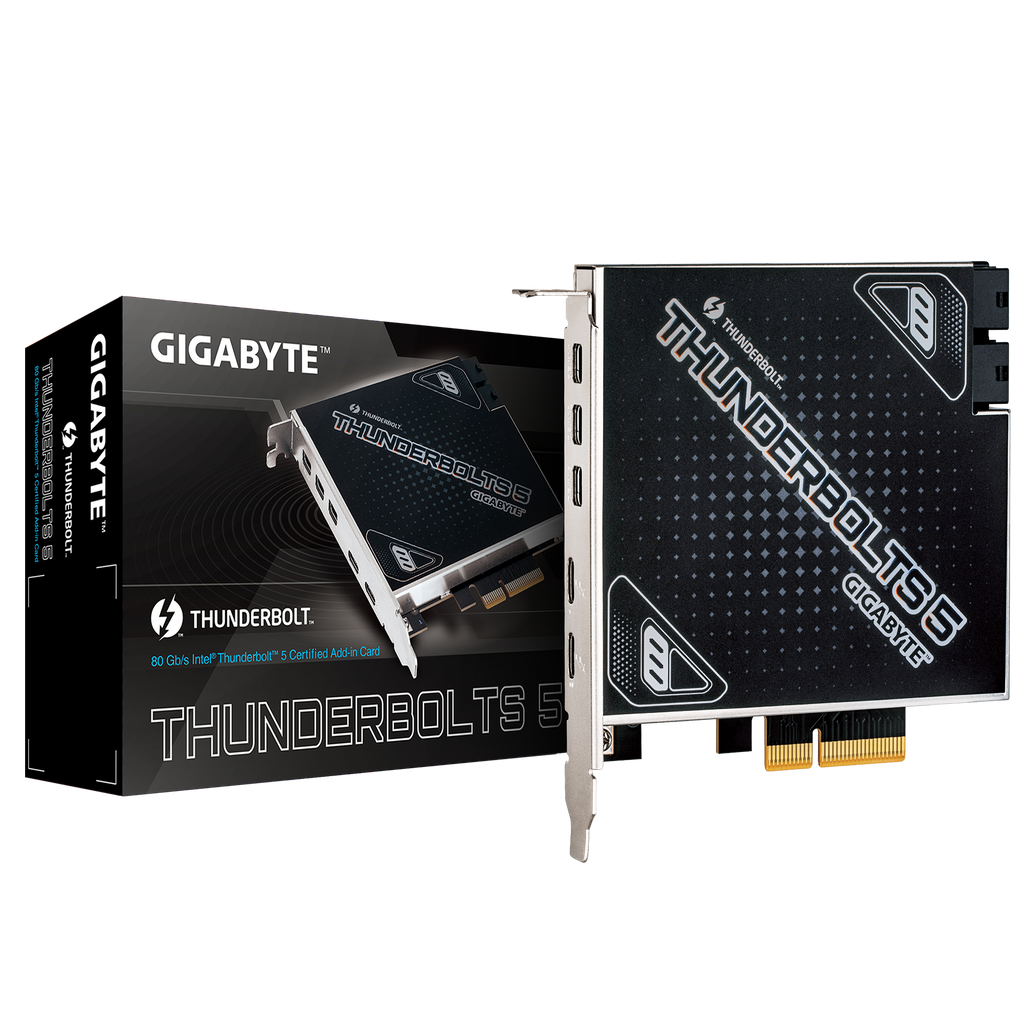

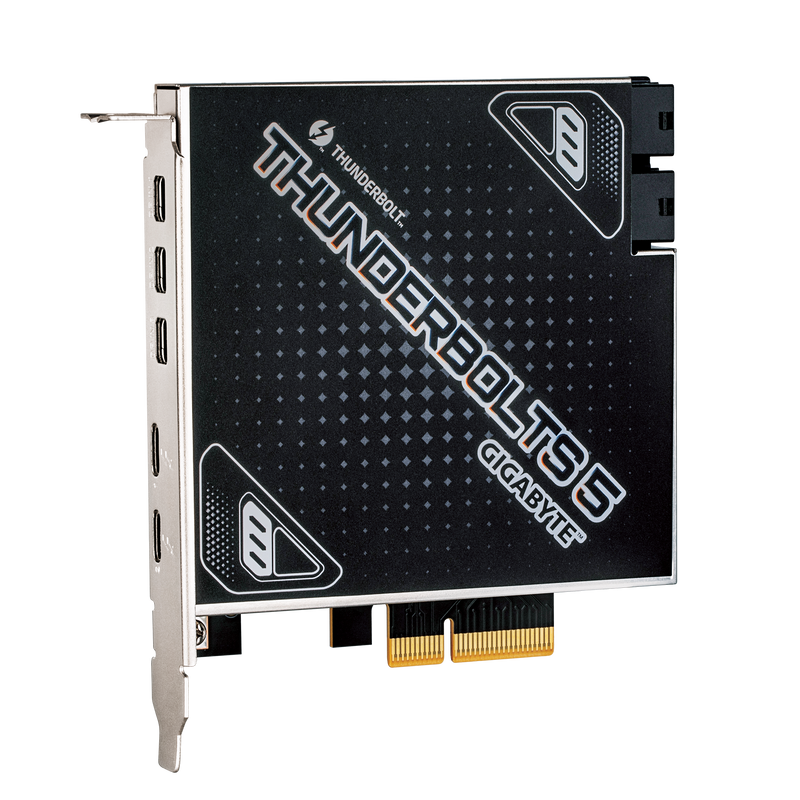

80 Gb/s Intel® Thunderbolt™ 5 Certified Add-in Card
The THUNDERBOLTS 5 offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 5 connectivity without having to upgrade to a whole new system.
-
Mini-DisplayPort In Port 1 (DP IN 1)
-
Mini-DisplayPort In Port 2 (DP IN 2)
-
Mini-DisplayPort In Port 3 (DP IN 3)
-
USB Type-C™ port 1
-
USB Type-C™ port 2
-
PCIe Power Connector
-
USB Connector
-
5-pin Thunderbolt™ header
-
3-pin Thunderbolt™ header
-
PCIe 4.0 x4
-
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
Dual Thunderbolt™ 5 – delivers up to 120Gb/s
Delivers speeds of up to 120Gb/s-- that's 3 times faster than Thunderbolt™ 4. The powerful capabilities of Thunderbolt™ 5 not only meet the needs of general users but also satisfy the gaming enthusiasts and video creators.
* Theoretical Bandwitch
Daisy-chain Multiple Devices
Thunderbolt™ 5 supports USB4, PCIe Gen 4, DisplayPort 2.1 and Power Delivery 3.1, in addition, Thunderbolt™ 5 offers the ability to daisy-chain up to 10 devices thanks to the dual USB Type-C™ ports.
* To enable DP2.1 functionality, specific cables are required.
* Depends on DisplayPort signal input from discrete display card.
* Depends on DisplayPort signal input from discrete display card.
Accessories
Mini-DisplayPort Cable x 3
USB 2.0/1.1 Header Cable x 1
Thunderbolt™ Header Cable (5-pin) x 1
Thunderbolt™ Header Cable (3-pin) x 1
