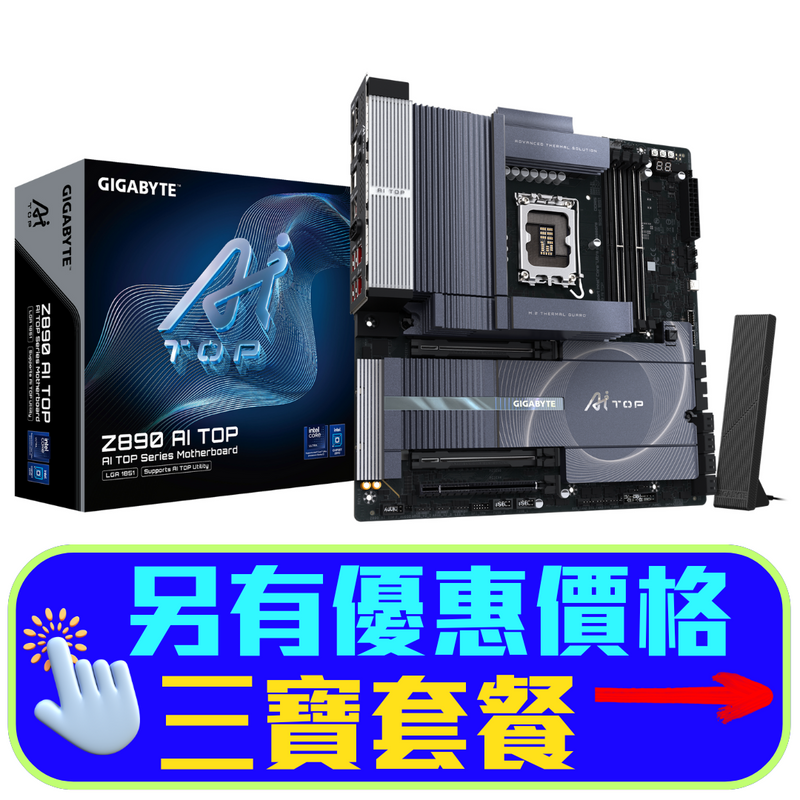

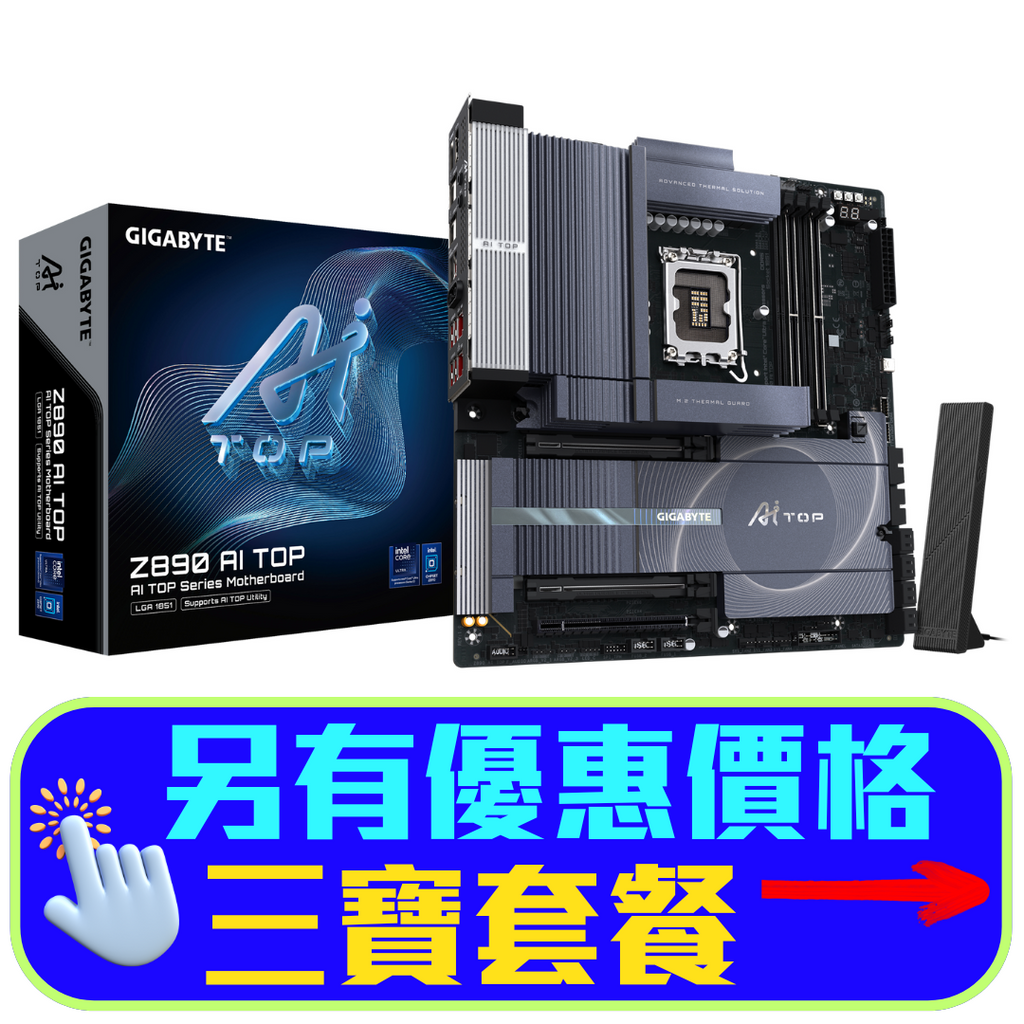

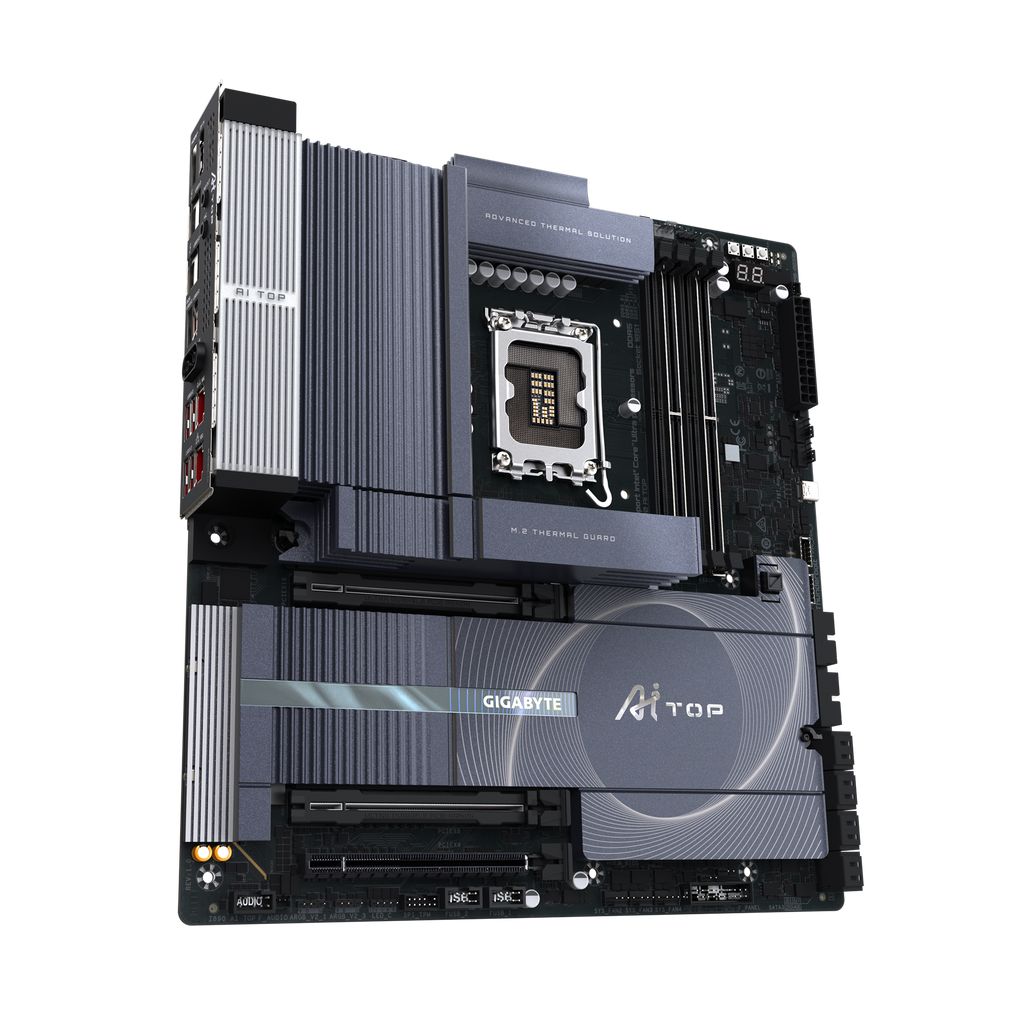

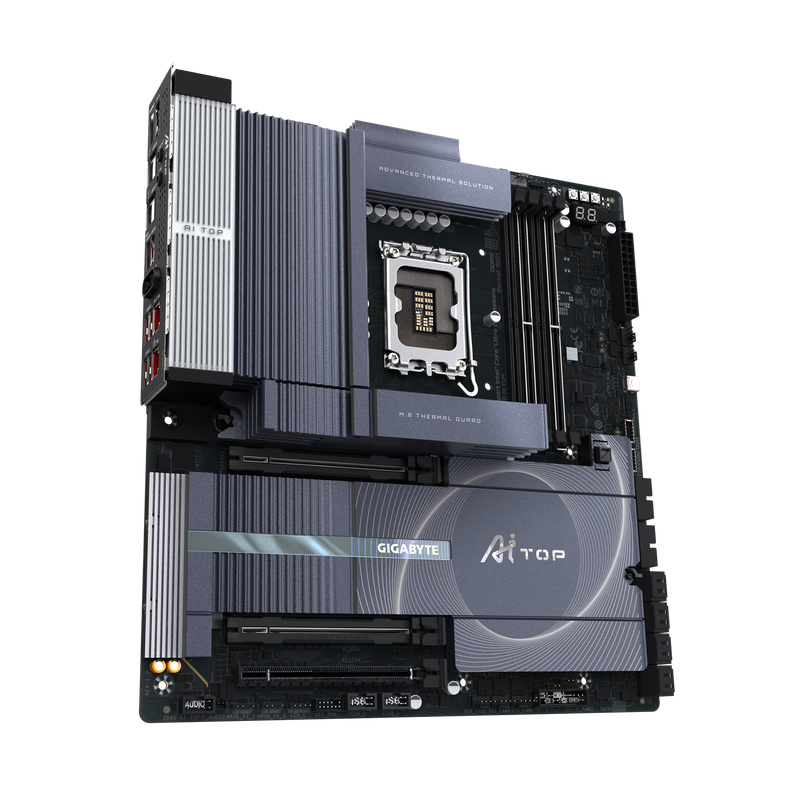

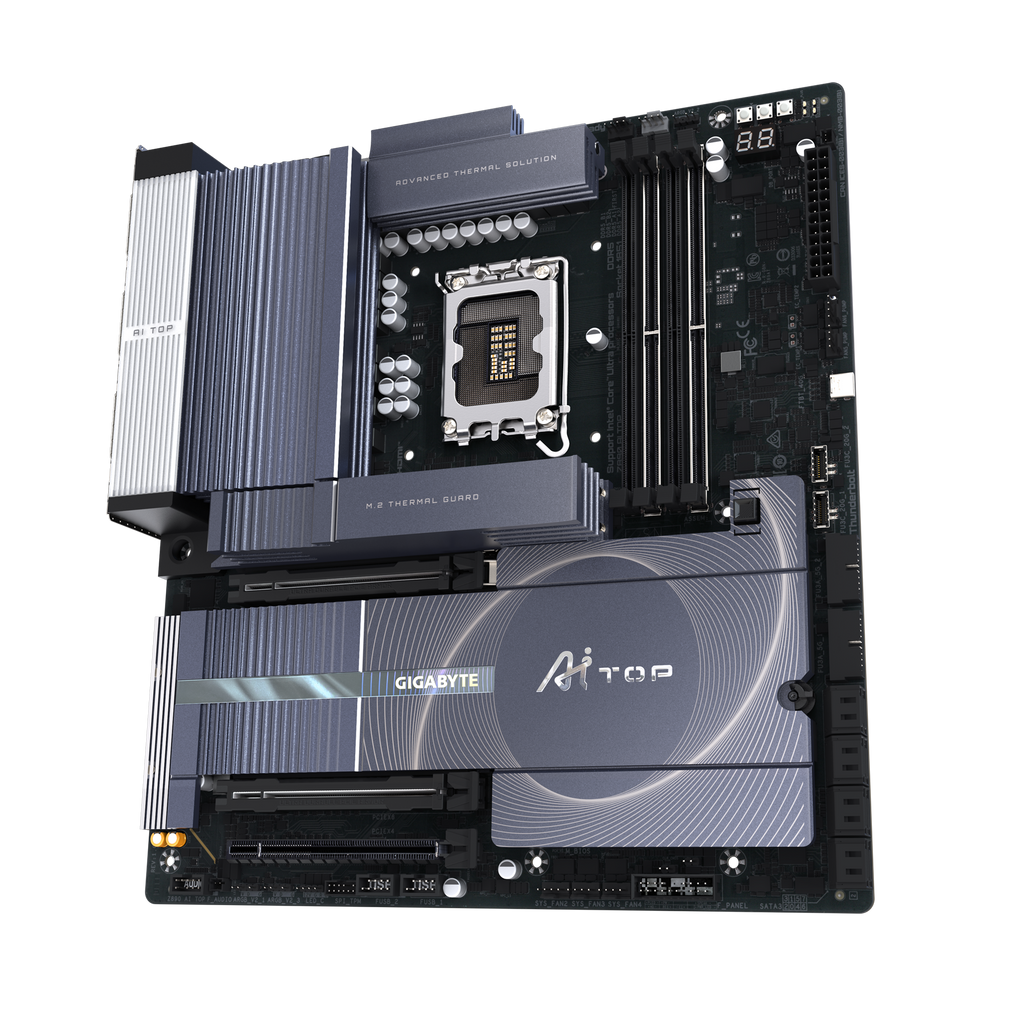

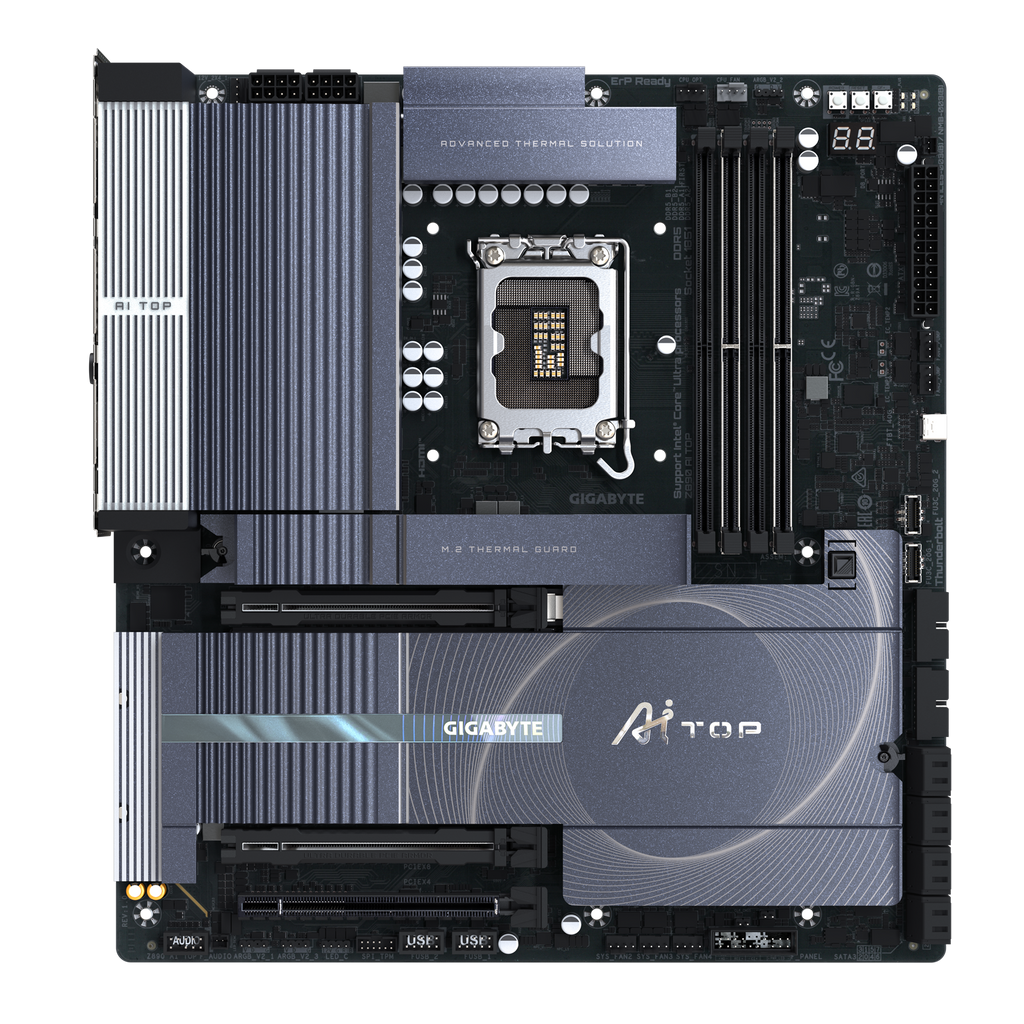

GIGABYTE Z890 AI TOP DDR5,LGA 1851 EATX Motherboard

LGA1851 socket, supports Intel® Core™ Ultra processor
(Please go to GIGABYTE's website for the list of supported processors)
L3 cache depends on CPU

Intel® Z890 Express Chipset

Support DDR5 9500(OC)/ 9466(OC) / 9333(OC) / 9200(OC)/ 9066(OC) / 8933(OC) /8800(OC) /8600(OC) / 8400(OC) /8266(OC ) / 8200(OC) / 8000(OC) / 7950(OC) / 7900(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC ) / 6600(OC) / 6400 / 6200 / 6000 / 5800 / 5600MT/s
4 DDR5 DIMM slots, supporting up to 256 GB (single slot supports 64 GB capacity)
Supports dual-channel memory technology and supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (non-ECC mode operation)
Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory supports Extreme Memory Profile (XMP) memory
(CPU and memory configurations may affect the supported memory type, speed, and number of DRAM modules. Please go to the GIGABYTE website to check the memory module support list.)

Built-in processor with graphics + Intel® Thunderbolt™ 5 controller:
- 2 Intel® Thunderbolt™ 5 ports (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ technology display output, supporting resolutions up to 7680x4320@60 Hz (single display output)

* Due to the I/O resource limitations of the PC architecture, the number of Thunderbolt™ devices that can be connected depends on the PCI Express devices installed on the motherboard. (For detailed settings and restrictions, please refer to "2-6 Rear Device Socket Introduction")
* Supports DisplayPort version 2.1 and HDCP 2.3.

Built into the processor with display capabilities - supports Intel® HD Graphics:
- 1 front-end Intel® Thunderbolt™ 4 port (USB4® USB Type-C® port), supports display output with DisplayPort and Thunderbolt™ technology. Thunderbolt™ monitors can support resolutions up to 5120x2880@60 Hz with 24 bpp (Single display output)
USB4® USB Type-C® monitor supports resolutions up to 3840x2160@240 Hz (single display output)

* Supports DisplayPort version 2.1 and HDCP 2.3.

- 1 HDMI socket, supporting resolutions up to 4096x2160@60 Hz

* Supports HDMI version 2.1 and HDCP 2.3.

(The specifications supported by the display function will vary depending on the CPU or graphics card used.)
Supports up to three screens for simultaneous output

Built-in ESS ES9260 chip (rear audio output hole)
- Support High Definition Audio
- Supports 2-channel built-in Realtek® ALC897 chip (front-end audio socket)

Built-in 2 Marvell® AQtion AQC113C 10GbE network chips
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Intel® Wi-Fi 7 BE200
- 802.11a, b, g, n, ac, ax, be, supports 2.4/5/6 GHz wireless frequency band
- BLUETOOTH 5.4
-Supports 11be 320MHz wireless communication standard
(Actual transmission speed will vary depending on usage environment and equipment.)

*The full functionality of Wi-Fi 7 depends on the support of Windows 11 SV3 version, and Windows 10 does not provide relevant drivers.
**The available channel numbers of Wi-Fi 7 on 6 GHz carrier are subject to the communication regulations of each country.

Built into CPU:
- 1 PCI Express x16 slot, supports PCIe 5.0 and x16 operating specifications (PCIEX16)
- 1 PCI Express x16 slot, supports PCIe 5.0 and x8 operating specifications (PCIEX8)

* Since the PCIEX16 slot shares bandwidth with the PCIEX8 slot, when a device is installed in the PCIEX8 slot, the PCIEX16 slot operates at up to x8 bandwidth.
*PCIEX16 and PCIEX8 slots only support graphics cards or NVMe SSDs. If only one graphics card is installed, it must be installed in the PCIEX16 slot.

Built into the chipset:
- 1 PCI Express x16 slot, supports PCIe 4.0 and x4 operating specifications (PCIEX4)

* Since the PCIEX4 slot shares bandwidth with the M2L_SB socket, the PCIEX4 slot cannot be used when a device is installed in the M2L_SB socket.

Built into CPU:
- 1 M.2 socket (supports Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD) (M2A_CPU)
- 1 M.2 socket (supports Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD) (M2B_CPU)
Built into the chipset:
- 2 M.2 sockets (support Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD) (M2P_SB, M2L_SB)
- 4 SATA 6Gb/s sockets (SATA3 4~7)
Built into the chipset + ASMedia® ASM1164 chip:
- 4 SATA 6Gb/s sockets (SATA3 0~3)
NVMe SSD supports the construction of RAID 0, RAID 1, RAID 5 and RAID 10
SATA hard drives support the construction of RAID 0, RAID 1, RAID 5 and RAID 10

Built into chipset + Intel® Thunderbolt™ 5 controller:
- 2 USB4® USB Type-C® ports built into the CPU on the rear panel:
- 1 USB4® USB Type-C® port inside the motherboard
- 1 USB Type-C® port, supports USB 3.2 Gen 2x2, needs to be connected via a cable from the USB socket on the motherboard built into the chipset:
- 1 USB Type-C® port, supports USB 3.2 Gen 2x2, needs to be connected from the USB socket on the motherboard via a ribbon cable
- 2 USB 3.2 Gen 2 Type-A ports (red) on the rear panel
- 2 USB 3.2 Gen 1 ports on the rear panel built into the chipset + USB 3.2 Gen 2 Hub:
- 4 USB 3.2 Gen 2 Type-A ports (red) on the rear panel built into the chipset + USB 3.2 Gen 1 Hub:
- 4 USB 3.2 Gen 1 ports, which need to be connected via cables from the USB sockets on the motherboard to the built-in chipset + USB 2.0 Hub:
- 4 USB 2.0/1.1 ports, which need to be connected from the USB socket on the motherboard via cables

1x 24-pin ATX main power socket
2 8-pin ATX 12V power sockets
1 CPU fan socket
1 CPU fan/water cooling pump socket
4 system fan headers
2 system fan/water pump sockets
3 Programmable RGB Gen2 LED Strip Power Outlets
1 RGB LED strip power socket
4 M.2 Socket 3 sockets
8 SATA 6Gb/s sockets
1 front control panel socket
1 front audio socket
1 Intel® Thunderbolt™ 4 port (USB4® USB Type-C® port)
2 USB Type-C® sockets, supports USB 3.2 Gen 2x2
2 USB 3.2 Gen 1 sockets
2 USB 2.0/1.1 sockets
1 security encryption module socket (only for use with GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2)
1 power button
1 system reset button
1 Q-Flash Plus button
1 system reset pin
1 clear CMOS data pin
2 temperature sensing wire pins
1 noise detection socket

1 DisplayPort input port
1 HDMI socket (note)
2 audio connectors

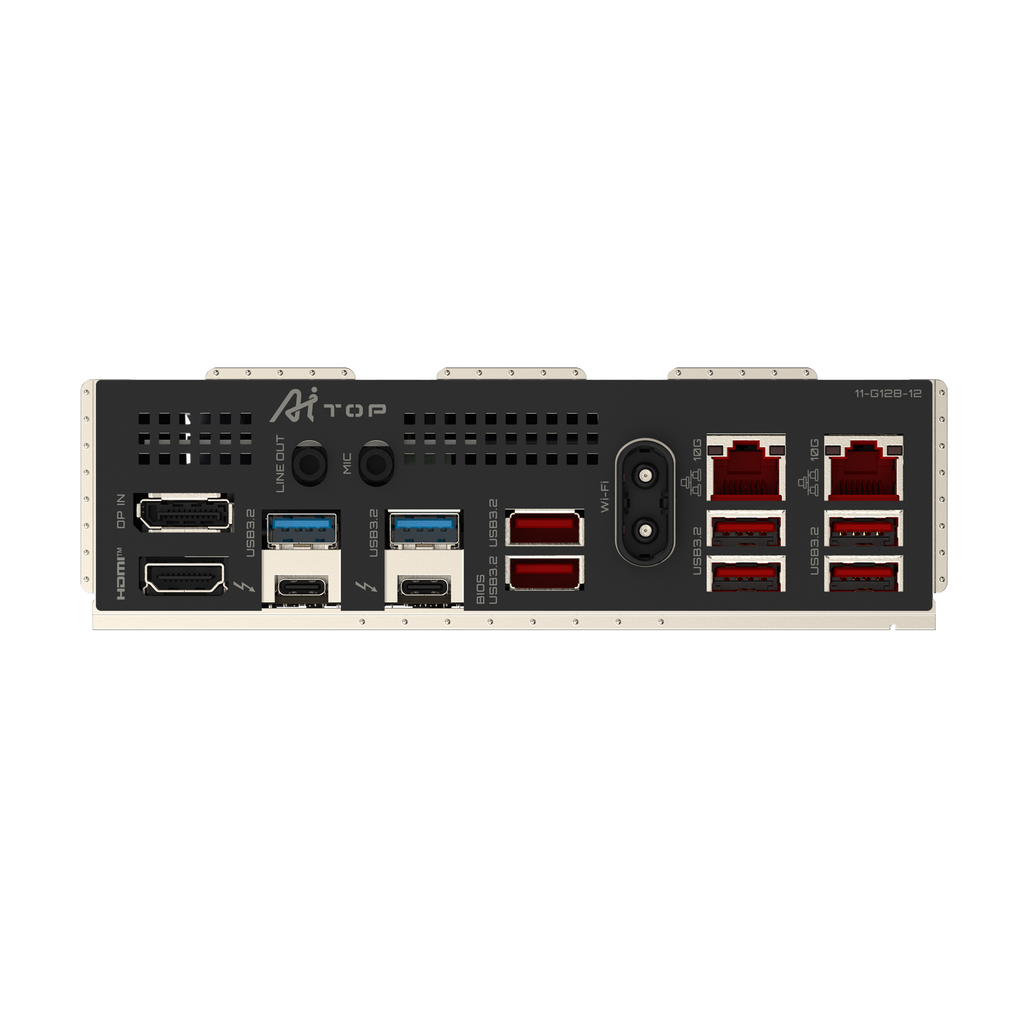

2 Intel® Thunderbolt™ 5 ports (USB4® USB Type-C® port)
2 USB 3.2 Gen 1 ports
6 USB 3.2 Gen 2 Type-A ports (red)

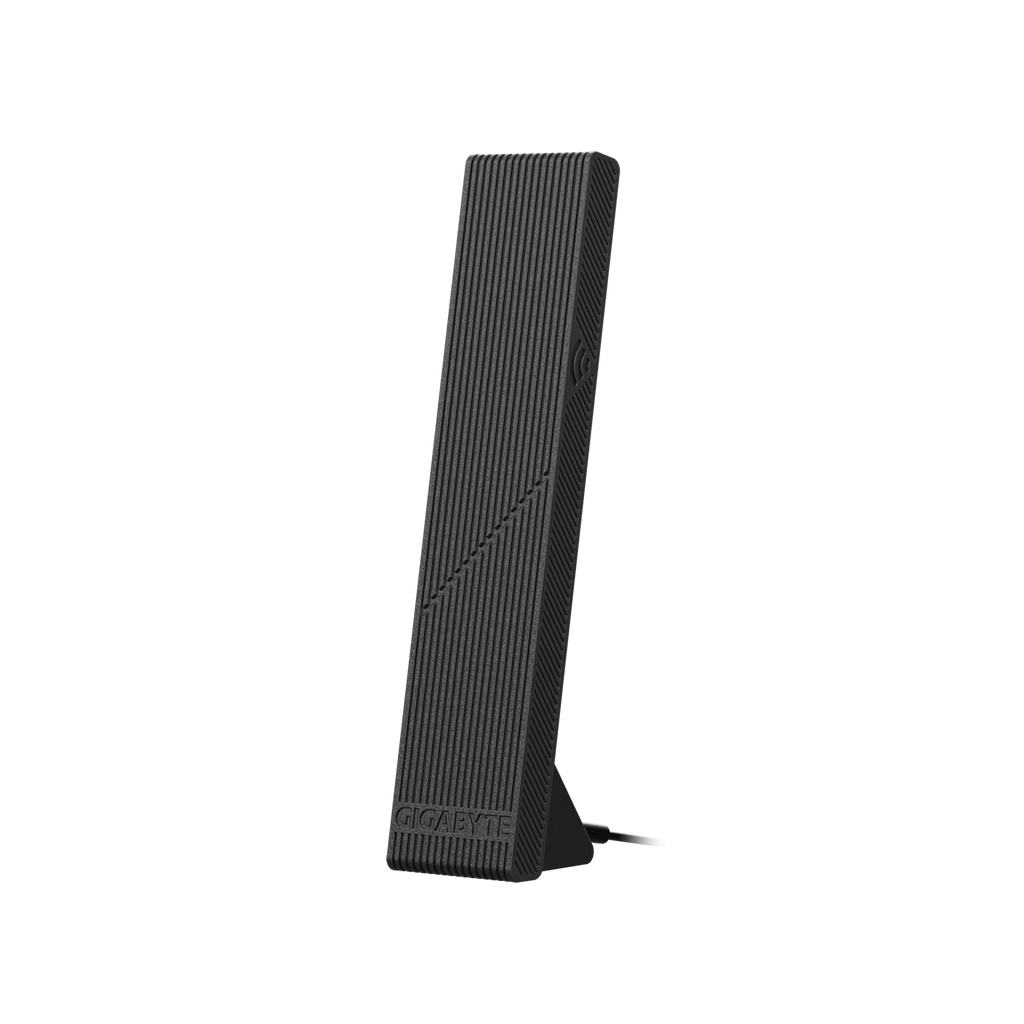

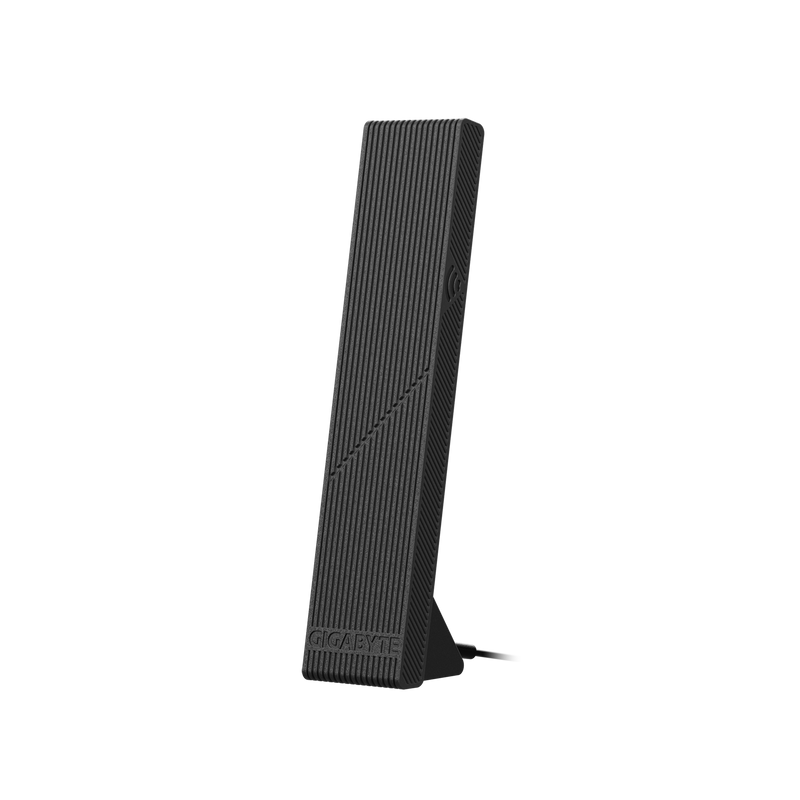

2 antenna ports (2T2R)
2 RJ-45 ports

(Note) Whether this specification is supported depends on the CPU.

Built-in iTE® I/O control chip

Voltage detection Temperature detection Fan speed detection Water cooling system flow speed detection Fan failure warning Smart fan control

*Whether the smart fan (pump) control function is supported will depend on different cooling fans (pumps).

Noise detection

1x256Mbit flash
Use authorized AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Supports GIGABYTE Control Center (GCC)

* The programs supported by GCC will vary according to different motherboards; the functions supported by each program will also vary according to the specifications of the motherboard.

Support Q-Flash
Support Q-Flash Plus
Support Smart Backup

Norton® Internet Security (OEM version)
LAN bandwidth management software

Support Windows 11 64-bit
(Please go to the GIGABYTE website to check supported operating systems)

E-ATX specifications; 30.5cm x 28.5cm
