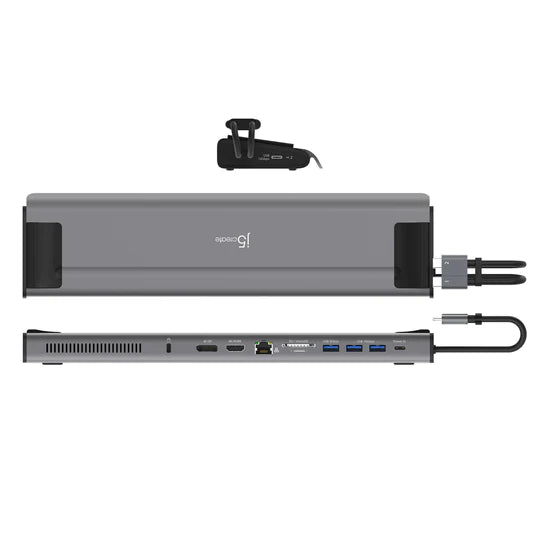

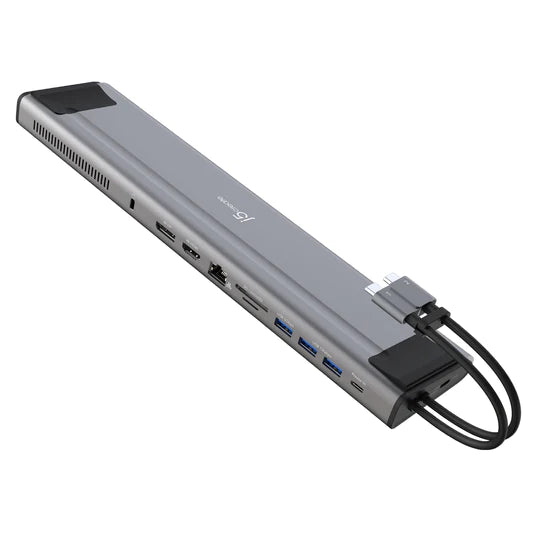

j5create USB-C M.2 SSD Gen2 multi-function storage dock-UH-JCD552
j5create USB-C M.2 SSD Gen2 multi-function storage dock-UH-JCD552
Roll over image to zoom in Click on image to zoom
j5create USB-C M.2 SSD Gen2 multi-function storage dock-UH-JCD552
j5create USB-C M.2 SSD Gen2 multi-function storage dock-UH-JCD552

j5create USB-C M.2 SSD Gen2 multi-function storage dock-UH-JCD552

j5create
Price:
HK$980.00

Description


system requirement
  • The USB-C port of the device must support DisplayPort Alternate Mode
  • The USB-C port of the device must support Power Delivery 2.0 or 3.0
product specifications
Host interface

USB3.1 Type-C Connector

port

1 x HDMI Female

1 x DisplayPort Female

1 x M.2 NVMe SSD expansion slot (compatible with M.2 NVMe® or SATA M key 2230/2242/2260/2280, supports read & write speed 925MB/s)

1 x USB Type-C Power in (supports PD3.0, 100W Pass Through fast charging)

2 x USB Type-A Gen2 1 0Gbps

1x USB Type-C Gen2 10Gbps

1x USB Type-A Gen1 5Gbps

1 x SD3.0 / Micro SD3.0 (transmission speed 104MB/s, can be read simultaneously)

1 x Gigabit Ethernet Lan (10/100/1000 high-speed transmission)

1 x Anti-theft lock hole

power mode

Bus-Powered

Power in: USB Type-C Female (supports PD3.0 charging, maximum 100W)

Product warranty
2 years
Performance
Highest resolution

4K@60Hz

physical dimension
color
silver black
Material
Aluminum shell
Product Size
Body: 318(length) x 80(width) x 26(height)mm
Cord length: 15cm
weight
About 378g
Precautions
  • The laptop host needs to have two USB-C holes that support DP Alt Mode to support two external screens. If only one USB-C supports DP Alt Mode, it can only connect one external screen.
  • The graphics card, video cable, and screen all need to support DisplayPort v1.4 to achieve 4K 60Hz resolution.
  • To ensure the best performance for the USB-C laptop in the dock, the second USB-C connector of this docking station needs to be connected back to the USB-C Gen2 port on the side of the docking station.
  • The M1 chip MacBook Pro and MacBook Air can only support single-screen output at most.
  • When using USB devices with high power consumption, please connect the USB-C PD power supply to the JCD522 power port to ensure maximum performance.
  • Please do not unplug the USB-C PD power supply during data transmission to ensure complete data transmission.
Package Contents
  • JCD552 body
  • Quick installation manual
  • Warranty Card
