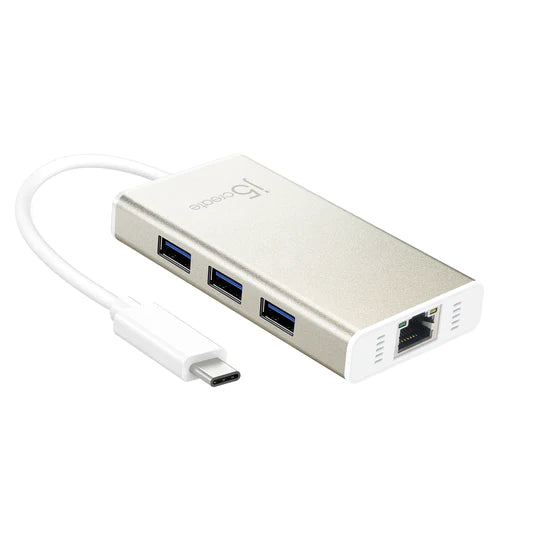

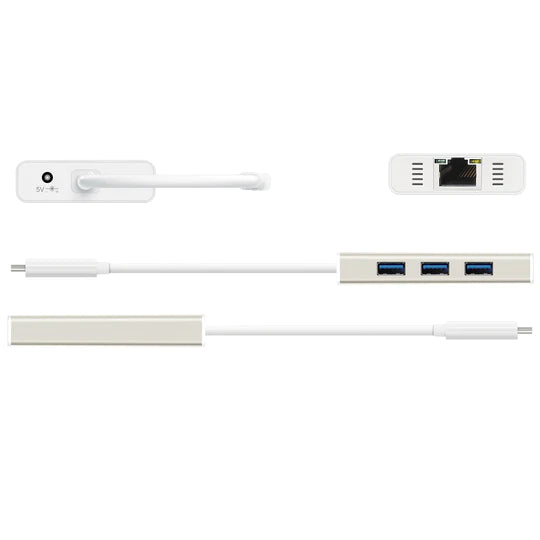

j5create USB TYPE-C ultra-high-speed external network card + hub-UH-JCH471
j5create USB TYPE-C ultra-high-speed external network card + hub-UH-JCH471
Roll over image to zoom in Click on image to zoom
j5create USB TYPE-C ultra-high-speed external network card + hub-UH-JCH471
j5create USB TYPE-C ultra-high-speed external network card + hub-UH-JCH471

j5create USB TYPE-C ultra-high-speed external network card + hub-UH-JCH471

j5create
Price:
HK$238.00

Description

system requirement
  • Support Windows XP/7/8.1/10
  • Supports Mac OS X v10.6 or newer
  • Support Linux kernel 3.x / 2.6.x
  • Windows 8.1/10/Chrome OS 3.8 driver installation-free
  • The driver will be installed automatically on Windows 7/8.1/10 (need to be connected to the network)
product specifications
Host interface

USB Type-C Connector

port

1 x Gigabit Ethernet Lan (10/100/1000 high-speed transmission)

3 x USB3.0 Type-A Gen1 5Gbps

power mode

Bus-Powered or Self-Powered
When the lower end of the device needs to be connected to an external hard drive or other high-power-consuming USB device that consumes more than 150mA, please remember to connect your device to its attached power supply.

Or paired with JUH4AC power supply (available separately), DC 5V (3.5 mm OD, 1.35mm ID)

Technical specifications

Ethernet:

10/100/1000 Base-T Ethernet RJ-45 interface uses ASIX 88179 USB 3.0 ultra-high-speed Ethernet network control chip

RJ45 network connector set compatible

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab protocol

Support IEEE802.3az, IEEE802.3x, IEEE802.1q, IEEE802.1p

Supports all USB 3.0 energy-saving modes (U0, U1, U2, U3) to close the phase-locked loop (PLL) and put the chip into sleep state to save power consumption during standby

Product warranty
2 years
physical dimension
color
silver
Material
Aluminum shell
Product Size
Body: 14.5(length) x 67.8(width) x 23.5(height)mm
Cord length: 14.5cm
weight
About 58g
Package Contents
  • JCH471 body
  • Quick installation manual
  • Warranty Card
