Description
Integrated bent steel plate with thickness up to 2mm (panel + top plate)
Supplemented by large-area exquisite square openings
Combines heat dissipation requirements with craftsmanship

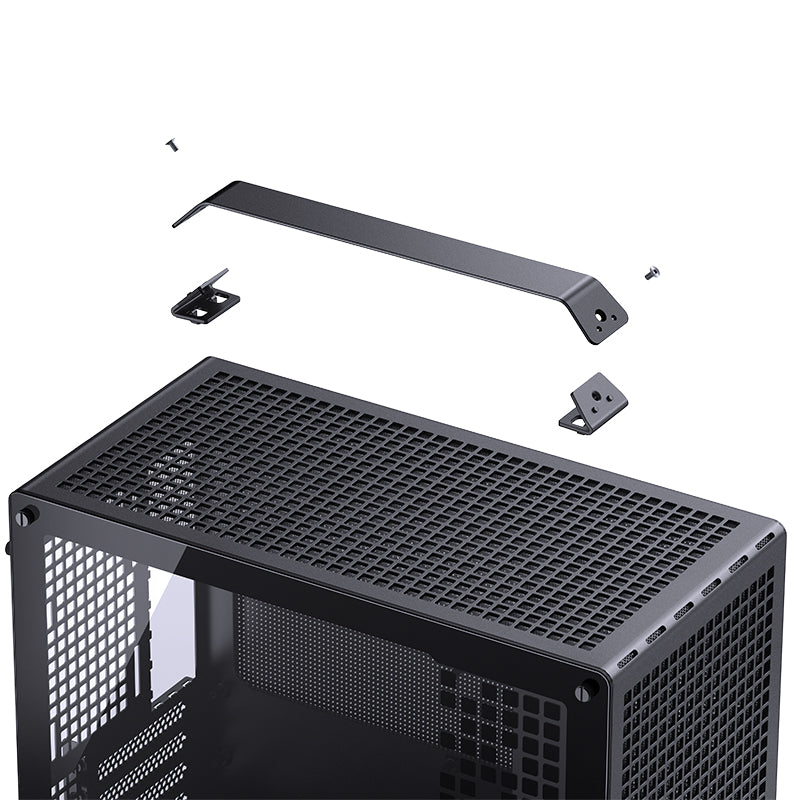

2mm thickness removable handle for portability
● The handle installation/disassembly operations are not affected by the internal hardware assembly and can be switched at any time
● The handle and the box are connected and fastened through screwless hooks. After disassembly, the box has no screw holes to affect its appearance.
Only about 20L volume, place it as you like
Built with only about 20L volume, it can be easily placed in various desktop environments
The main body size is 370mm*186mm*295mm (depth/width/height, excluding handles/foot pads and other protrusions), which is similar to the size of an ITX chassis to achieve compatibility with full-size MATX motherboards and long graphics cards.
*Dimensions including handles/foot bases and other protrusions are: 382mm*198mm*335mm (depth/width/height)
Compatible with full-size Micro-ATX motherboards
Fully meet the needs of high-performance hardware systems composed of small-volume chassis
Supports high-performance graphics cards up to 363mm long
The total space from the back panel to the bottom of the graphics card is 89mm. You can choose a compatible bottom fan according to the thickness of the graphics card (for example, with some graphics cards, the bottom may be compatible with a 12015 fan or no fan installed)
Innovative design: Detachable PCI-E bit holder optimizes long graphics card installation experience
In view of the actual installation situation where large-size graphics cards are difficult to put into the box, a detachable fixing strip for the PCI-E position is specifically designed. By forming an unobstructed opening design, long graphics cards (when the length is ⩼345mm) can be directly installed. Integral plug-in installation, no need for complicated case disassembly first.
*Normal length graphics card installation does not require disassembly
Standard adjustable graphics card support bracket
To alleviate the front end of a long graphics card from sagging due to gravity, it can be selected based on the actual hardware configuration.
When installing the graphics card bracket, the compatible combinations of hardware at the bottom of the chassis are:
● 12cm fanx2 + 2.5-inch SSDx2
● 12cm/14cm fanx1 + 3.5-inch HDDx1
Incompatible hardware combinations are:
● 12cm fanx2 + 3.5-inch HDDx1
Playable丨Ingredients

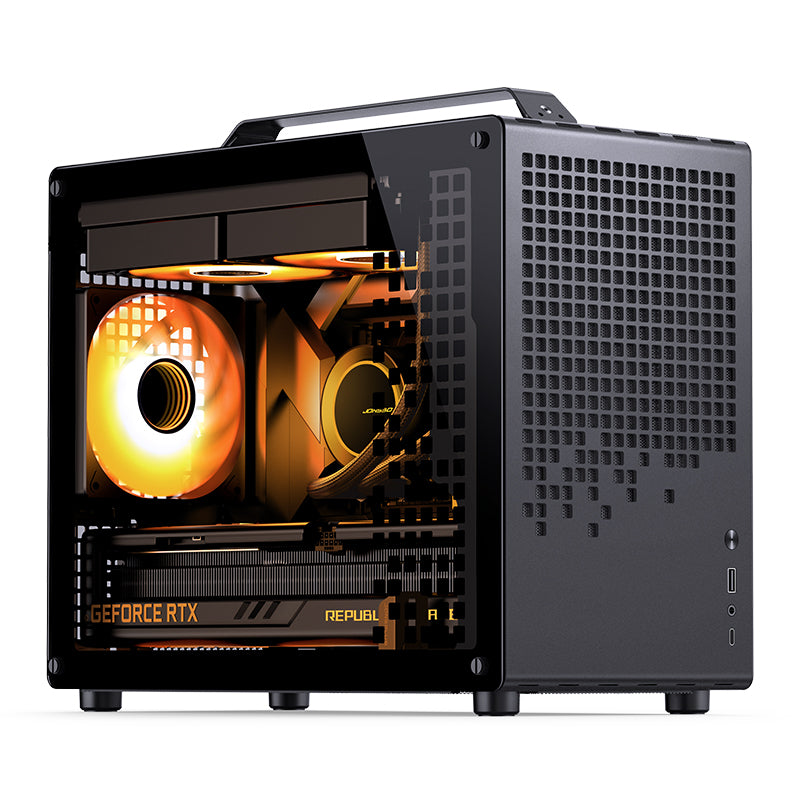

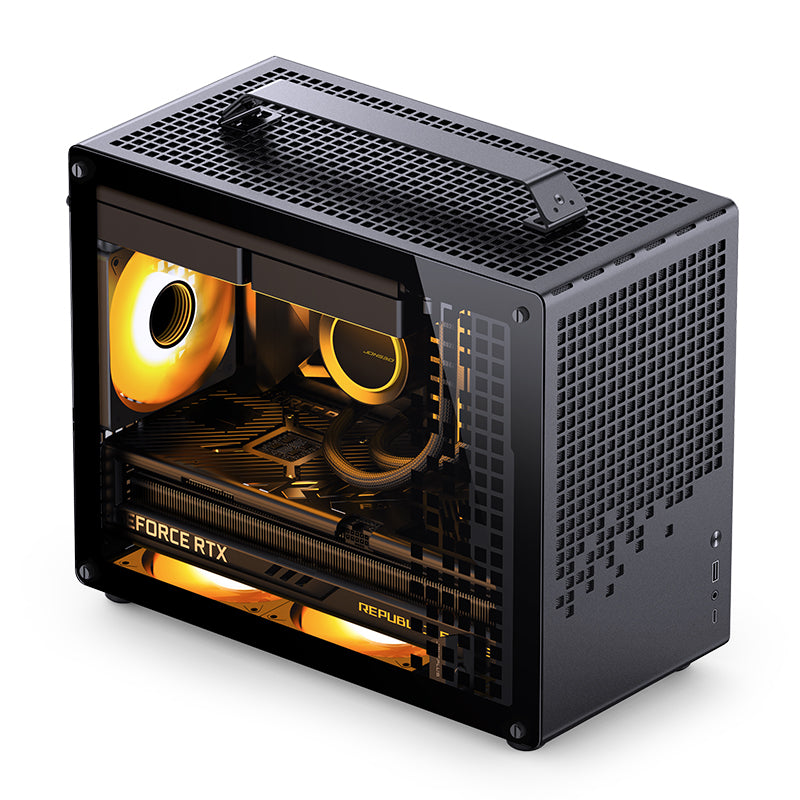

Supports 240 high-performance water cooling with radiator thickness ≤30mm
Installation can be completed by pulling out the bracket, effectively reducing the difficulty of hardware installation in small spaces. Through precise size setting, even a performance level 240 integrated water cooling with a thickness of 60mm (radiator + fan) can be installed inside the Z20.

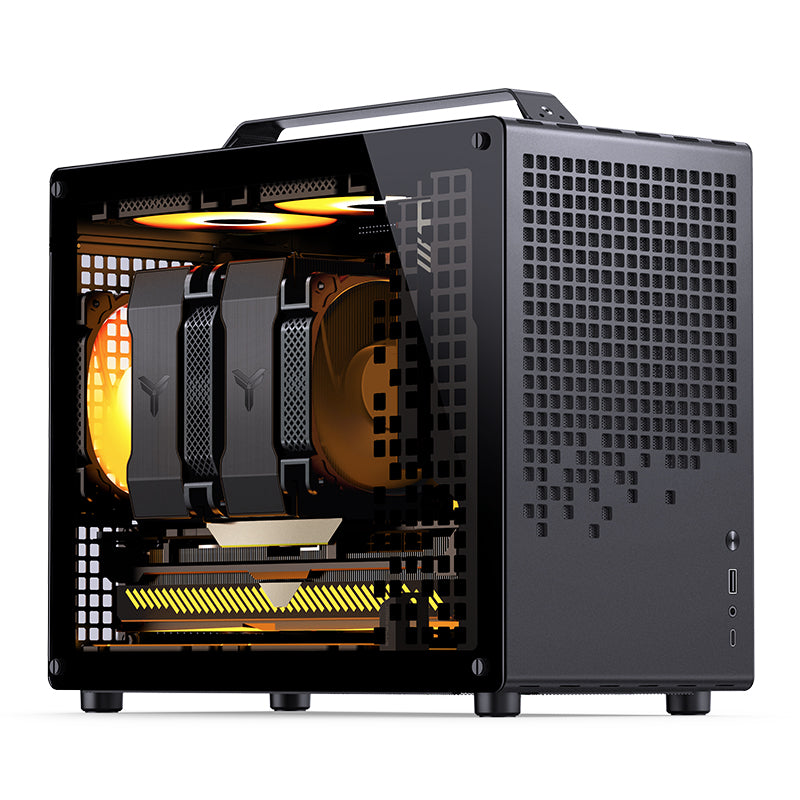

Compatible with high-performance air-cooled tower radiators with a height of ≤160mm
Paired with a top-mounted 12cm x2 or 14cm x2 fan and a rear-mounted 12cm fan, the CPU heat can be quickly discharged.
Various hardware combinations
Provides a high degree of freedom in system construction
Optional power supply installation mode
-
ATX power supply vertical mode
Supports level 4 installation
-
SFX/SFX-L Power Supply Side Mount Mode
This mode has no interference with water cooling and graphics card hardware.
-
SFX/SFX-L Power Supply Vertical Mount Mode
Need to use the SFX to ATX adapter board in the accessory box
In vertical mode of ATX power supply, 4-level height lifting installation (P1~P4) can be selected to suit different hardware matching situations.
The length of the power supply needs to be selected based on other hardware specifications. Usually even when a longer graphics card (≤363mm) is installed:
1. When using an air-cooled CPU radiator, the power supply can be installed on the first level (P1), and the length of the power supply can be at least 15cm.
2. When using a water-cooled CPU radiator, the power supply can be installed on the second level (P2), and the power supply length can support at least 14cm
For details, please refer to the compatibility comparison table below for reasonable hardware planning.
Z20 Hardware Installation Compatibility Chart
Supports installation of 3 2.5-inch SSDs
The SSD can be installed on the back, side or bottom, depending on other hardware configurations.
In bottom installation mode, the bottom is compatible with the graphics card support bracket and 12cm fan x2 or 14cm fan x1
*Maximum number of installations: 3 (2 on the back and side + 1 on the bottom)
Supports bottom-mounted 3.5-inch HDD x1
●HDD standard installation mode, compatible with the graphics card support bracket at the bottom and a single 12cm/14cm fan
● HDD additional installation mode, compatible with dual 12cm fans installed at the bottom (not compatible with graphics card support bracket)

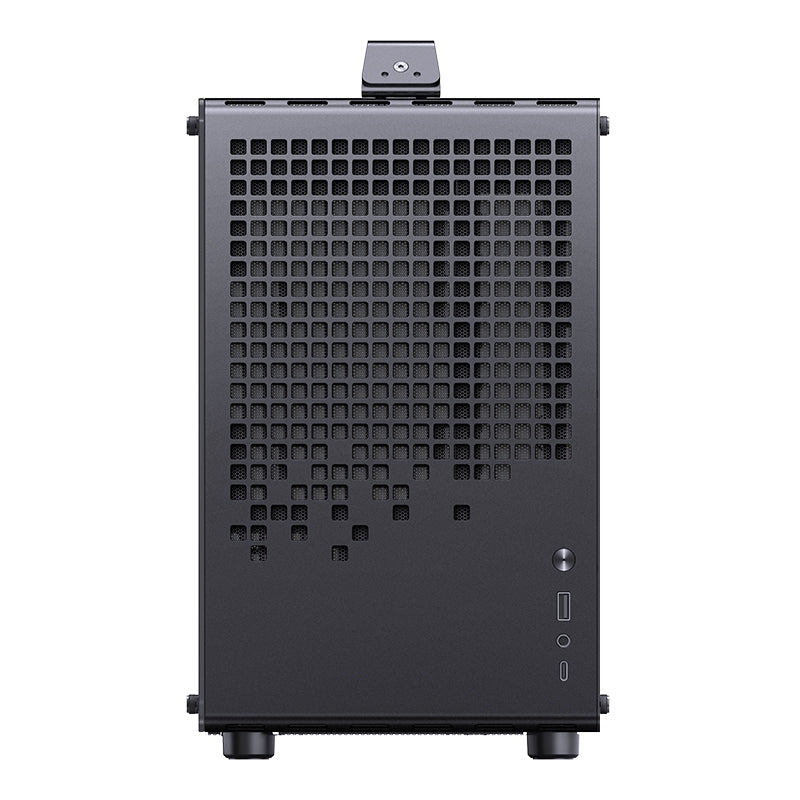

Front I/O interface
● USB 3.2 Gen 1 Type-A 5Gbps
● Headphone & microphone composite audio port
● USB 3.2 Gen 2 Type-C 10Gbps+
Can assemble up to 5 cooling fans
●The top and bottom can support the installation of up to dual 140mm fans.
● A 120mm fan can be installed at the rear (air-cooled CPU radiator status). If it conflicts with the rear water-cooling pipe, a 92mm fan can be installed at the rear or no fan can be installed.
Through-type short air ducts maintain efficient operation of the system
The system fan cooperates with the large-area square mesh on the outside to form a through-type short air duct, which can quickly discharge the heat generated by the CPU and GPU inside the case.
Full coverage with magnetic dust filter
The main air inlet and outlet of the casing are equipped with magnetic dust filters to isolate environmental dust to ensure long-term stable operation of the host.
*Rear dust filter, which can be used for rear fan for air intake (bringing extra cold airflow to the top cooling radiator to optimize CPU temperature) or rear fanless configuration

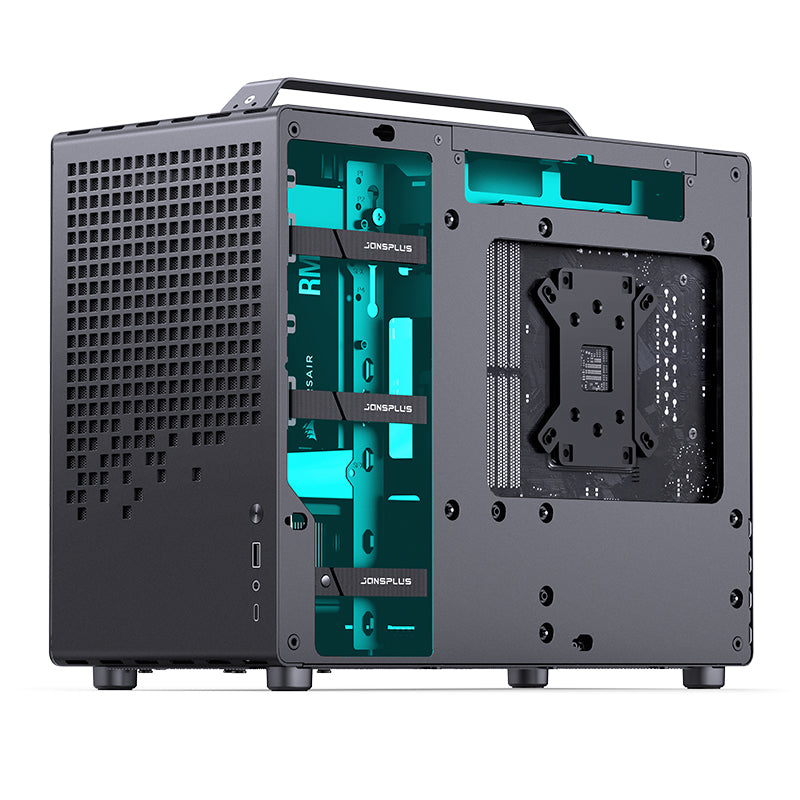

22mm depth dedicated back cable management channel (including 3 cable limiting devil felts)
It is usually difficult to plan a reasonable space for cables in a small case. The Z20 has dual cable management channels on the back, and extra cables can be limited and fixed through Velcro felt to alleviate the anxiety of cable management.
Front I/O cable fixed Velcro felt
There are also 3 strips of Velcro felt underneath the motherboard, which can be used to bind and organize front I/O or fan wires.
