Description
Function

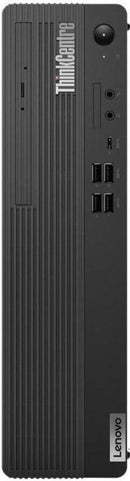

The Lenovo ThinkCentre M70s Gen 5 Small Form Factor (SFF) desktop computer continuously learns and adapts to your usage habits, improving power usage and dynamically allocating resources. On the other hand, the AI-driven fan control mechanism effectively keeps the device cool, reduces temperature and noise, and eliminates overheating problems; and with the power optimization function, energy efficiency is improved.
The ThinkCentre M70s Gen 5 SFF desktop computer is equipped with up to 14th generation Intel® Core™ processors and Intel vPro® Enterprise. It is a productivity tool that can do everything with less effort. It is paired with Intel® integrated graphics to help you unleash your unlimited creativity. Moreover, despite the compact size of the device, it has ample memory and storage space and can handle complex data operations with ease!
ThinkShield's comprehensive security solution builds a tight line of defense for your data and business, encrypting critical data through independent Trusted Platform Module (dTPM), and providing an additional layer of practical defense with Kensington Security Lock Slot™ and case electronic lock. , the safety mechanism is impeccable!

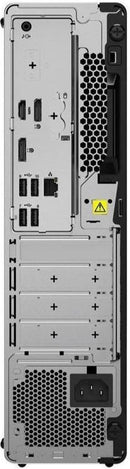

ThinkCentre M70s Gen 5 SFF has numerous ports and expansion slots, making multitasking a breeze—including the clever Smart Cable feature, which allows you to connect via convenient and easy-to-use USB-A and USB-C cables. All peripheral devices, including tablets and laptops, facilitate advanced device collaboration and smoothly share control settings, data and screen projections between devices.
ThinkCentre M70s desktop PC uses 90% post-industrial recycled (PIC) recycled material expanded polyethylene (EPE) pad, 60% recycled raw material (PCC) recycled plastic, 30% ocean plastic (OBP) heat dissipation The casing and 30% OBP packaging bag, and the packaging carton are Forest Stewardship Council® (FSC) certified, and the casing is made of 85% PCC acrylonitrile butamine styrene (ABS).
Specification
| PERFORMANCE | |
| Processor |
Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB
|
| Graphics |
Integrated Intel® UHD Graphics 770
|
| Chipset |
Intel® Q670 Chipset
|
| Memory |
1x 16GB UDIMM DDR5-5600
|
| Memory Slots |
Two DDR5 UDIMM slots, dual-channel capable
|
|
Max Memory
|
Up to 64GB DDR5
|
| Storage |
1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
|
|
Storage Support
|
Up to three drives, 1x 3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
|
| Card Reader |
None
|
| Optical |
None
|
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC623-CG codec
|
| Speakers |
1Wx1
|
| Power Supply |
260W 90%
|
| Keyboard |
USB Traditional Keyboard, Black, Traditional Chinese / English
|
| Mouse |
USB Calliope Mouse, Black
|
| Optional Bay |
None
|
| Expansion Slots |
|
| Case Color |
Black
|
| Stand |
None
|
| Dust Filter |
None
|
| Form Factor |
SFF (8.2L)
|
|
Dimensions (WxDxH)
|
92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
|
|
Weight
|
Around 5.3 kg (11.7 lbs)
|
| CONNECTIVITY | |
| Ethernet |
Integrated 100/1000M
|
| WLAN+Bluetooth |
None
|
| Front Ports |
|
| Rear Ports |
|
| Optional Rear Ports (configured) |
None
|
| SECURITY & PRIVACY | |
| Security Chip |
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
|
| Fingerprint Reader |
No fingerprint reader
|
| Physical Locks |
|
| Smart Cable Clip |
None
|
| Chassis E-Lock |
None
|
| Chassis Intrusion Switch |
None
|
| MANAGEABILITY | |
|
System Management
|
Intel® vPro® Enterprise
|
| SERVICE | |
| Base Warranty |
1-year, Onsite
|
| Included Upgrade |
3Y Onsite upgrade from 1Y Onsite
|
| CERTIFICATIONS | |
| Green Certifications |
|
| Mil-Spec Test |
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)
|
| SOFTWARE | |
| Operating System |
Windows® 11 Pro, Traditional Chinese / Simplified Chinese / English
|
