Lenovo ThinkCentre M90q G5 Tiny Intel® Core™ i5-14500T,16GB,512GB m.2,Win11Pro - 型號12TDS00A00


Price:
Sale priceHK$5,990.00 Regular priceHK$6,309.00

Description

Features

Tech Specification

Performance

Processor

Up to 14th Gen Intel® Core™ i9 with Intel vPro® Enterprise

Operating System
  • Windows 11 Pro — Lenovo recommends Windows 11 Pro for business

  • Windows 11 Home

  • Windows 11 IoT

  • Ubuntu Linux®
Graphics

Integrated Intel® UHD 770

Memory

Up to 64GB (5600MHz) 2 x DDR5 SODIMM

Installed memory is actually DDR5-5600 but may run as DDR5-4800, DDR5-5200, or DDR5-5600 depending on the memory support capability of processor.

Storage

Up to 2TB M.2 2280 Gen4 Performance SSD

Power Supply Unit
  • 230W*

  • 135W*

  • 90W*

  • 65W*

*All power supply units are 89% energy-efficient

Connectivity

Ports/Slots

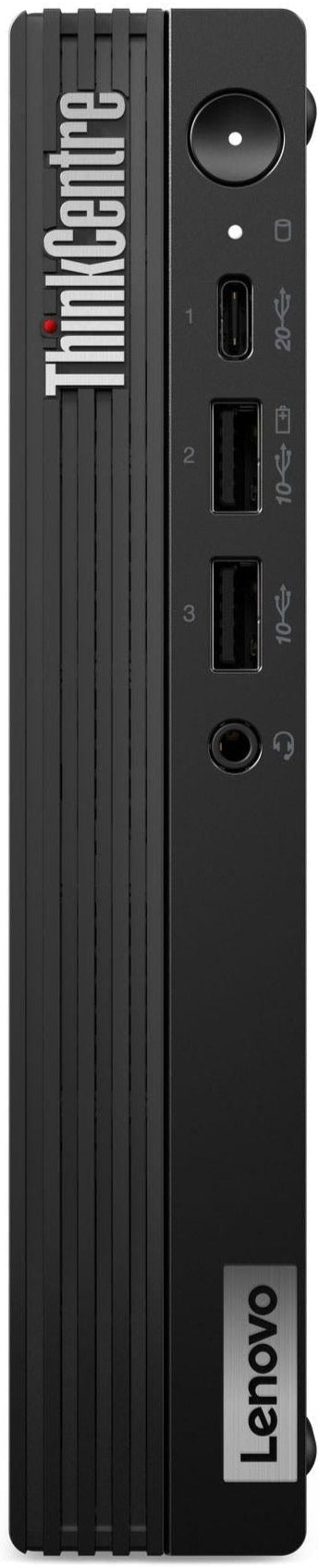

Front:

  • USB-C® (USB 20Gbps)

  • 2 x USB-A (USB 10Gbps, 1 always on)

  • Headphone / mic combo

Rear:

  • 2 x USB-A (USB 10Gbps)

  • 2 x USB-A (USB 5Gbps) with 1 for keyboard power on (Alt & P)

  • HDMI® 2.1 (supports resolution up to 4K@60Hz)

  • Ethernet (RJ45)

  • DisplayPort 1.4

Optional Expansion Ports:

  • Optional Expansion port 1: VGA / DisplayPort / HDMI® / serial / USB-C® (USB 5Gbps) with DisplayPort functions

  • Optional Expansion port 2: VGA / DisplayPort / HDMI® / serial / Ethernet (RJ45)

  • Optional: 2 x USB-A (USB 5Gbps), shares 5Gbps bandwidth / occupies port 1 & 2

  • Optional: 4 x USB- A (USB 5Gbps), shares 5Gbps bandwidth / occupies port 1 & 2

  • Optional: 4 x Ethernet (RJ45) via additional PCIe adapter

  • Optional: 4 x serial via 4-port serial expansion card, PCIe

Expansion Slots:

  • PCIe x Gen 4

  • 2x M.2 SSD Gen 4

  • M.2 WiFi (up to WiFi 7)

USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected.

Wireless
  • Intel® AX211 WiFi 6E*

  • Intel® AX211 WiFi 7**

*6GHz WiFi 6E operation is dependent on the support of the operating system, routers/APs/gateways that support WiFi 6E, along with the regional regulatory certifications and spectrum allocation.

**WiFi® 7 requires Windows 11 OS, as well as a separate WiFi 7 router and / or other networking devices to meet full WiFi 7 requirements. It’s backwards compatible with prior WiFi standards & available only in countries where WiFi 7 is supported.

Design

Display

Supports up to 4 independent monitors

Volume

1L

Dimensions (H x W x D)

179mm x 36.5mm x 182.9mm /7.05″ x 1.44″ x 7.2″

Weight

Starting at 1.25kg / 2.76lbs

Color

Black

Sustainability

Material

Chassis:

  • 85% post-consumer content (PCC) recycled, acrylonitrile butadine styrene (ABS) plastics

Packaging:

  • 60% post-industry content (PIC) & 30% ocean-bound plastic (OBP) thermal shell

  • 30% OBP used in device bag

  • Forest Stewardship Council® (FSC) certified carton

Certifications / Registries
  • ENERGY STAR® 8.0

  • EPEAT® Gold*

  • ERP LOT 3

  • Forest Stewardship Council® (FSC)

  • MIL-SPEC 810H

  • RoHS

  • TÜV Ultra Low Noise

  • TCO 9.0

*Visit www.epeat.net for registration status by country. Available on select models only

Other information

ThinkShield Security
  • BIOS-based Smart USB Protection

  • Discrete Trusted Platform Module (dTPM) 2.0

  • Embedded controller self-healing BIOS

  • Kensington Security Slot™

  • Optional: Chassis e-Lock

  • Optional: Intel vPro® Enterprise platform security

  • Self-healing BIOS

What’s in the Box
  • ThinkCentre M90q Gen 5 (Intel) Tiny PC

  • Up to 230W power supply unit

  • Quick Start Guide
