Description

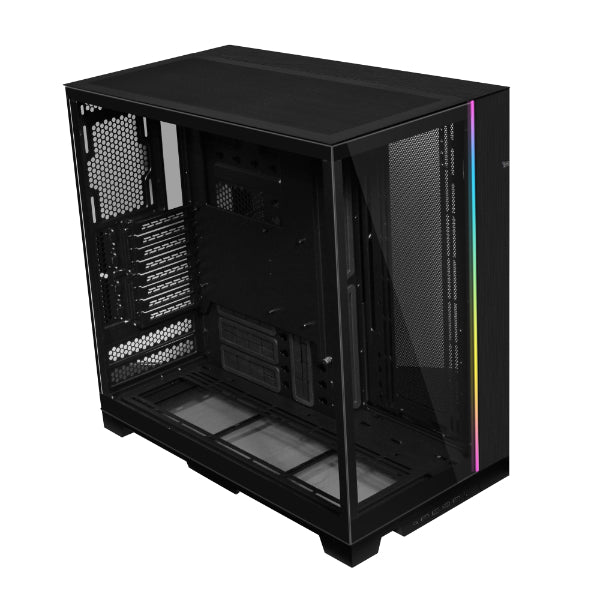

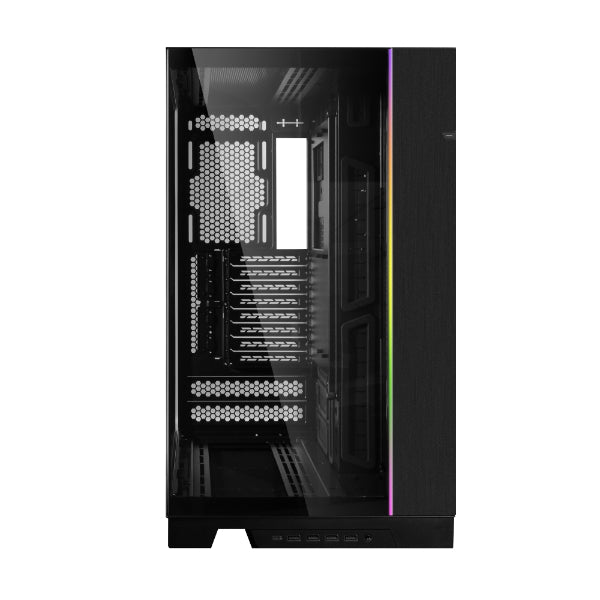

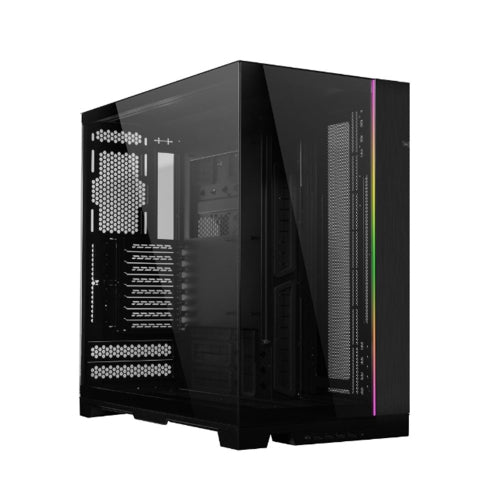

O11 Dynamic EVO XL
- Full tower chassis with two modes: normal mode/reverse mode
- Front and side tempered glass panels with removable pillars provide seamless viewing of components and RGB lighting
- Supports up to 3 420mm radiators and up to 11 fans
- Provides installation space for 7 storage drives
- Two-compartment layout with cable management compartment and three cable racks
- Number of power supplies supported: 1
- Features multi-directional power button and removable IO module
- Optional accessories for vertical GPU or tower GPU installation
Introducing the new O11D EVO XL, an enlarged chassis that accommodates many components while enhancing modularity to meet the needs of most PC enthusiasts.
Reversible chassis
Supports 3 × 420MM radiator
Enhanced modularization
Removable front pillar
Simple GPU installation
7 drive capacity
Multiple I/O ports
Cable management friendly
Two colors/two modes
white
black
O11D EVO XL Derived from the O11D EVO, the O11D EVO XL can be displayed in two modes, allowing left or right view, in just a few simple steps.
For consumers who want to build in reverse mode:
The audio cable is not long enough in reverse mode. If your O11D EVO XL case does not include the 400mm extension cable, please contact us or buy it on AliExpress at the lowest cost. This will only affect a small number of users, thank you for your understanding.
The ARGB light strip on the front is dazzling with built-in lighting effects and the ability to sync with the motherboard.
Fine mesh, even touch
Built with style and performance in mind, the O11D EVO XL's top and side panels are made of aluminum with fine mesh, providing a high-end look and superior cooling performance compared to the O11D XL.
The fully open bottom panel and three dust filters ensure uncompromising airflow while effectively keeping dust out of the case.
Bottom - Nylon fine dust screening program tray
Top and Sides – Magnetic Dust Screening Program
Complete seamless view
The front pillars of the O11D EVO XL are now easily removable, providing an unobstructed view of the display hardware without affecting the chassis structure.
Please note: Keep the front posts in place when transporting the box.
Large size and strong compatibility
The O11D EVO XL offers plenty of space for modern, powerful and large components. It also supports three 420mm x radiators to provide adequate cooling.
Larger than O11D EVO.
Can accommodate up to 420mm radiators on all 3 sides.
For users who want to install a 130mm radiator on the bottom:
A small number of users may have difficulty installing a 130mm radiator on the bottom fan bracket. If you encounter this problem, please contact us or buy the necessary components on AliExpress at the lowest cost. Thank you for your understanding.
Flexible configuration
The adjustable motherboard tray can be moved up and down three height levels to accommodate different fan and heatsink combinations.
The motherboard tray supports up to E-ATX (width 280mm) motherboards.
The system board tray has three positions:
Tool-free installation
Protect your graphics card with ease.
Comes with the new anti-sag bracket, (GB-003) designed with easy height adjustment to effectively support heavy GPUs.
STRUGGLE-FREE FAN BRACKETS
Equipped with quick-release design,
the fan brackets can be easily removed or installed.
Top Fan Bracket
Removable from the top
Bottom Fan Bracket
Removable from the main chamber
The side bracket can be oriented in two ways depending on how you set up the fan intake/exhaust or position.
Side fan bracket
Removable with quick latch
Comes with 2 sealing plates to ensure no air pressure leakage when mounting a 360mm radiator or 3 x 120mm fan on the side. The board can be adjusted and moved according to the configuration.
interior scene
: Supports radiator/fan combinations up to 81mm thick in primary chamber (in second chamber
40 mm in room)
Fan installed on the front
The fan is mounted on the back
external scene
Supports radiator/fan combinations up to 117.2 mm thick in main cavity
Fan installed on the front
The fan is mounted on the back
Relocatable I/O ports
To meet any need, modular I/O ports include 1 × USB Type C port and 4 × USB Type A ports.
On the bottom of the case, the I/O modules can be relocated to 3 different locations without the use of any tools.
Friendly storage capacity
Provides multiple easy-to-access storage installation locations, supporting up to 7 × SSD or 4 × HDD + 3 × SSD.
cable management strip
2.5-inch solid state drive × 3
Removable cable management strips help organize your system and give it a better aesthetic.
hard disk compartment
2.5-inch SSD × 4 or 3.5-inch hard drive ×
4 Two swing-out hot-swap cages that allow a 15mm thick 120mm fan to be mounted on the side to cool the hard drive.
Consider water cooling
Provides concealed mounting points for D5 or DDC pumps allowing removal of the bottom drive cage in reverse and normal modes.
Customizable cable management
The O11D EVO XL comes with 3 double-layer cable clamps that can be installed anywhere along the vertical grommets, providing versatility in your cable routing plan.
Bulky cables stay securely in the cable holder.
Thinner cables can be managed using Velcro straps.
optional assessment
Vertical GPU
The vertical GPU bracket allows you to mount the GPU outside the case and then conveniently put it back in place. The GPU can be flipped using the side stand, allowing you to decide whether to place the GPU port on the top or bottom.
The PCIe riser card cable is available separately and is 900mm long, which is sufficient for cable management and routing.
Vertical GPU
Not compatible with VG4-4X/VG4-4W.
LIAN's O11D EVO XL is compatible with its universal vertical GPU kit, offering a professional and attractive build aesthetic with vertical GPU mounting.
NOTE: Not available in reverse mode
Lower position/lowest slot installation
Upper/highest slot installation
