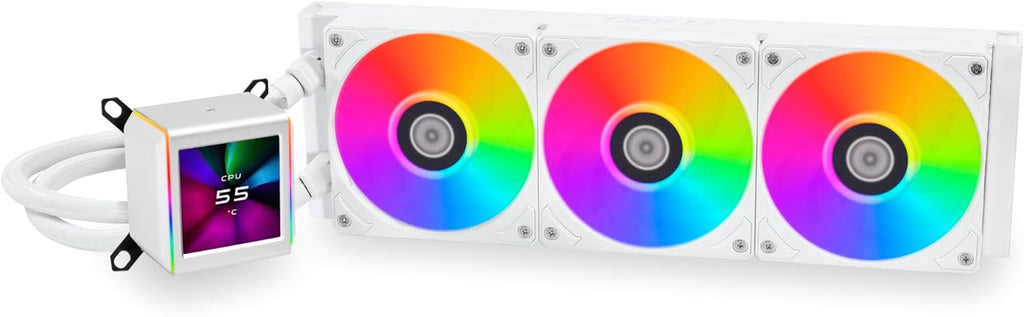

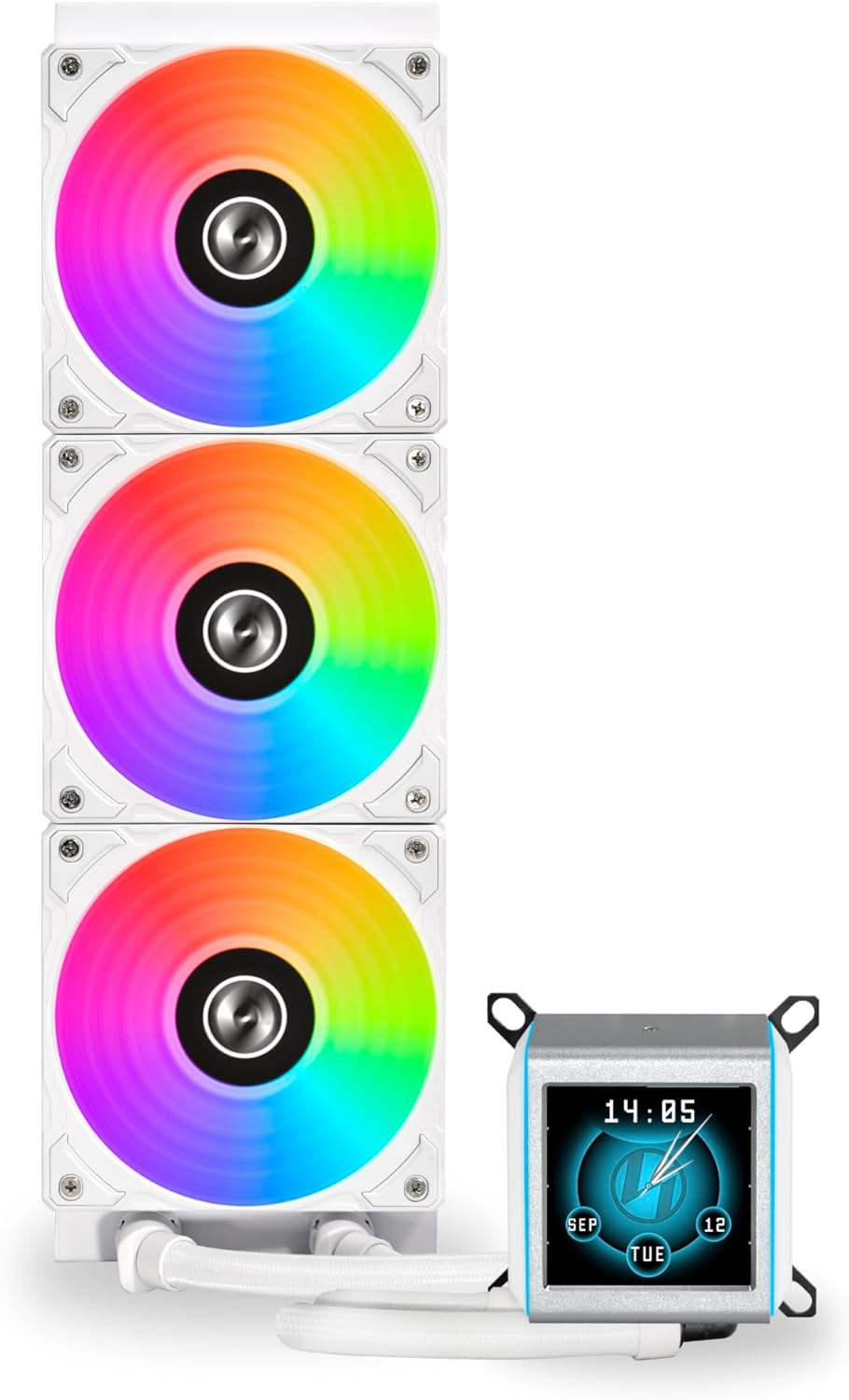

GALAHAD II LCD all-in-one computer
Visually cool
Define your style
Asetek 8th generation pump
2.88” IPS LCD screen
Pre-installed design
Ultimate cooling
45° swivel joint
Daisy Chain ARGB Fan
L-Connect 3 Control
6 years warranty
Two fans available in two sizes/two colors
The Galahad II LCD cooler comes with a fan pre-installed for your convenience. It has 2 types of fans to choose from:
1. Equipped with high-efficiency RGB fan
It ventilates the cooling radiator efficiently and also has a fan with a gorgeous RGB appearance.
Easily match an AIO fan to your case fan with this visually stunning option.
Notice:
The UNI FAN SL-INF controller included in the Galahad II LCD SL-INF version can expand the UNI FAN SL-INF single package (no triple package).
With customizable display features
The LCD screen on the water block can be personalized and controlled using L-Connect 3, with a wide range of multi-effects and customization features for you to explore.
2.88-inch LCD screen
480×480 resolution
500 nits brightness
IPS type display
24-bit full color
Visualize changes with unique looping effects
Through L-Connect 3, various circular effects are provided that can display text in the center. The speed of the effect can be set manually or dynamically adjusted based on the monitored hardware sensors.
Center display options
- CPU temperature
- CPU load
- GPU temperature
- GPU load
- Coolant temperature
- Customized text
- Time
Build your personal dashboard
Featuring 4 layers, it enables a fully personalized mobile display system.
-
The first layer: watermark
Upload an image or GIF that can be moved horizontally and vertically and have varying degrees of shadow and opacity adjustments.
-
Layer 2: Hardware information or text
Display and cycle various hardware information, time or customized text messages.
Each can be adjusted through various layout, orientation, font, size and shading settings.
-
Layer 3: Themed Motion Graphics
Choose a background type effect whose intensity can be customized manually or dynamically adjusted based on the hardware sensor monitor.
-
Layer 4: Image or video
Set background color or display videos and images via screen recording/screenshot or file upload (MP4/GIF/JPEG/PNG).
Background type effect
In addition to circle effects, there are also background type effects designed to give your videos and photos a different look.
Notice:
Video files do not support 3D rain and firework effects.
Capture, edit and enjoy
With L-Connect 3, you have the freedom to screen record or screen capture your favorite content virtually anywhere. You can even use the built-in editor tools to further edit the captured video or image before fully importing the file.
Designed for cool
The 8th generation Asetek pump features a three-phase motor capable of speeds up to 3 RPM for enhanced cooling and quieter operation. It is further complemented by a larger cold plate designed for the latest Intel and AMD processors.
- 2.88-inch LCD screen
- 2 ARGB LED strips
- Asetek 8th generation pump
- Square copper cold plate

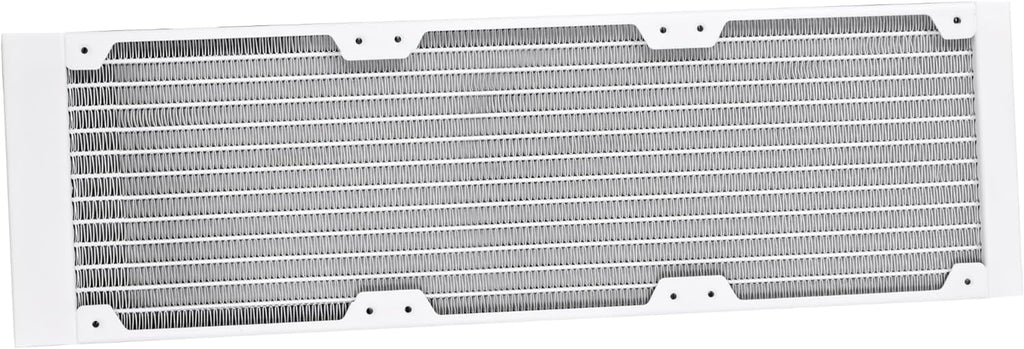

Aluminum cold radiator, high density and powerful
This 30mm thick radiator features single-wave heatsink fins with an FPI (fins per inch) of 20 for less airflow restriction and higher thermal performance.
Daisy chain ARGB fan
ARGB PWM fans can be daisy-chained via a single short cable hidden within the fan frame.
The 120/140mm fan is 25mm thick and equipped with hydrodynamic bearings, which ensures stable and quiet operation while effectively providing airflow to the radiator.
| Maximum wind pressure | Maximum air volume | |
| 120mm | 3.26 mmH2O | 79.9 CFM |
| 140mm | 2.99 mmH2O | 89.7 CFM |
Diverse installations, adaptable to changes
This innovative 45° tube connector allows the tube to rotate freely 360°, allowing the Galahad ll LCD to be mounted in many different ways.
Galahad ll LCD can be flexibly installed in the following ways:
top installation
Side installation
Front installation
Notice:
Video files do not support 3D rain and firework effects.
To make things even better, it also comes with 2 velcro straps to help organize the 385mm long tube.
Installation made easy, made for you
Galahad II LCD provides easy-to-install sockets for most mainstream CPUs out of the box. It is recommended to install the water block with the tube facing downward for optimal performance.
Control software, seamless connection
L-Connect 3 gives you complete control over the Galahad II LCD, including screen, screen LED and fan lighting effects, as well as pump and fan speeds.
Provides 16 lighting effects for the LED light strips on both sides of the screen.
Set the fan's lighting effect or synchronize it with the LED light strip.
Easy connection
The controller is built into the cold head and the fan can be controlled using L-Connect 3 by connecting to the cold head.
*Note: Do not use a splitter; plug in directly for stable signal
◼︎ USB Type-C cable
Plug in the motherboard's 9-pin USB plug to power the screen, capture data, and use L-Connect 3.
NOTE: Make sure the Type C cable is plugged in securely
◼︎ 4-PIN PWM cable
Use the 12V pump connector on the motherboard to power the pump
Extension cord for powering the included fan
*Not included in SL-INF version
◼︎ SATA cable
Suitable for fan PWM 12V and ARGB 5V power supply
◼︎ ARGB input cable
Includes fan ARGB connection for L-Connect 3 control
◼︎ Fan input cable
Includes fan speed connection for L-Connect 3 control
◼︎ 4-PIN ARGB extension cable
Ability to connect 3rd party ARGB devices (without using the included fan) for control via L-Connect 3.
6 years warranty
Galahad II LCD is of high quality and comes with a 6-year warranty (including fan and controller).
After we carefully check the cause of the leak, damage to other parts caused by the leak will be guaranteed for up to 3 years.
