Description
Technical Specifications
Power Consumption
- 0.997W/3.355W

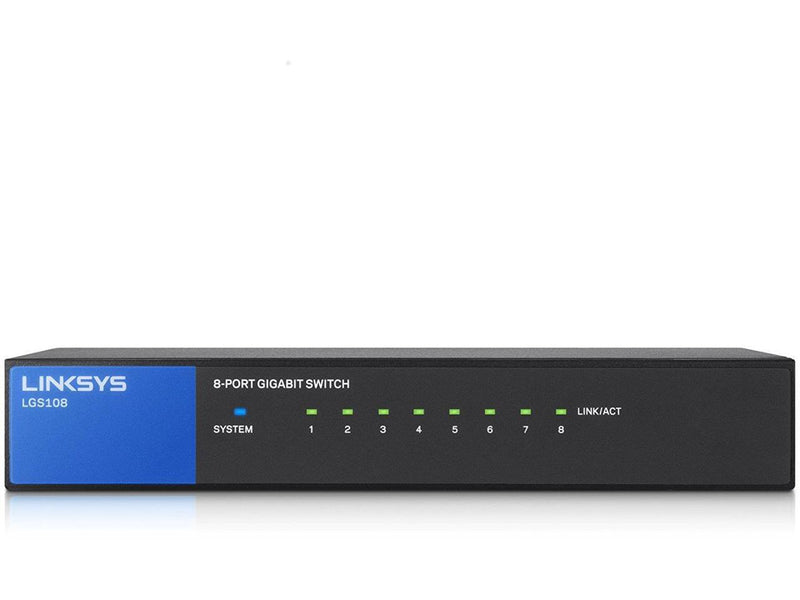

LEDs
- Link and activity indicators
Dimensions (LxWxH)
- 168x90x26mm
Weight
- 0.358kg
Minimum System Requirements
- Connected devices need Ethernet connectivity and Ethernet cables
Operating Humidity
- 10–90% (non-condensing)
Operating Temperature
- 0–50°C

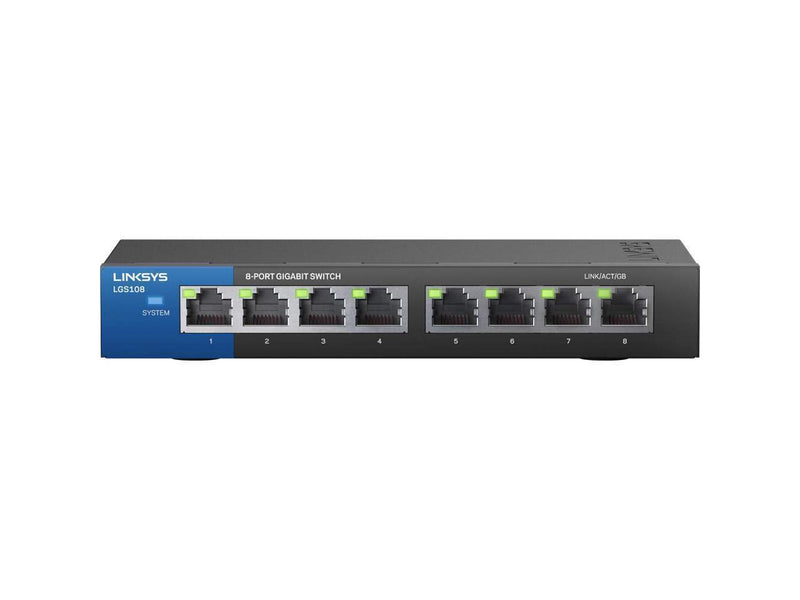

Ports
- 8 Gigabit Ethernet (10/100/1000) Ports
Mounting
- Wall
Power Input
- 12V 0.5A
Storage Temperature
- -40–70°C
Warranty and Support
- 5 Year Warranty
MAC Address Table Size
- 4,000 entries
Performance
- 0.01488 Mpps for 10M port
- 0.1488 Mpps for 100M port
- 1.488 Mpps for 1000M port
- Full line rate and forwarding rate of 64B frame at:
Power
- 100-240VAC, 50/60Hz, 5VDC
Regulatory Compliance
- FCC Class B, CE
Fans
- None
Power Consumption
- 1.07W/3.53W
Storage Humidity
- 10–90% (non-condensing)
Power Saving
- Cable connected detection, cable length detection, sleep mode.
Network Standards
- IEEE802.3
- IEEE802.3ab
- IEEE802.3az
- IEEE802.3u
- IEEE802.3x
Bandwidth
- 16 Gbps (non-blocking)
