UM773 Lite is equipped with AMD Ryzen™ 7 7735HS processor, which has 8 cores and 16 threads, with a frequency range between 3.2GHz and 4.75GHz. In addition, the processor also supports the latest features, including USB4, PCIe4.0 and DDR5 (4800MHz).
Description
Next generation Ryzen 7000 series processors
RDNA™ 2 architecture integrated graphics
AMD Ryzen™ 7 7735HS integrates AMD Radeon™ 680M graphics card, which is based on RDNA™ 2 architecture and has excellent performance in daily work and mid-range games.
Comprehensive
The performance of UM773 Lite makes it easy for users to complete office routines, watch movies, or enjoy games.
Expand as you wish
UM773 Lite continues its upgradeable design and provides dual DDR5 SODIMM slots, M.2 2280 PCIe4.0 SSD slots, and 2.5-inch SATA and 3.0 hard drive slots, allowing you to easily upgrade to meet higher needs. The upgradeability of these configurations allows you to stay competitive and have more powerful performance at any time.
Efficient heat dissipation
The UM773 Lite's cooling system enables full load operation with lower temperatures and noise. The upgraded process improves the stability and efficiency of liquid metal cooling, further improving heat dissipation performance. Liquid metal can transport heat quickly. In addition, the smart fan equipped with 120 blades can run at high speed with a lower noise level, reducing the operating temperature of the machine.
Liquid gold heat dissipation
New fan design
120 blades, 2 heat-conducting copper tubes
High power consumption fan
Multi-blade fan, quiet cooling
Double air outlet
Efficiently remove heat
Hi-Speed USB4
UM773 Lite is equipped with a fully functional USB4 interface. This multi-function port not only provides data transmission speeds up to 40Gbps and 8K@60Hz resolution, but also supports 5V3A power supply.
40Gbp/s data transmission
8K@60Hz resolution
5V3A power supply
Multi-screen linkage
UM773 Lite can connect to three screens at the same time and provide each screen with high-definition images with a resolution of 4K@60Hz independently. The USB4 interface can also support 8K@60Hz resolution.

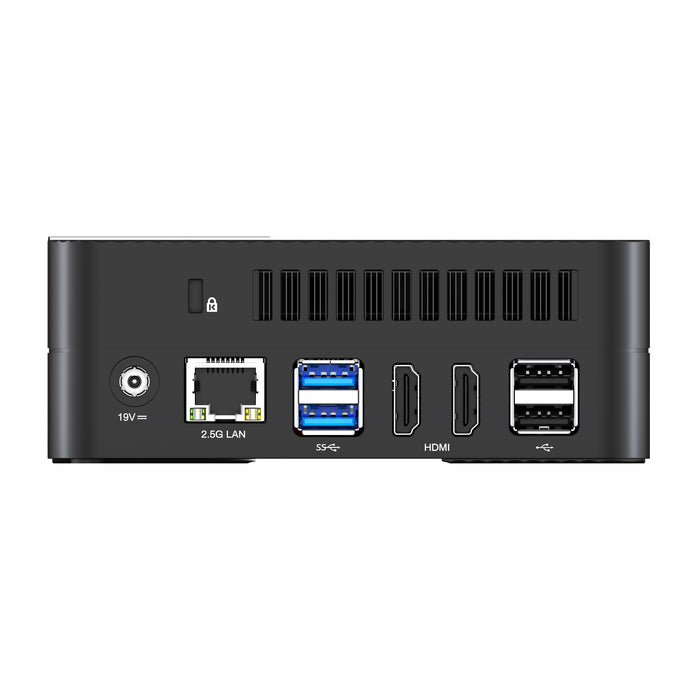

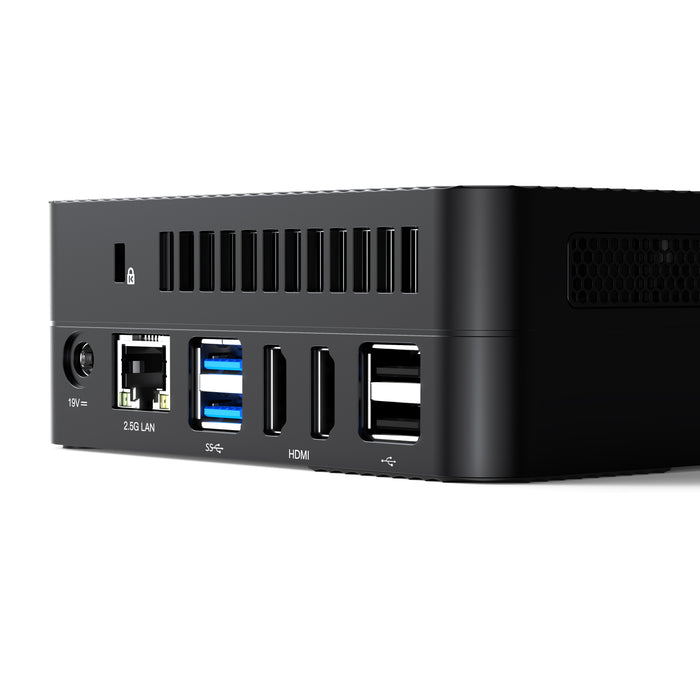

Rich interface
The UM773 Lite packs a lot into one compact body. It has a full-featured USB4 interface, four USB Type-A interfaces, two HDMI 4K@60Hzj interfaces and an RJ45 interface. These interfaces allow users to use them in different situations.
Small, lightweight and easy to carry
The size of UM773 Lite is only 128mm*128mm*48.2mm. Its slim body does not occupy desktop space and can be easily packed into a briefcase when traveling.
Sakura limited edition
The AMD Ryzen™ 7 7735HS processor has 8 cores and 16 threads, with a frequency range from 3.2GHz to 4.75GHz. In addition, the processor also supports the latest features, including USB4, PCIe4.0 and DDR5 (4800MHz). Integrated AMD Radeon™ 680M graphics card, AMD Ryzen™ 7 7735HS integrates AMD Radeon™ 680M graphics card. This graphics card based on RDNA™ 2 architecture has excellent performance in daily work and mid-range games.
Comprehensive
The performance of UM773 SE makes it easy for users to complete office routines, watch movies, or enjoy games.
Game competition
business office
leisure and entertainment
Easy to upgrade
Continuing the upgradeable design, it provides dual DDR5 SODIMM slots, M.2 2280 PCIe4.0 SSD slots, and 2.5-inch SATA and 3.0 hard drive slots, allowing you to easily upgrade to meet higher needs. The upgradeability of these configurations allows you to stay competitive and have more powerful performance at any time.
Efficient heat dissipation
The cooling system of UM773 SE enables full load operation at lower temperatures and noise. The upgraded process improves the stability and efficiency of liquid metal cooling, further improving heat dissipation performance. Liquid metal can transport heat quickly. In addition, the smart fan equipped with 120 blades can run at high speed with a lower noise level, reducing the operating temperature of the machine.
Liquid gold heat dissipation
New fan design
120 blades, 2 heat-conducting copper tubes
High power consumption fan
Multi-blade fan, quiet cooling
Double air outlet
Efficiently remove heat
Hi-Speed USB4
UM773 SE is equipped with a fully functional USB4 port. This multi-functional interface not only provides data transmission speeds up to 40Gbps and 8K@60Hz resolution, but also supports 5V3A power supply.
40Gbp/s data transmission
5V3A power supply
Multi-screen linkage
UM773 SE can connect to three screens at the same time and provide each screen with high-definition images with a resolution of 4K@60Hz independently. The USB4 interface can also support 8K@60Hz resolution.
Rich interface
The UM773 SE packs a lot into one compact body. It has a full-featured USB4 interface, four USB Type-A interfaces, two HDMI 4K@60Hz interfaces and an RJ45 interface. These interfaces allow users to use them in different situations.
Small, lightweight and easy to carry
The body size is only 128mm*128mm*48.2mm. The slim body does not occupy desktop space and can be easily packed into a briefcase when traveling.
Maple Leaf Limited Edition
The AMD Ryzen™ 7 7735HS processor has 8 cores and 16 threads, with a frequency range from 3.2GHz to 4.75GHz. In addition, the processor also supports the latest features, including USB4, PCIe4.0 and DDR5 (4800MHz). Integrated AMD Radeon™ 680M graphics card, AMD Ryzen™ 7 7735HS integrates AMD Radeon™ 680M graphics card. This graphics card based on RDNA™ 2 architecture has excellent performance in daily work and mid-range games.
Comprehensive
Whether you are completing office routines, watching movies, or enjoying games, you can feel comfortable and at ease.
Easy to upgrade
Continuing the upgradeable design, it provides dual DDR5 SODIMM slots, M.2 2280 PCIe4.0 SSD slots, and 2.5-inch SATA and 3.0 hard drive slots, allowing you to easily upgrade to meet higher needs. The upgradeability of these configurations allows you to stay competitive and have more powerful performance at any time.
Efficient heat dissipation
The cooling system of UM773 ME enables full load operation at lower temperatures and noise. The upgraded process improves the stability and efficiency of liquid metal cooling, further improving heat dissipation performance. Liquid metal can transport heat quickly. In addition, the smart fan equipped with 120 blades can run at high speed with a lower noise level, reducing the operating temperature of the machine.
Liquid gold heat dissipation
New fan design
120 blades, 2 heat-conducting copper tubes
High power consumption fan
Multi-blade fan, quiet cooling
Double air outlet
Efficiently remove heat
Hi-Speed USB4
UM773 ME is equipped with a fully functional USB4 interface. This multi-function port not only provides data transmission speeds up to 40Gbps and 8K@60Hz resolution, but also supports 5V3A power supply.
Multi-screen linkage
It can connect to three screens at the same time and provide each screen with high-definition images with a resolution of 4K@60Hz independently. The USB4 interface can also support 8K@60Hz resolution.
Rich interface
Equipped with full-featured USB4 interfaces, four USB Type-A interfaces, two HDMI 4K@60Hz interfaces and one RJ45 interface. These interfaces allow users to use them in different situations.
Small, lightweight and easy to carry
The body size is only 128mm*128mm*48.2mm. The slim body does not occupy desktop space and can be easily packed into a briefcase when traveling.
| Processor | AMD Ryzen™ 7 7735HS, 8 Cores/16 Threads |
| GPU | AMD Radeon™ 680M (Graphics Frequency 2400 MHz) |
| Memory | DDR5 Dual channel (SODIMM Slots ×2, up to 64GB) |
| Storage | M.2 2280 PCIe4.0 SSD |
| Storage Expansion | 1×2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s) |
| Wireless Connectivity | M.2 2230 WIFI Support (Wi-Fi, BlueTooth) |
| Video Output | ① HDMI (4K@60Hz) ×2, ② USB4 ×1 |
| Audio Output | HDMI ×2, 3.5mm Combo Jack ×1 |
| Peripherals Interface | RJ45 2.5 Gigabit Ethernet Port ×1 USB3.2 Gen2 Type-C ×1 (Data Only, In Right) USB3.2 Gen2 Type-A ×2 USB2.0 Type-A ×2 USB4 Type-C ×1 (In Left) HDMI×2 Clear CMOS×1 DMIC×1 3.5mm Combo Jack×1 |
| Power | DC 19V (adapter included) |
| System | Windows 11 |
