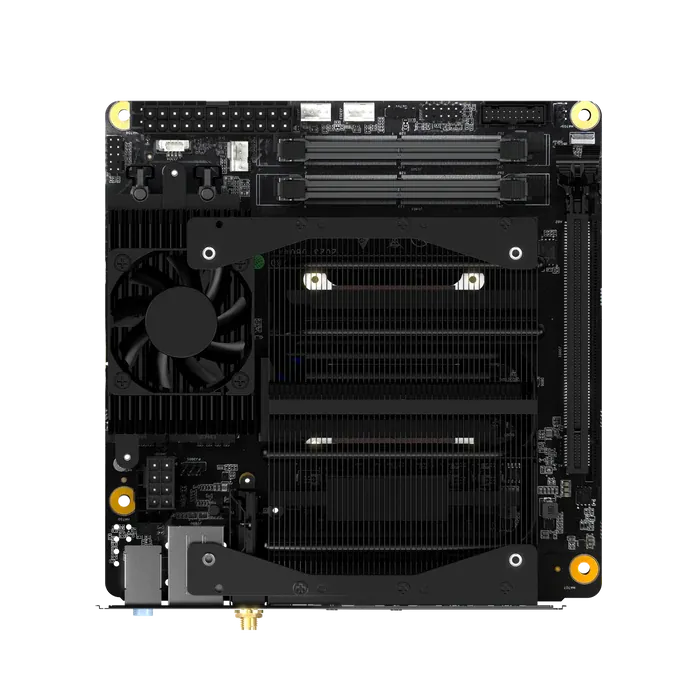

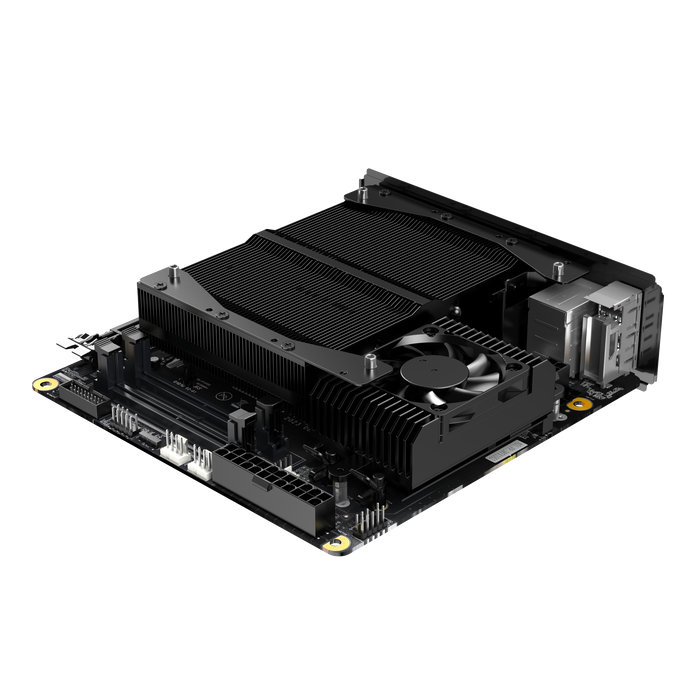

MINISFORUM 主機板 AR900I (包含CPU)
數量:
我們接受
| CPU | Intel® Core™ i9-13900HX Processor, 24 Cores/32 Threads (36M Cache, up to 5.4 GHz) |
| GPU | Intel® UHD Graphics for 13th Gen Intel® Processors |
| 芯片組 | Intel® HM770 Chipset |
| 記憶體 | DDR5 Dual channel (SODIMM Slots×2, up to 5600 MT/s, Max 64GB) |
| 存儲 | 4×M.2 2280 PCIe4.0 SSD Slots |
| 儲存拓展 | PCIe 5.0 X16 connector ×1 |
| 無綫連接 | M.2 2230 Key E Slot |

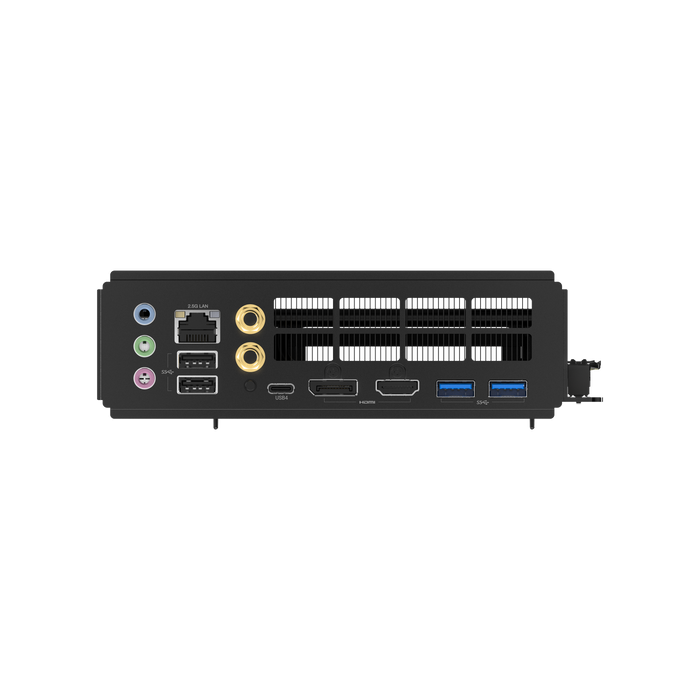

| 視訊輸出 | HDMI2.0 ×1；DisplayPort1.4 ×1；USB-C ×1 |
| 音頻輸出 | HDMI2.0 ×1；DisplayPort1.4 ×1；USB-C ×1；Line Out ×1 |
| Ethernet | RJ45 2.5G Ethernet Port×1 |
| USB 接口 | USB3.2 Gen2 Type-C Port ×1(Alt DP) USB3.2 Gen2 Type-A Port ×2 USB2.0 Type-A Port ×2 |
| I/O 接口 | 4-pin CPU Fan header ×1 4-pin System Fan header ×2 4-pin SSD Fan header ×1 USB 3.2 Gen 1 header ×1 Front Panel Audio header ×1 System Panel header ×1 |
| 規格 | Mini-ITX Form Factor(170x170mm) |
