Description

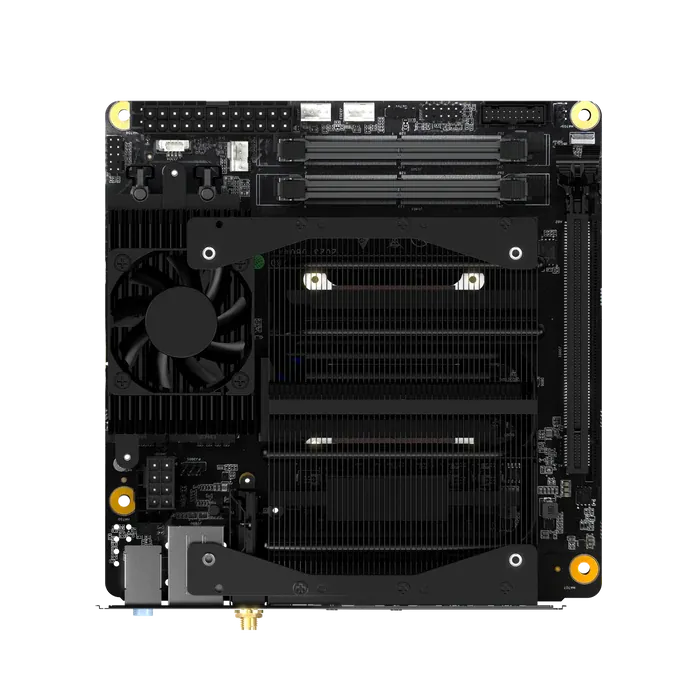

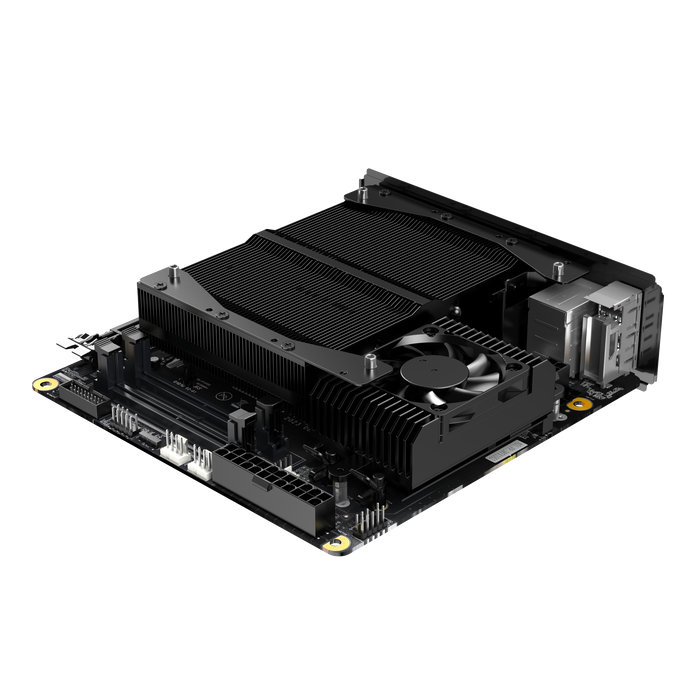

MINISFORUM motherboard AR900I (including CPU)
Quantity:
we accept
| CPU | Intel® Core™ i9-13900HX Processor, 24 Cores/32 Threads (36M Cache, up to 5.4 GHz) |
| GPU | Intel® UHD Graphics for 13th Gen Intel® Processors |
| chipset | Intel® HM770 Chipset |
| memory | DDR5 Dual channel (SODIMM Slots×2, up to 5600 MT/s, Max 64GB) |
| storage | 4×M.2 2280 PCIe4.0 SSD Slots |
| storage expansion | PCIe 5.0 X16 connector ×1 |
| wireless connection | M.2 2230 Key E Slot |
| Video output | HDMI2.0 ×1; DisplayPort1.4 ×1; USB-C ×1 |
| audio output | HDMI2.0 ×1; DisplayPort1.4 ×1; USB-C ×1; Line Out ×1 |
| Ethernet | RJ45 2.5G Ethernet Port×1 |

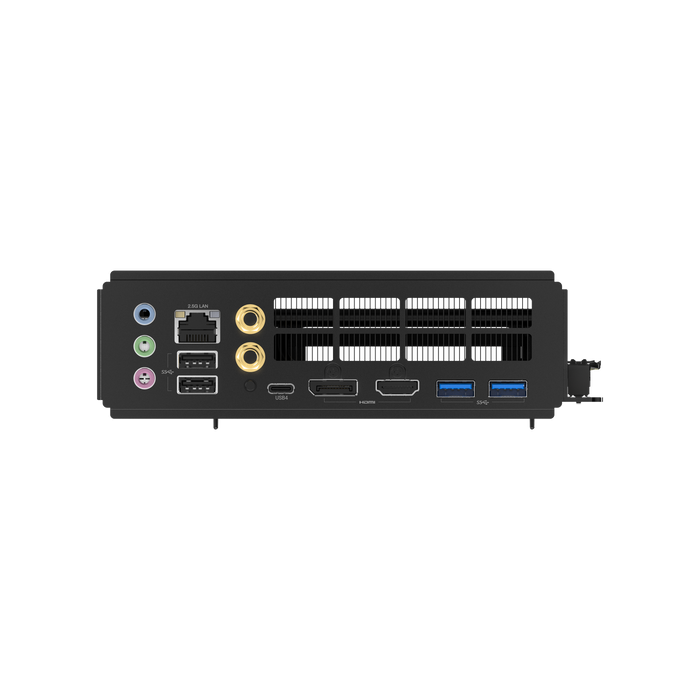

| USB interface | USB3.2 Gen2 Type-C Port ×1(Alt DP) USB3.2 Gen2 Type-A Port ×2 USB2.0 Type-A Port ×2 |
| I/O interface | 4-pin CPU Fan header ×1 4-pin System Fan header ×2 4-pin SSD Fan header ×1 USB 3.2 Gen 1 header ×1 Front Panel Audio header ×1 System Panel header ×1 |
| Specification | Mini-ITX Form Factor(170x170mm) |
