BE AHEAD, POP YOUR STYLE
MPG GUNGNIR 300 series mid-tower chassis is constructed to comply with high standards. Front panel mesh design, built for performance.
concept of design
MSI's GUNGNIR series contains many mainstream elements, and each model has its own unique appearance and characteristics. The GUNGNIR series has always been widely recognized by the market, and the new member MPG GUNGNIR 300 series has also officially joined to meet the ever-changing preferences of the times.
Thermal potential
- The front and top support both 360 mm water cooling radiators.
- Can support up to 10 fans.
- 80 mm of space is reserved at the front and top to support push-pull fan configuration.

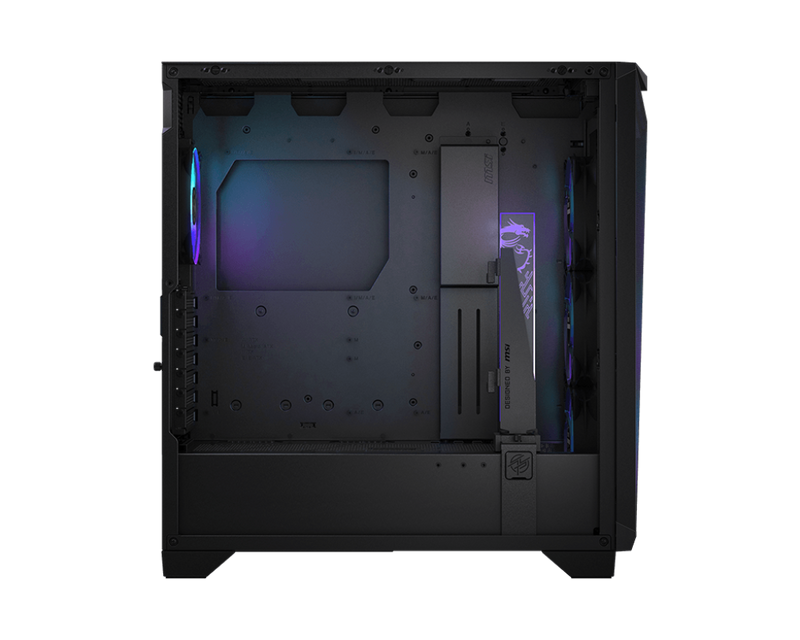

High-end graphics card support
Horizontal plug-in type
Even if you install a large-size graphics card, you can keep enough space from the side panel to reduce wire bending problems.
upright
When the graphics card is installed vertically, there is sufficient space for heat dissipation between the graphics card and the motherboard.
- Left and Right Versatile Bracket
- Depth Slider
- Height Adjustable
- 90-degree rotation
Comprehensive support for graphics cards
The graphics card support bracket can be installed according to different sizes of graphics cards without any tools. The user-friendly design makes it easier for users to adjust and change the installation method while providing the best support.
-
Motherboard size support: E-ATX (up to 280 x 305 mm)/ATX/M-ATX/ITX
-
Processor heat sink height: 175 mm
-
Maximum length of graphics card: 360 mm
-
Power supply: up to 220 mm (provide enough space for the power cord)
Friendly DIY – MSI Exclusive
Multifunctional cable cover, PCIe bracket and push-lock structure on the side panel.
Adjust the structure
Cable management
- Switch Button
- 3 mm tempered glass
Multi-stage light switching button design
Through the equipped control panel, you can use the light switch button design to control the fan lighting effect, and through the tempered glass side panel, you can fully display your exclusive ARGB showroom.
Front I/O
- 2x USB 3.2 Gen 1 Type-A
- 1x USB 3.2 Gen 2x2 Type-C
- Mic In/Audio Out
- Power Button
- Reset Button
- LED Switch Button

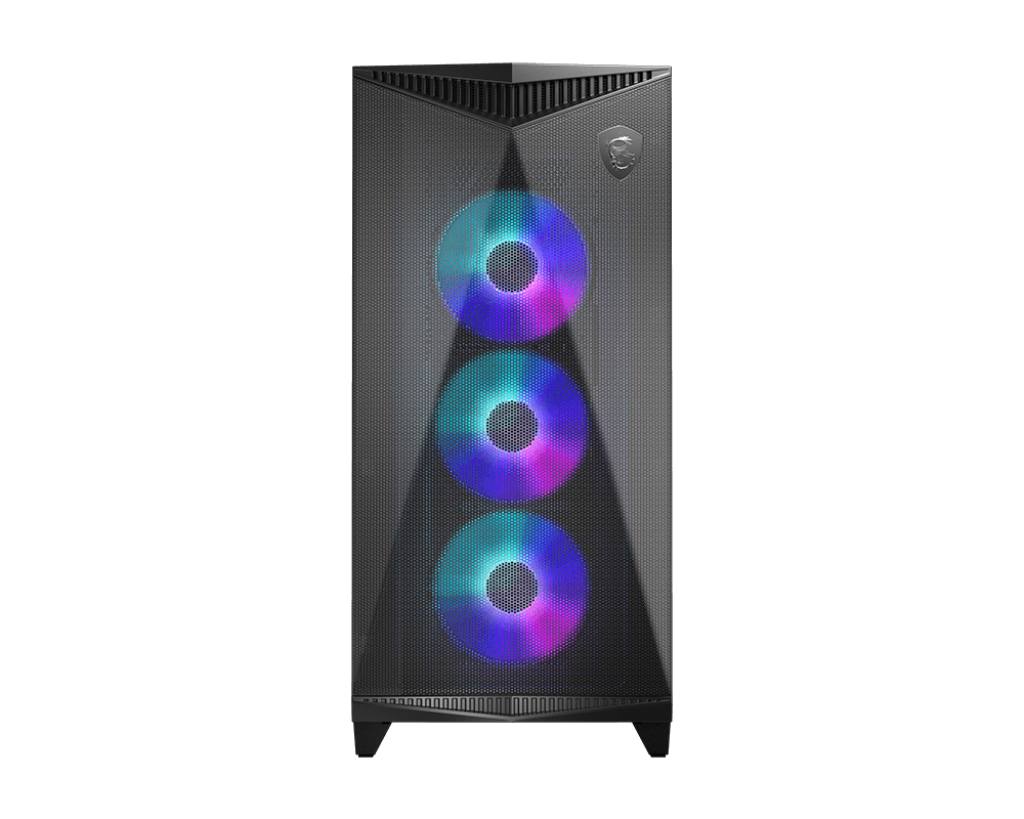

MPG GUNGNIR 300R AIRFLOW/WHITE
- Integrated 1mm mesh panel supports front/top dual 360mm integrated water cooling and push-pull settings.
- It fully supports vertical or horizontal installation of high-end graphics cards and leaves enough space to ensure heat dissipation and cable bending.
- The all-round graphics card bracket can be adjusted in multiple ways to support different graphics card installations.
- Patented DIY-friendly design, easy to assemble.
- Pre-installed 4 x 120mm ARGB fans (compatible with Mystic Light).
- E-ATX (280 x 305 mm), ATX, Micro-ATX and Mini-ITX motherboards and 360 mm graphics card sizes.
- 1 x USB 3.2 Gen 2x2 Type-C port (20Gbps) and 2 x USB 3.2 Gen 1 Type-A port (5Gbps).
