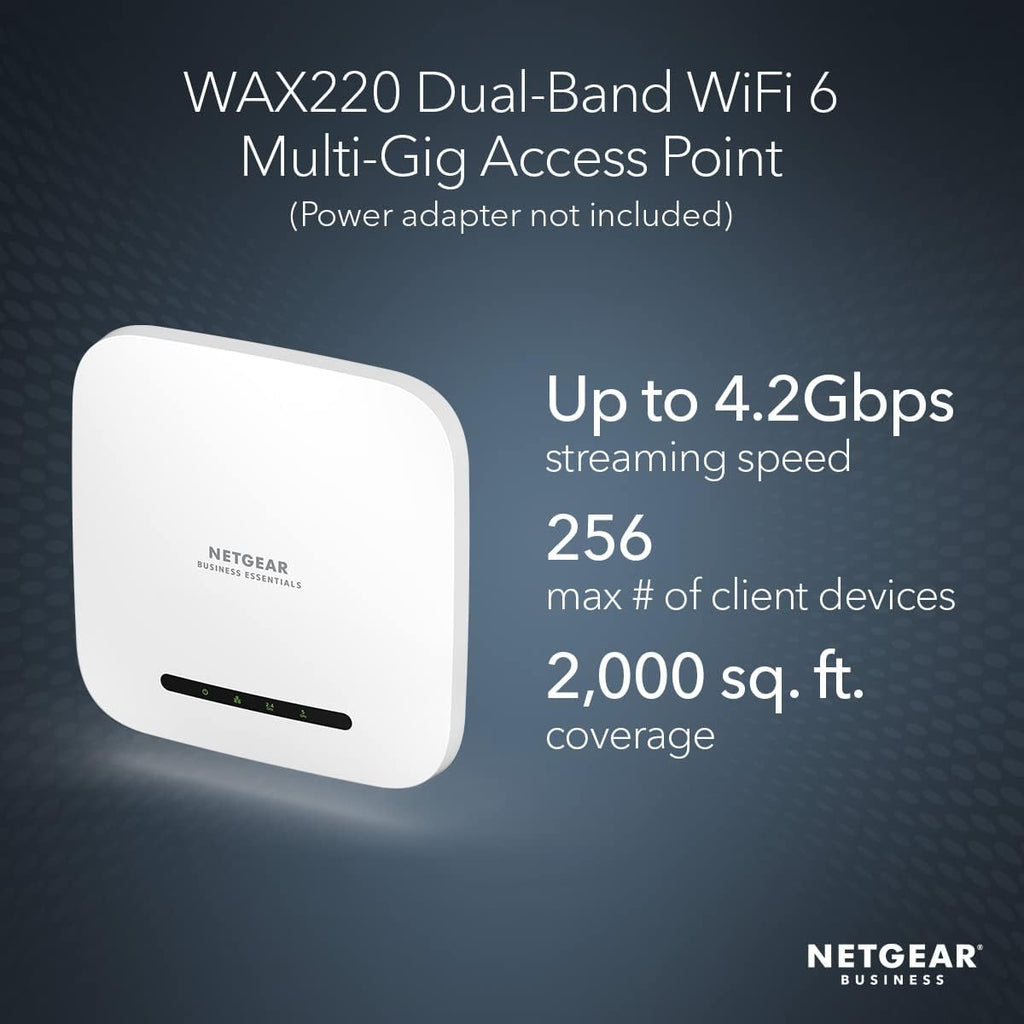

Description
Highlights
- Easy to install in a retail store, business lobby, or any location where you want a dedicated, secure WiFi network.
- Dual-Band AX4200 speed and capacity, coupled with MU-MIMO technology, supports up to 256 client devices.
- Simplified deployment when powered by a PoE+ switch. Power adapter (PAV12V25-10000S ) sold separately.
- Manage it locally without any app or subscription required. Quickly and easily configure in less than 10 minutes.
- Supports WPA, WPA2, and WPA3.
- Easy to mount on a wall or ceiling with included hardware.
Product Descriptions
|
|
|
|
|---|---|---|
Waiting LobbyPerfect for an extended network at a distance from the main wireless router. Create a separate, secure wireless network for any single room area. |
Retail StorefrontProvide separate, secure WiFi for customers and employees. |
Public SpaceIntegrate secure, performance WiFi into any business public space location. |
|
|
|
|
|---|---|---|

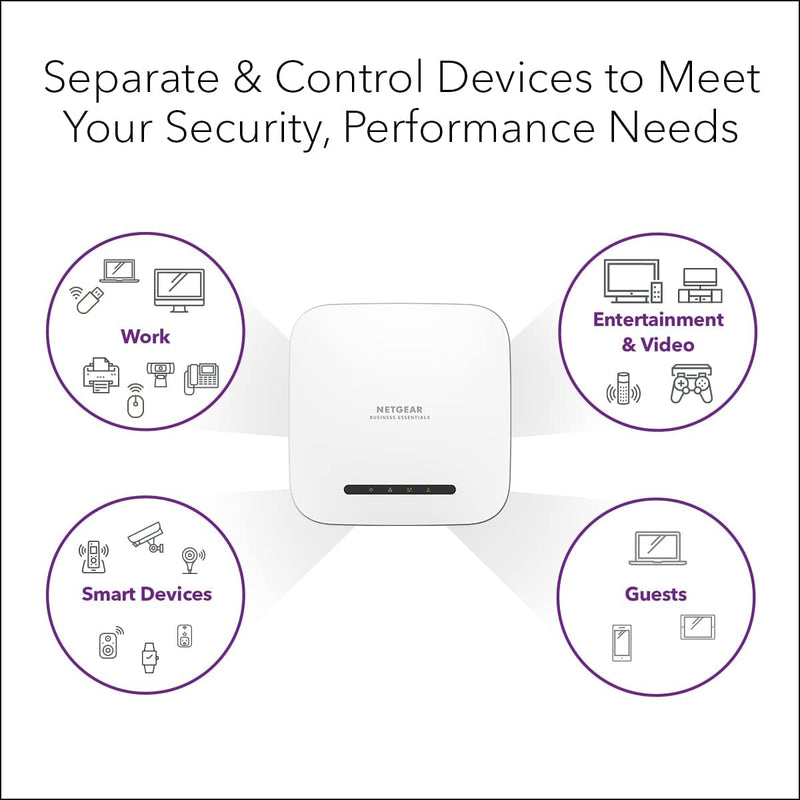

Control Wireless Device AccessSupporting multiple SSIDs, the WAX220 delivers up to 4 separate and secure wireless networks to protect and manage device access. |
Flexible, Discreet Mounting OptionsEasy installation on a wall or ceiling provides the optimal WiFi network coverage in an out-of-the-way location. |
Easy Setup WizardThe NETGEAR setup wizard configures the setup in 10 minutes. |
Specifications
- Speed: AX4200
- Radio : 5GHz: 4x4 20/40/80/160MHz
- 2.4GHz: 2x2 20/40MHz
- Theoretical Throughput: 5GHz: 3.6Gbps
- 2.4GHz: 0.6Gbps
- Antenna Gain : 5dBi (2.4GHz), 5dBi (5GHz)
- # of Max Users : 256
- # of Concurrent Devices : 75
- Coverage: 2,000 sqft (185 sqm)
- Ideal Use: Small and medium business, home office
- Ethernet port: 1 x 2.5G port
- PoE: Yes
- PoE Power Consumption: 15W
- Local management
- Security: WiFi Protected Access (WPA/WPA2/WPA3), MAC Address filtering, 4 SSID
- Dimensions (W x D x H) : 7.71 x 7.71 x 1.74 in (196 x 196 x 44.4 mm)
- Weight: 1.15lb (523g)
