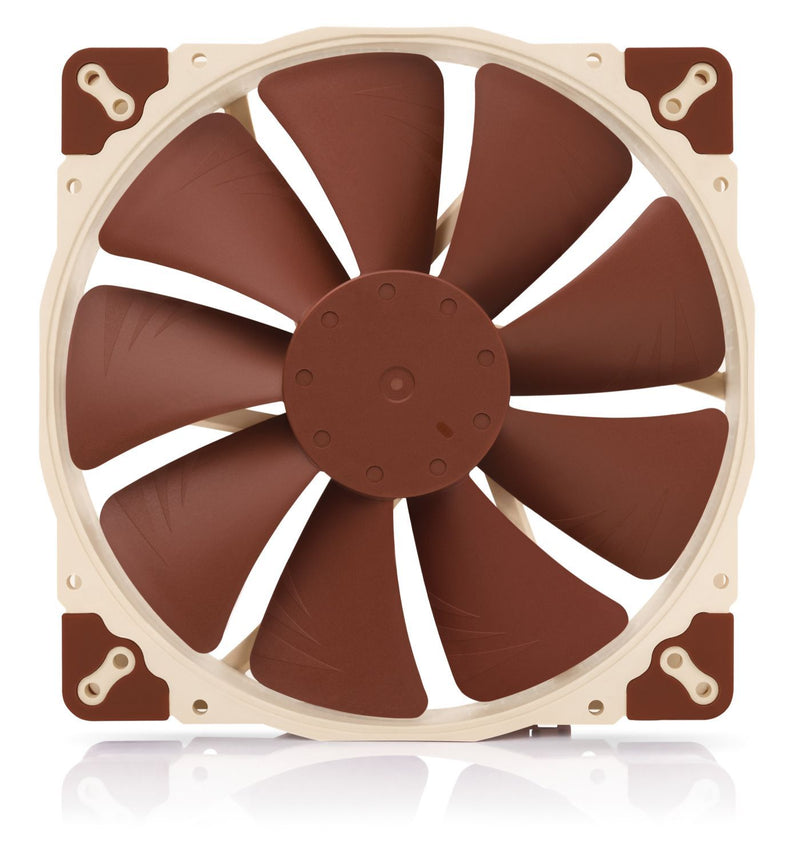

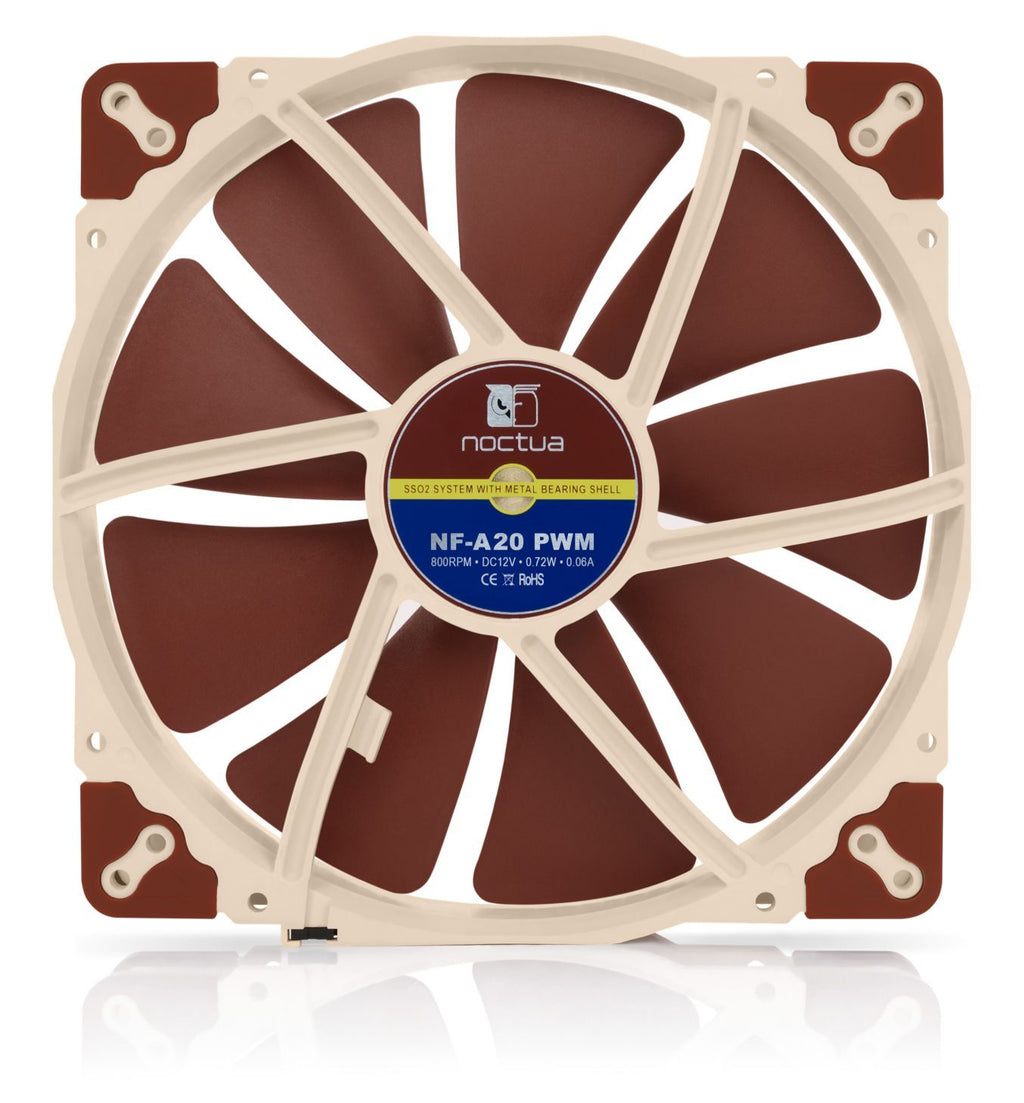

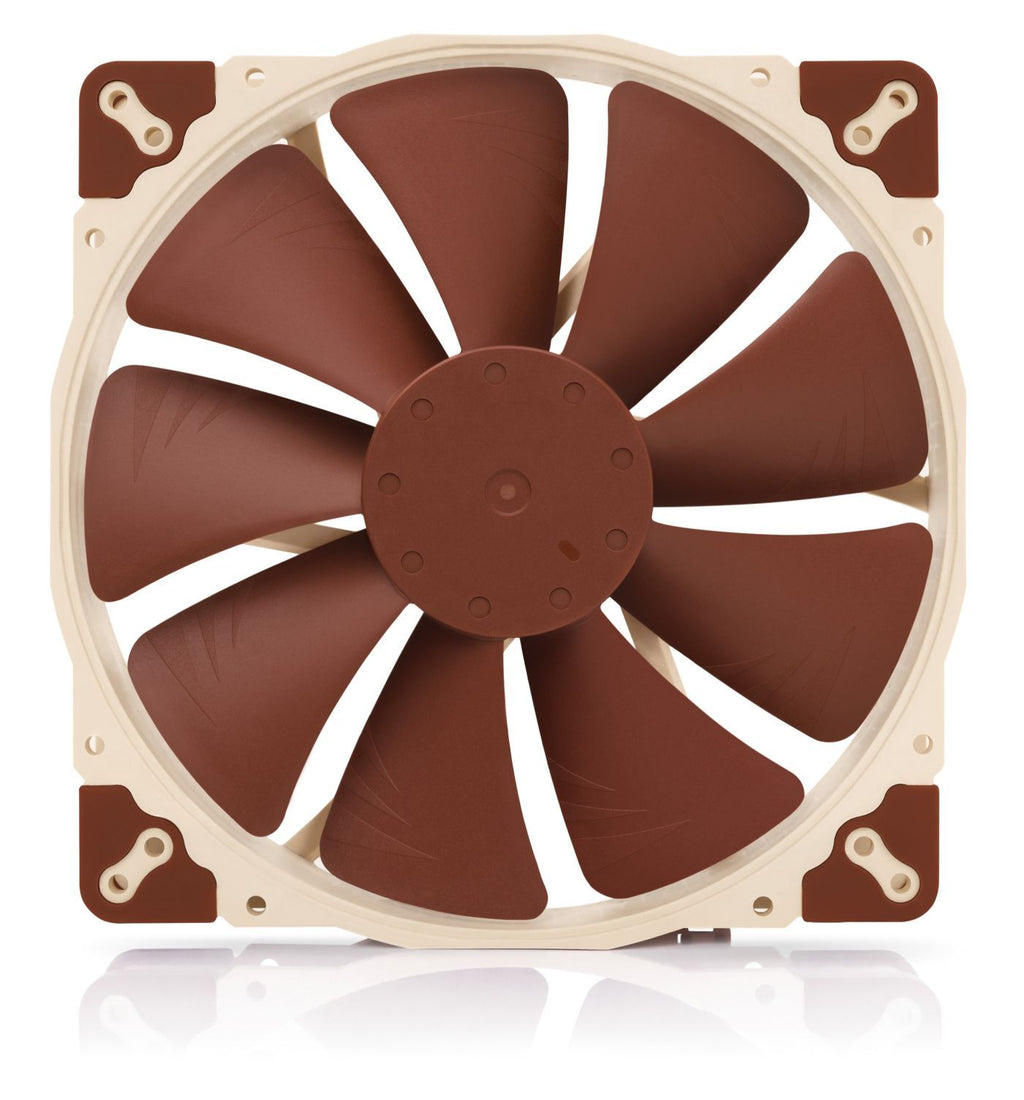

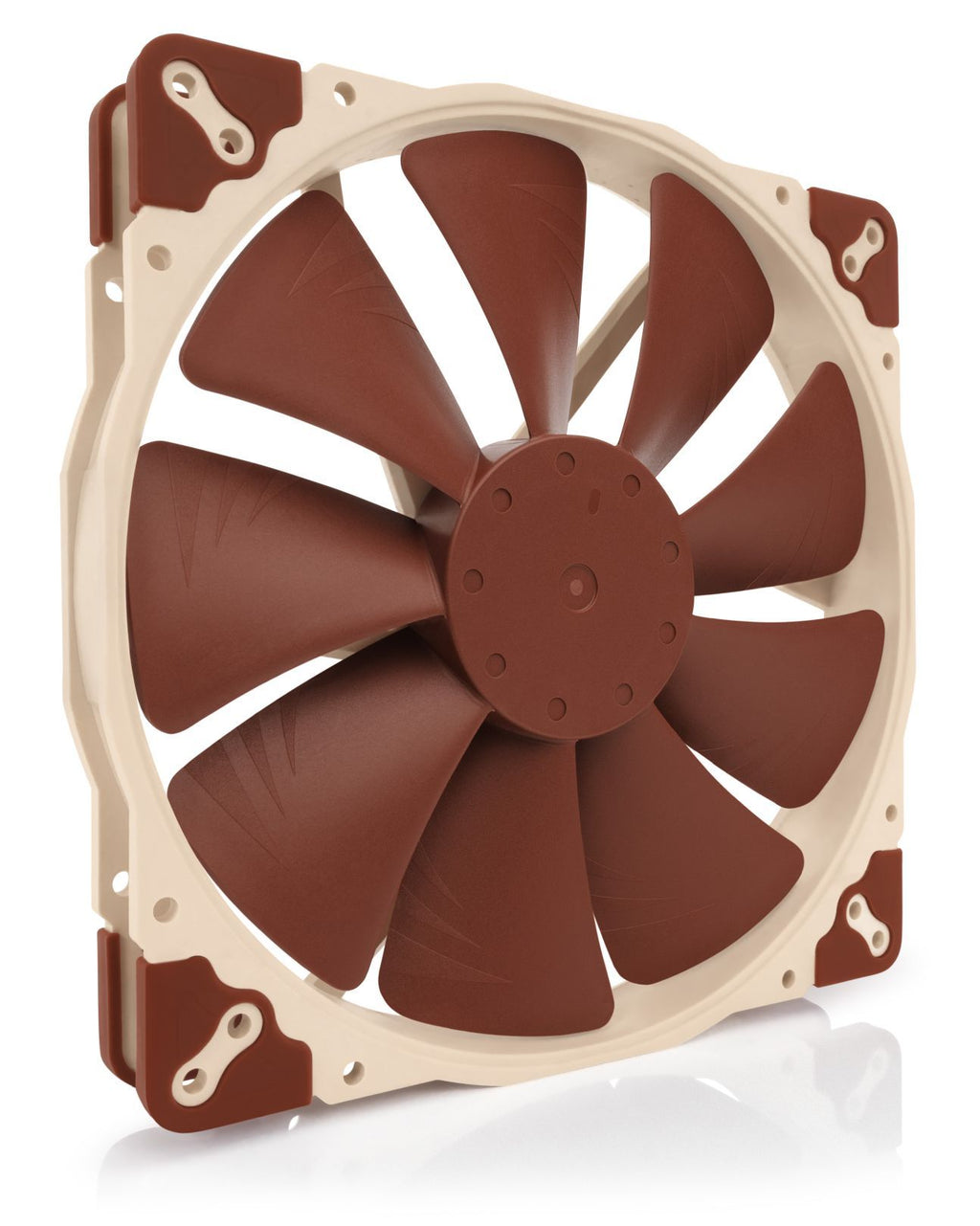

Noctua NF-A20 PWM 20cm Case Fan
Noctua NF-A20 PWM 20cm Case Fan
Noctua NF-A20 PWM 20cm Case Fan
Roll over image to zoom in Click on image to zoom
Noctua NF-A20 PWM 20cm Case Fan
Noctua NF-A20 PWM 20cm Case Fan
Noctua NF-A20 PWM 20cm Case Fan

Noctua NF-A20 PWM 20cm Case Fan

NOCTUA
Price:
HK$260.00 HK$339.00

Description

FAN Specification
Size

200x200x30 mm
Mounting hole spacing

154x154, 110x180, 170x170mm
Connector & pin-configuration

4-pin PWM
Cable length

20cm + 30cm NA-EC1 extension cable
Bearing

SSO2
Blade geometry

A-Series with Flow Acceleration Channels
Frame technology

AAO (Advanced Acoustic Optimization)
Rotational speed (+/- 10%)

800RPM
Rotational speed with LNA (+/- 10%)

550 RPM
Min. rotational speed @ 20% PWM (+/-20%)

350 RPM
Airflow

146,9 m³/h
Airflow with LNA

100,8 m³/h
Acoustical noise

18,1 dB(A)
Acoustical noise with LNA

10,7 dB(A)
Static pressure

1,08 mm H₂O
Static pressure with LNA

0,51 mm H₂O
Input power (typical)

0,82W
Input power (max.)

0,96W
Input current (typical)

0,07 A
Max. input current

0,08A
Operating voltage

12V
Voltage PWM signal

5 V
MTTF

> 150.000 hours
Scope of delivery

  • Low-Noise Adapter (LNA)
  • 4-pin y-cable
  • 30cm extension cable
  • NA-AV3 anti-vibration mounts
  • NA-AV4 anti-vibration mounts
  • Fan screws
Warranty

6 years
