Description
FAN Specification
Size
80x80x25 mm
Mounting hole spacing
71,5x71,5 mm
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
Rotational speed (+/- 10%)
2200 RPM
Rotational speed with LNA (+/- 10%)
1750 RPM
Min. rotational speed @ 20% PWM (+/-20%)
450RPM
43,9 m³/h
Acoustical noise
17,7 dB(A)
Acoustical noise with LNA
13,8 dB(A)
Static pressure
2,37 mm H₂O
Static pressure with LNA
1,54 mm H₂O
Input power (typical)
0,75W
Input power (max.)
0,96W
Input current (typical)
0,06A
Max. input current
0,08 A
Operating voltage
12 V
MTTF
> 150.000 hours

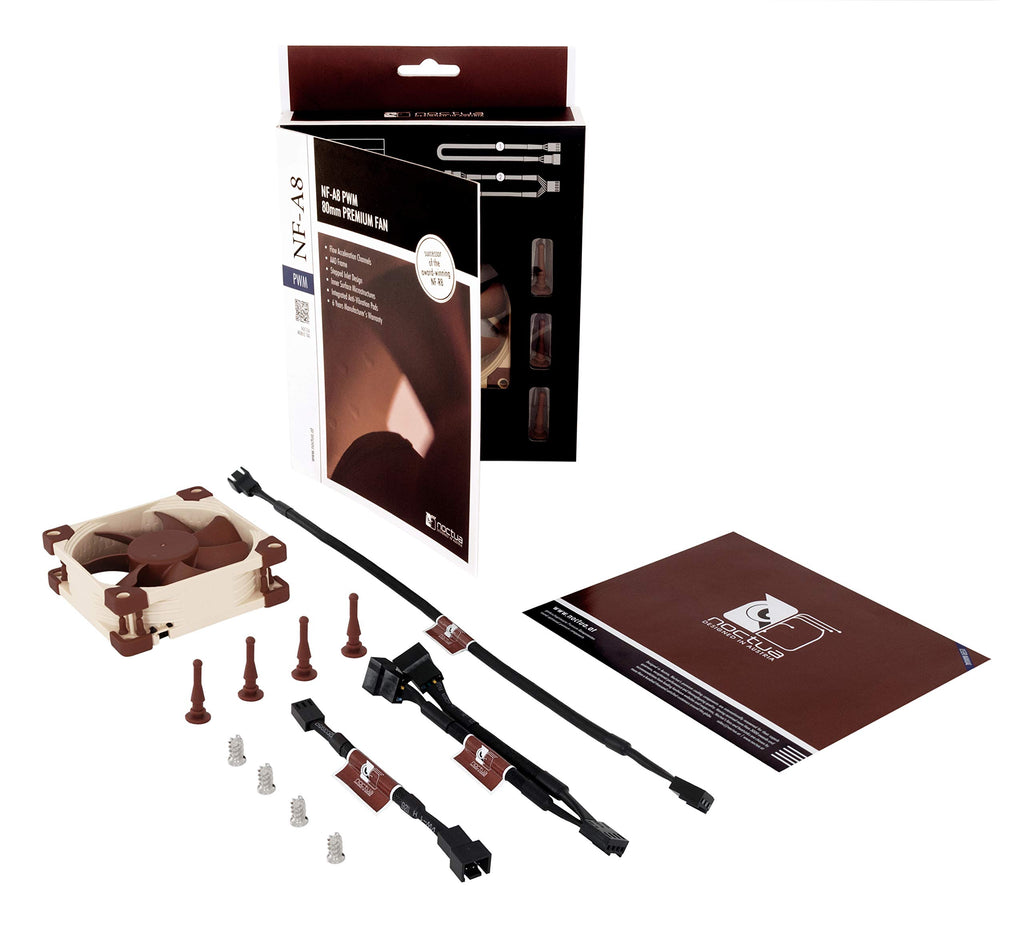

Scope of delivery
- Low-Noise Adapter (LNA)
- 4-Pin Y-Cable
- 30cm Extension Cable
- 4 Vibration-Compensators
- 4 Fan Screws
6 years
