Description
Cooler Specification
Height (without fan)
145mm
Width (without fan)
125mm
Depth (without fan)
113mm
Weight (without fan)
700g
Height (with fan)
145mm
Width (with fan)
125mm
Depth (with fan)
113mm
Weight (with fan)
890 g
Material
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating
148
Max.TDP
see NSPR
Fan compatibility
NF-A12x25r (square-frame 120mm fans not supported)

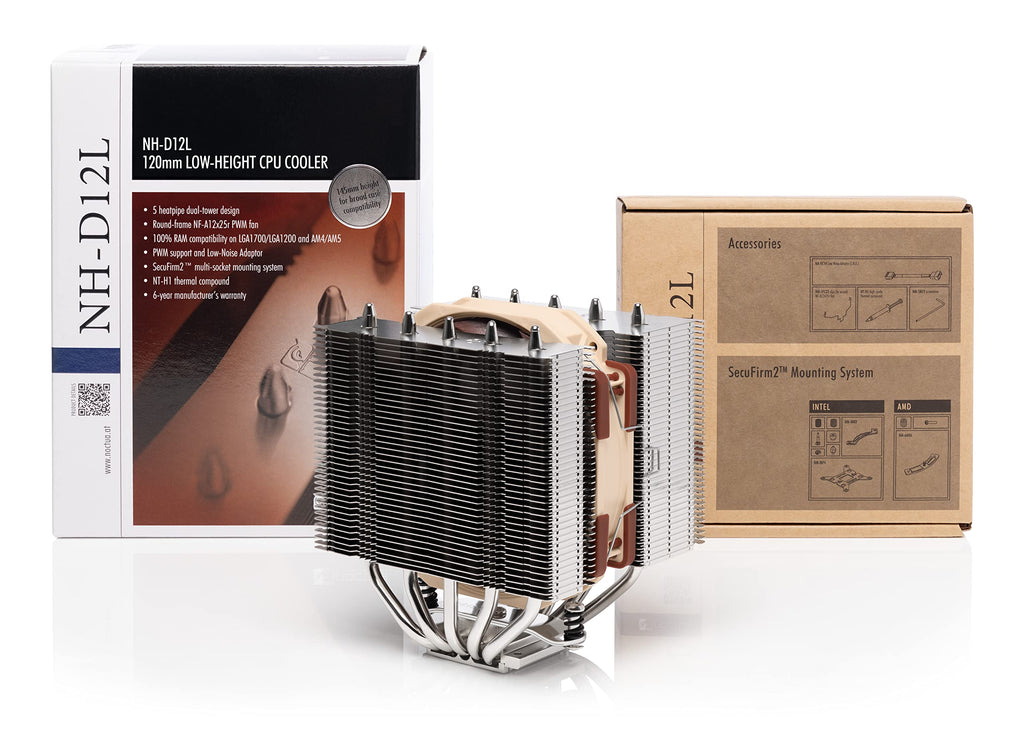

Scope of delivery
- NF-A12x25r PWM premium fan
- NA-RC14 Low-Noise Adapter (LNA)
- NT-H1 high-grade thermal compound
- Fan-clips for second NF-A12x25r
- SecuFirm2™ mounting kit
- Noctua metal case-badge
6 Years
FAN Specification
Model
Bearing
Max. rotational speed (+/- 10%)
2000RPM
Max. rotational speed with LNA (+/- 10%)
1700 RPM
Min. rotational speed @ 20% PWM (+/-20%)
450RPM
102,1 m³/h
Max.acoustic noise
22,6 dB(A)
Max. acoustical noise with LNA
18,8 dB(A)
Voltage range
12V
MTTF
> 150.000 hours
