Description
Cooler Specification
Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4
(Current socket compatibility applies to all coolers purchased since Q2 2022. For older coolers, please refer to this chart .)
(Current socket compatibility applies to all coolers purchased since Q2 2022. For older coolers, please refer to this chart .)
Height (without fan)
160 mm
Width (without fan)
150 mm
Depth (without fan)
135mm
Weight (without fan)
980g
Height (with fan)
165mm
Width (with fan)
150 mm
Depth (with fan)
161mm
Weight (with fan)
1320g
Material
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating
183
Max.TDP
see NSPR
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

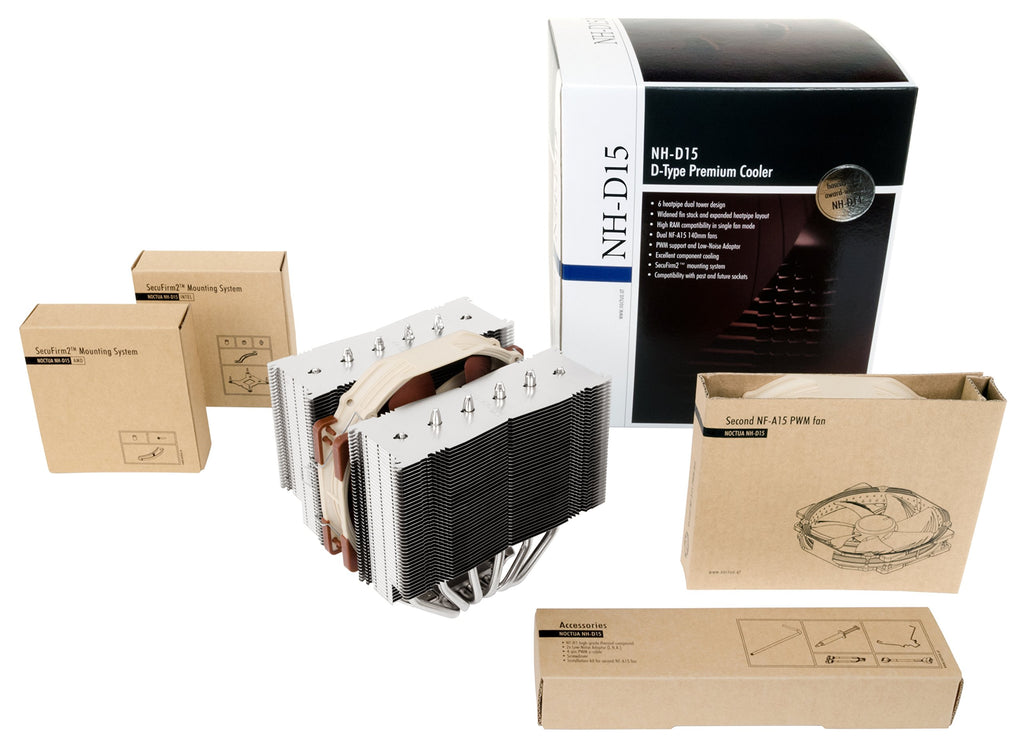

Scope of delivery
- 2x NF-A15 PWM premium fan
- 2x NA-RC7 Low-Noise Adapter (LNA)
- NA-YC1 4-pin PWM splitter cable
- NT-H1 high-grade thermal compound
- SecuFirm2™ mounting kit
- Noctua metal case-badge
6 Years
FAN Specification
Model
2x Noctua NF-A15 PWM
Bearing
Max. rotational speed (+/- 10%)
1500RPM
Max. rotational speed with LNA (+/- 10%)
1200RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 rpm
140,2 m³/h
115,5 m³/h
Max.acoustic noise
24,6 dB(A)
Max. acoustical noise with LNA
19,2 dB(A)
Voltage range
12V
MTTF
> 150.000 hours
