Description
Cooler Specification
Intel LGA1700 (included since Q4 2021 , older coolers require NM-i17xx-MP83 ), LGA1200 , LGA1156, LGA1155, LGA1151, LGA1150, LGA2066 , LGA2011-0, LGA2011-3 ( Square ILM ) & AMD AM4, AM5
Height (without fan)
160 mm
Width (without fan)
150 mm
Depth (without fan)
135mm
Height (with fan)
160 mm
Width (with fan)
150 mm
Depth (with fan)
135mm
Weight (with fan)
1150g
Material
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating
167
Max.TDP
see NSPR
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

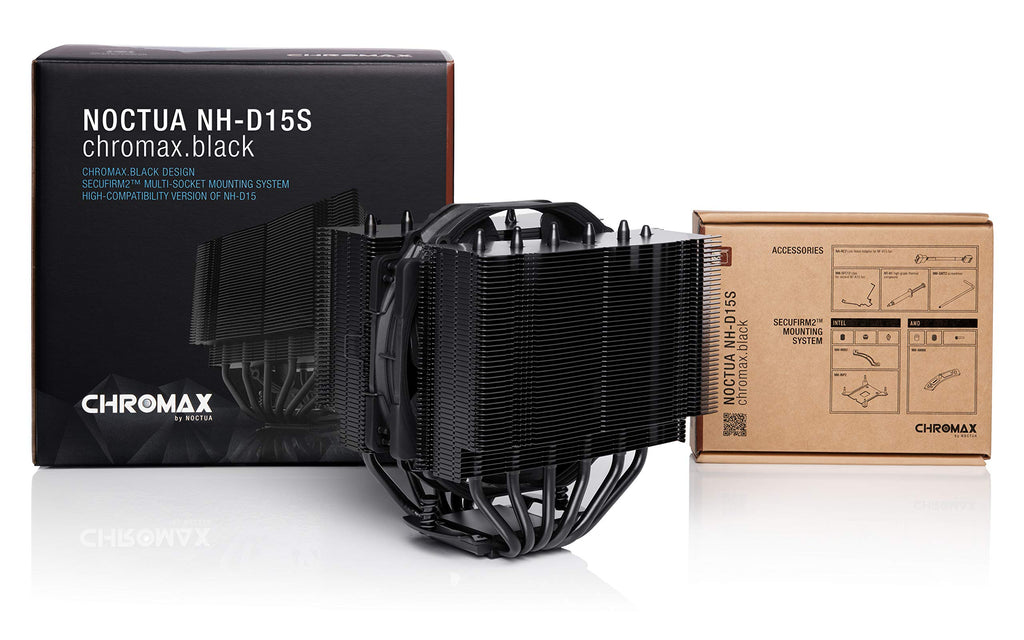

Scope of delivery
- Black NH-D15S heatsink
- NF-A15 HS-PWM chromax.black premium fan
- NA-RC7 Low-Noise Adapter (LNA)
- NT-H1 high-grade thermal compound
- Black SecuFirm2™ mounting kit
- Black fan-clips for second NF-A15
- Noctua Metal Case-Badge
6 Years
FAN Specification
Model
NF-A15 HS-PWMchromax.black
Bearing
Max. rotational speed (+/- 10%)
1500RPM
Max. rotational speed with LNA (+/- 10%)
1200RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 rpm
140,2 m³/h
115,5 m³/h
Max.acoustic noise
24,6 dB(A)
Max. acoustical noise with LNA
19,2 dB(A)
Input power (max.)
1,56 W
Voltage range
12V
MTTF
> 150.000 hours
