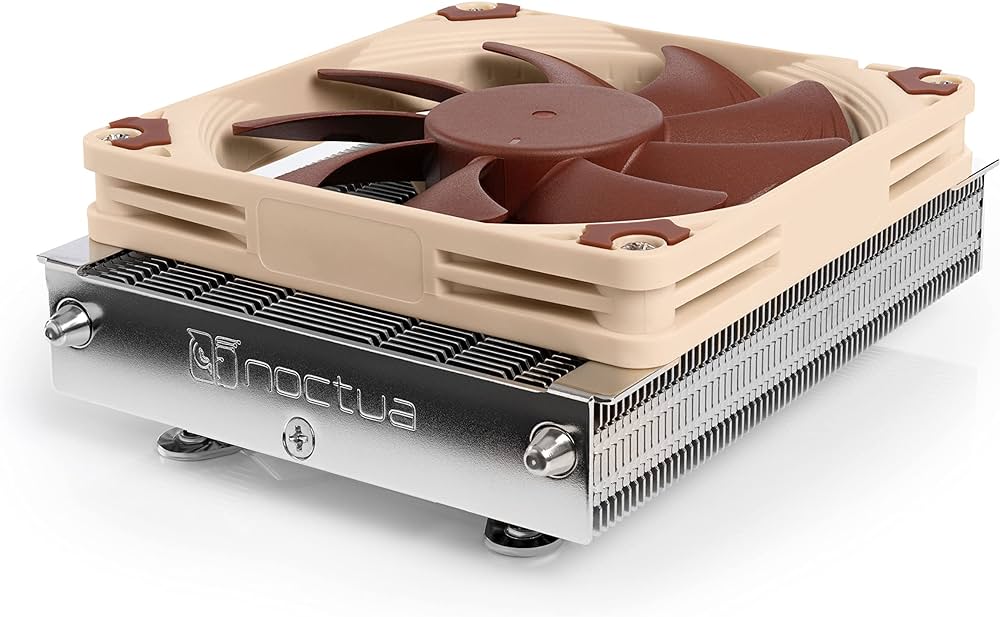

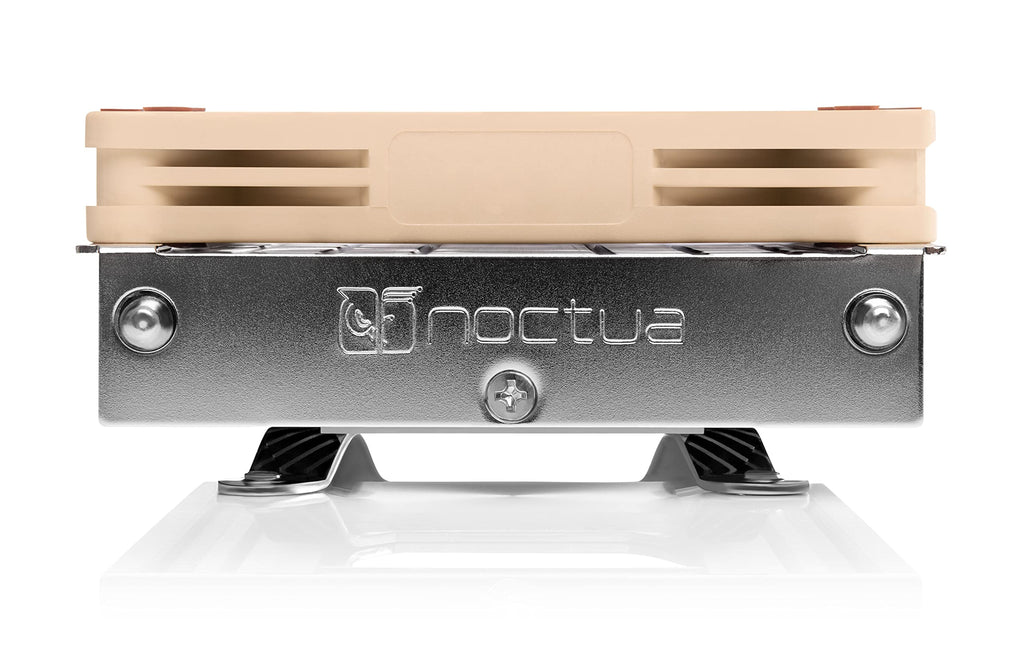

Noctua NH-L9a-AM5 low-profile CPU Cooler
Noctua NH-L9a-AM5 low-profile CPU Cooler
Roll over image to zoom in Click on image to zoom
Noctua NH-L9a-AM5 low-profile CPU Cooler
Noctua NH-L9a-AM5 low-profile CPU Cooler

Noctua NH-L9a-AM5 low-profile CPU Cooler

NOCTUA
Price:
HK$400.00 HK$450.00

Description

Cooler Specification
Socket compatibility
AMD AM5
Height (without fan)
23 mm
Width (without fan)
114 mm
Depth (without fan)
92mm
Weight (without fan)
390 g

Height (with fan)
37 mm
Width (with fan)
114 mm
Depth (with fan)
92mm
Weight (with fan)
465g

Material
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating

NSPR
61
Max.TDP
see NSPR
Fan compatibility
92x92x14mm, 92x92x25mm

Scope of delivery
  • NF-A9x14 PWM premium fan
  • NA-RC7 Low-Noise Adapter (LNA)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ AM5 mounting kit
  • Screws for 92x92x25mm fans
  • Noctua Metal Case-Badge

Warranty
6 Years

FAN Specification
Model
Noctua NF-A9x14 HS-PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
2500RPM
Max. rotational speed with LNA (+/- 10%)
1800 RPM
Min. rotational speed @ 20% PWM (+/-20%)
600 rpm
Max.airflow
57,5 m³/h
Max. airflow with LNA
40,8 m³/h
Max.acoustic noise
23,6 dB(A)
Max. acoustical noise with LNA
14,8 dB(A)
Input power (max.)
2,52 W
Voltage range
12V
MTTF
> 150.000 hours
