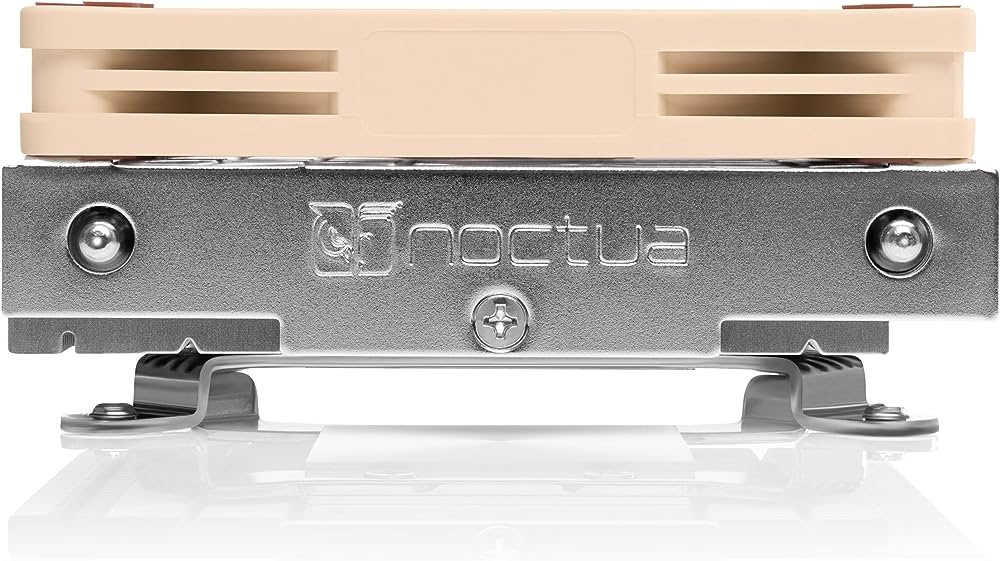

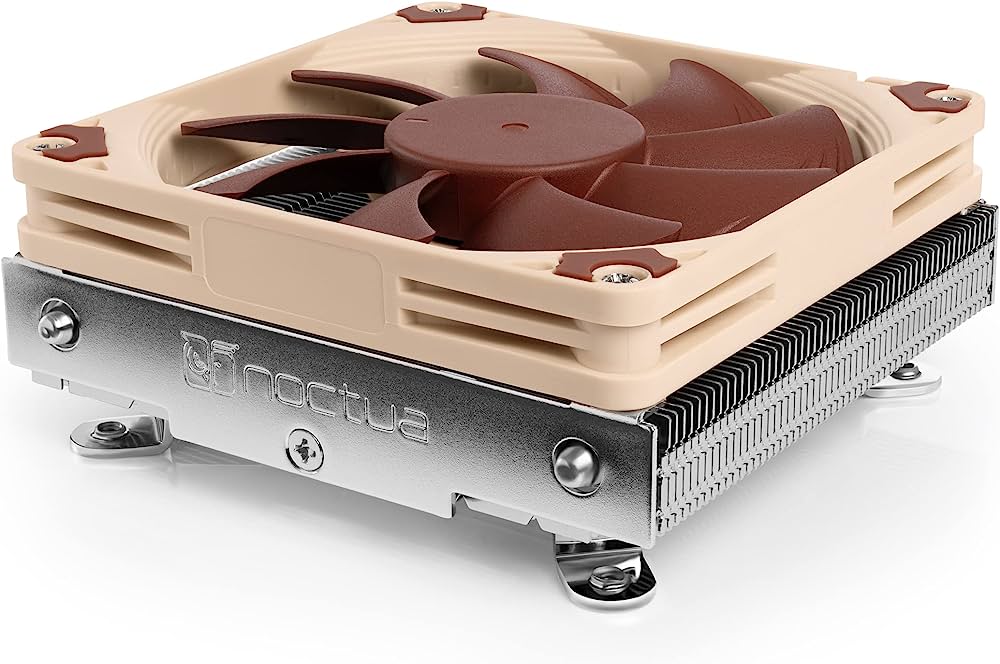

Noctua NH-L9i-17xx low-profile CPU Cooler
Noctua NH-L9i-17xx low-profile CPU Cooler
Noctua NH-L9i-17xx low-profile CPU Cooler
Roll over image to zoom in Click on image to zoom
Noctua NH-L9i-17xx low-profile CPU Cooler
Noctua NH-L9i-17xx low-profile CPU Cooler
Noctua NH-L9i-17xx low-profile CPU Cooler

Noctua NH-L9i-17xx low-profile CPU Cooler

NOCTUA
Price:
HK$390.00 HK$450.00

Description

Cooler Specification
Socket compatibility
Intel LGA1700

Height (without fan)
23 mm
Width (without fan)
95 mm
Depth (without fan)
95 mm
Weight (without fan)
355g

Height (with fan)
37 mm
Width (with fan)
95 mm
Depth (with fan)
95 mm
Weight (with fan)
430g

Material
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating

NSPR
59
Max.TDP
see NSPR

Fan compatibility
92x92x14mm, 92x92x25mm

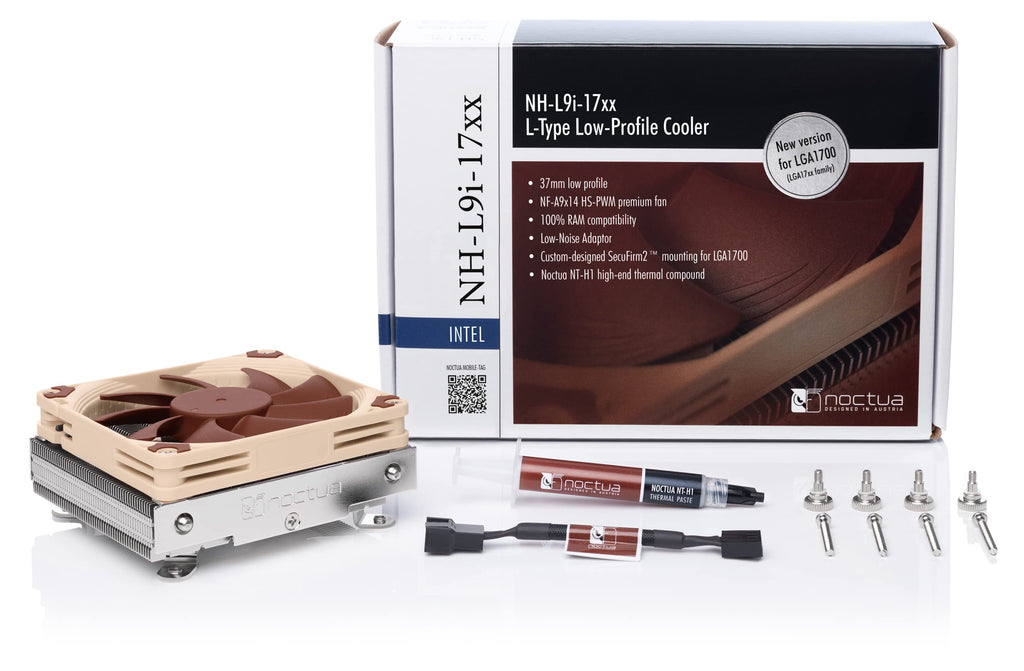

Scope of delivery
  • NF-A9x14 PWM premium fan
  • NA-RC7 Low-Noise Adapter (LNA)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ mounting kit
  • Screws for 92x92x25mm fans
  • Noctua Metal Case-Badge

Warranty
6 Years

FAN Specification
Model
Noctua NF-A9x14 HS-PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
2500RPM
Max. rotational speed with LNA (+/- 10%)
1800 RPM
Min. rotational speed @ 20% PWM (+/-20%)
600 rpm
Max.airflow
57,5 m³/h
Max. airflow with LNA
40,8 m³/h
Max.acoustic noise
23,6 dB(A)
Max. acoustical noise with LNA
14,8 dB(A)
Input power (max.)
2,52W
Voltage range
12V
MTTF
> 150.000 hours
