Description
Cooler Specification
AMD sTRX4, sWRX8, TR4, SP3
Height (without fan)
158mm
Width (without fan)
125mm
Depth (without fan)
45mm
Weight (without fan)
695g
Height (with fan)
158mm
Width (with fan)
125mm
Depth (with fan)
71mm
Weight (with fan)
870g
Material
Copper (base and heat-pipes), aluminum (cooling fins), soldered
joints & nickel plating
joints & nickel plating
129
Max.TDP
see NSPR
Fan compatibility
120x120x25

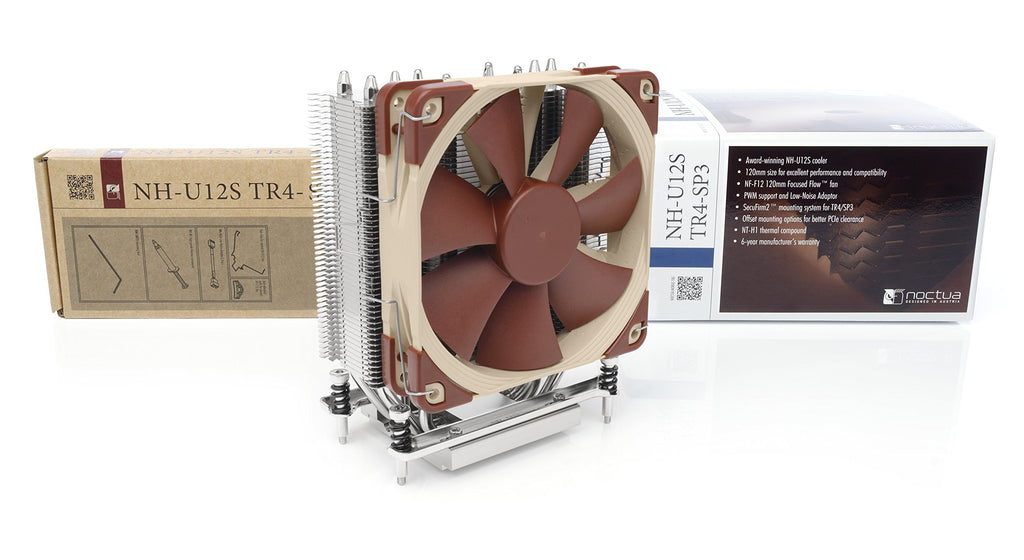

Scope of delivery
- NF-F12 PWM premium fan
- Low-Noise Adapter (LNA)
- NT-H1 high-grade thermal compound
- SecuFirm2™ sTRX4/TR4/SP3 mounting-kit
- Anti-vibration pads and fan-clips for second NF-F12
- Noctua metal case-badge
6 Years
FAN Specification
Model
Bearing
Max. rotational speed (+/- 10%)
1500RPM
Max. rotational speed with LNA (+/- 10%)
1200 RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 RPM
93,4 m³/h
Max.acoustic noise
22,4 dB(A)
Max. acoustical noise with LNA
18,6 dB(A)
Input power (max.)
0,6W
Voltage range
12 V
MTTF
> 150.000 hours
