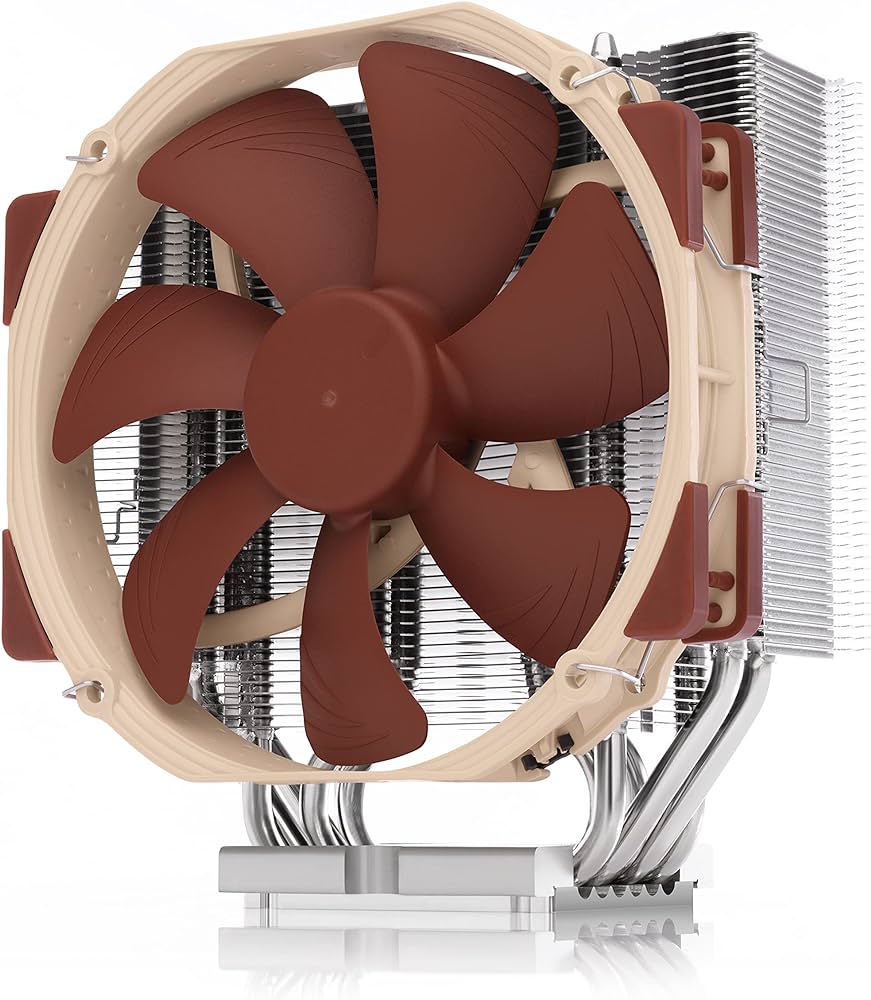

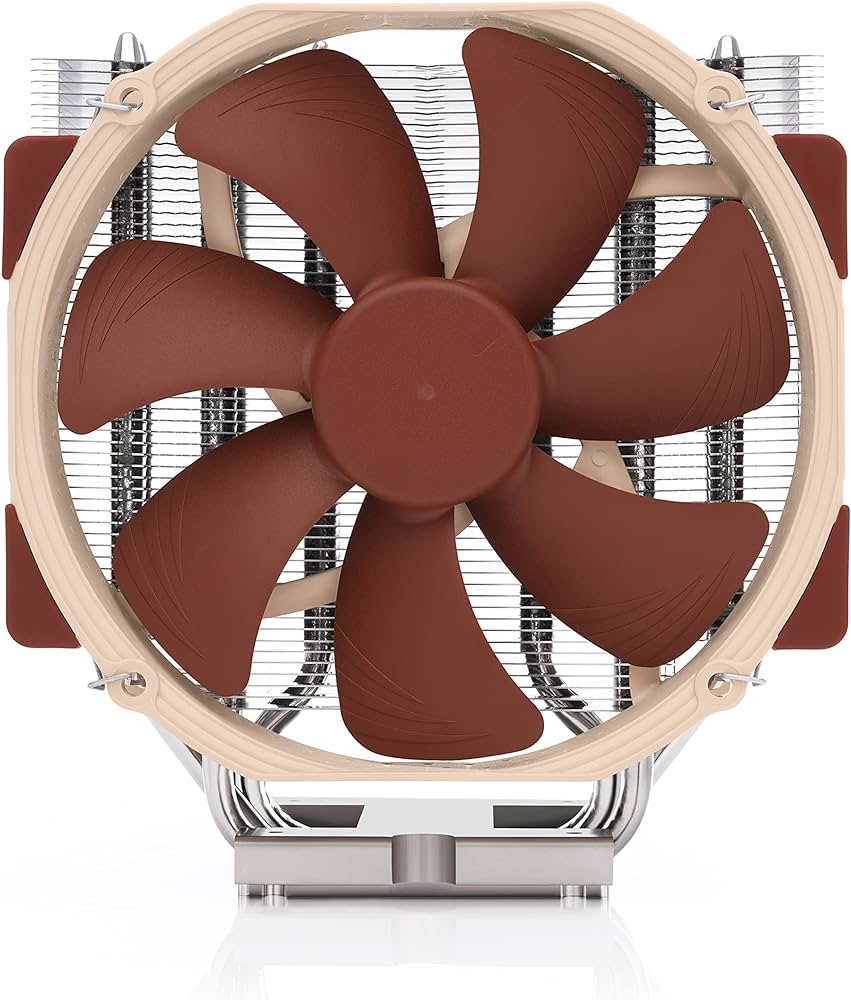

Noctua NH-U14S DX-4189 CPU Cooler
Noctua NH-U14S DX-4189 CPU Cooler
Roll over image to zoom in Click on image to zoom
Noctua NH-U14S DX-4189 CPU Cooler
Noctua NH-U14S DX-4189 CPU Cooler

Noctua NH-U14S DX-4189 CPU Cooler

NOCTUA
Price:
HK$950.00 HK$1,099.00

Description

Cooler Specification
Socket compatibility
Intel Xeon LGA4189

Height (without fan)
165mm
Width (without fan)
150 mm
Depth (without fan)
52mm
Weight (without fan)
797g

Height (with fan)
165mm
Width (with fan)
150 mm
Depth (with fan)
78mm
Weight (with fan)
957g

Material
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating

NSPR
162
Max.TDP
see NSPR

Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

Scope of delivery
  • NF-A15 HS-PWM premium fan
  • Anti-vibration pads and fan-clips for second NF-A15
  • NT-H1 high-grade thermal compound (pre-applied)
  • SecuFirm2™ mounting kit for LGA4189
  • CPU carrier frame for LGA4189-4 (P4)
  • NM-SMT5 Torx® T30 mounting tool
  • Noctua metal case-badge

Warranty
6 Years

FAN Specification
Model
Noctua NF-A15 HS-PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
1500RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 rpm
Max.airflow
140,2 m³/h
Max.acoustic noise
24,6 dB(A)
Input power (max.)
1,56W
Voltage range
12 V
MTTF
> 150.000 hours
