Please note that the NH-U14S TR5-SP6 is a dedicated version for AMD sTR5/SP6 sockets. Due to its customized larger base, it cannot be used on smaller sockets and is incompatible with Noctua's mounting kits for these sockets. Please refer to our socket compatibility overview for details.

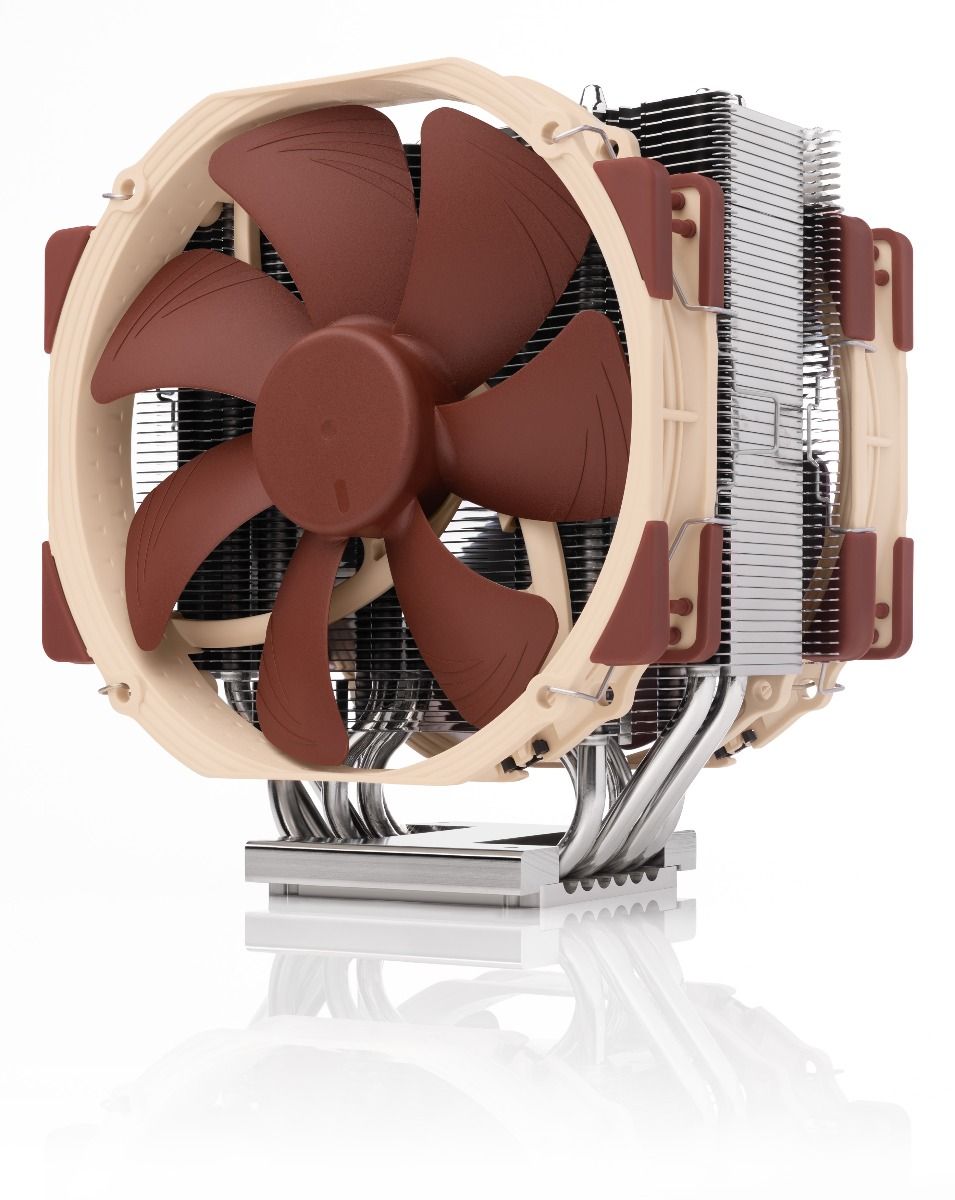

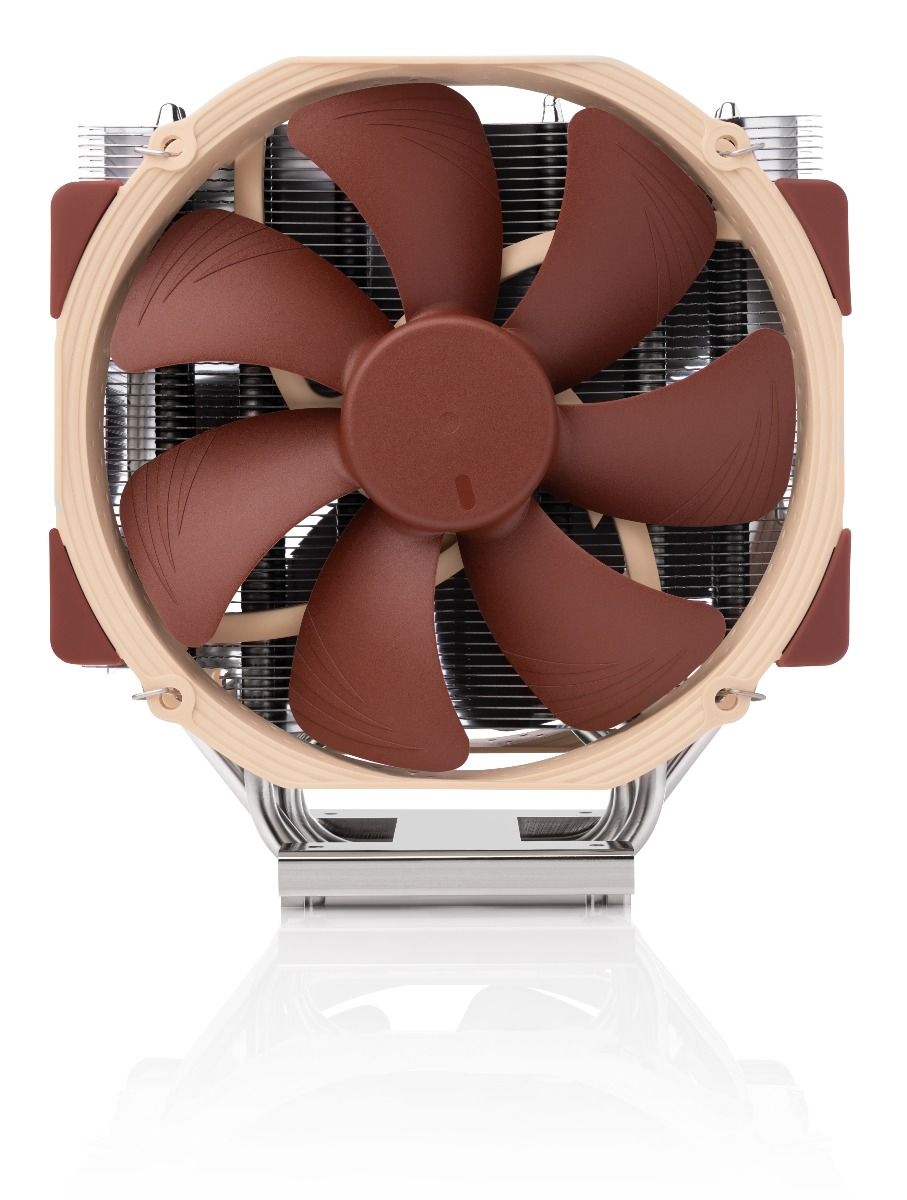

Cooler Specification
Height (without fan)
165 mm
Width (without fan)
150mm
Depth (without fan)
52mm
Weight (without fan)
797g
Height (with fan)
165 mm
Width (with fan)
150mm
Depth (with fan)
111mm
Weight (with fan)
1136g
Material
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

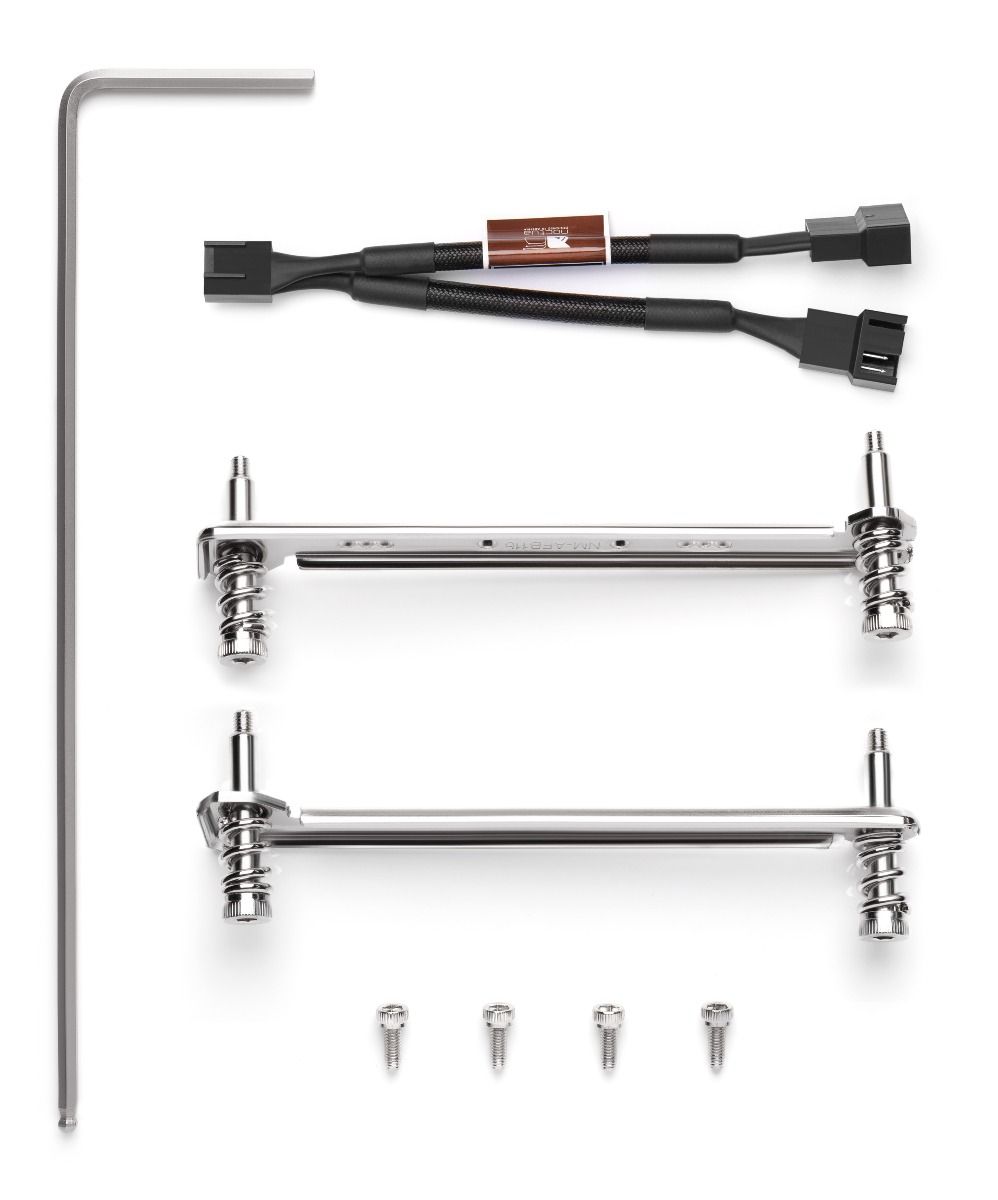

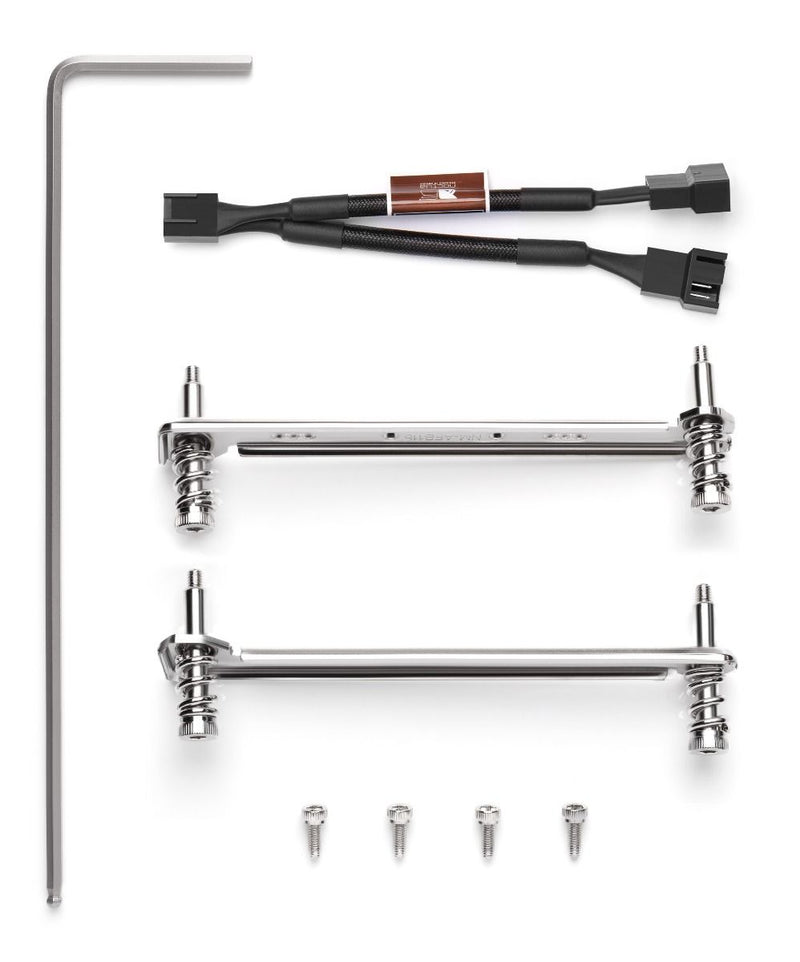

Scope of delivery
- 2x NF-A15 HS-PWM premium fan
- NA-YC1 4-pin PWM splitter cable

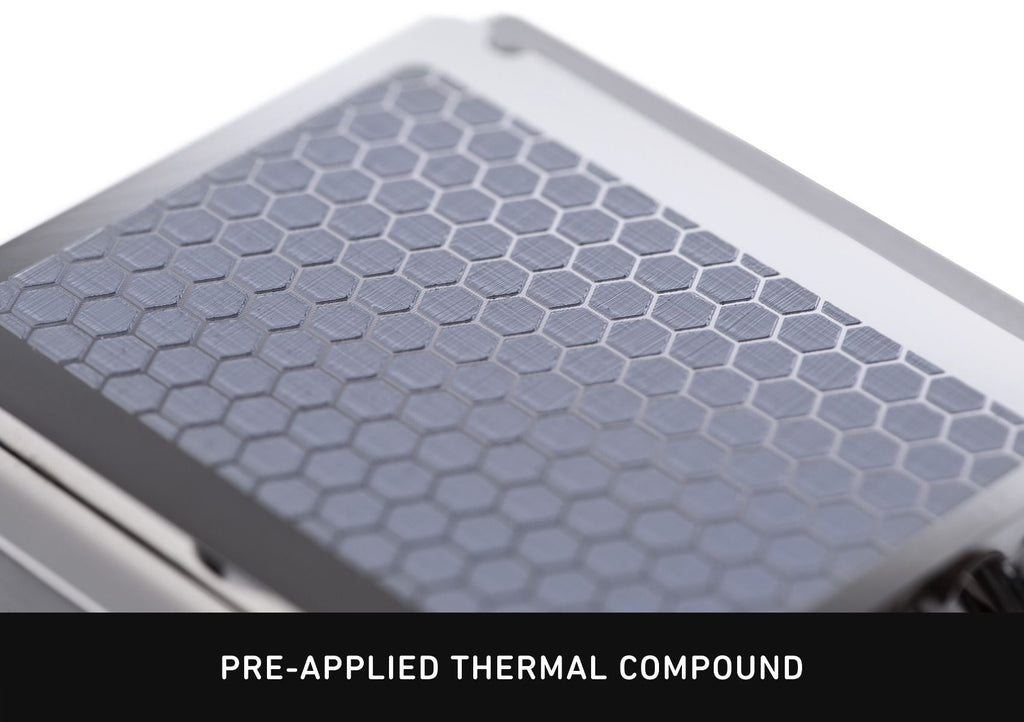

- NT-H2 high-grade thermal compound (pre-applied)
- SecuFirm2™ mounting kit for sTR5/SP6
- NM-SMT4 mounting tool for mounting bracket installation
FAN Specification
Model
2x Noctua NF-A15 HS-PWM
Max. rotational speed (+/- 10%)
1500RPM
Max. rotational speed with LNA (+/- 10%)
1200RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 rpm
Max.acoustic noise
24,6 dB(A)
Max. acoustical noise with LNA
19,2 dB(A)
Acoustical noise
24.6dB(A)
Input power (typical)
1.056 W
Input power (max.)
1,56W
Voltage range
12 V
MTTF
> 150.000 hours
