Description
Cooler Specification
Intel LGA1200 , LGA1156, LGA1155, LGA1151, LGA1150, LGA1700 (included since Q4 2021 , older coolers require NM-i17xx-MP78 ), LGA2066 , LGA2011-0 & LGA2011-3 ( Square ILM ) & AMD AM4, AM5
Height (without fan)
125 mm
Width (without fan)
95 mm
Depth (without fan)
68 mm
Height (with fan)
125mm
Width (with fan)
95mm
Depth (with fan)
95mm
Weight (with fan)
618g
Material
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating
93
Max.TDP
see NSPR
Fan compatibility
92x92x25

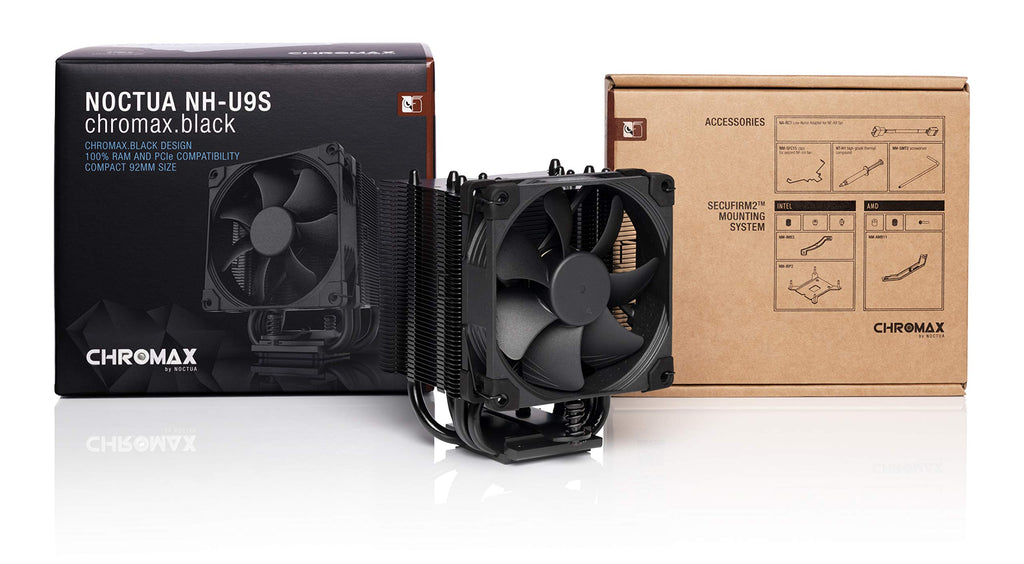

Scope of delivery
- Black NH-U9S heatsink
- NF-A9 PWM chromax.black premium fan
- NA-RC7 Low-Noise Adapter (LNA)
- NT-H1 high-grade thermal compound
- Black SecuFirm2™ mounting kit
- Black fan-clips for second NF-A9
- Noctua Metal Case-Badge
6 Years
FAN Specification
Model
Noctua NF-A9 PWM chromax.black
Bearing
Max. rotational speed (+/- 10%)
2000RPM
Max. rotational speed with LNA (+/- 10%)
1550 RPM
Min. rotational speed @ 20% PWM (+/-20%)
400 RPM
78,9 m³/h
Max.acoustic noise
22,8 dB(A)
Max. acoustical noise with LNA
16,3 dB(A)
Input power (max.)
1,2W
Voltage range
12 V
MTTF
> 150.000 hours
