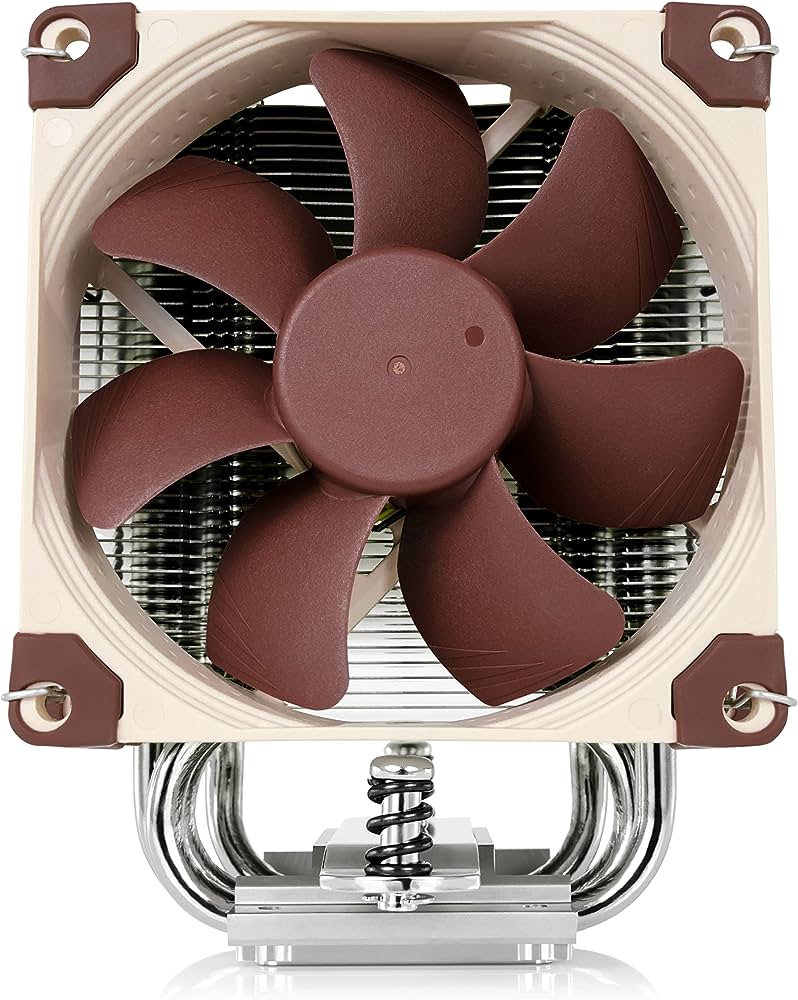

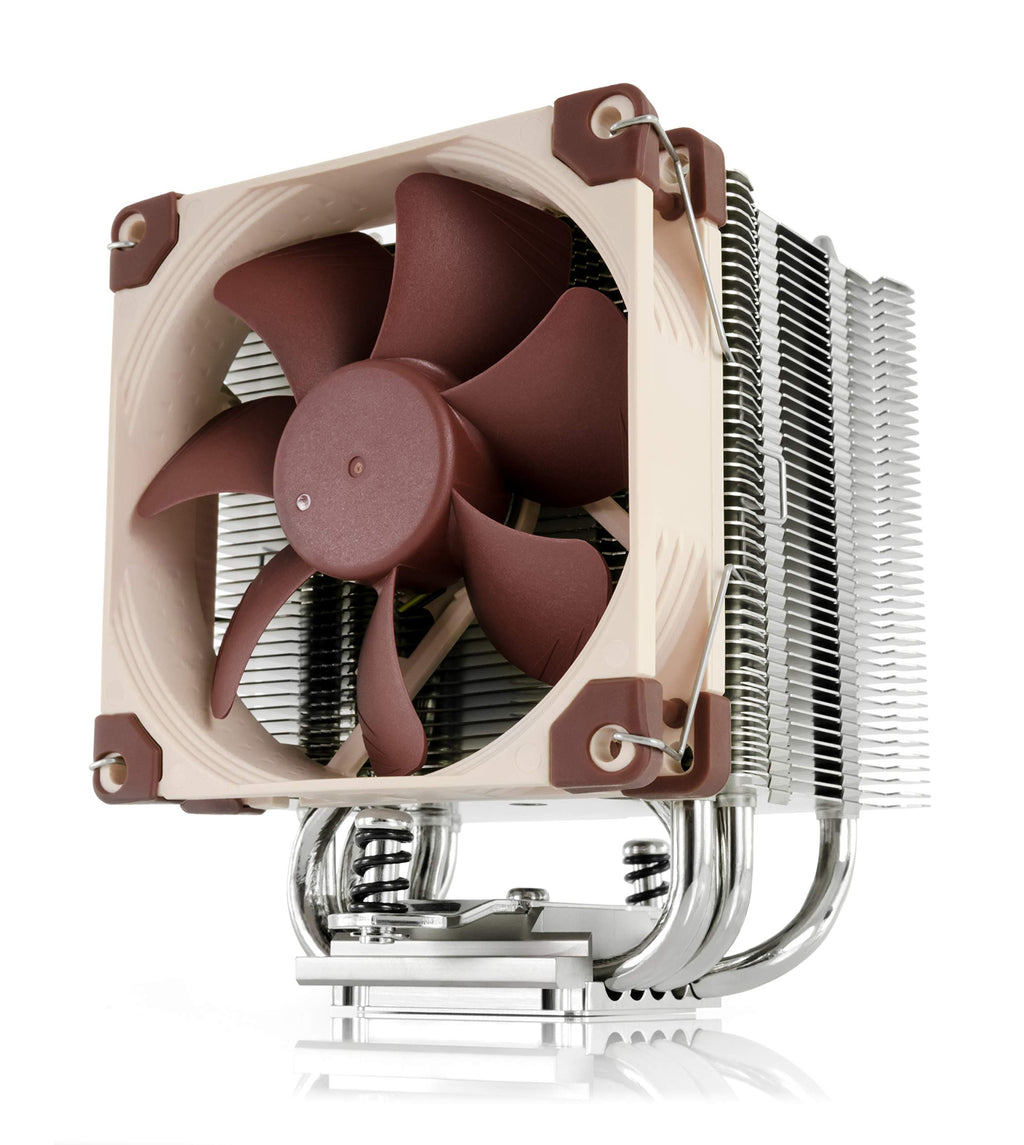

Noctua NH-U9S CPU Cooler
Noctua NH-U9S CPU Cooler
Noctua NH-U9S CPU Cooler
Noctua NH-U9S CPU Cooler
Roll over image to zoom in Click on image to zoom
Noctua NH-U9S CPU Cooler
Noctua NH-U9S CPU Cooler
Noctua NH-U9S CPU Cooler
Noctua NH-U9S CPU Cooler

Noctua NH-U9S CPU Cooler

NOCTUA
Price:
HK$440.00 HK$499.00

Description

Cooler Specification
Socket compatibility
Intel LGA1700 (included since Q4 2021 , older coolers require NM-i17xx-MP78 ), LGA1200 , LGA1156, LGA1155, LGA1151, LGA1150, LGA2066 , LGA2011-0 & LGA2011-3 ( Square ILM ) & AMD AM4, AM5 (included since 2019 , older coolers require NM-AM4-UxS )

Height (without fan)
125mm
Width (without fan)
95 mm
Depth (without fan)
68mm

Height (with fan)
125mm
Width (with fan)
95mm
Depth (with fan)
95 mm
Weight (with fan)
618g

Material
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating

NSPR
93
Max.TDP
see NSPR

Fan compatibility
92x92x25
Scope of delivery
  • NF-A9 PWM premium fan
  • Low-Noise Adapter (LNA)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ Mounting Kit
  • Fan-clips for second NF-A9
  • Noctua Metal Case-Badge

Warranty
6 Years

FAN Specification
Model
Noctua NF-A9 PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
2000RPM
Max. rotational speed with LNA (+/- 10%)
1550 RPM
Min. rotational speed @ 20% PWM (+/-20%)
400 RPM
Max.airflow
78,9 m³/h
Max. airflow with LNA
62,6 m³/h
Max.acoustic noise
22,8 dB(A)
Max. acoustical noise with LNA
16,3 dB(A)
Input power (max.)
1,2W
Voltage range
12 V
MTTF
> 150.000 hours
