Description

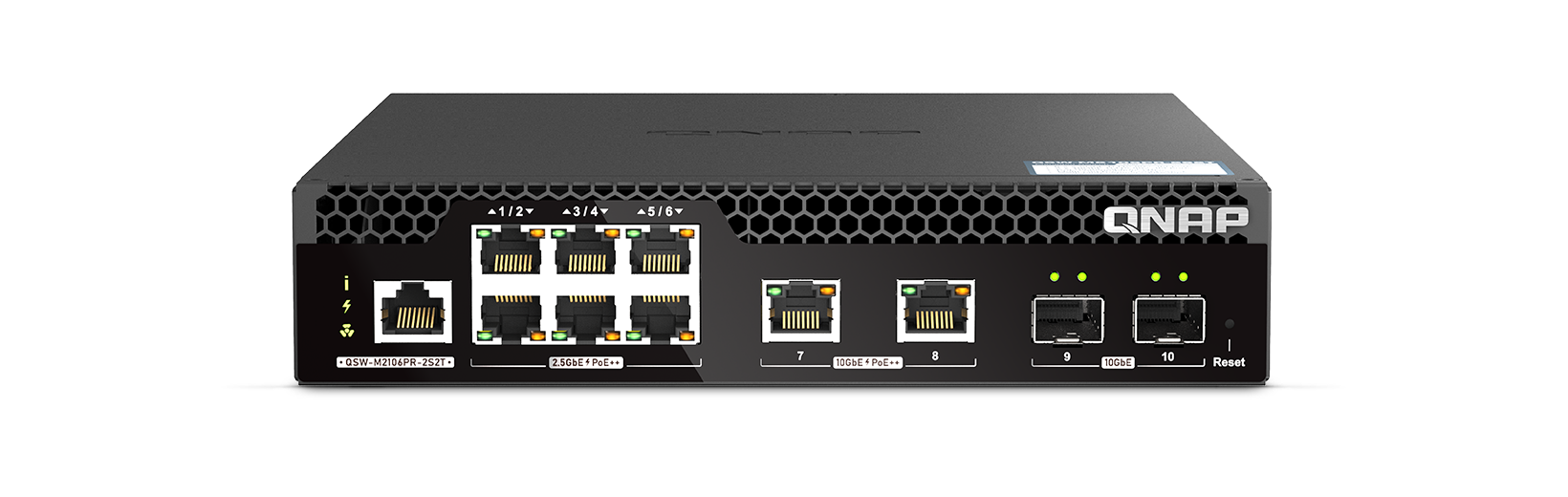

QNAP QSW-M2106PR-2S2T
QSW-M2106PR-2S2T rack-mounted managed PoE switch, built-in 6-port 2.5GbE 90-watt PoE++, 2-port 10GbE 90-watt PoE++ and 2-port 10GbE optical fiber, with a total output power up to 310 watts, is a new generation Wi-Fi Fi 6/Wi-Fi 6E/Wi-Fi 7 APs and routers deploy high-speed and high-power network architecture. L2 network management and smart PoE management are performed through a simple and easy-to-operate Web management interface, which can easily and centrally control wireless APs, IP surveillance cameras, electronic signage and other powered devices as well as core switches and server connections, providing a cost-effective area Network construction and remote centralized network management solutions. QSW-M2106PR-2S2T adopts a half-rack width design, and two units can be assembled and installed in a 1U cabinet as needed. It not only saves space, but also makes management easier. It is the first choice for small and medium-sized enterprises to build computer rooms. QSW-M2106PR-2S2T is a Taiwanese brand and made in Taiwan, providing high-quality, safe and reliable network communication solutions.
-
10G Multi-Gig connection
2 ports of 10GbE SFP+ optical fiber port (supports 10G/1G) and 2 ports of 10GbE RJ45 network port (supports five-speed 10G/5G/2.5G/1G/100M) to create a high-speed transmission environment.
-
2.5Gb Ethernet connection
6-port 2.5GbE RJ45 network (supports 2.5G/1G/100M), you can enjoy network speeds 2.5 times faster than 1G by using the original Cat 5e cable.
-
90W PoE++ network power supply
At the same time, it can output up to 310 watts of total power to various high-power PoE powered devices (PDs).
-
Graphical Web management interface
Helps you easily set up L2 network management and PoE functions, and centrally monitor remote network status, PoE power supply and total power consumption information in real time.
-
L2 network management function
Equipped with practical Layer 2 (L2) network management functions, such as LACP VLAN, ACL, LLDP, etc., it can effectively control packet volume, allocate bandwidth, and maintain network security.
-
Real-time online firmware update
QSS (QNAP Switch System) supports online checking of the latest firmware, allowing administrators to complete updates with one click, making it simple and fast.
Efficient and stable 10GbE/2.5GbE transmission to meet high-speed Wi-Fi applications and high usage requirements
Wireless network technology has progressed from Wi-Fi 6 to Wi-Fi 6E, and will even usher in Wi-Fi 7, driving the popularity of higher-speed, high-power sharing devices and routers. Can your switch keep up? QSW-M2106PR-2S2T provides multi-port 10GbE and 2.5GbE Multi-Gig network ports to solve the bottleneck of insufficient bandwidth when transmitting from Wi-Fi 6/6E/7 wireless networks to wired networks, optimizing your network road connection and storage experience. QSW-M2106PR-2S2T has 2-port 10GbE optical fiber upload capability to the backbone network, providing ultra-high-speed wireless network infrastructure for small and medium-sized areas such as offices, hotels, and stores.
8 ports with 90 watt PoE power supply, total output up to 310 watts
QSW-M2106PR-2S2T supports the latest IEEE 802.3bt PoE++ high-power Ethernet power supply standard. 2-port 10GbE and 6-port 2.5GbE support 90-watt PoE and can simultaneously output up to 310 watts of total power to various ultra-high-power PoE receivers. Powered Devices (PDs), such as: 4K IP cameras, wireless APs, Internet phones, LED lighting, digital signage, etc.
Half cabinet width, 2 For 1U is just right
QSW-M2106PR-2S2T adopts a half-rack width design. Enterprises can accommodate two half-width switches in 1U space according to their needs (for example: QSW-M2106PR-2S2T and QSW-M2106R-2S2T ), not only saves you space, but also effectively avoids the congestion of cables and power cords, making management more convenient for IT personnel.
Note: If you need to assemble two half-rack switches, you need to purchase the exclusive rack kit SP-EAR-QSW2FOR1-01 first.
Multi-port 10GbE and 2.5GbE networks, flexible configuration of network infrastructure
QSW-M2106PR-2S2T has 2 10GbE SFP+ optical ports, 2 10GbE Ethernet ports and 6 2.5GbE Ethernet ports, which can be flexibly connected to two different interfaces: optical fiber (SFP+) and copper cable (RJ45). The network device is installed on the same switch to meet the high-speed hybrid network configuration at home, SOHO office or small and medium-sized enterprise room, realizing smooth file transfer, virtual machine application, or multimedia audio and video playback and sharing. When using the RJ45 interface, you can use Cat 5e and Cat 6a cables to increase the transmission speed and make data transmission more efficient. It also provides low-speed connections and is backward compatible with traditional devices.
Solid metal shell, effective heat dissipation
QSW-M2106PR-2S2T's solid metal casing can effectively dissipate heat during high-speed access and maintain stable operation of the system. The clear light design helps you quickly grasp the operating status of the QSW-M2106PR-2S2T.
QSS graphical management interface makes setting operations easier
QSW-M2106PR-2S2T is equipped with the QNAP Switch System (QSS). Administrators can easily perform various L2 network management through the friendly graphical web management interface, making network management more intuitive and easier.
Know more: QSS
Bandwidth and packet management and control to optimize network operation performance
QSW-M2106PR-2S2T provides practical bandwidth and packet management and control functions, such as LACP, VLAN, QoS and IGMP Snooping. It can effectively configure bandwidth and manage network packets into groups, helping administrators to greatly improve network performance.
Complete security and system functions
QSW-M2106PR-2S2T has powerful security and system functions, such as: ACL, LLDP, RSTP and Flow Control, which can ensure access security, assist in error correction, avoid loops or packet loss, thereby helping administrators improve the network Reliability.
Smart PoE management, efficient centralized control of powered devices
The QSS system of the switch with PoE function provides three major intelligent PoE management: PoE scheduling, power priority setting and remote restart function, which not only helps IT personnel to instantly grasp the connection and power supply status of the powered equipment, but also It can carry out efficient centralized control and greatly promote green energy and energy saving.
Comprehensively upgrade your network, storage and computer equipment to improve team work efficiency
QNAP provides a variety of storage and networking solutions to help you flexibly upgrade your office or home network environment at a reasonable budget and prepare for more diverse high-bandwidth applications in the future.
