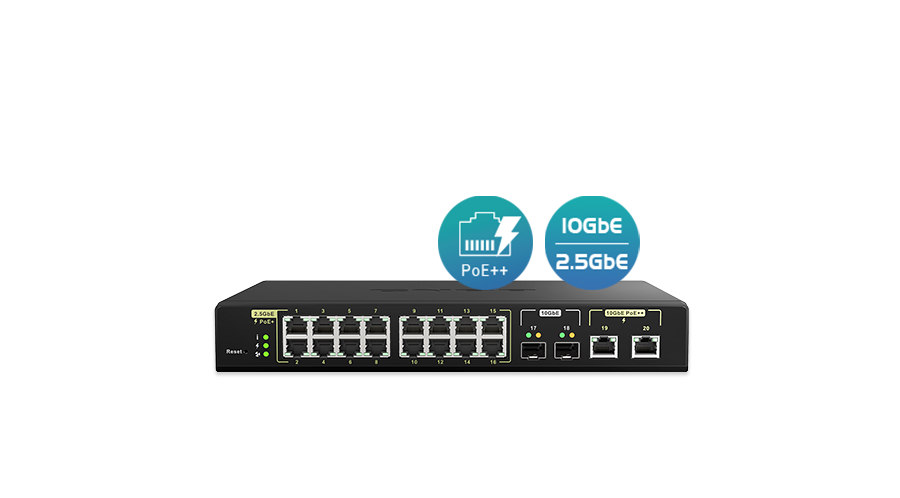

QNAP QSW-M2116P-2T2S
QNAP QSW-M2116P-2T2S L2 managed PoE switch, equipped with 16 ports of 2.5GbE 30W PoE+, 2 ports of 10GbE 90W PoE++ and 2 ports of 10GbE optical fiber. The total output power can reach up to 280W, which can provide the next generation Wi-Fi 6 APs and routers deploy high-speed and high-power network architecture while meeting the high-speed backbone network upload capabilities. QSW-M2116P-2T2S provides friendly QSS network management software to perform L2 network management and smart PoE management, easily centralized control of wireless APs, IP surveillance cameras, electronic signage and other powered devices as well as core switches and server connections, providing small and medium-sized enterprises with Cost-effective regional network construction and remote centralized network management solution. QSW-M2116P-2T2S is a Taiwanese brand and made in Taiwan, providing high-quality, safe and reliable network communication solutions.
-
PoE++/PoE+
Supports IEEE 802.3bt PoE++ and 802.3at PoE+ high-power Ethernet power supply standards, with 2 ports of 90 watts and 16 ports of 30 watts of PoE, which can simultaneously output up to 280 watts of total power to various high-power PoE powered devices (PDs) .
-
SFP+ / RJ45 network port
Compatible with 10GBASE-T and 2.5GBASE-T Multi-Gigabit NBASE-T standards, it can support multiple network speeds (10G / 5G / 2.5G / 1G / 100M). You can upgrade the network speed by using the original cable.
-
10GbE high-speed network
Built-in dual 10GbE SFP+ fiber optic ports can be connected to the Internet, routers, core switches or NAS and other devices, and large bandwidth transmission can meet the upload needs of backbone networks or data centers.
-
Graphical Web management interface
The friendly graphical QSS network management system interface allows you to easily configure various Layer 2 network management and PoE functions, and you can view network status, PoE power supply and total power consumption information at a glance on the Overview Dashboard, which is conducive to real-time concentration. Supervise remote powered devices.
-
L2 network management function
Use friendly network management software to perform complete second-layer network management settings, such as: VLAN, LACP, QoS, IGMP Snooping, Wake-on-LAN, etc., allowing IT personnel to efficiently monitor network IP packet traffic and maintain the network at the same time Safety.
-
Real-time online firmware update
QSS (QNAP Switch System) supports online checking of the latest firmware, allowing administrators to easily and quickly complete updates with one click.
10GbE 90W and 2.5GbE 30W PoE meet the new era of Wi-Fi 6
Wi-Fi 6 wireless network speed has improved, can your switch speed keep up? QSW-M2116P-2T2S is equipped with 10GbE and 2.5GbE MultiGigabit network ports, which effectively solves the bottleneck of insufficient bandwidth when transmitting from Wi-Fi 6 wireless network to wired network, optimizing your network connection and storage experience. QSW-M2116P-2T2S can provide 16 ports of 2.5GbE 30W PoE and 2 ports of 10GbE 90W PoE power to various ultra-high power PoE Wi-Fi 6 wireless APs, with a total output power up to 280W. QSW-M2116P-2T2S also has the ability to upload 2-port 10GbE optical fiber to the backbone network, providing ultra-high-speed Wi-Fi 6 wireless network infrastructure for small and medium-sized areas such as offices, hotels, and stores.
Ultra-high power PoE Power over Ethernet
QSW-M2116P-2T2S supports both the latest IEEE 802.3bt PoE++ and 802.3at PoE+ high-power Ethernet power supply standards, with 2 ports of 10GbE 90 watt PoE and 16 ports of 2.5GbE 30 watt PoE, and can simultaneously output up to 280 watts of total power to Various ultra-high-power PoE powered devices (PDs), such as: 4K IP cameras, wireless APs, Internet phones, LED lighting, digital signage, etc.

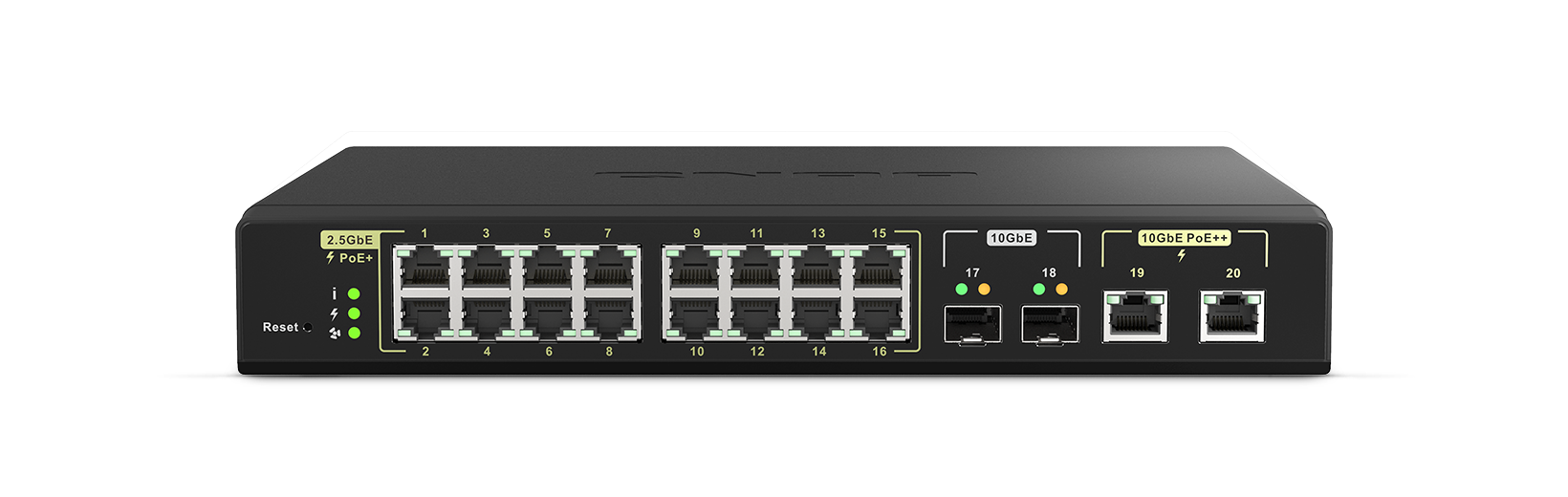

PoE network speed and backbone network speed are very fast
QSW-M2116P-2T2S has 2 10GbE and 16 2.5GbE Multigigabit PoE RJ45 ports, which can flexibly connect terminal powered devices with different network speeds. It is also equipped with 2 ports of 10GbE optical fiber ports, providing the ability to upload to the backbone network or connect to the local end. Fiber optic switches and routers, etc., simultaneously improve the transmission efficiency of internal and external networks. The QSW-M2116P-2T2S's backplane bandwidth reaches 160Gbps, ensuring that each connection port can fully utilize its performance.
Smart PoE management, efficient centralized control of powered devices
QSW-M2116P-2T2S has 3 major smart PoE management: PoE scheduling, power priority setting and remote restart function, which not only helps IT personnel to instantly grasp the connection and power supply status of powered devices, but also improves efficiency. Centralized control significantly promotes green energy and energy conservation.
Complete layer 2 network management capabilities
QSW-M2116P-2T2S provides complete second-layer network management capabilities, such as: VLAN, LACP, LLDP, and can manage network IP traffic into groups, allowing IT personnel to monitor network status more efficiently; QSW-M2116P-2T2S also It has powerful security functions, including IGMP Snooping, static MAC and QoS, wake-on-LAN, etc., and is suitable for simple configuration without adding complexity to the deployment environment.
QSS is a friendly network management system with graphical Web GUI
QSW-M2116P-2T2S supports the network management interface QNAP Switch System (QSS), allowing IT staff to easily configure various Layer 2 network management and PoE functions through a friendly graphical web interface, and understand network status and PoE at a glance on the overview dashboard With power supply and total power consumption information, centralized monitoring of remote powered devices becomes more intuitive and easier.
Know more: QSS

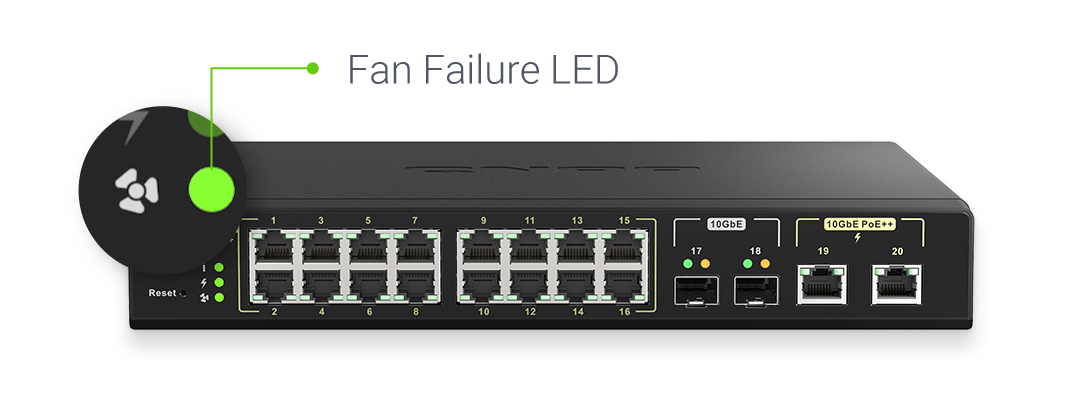

Fan indicator light design accelerates IT maintenance efficiency
The standard 1U cabinet body can be placed together with other network equipment in the computer room space. In addition to the general system lights, it also provides a fan LED display light design, which facilitates IT personnel to quickly debug daily hardware maintenance.
QNAP’s high-speed, high-power PoE switch meets the new era of Wi-Fi 6

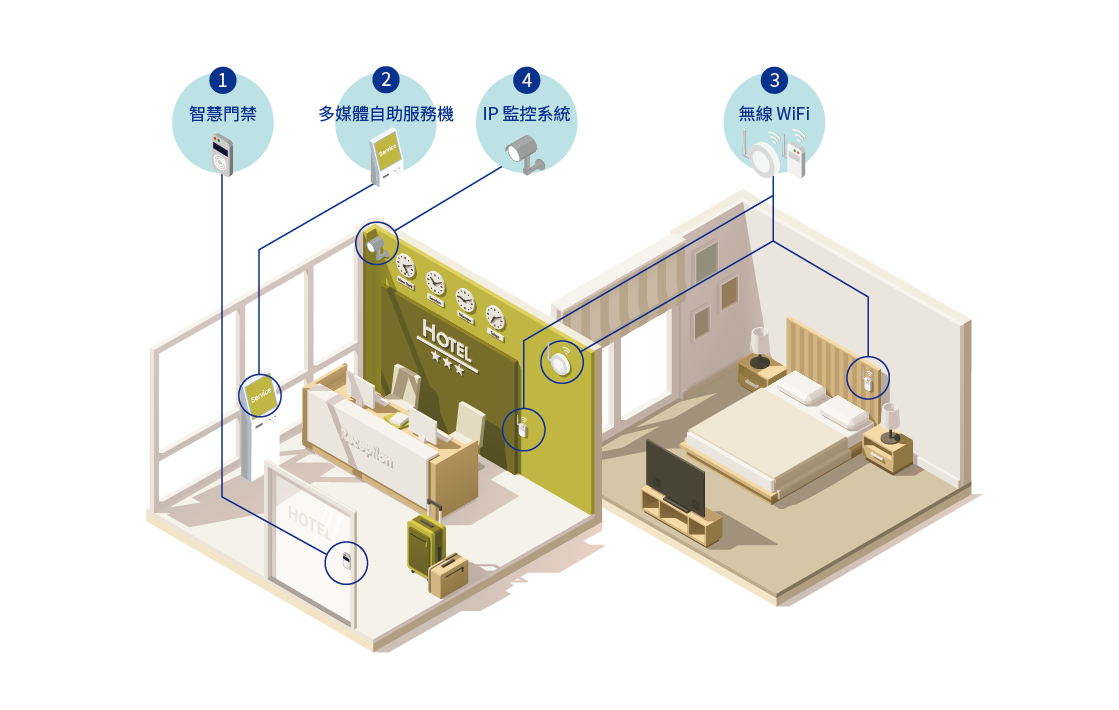

Create a new Wi-Fi 6 network experience for hotels
Hotel operators can connect various wireless Wi-Fi 6 APs or routers through QSW-M2116P-2T2S, bringing a new high-speed wireless network experience to guests. It can also provide IP surveillance systems, smart access control systems, and multimedia machine check-ins. systems and other network powered devices.
QNAP high-speed, high-power PoE switches can achieve...
- Smart access control: Supports 30-watt PoE power supply and 2.5GbE high-speed network backhaul capability for visitor sensing information.
- Multimedia self-service machine: Provides 30 watts of 2.5GbE PoE power, as well as automatic check-in system, user satisfaction service, and advertising billboard 2.5GbE fast networking capabilities.
- Wireless Wi-Fi: Provides 30W to 90W PoE power and 10GbE wired transmission to various high-power wireless Wi-Fi 6 APs or routers.
- IP surveillance system: It can provide 30W to 90W PoE power and 10GbE high-speed transmission for multiple cameras at the same time (including: 4K PTZ cameras, fisheye cameras), making it easy to deploy a security surveillance network.

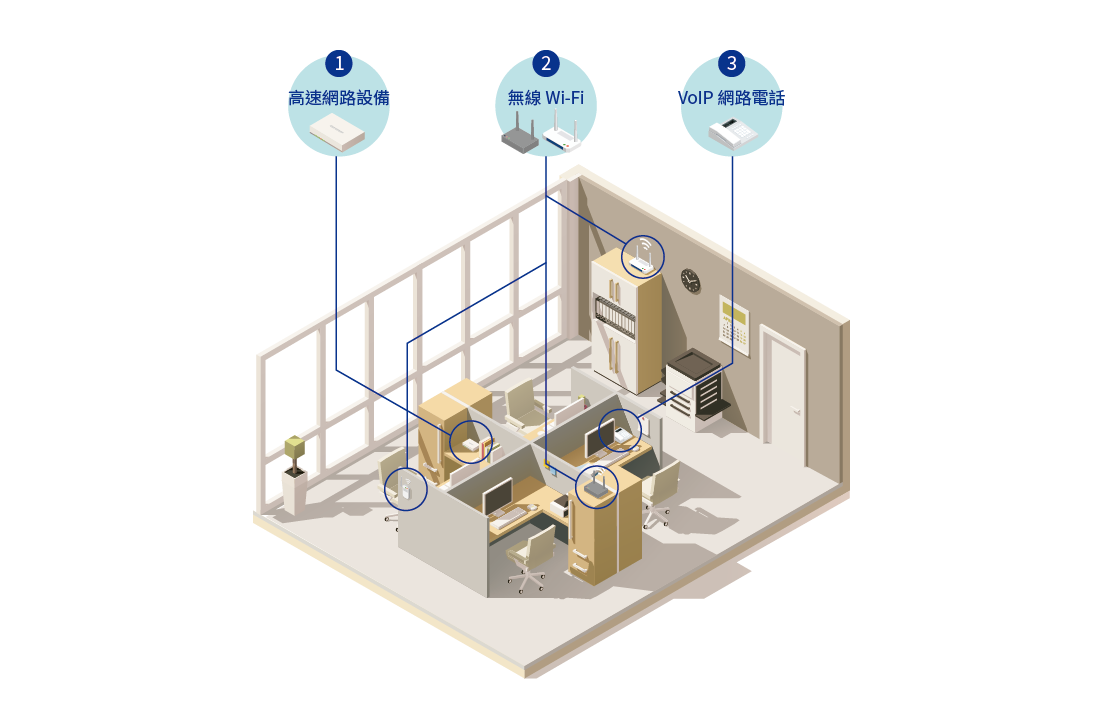

Deploying enterprise Wi-Fi 6 mobile office
High-speed mobility has become the key to the growth of enterprise operations. QSW-M2116P-2T2S can not only assist in the deployment of enterprise high-speed wireless intranet architecture, but also provide backbone network upload capabilities.
QNAP high-speed, high-power PoE switches can achieve...
- High-speed network equipment: The built-in 10GbE fiber optic port can be connected to the Internet, 10GbE routers, the core switch network of the headquarters, or connected to computers, QSW 10GbE switches, 10GbE NAS and other intranet devices to meet the needs of image editing and image file transmission. need.
- Wireless Wi-Fi: Provides 30W to 90W PoE power and 10GbE wired transmission to various high-power wireless Wi-Fi 6 APs or routers.
- VoIP Internet Phone: Provides 30W PoE power and 2.5GbE high-speed transmission, which facilitates the deployment of various low-latency SIP enterprise video Internet phones.

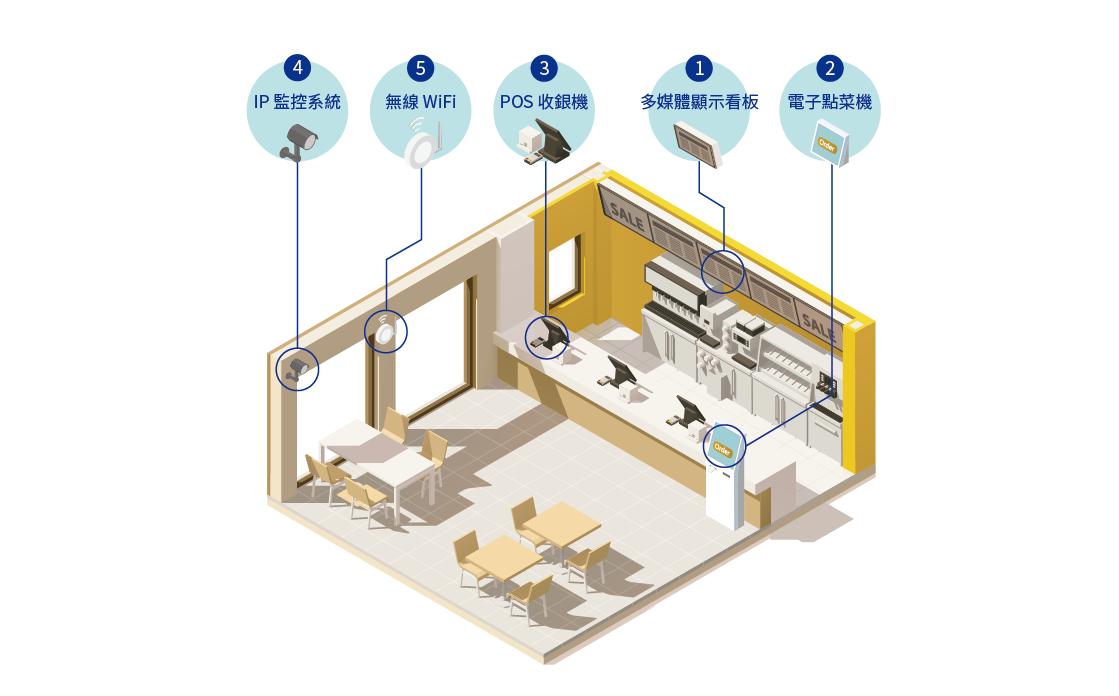

Meet smart retail Wi-Fi 6 applications
High-speed wireless networks, IP surveillance and various terminal equipment (Thin Client) can bring unlimited business opportunities to smart retail. The QSW-M2116P-2T2S can simultaneously power and manage wireless APs, IP cameras, POS systems, and digital display signage. Powered equipment in the area network.
QNAP high-speed, high-power PoE switches can achieve...
- Multimedia display signage: Provides 90 watts of PoE power and 10GbE high-speed transmission.
- Electronic ordering machine: Provides 90 watts of PoE power and high-speed 10GbE networking capabilities for instant backhaul of terminal ordering information.
- POS cash register: Provides 30 watts of PoE power and high-speed 10GbE networking capabilities to instantly connect to customer sales data.
- IP surveillance system: It can simultaneously supply 30W to 90W PoE power and 10GbE high-speed transmission to multiple cameras (including: 4K PTZ cameras, fisheye cameras), making it easy to deploy a security surveillance network.
- Wireless Wi-Fi: Provides 30W to 90W PoE power and 10GbE wired transmission to various high-power wireless Wi-Fi 6 APs or routers.
