QNAP QSW-M5216-1T 16-Port 25GbE/10GbE Layer 2 Web Managed Switch


Price:
Sale priceHK$9,299.00 Regular priceHK$9,999.00

Description

QNAP QSW-M5216-1T

Ultra-high-speed 25GbE fiber managed switch with 10GbE connectivity for backbone networks qsw-m5216-1t

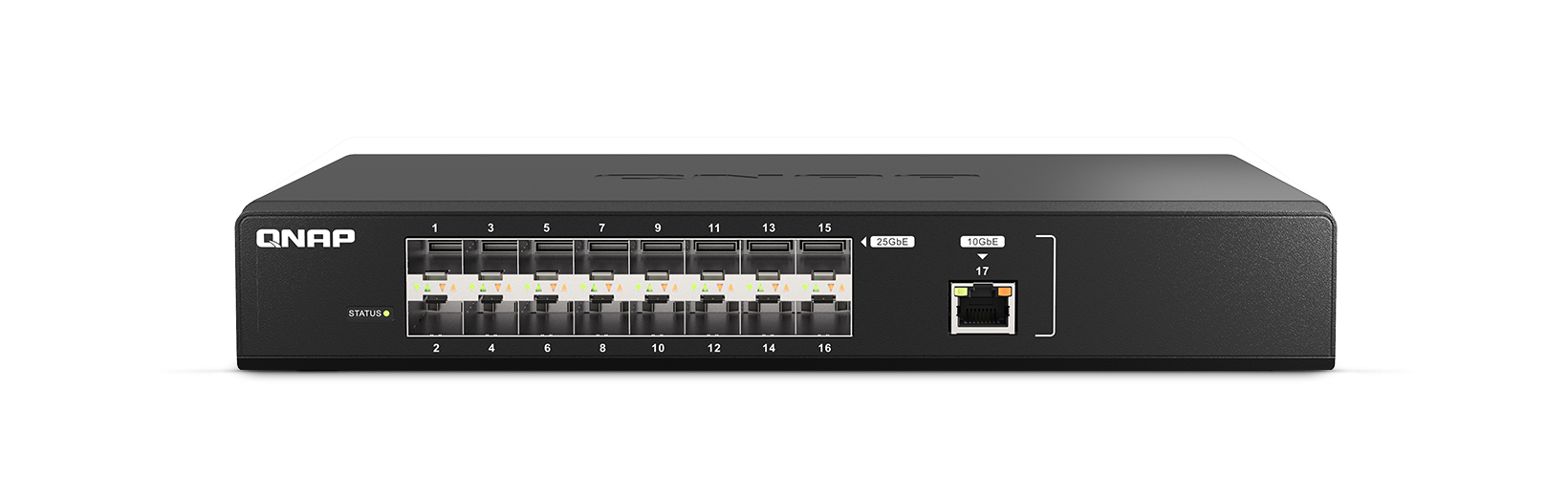

The QSW-M5216-1T is a 16-Port 25GbE SFP28 fiber Managed Switch with one 10GbE NBASE-T port. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M5216-1T provides an entry- level network management solution that is usable even by non-IT professionals. Offering ultra-high 25GbE speeds and a backbone switching capacity of 820Gbps, the QSW-M5216-1T can serve as the core switch uplinking to 25G Servers and NAS in server rooms or connecting to 25G/10G switches to accelerate high-speed storage, video editing, virtualization, and AI applications. The QSW-M5216-1T provides flexible network interfaces for high compatibility at an affordable price, enabling small businesses to quickly upgrade to an ultra- high-speed backbone network by integrating to existing network infrastructure. The QSW-M5216-1T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.

25gbex10gbe
  • 25GbE Fiber

    The QSW-M5216-1T has sixteen 25GbE SFP28 fiber ports and a backbone switching capacity of 820Gbps for uplinking server rooms.

  • 10GbE connectivity

    The QSW-M5216-1T is equipped with one 10GbE NBASE-T port for hybrid high-speed network deployment.

  • User-friendly management interface

    Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central network management intuitive and easy.

  • Layer 2 network

    The QSW-M5216-1T provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for efficiently controlling network bandwidth and enhance security.

  • RSTP protocol

    The QSW-M5216-1T supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.

  • Flow Control

    Compliant with IEEE802.3x Flow Control in full-duplex mode, the QSW-M5216-1T avoids packet loss from unparalleled bandwidth.

  • QNAP 25GbE Switch

    QSW-M5216-1T

  • Honored with Interop Tokyo 2022 Best of Show Award for Runners-up

Upgrade to ultra-high-speed 25GbE with ease!

While 10GbE is a solid base for high-speed network transmission, the ultra-high-speed 25GbE provides comparative cost advantages and compatibility in SMB server rooms to satisfy data computing applications.

  • High-speed Storage & AI applications

    25GbE fulfills bandwidth requirements in high-speed storage, virtualization, and AI applications.

  • High Compatibility

    25GbE SFP28 is backward compatible with 10GbE SFP+/1GbE SFP and can be connected to 50GbE/100GbE via Breakout DAC, easily integrating existing network infrastructure.

  • Cost-effectiveness

    25GbE is 2.5 times faster than 10GbE while the cost is less than 2 times higher, suitable for upgrading backbone network.


High switching capacity of 820Gbps for backbone networks

The QSW-M5216-1T has sixteen 25GbE SFP28 fiber ports and offers backbone switching capacity of 820Gbps, guaranteeing the full potential of each port. The QSW-M5216-1T can serve as the core switch uplinking to 25G/100G Servers and NAS in server rooms or connecting to 25G/10G edge fiber switches.


Flexible deployment with multiple 25GbE ports and 10GbE ports

Along with sixteen 25GbE SFP28 fiber ports, the QSW-M5216-1T is has one 10GBASE-T port for enabling hybrid high-speed networks. Its 25GbE SFP28 interfaces are backward compatible with 10GbE SFP+/1GbE SFP; and 10GbE RJ45 is compatible with NBASE -T technologies to support four speeds (10G / 5G / 2.5G / 1G).

25GbE SFP28 Fiber
10GbE RJ45

QSS: Intuitive Network Management Software

The QNAP Switch System (QSS) features an easy-to-use Web GUI with value-added functions to simplify network set up and management.

  • Sleek Design

    Use the at-a-glance major functions, flat control layers and one-click login to simplify set up and management.

  • GUI

    The on-screen display matches physical ports for greater usability.

  • Value-added

    With the settings guide, status chart reference, online firmware update, learning and management costs are greatly reduced.


QSS: Human-centered settings guide

QSS provides an overview dashboard, port management and setting guide to help control Layer 2 networks.





Overview Dashboard

View real-time system information, port connection status and port traffic.
















Optimize Network Performance with bandwidth and packet control

The QSW-M5216-1T provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

LACP VLAN QoS IGMP Snooping
Link Aggregation (LAG) combines multiple network connections to increase throughput and protect against connection failure. Virtual Networks (VLAN) allows groups of devices from different networks to be combined into a single network. QoS (Quality of Service) helps prioritize bandwidth usage to optimize network resource allocation. IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

Powerful security and system functions

The QSW-M5216-1T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help enhance network reliability with access controls, troubleshooting, loop prevention and avoiding packet loss.

ACL LLDP RSTP Flow Control
-Access controls
-Security system
-Device disclosure
-Troubleshooting
- Loop prevention
-Backup path
- Balance speed
- Jam prevention

Compatible DAC and transceivers

Check the compatible DAC and transceivers for QSW-M5216-1T on the Compatible List .
