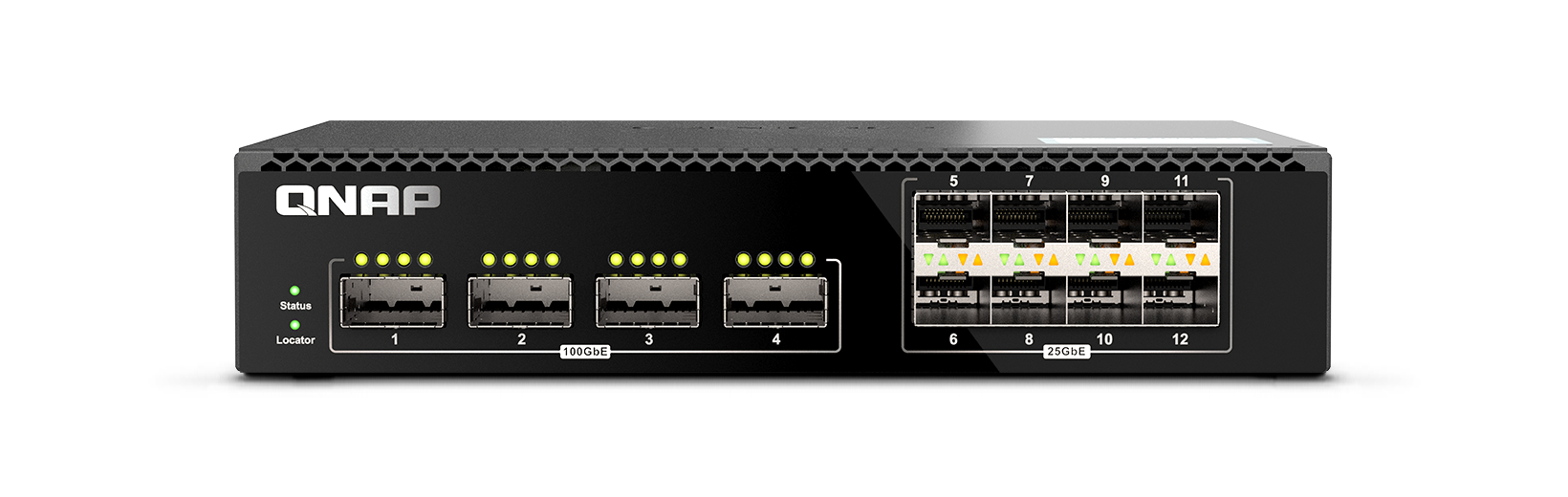

QNAP QSW-M7308R-4X 12-Port 100G QSFP28 / 25G SFP28 Managed Network Switch


Price:
Sale priceHK$9,999.00 Regular priceHK$10,999.00

Description

QSW-M7308R-4X

The first choice for enterprise IT to save money, half-rack ultra-high-speed 100GbE managed switch
    qsw-m7308r-4x

    The L2 managed 100GbE switch QSW-M7308R-4X provides 4-port 100GbE QSFP28 and 8-port 25GbE SFP28, which can be used to upload and connect 100G/25G servers and NAS in the computer room, or can be connected to other 100G/25G/10G switches to accelerate new Generations of high-speed storage, image editing, virtualization applications and artificial intelligence applications. QSW-M7308R-4X is more cost-effective and space-saving than similar switches on the market, helping enterprises quickly upgrade ultra-high-speed backbone network architecture and create ultra-high-speed network storage and transmission solutions. QSW-M7308R-4X is a Taiwanese brand and made in Taiwan, providing high-quality, safe and reliable network communication solutions.


    • 100GbE/25GbE high-speed network

      4-port 100GbE QSFP28 and 8-port 25GbE SFP28 optical fiber (12 ports in total), with backplane bandwidth up to 1200Gbps, provide ultra-high upload backbone network capabilities for data centers and small and medium-sized enterprises.

    • Graphical Web management interface

      QSS (QNAP Switch System), a user-friendly graphical web interface, provides practical functions such as overview dashboard, network port management, and configuration guidance, making network management more intuitive and easier.

    • L2 network management function

      Equipped with practical Layer 2 (L2) network management functions, such as LACP, VLAN, ACL, LLDP, etc., it can effectively control packet volume, allocate bandwidth, and maintain network security.

    • Half-width rack-mount design

      A rare lightweight 100GbE switch on the market, two QSW-M7308R-4X can be placed in a 1U cabinet, or used with other QNAP half-rack switches, making space utilization highly efficient.

    • Perfectly paired with QNAP NAS

      It can be connected to QNAP high-end 25GbE NAS or NAS with expandable 100G network cards, and supports Forward Error Correction (FEC) and IEEE-802.3ap Auto-Negotiation to improve compatibility, creating an efficient and low-latency computer room. .

    • Real-time online firmware updates

      QSS (QNAP Switch System) supports online checking of the latest firmware, allowing administrators to complete updates with one click, making it simple and fast.

    Welcome to the new era of 100G ultra-high-speed network!

    According to a research survey by an international technology market research organization, the market revenue of 100G ultra-high-speed network switches will grow significantly in 2023. Enterprises, ultra-large-scale cloud service providers, service providers, etc. are all investing in higher-speed construction of ultra-high-speed network architecture. To meet the ultra-high bandwidth requirements of servers on the market, such as generative AI and other applications.

    Source: IDC , Dell'Oro Group


    While traditional 10GbE has become a basic configuration, 25GbE is becoming increasingly popular. The explosive growth of data transmission and bandwidth-intensive workloads have increased the demand for 100GbE large-bandwidth networks. The QSW-M7308R-4X 100GbE switch helps enterprises quickly deploy to existing network architectures at a reasonable cost, breaking through performance bottlenecks in one fell swoop.

    • Professional audio and video media workers

      4K/8K image transmission

    • Small data storage center

      big data applications

    • Medium and large enterprises

      Cloud, AI computing

    • Smart medical

      gene sequencing


    The entry-level 100GbE switch preferred by small and medium-sized enterprises

    • Highest CP value

      The affordable 100GbE switch can achieve 1200Gbps total backplane bandwidth at a low budget; paired with QNAP 25GbE/10GbE switches, it can flexibly deploy medium and large-scale high-speed network architectures.

    • The most space-saving

      Half-width rack-mounted 100GbE switch, two QSW-M7308R-4X can be placed in a 1U cabinet, or placed side by side with other QNAP half-rack switches.

    • Perfect for high-speed NAS

      Ultra-high-speed 100GbE switch connects to QNAP 25GbE NAS or NAS with expandable 100G network cards to meet high-bandwidth data transmission for intensive I/O.


    Provides backbone network up to 1200Gbps ultra-high backplane bandwidth

    QSW-M7308R-4X is equipped with 4-port 100GbE QSFP28 and 8-port 25GbE SFP28 optical fiber. The backplane bandwidth is as high as 1200Gbps, or 1.2Tbps, ensuring that each connection port can fully exert its full performance and provide the backbone for uploading to the computer room server or NAS. network, and can be connected to the local 25GbE network switch QSW-M5216-1T creates a flexible and high-speed transmission architecture.

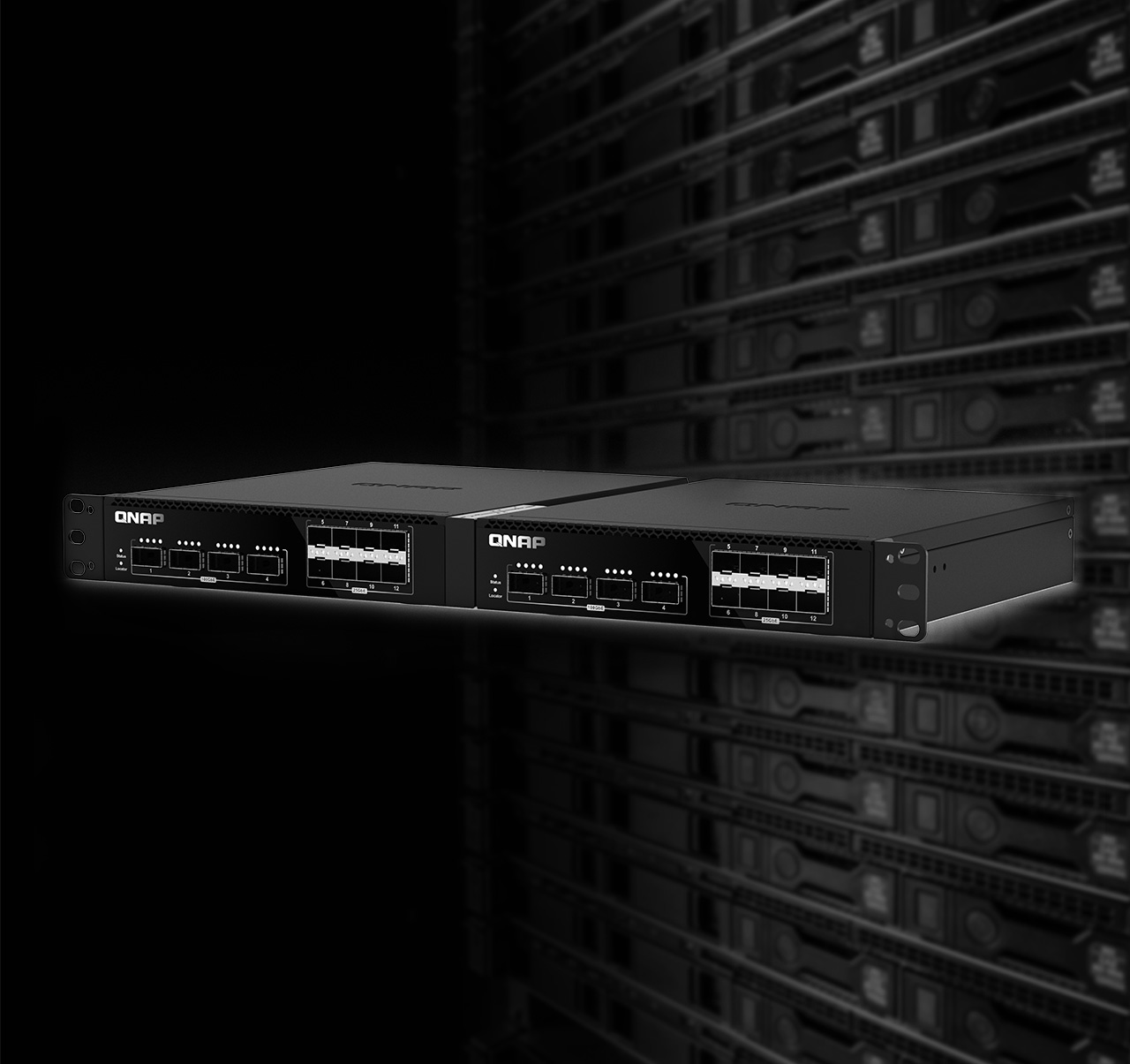

    Half cabinet width, 2 For 1U is just right

    QSW-M7308R-4X adopts a half-rack width design. Enterprises can accommodate two half-width switches in 1U space according to their needs (for example: QSW-M7308R-4X and QSW-M3216R-8S8T ), not only saves space, but also avoids the congestion of cables and power cords, making management more convenient for IT personnel.

    If you need to assemble two half-rack switches, you need to purchase the exclusive rack kit SP-EAR-QSW2FOR1-01 first.

    Multi-port 100GbE and 25GbE networks, flexible configuration of high-speed network infrastructure

    QSW-M7308R-4X has 4 built-in 100GbE QSFP28 and 8 25GbE SFP28 optical ports, which can flexibly connect devices with different network speed interfaces. The 25GbE SFP28 interface is backward compatible with 10GbE SFP+/1GbE SFP interface, and the 100GbE QSFP28 interface is compatible with Upward connection to low-speed compatible 100GbE+ core switches/servers/NAS, etc. *

    The 100GbE QSFP28 interface does not yet support the breakout function.

    100GbE QSFP28 port
    25GbE SFP28 port

    Pair it with a NAS equipped with 100GbE/25GbE network cards to create an efficient and low-latency computer room.

    QSW-M7308R-4X can connect multiple NAS with 100GbE/25GbE Ethernet network cards in series, providing multiple NAS 100GbE/25GbE networks, and can provide a single NAS with up to 200GbE network through the QXG-100G2SF-CX6 network card. road transmission.

    100GbE to 100GbE, connect multiple NAS
    Total NAS bandwidth up to 200GbE

    QSS graphical management interface makes setting operations easier

    QSW-M7308R-4X is equipped with the QNAP Switch System (QSS), which allows administrators to easily perform various L2 network management through the friendly graphical web management interface, making network management more intuitive and easier.

    Overview dashboard
    Network port management
    Setup Guide
    Commonly used chart references
    Online software check for updates

    Bandwidth and packet management and control to optimize network operation performance

    QSW-M7308R-4X provides practical bandwidth and packet management and control functions, such as LACP, VLAN, QoS and IGMP Snooping, which can effectively configure bandwidth and manage network packets into groups, helping administrators greatly improve network performance.

    • LACP

      Link Aggregation (LAG, Link Aggregation) Link aggregation can add the network speed of multiple network lines to form a larger network bandwidth and quickly upgrade the network speed.

    • VLAN

      Virtual Area Network (VLAN) can flexibly separate different department networks and enjoy more efficient network group management.

    • QoS

      QoS (Quality of Service) management function can properly control traffic and set priority bandwidth, so that applications that really need performance can obtain sufficient resources.

    • IGMP Snooping

      Group snooping protocol (IGMP snooping) can accurately record all audio and video stream distribution methods, and will not cause audio and video interruption or poor quality due to mistransmission or under-transmission of packets.

    • Forward Error Correction (FEC)

      Forward Error Correction (FEC) allows the receiving end to quickly recover from errors, reduce the bit error rate (Bit Error Rate), and ensure data protection due to signal attenuation that is prone to occur during high network speed and long-distance transmission, resulting in packet loss. Correctness. In addition, compared with switches on the market that generally only support fixed FEC, QSS's FEC also supports IEEE-802.3ap Auto-Negotiation, greatly improving compatibility.


    Complete security and system functions

    QSW-M7308R-4X has powerful security and system functions, such as: ACL, LLDP, RSTP and Flow Control, which can ensure access security, assist in error correction, avoid loops or packet loss, thereby helping administrators improve the network Reliability.

    • ACL

      Access Control List (ACL) can effectively filter incoming and outgoing packet data through customized rules, providing network security protection like a firewall.

    • LLDP

      Link Layer Discovery Protocol (LLDP) enables devices on the network to discover each other and notify each other of status and interaction information by transmitting data units, which facilitates network fault debugging.

    • RSTP

      Rapid Spanning Tree Protocol (RSTP) can automatically identify loops in network topology and resolve them by blocking traffic on a certain network port, or provide line backup.

    • Flow Control

      Flow Control is used to balance the traffic between the transmitting end and the receiving end of the network to prevent the high-speed transmitting end from paralyzing the low-speed receiving end and keep the network smooth.


    Solid metal shell, effective heat dissipation

    The QSW-M7308R-4X's solid metal casing can effectively dissipate heat during high-speed access and maintain stable system operation. Clear light design helps you quickly grasp the operating status of QSW-M7308R-4X.
