Description
RAZER KATANA CHROMA
Powerful and colorful.
Let your computer have excellent performance and stylish appearance. The Razer Katana is an extremely efficient Platinum level (or above) power supply that powers your computer's powerful CPU and GPU. Built-in programmable RGB (aRGB), paired with Razer Chroma™ RGB software, allows you to customize lighting effects.
Top power efficiency
Get the pure power output you need to build a powerful computer with the latest GPUs, so you can enjoy the full gaming experience.
Platinum
The Razer Katana PSU is designed to get the most out of its electronic components, intelligently regulate power, and enhance power efficiency while reducing heat and power consumption.

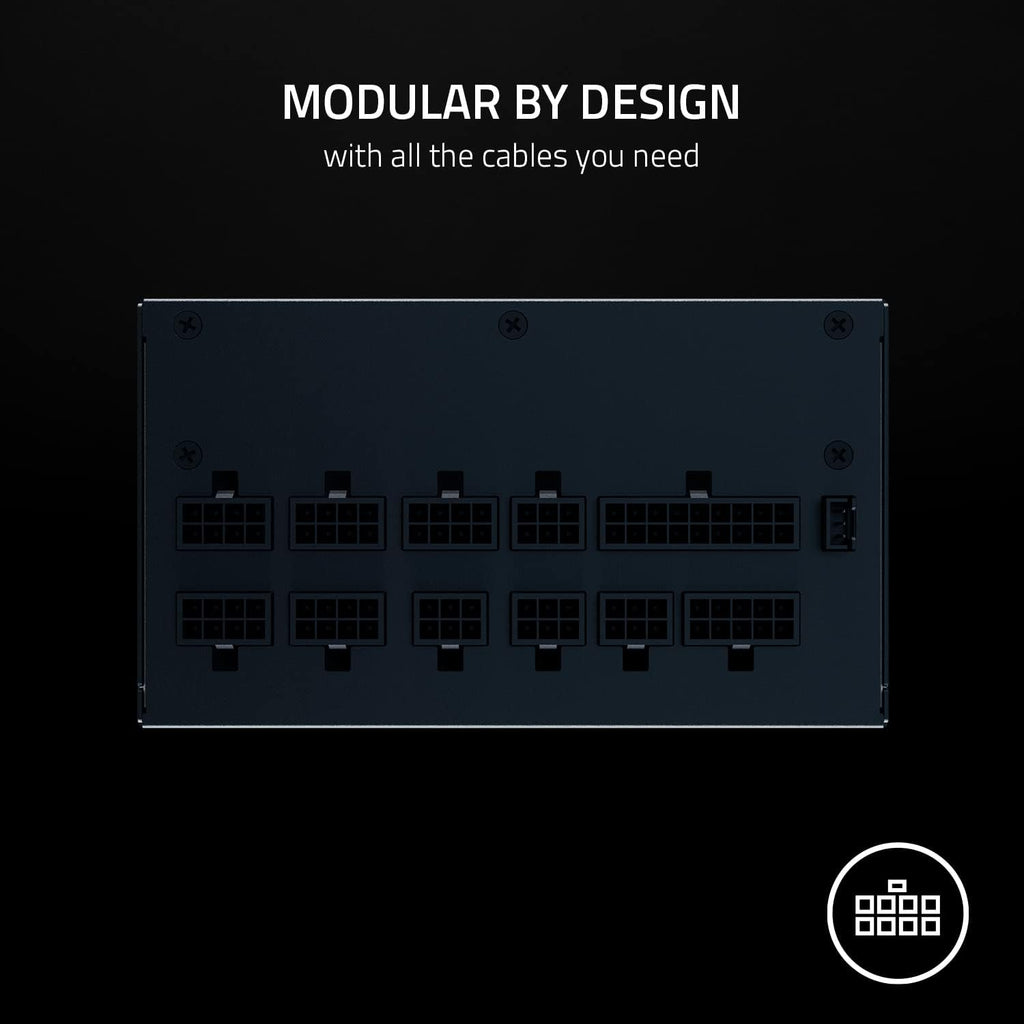

Modular design
The Razer Katana PSU comes with cables to support the power required by the system. Cables are provided to support the motherboard, CPU, GPU, aRGB and other system components, making it easy to customize your computer.

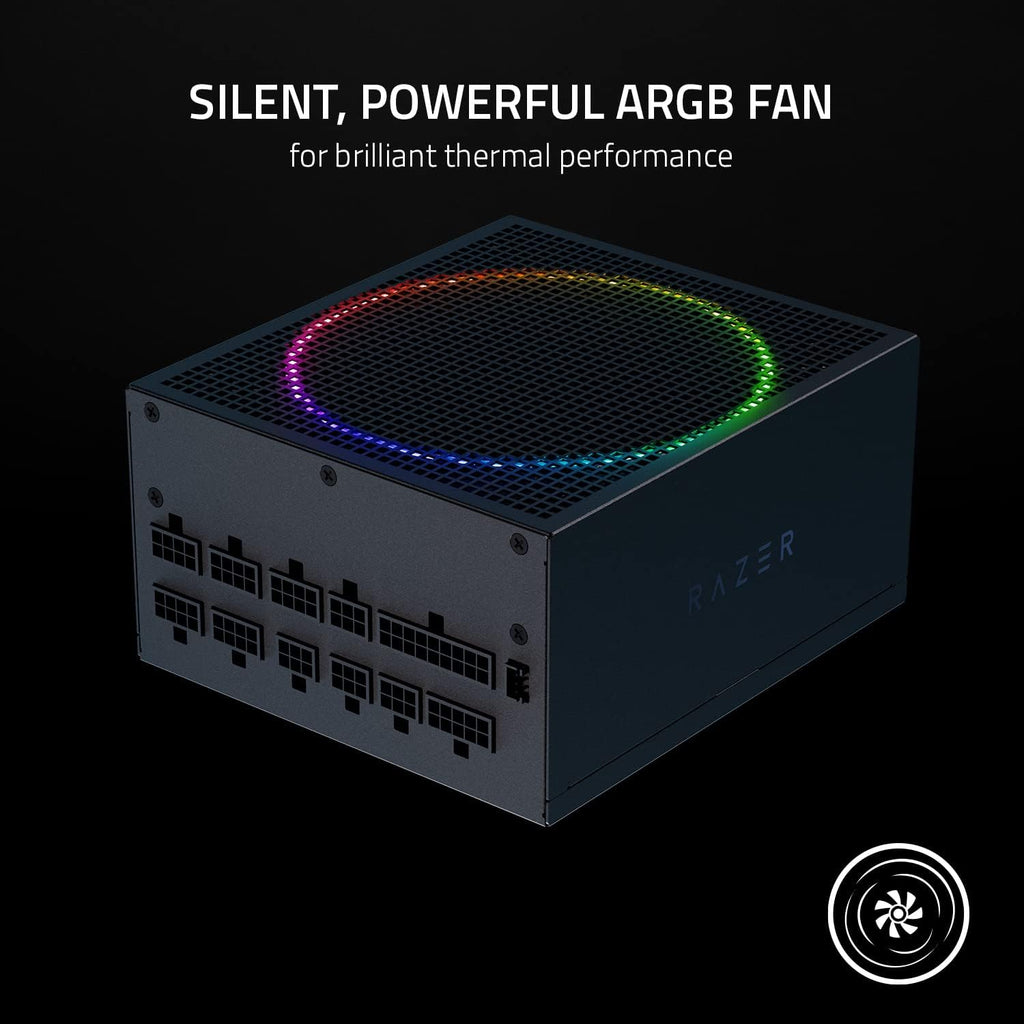

Quiet and powerful ARGB fan
The Razer Katana's cooling performance has been improved to easily stay cool and can enter zero-rpm mode during low battery usage. PSUs with aRGB can be integrated with Razer Chroma™ RGB software, allowing you to customize lighting effects.
RAZER CHROMA™ RGB Powered
Get the best aRGB customization possible with 16.8 million colors, lighting styles and effects that can interact with games for the ultimate immersive gaming experience. Enjoy the world's largest lighting ecosystem with simple control from a single platform.
Technical specifications
Overview
- Type: ATX
- 80+ Efficiency: Platinum -> 90% at 115V
- Input voltage: 100 to 240V
- Output voltage: +3.3V, +5V, +12V
- Output current single rail: +3.3V -25 A, +5V - 25 A, +12V - 70 A, +12V - .8 A, +5VSB - 3 A
- Connectors: 1 ATX, 2 EPS, 6 6+2-pin PCIe, 12 SATA, 12 4-pin peripherals, 2 floppy drives
- Capacitor: 105C Japan
- Cable management: fully modular
- Cable color: black
- PSU color: black
- Fan size: 140 mm PWM
- Fan lighting: individually programmable RGB LED, aRGB, Chroma
- Zero speed mode: Yes
- Protection: Overvoltage, undervoltage, short circuit, overpower and overtemperature
- Dimensions: 160 mm (length) x 150 mm (width) x 86 mm (height) / 6.3 inches x 5.9 inches x 3.38 inches
- Weight: 2.3 kg / 5.7 lbs
