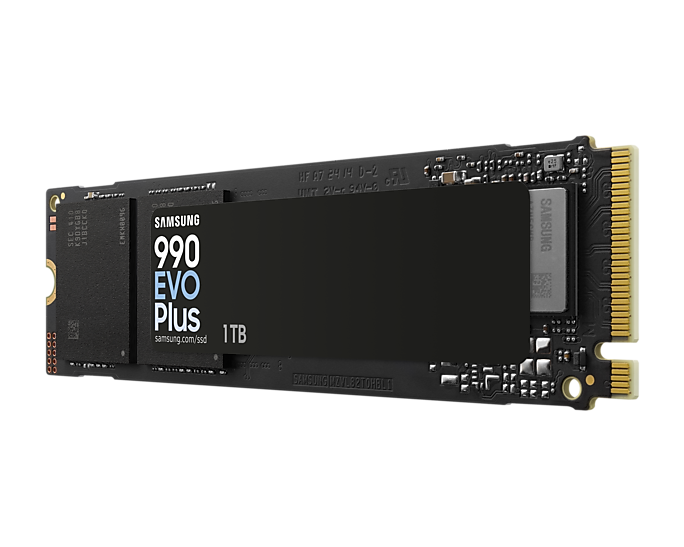

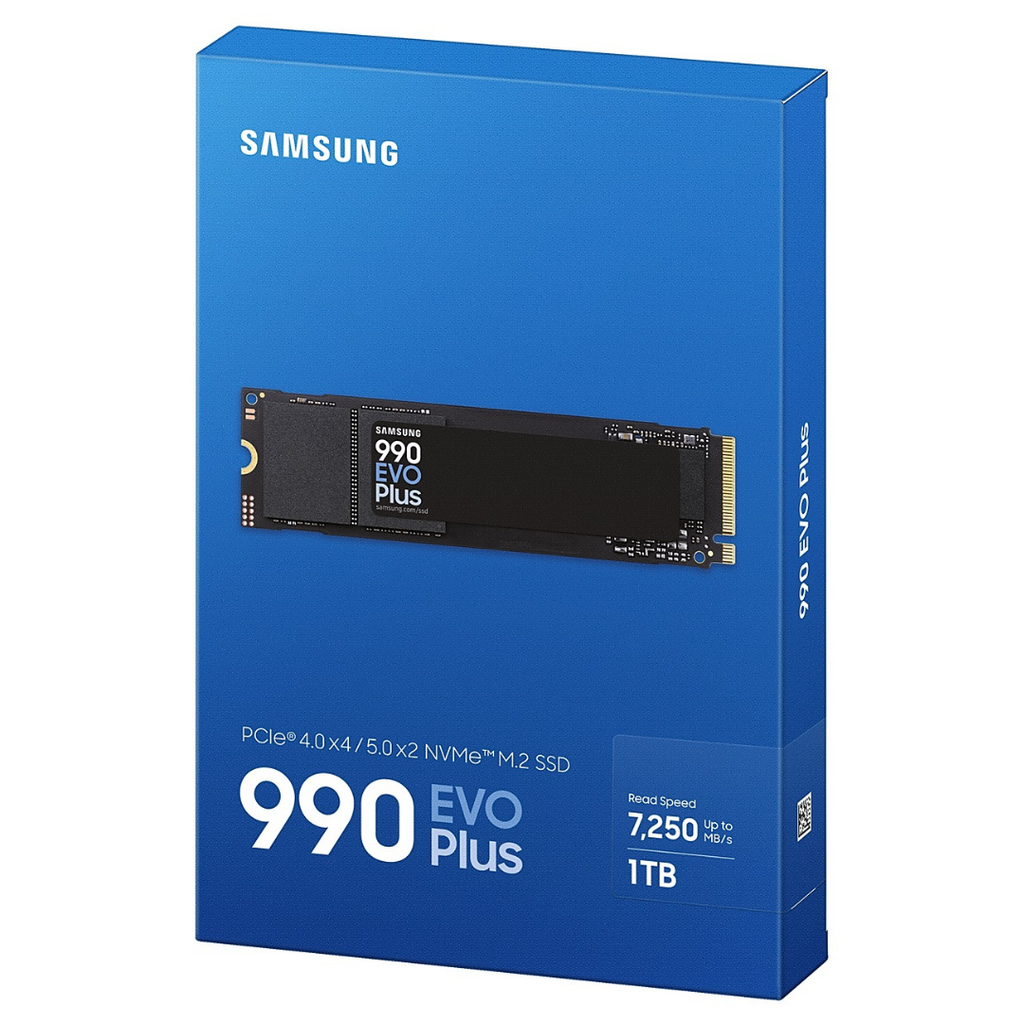

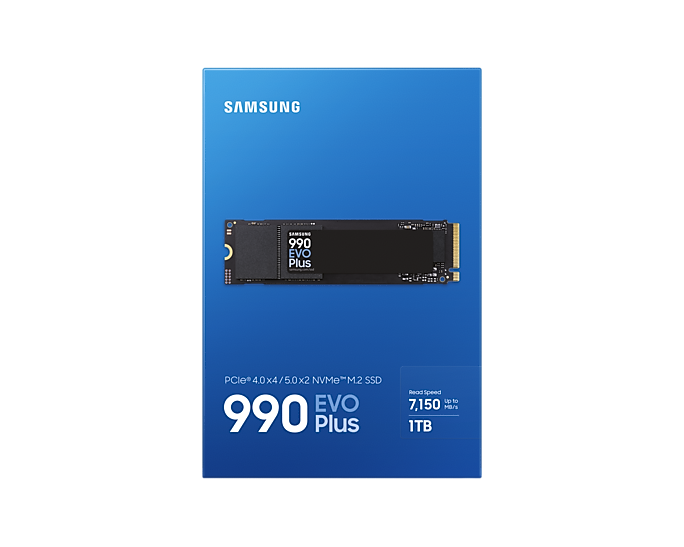

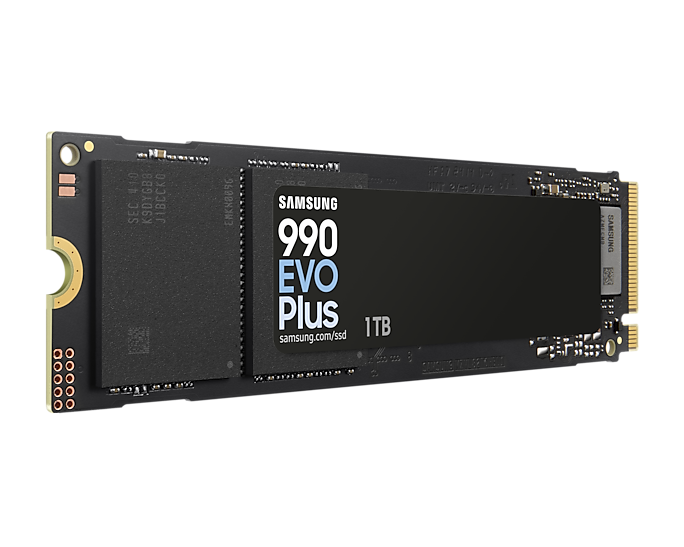

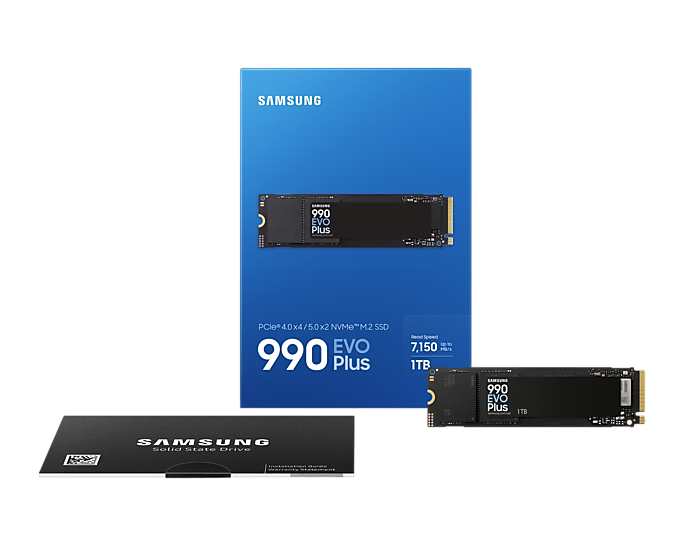

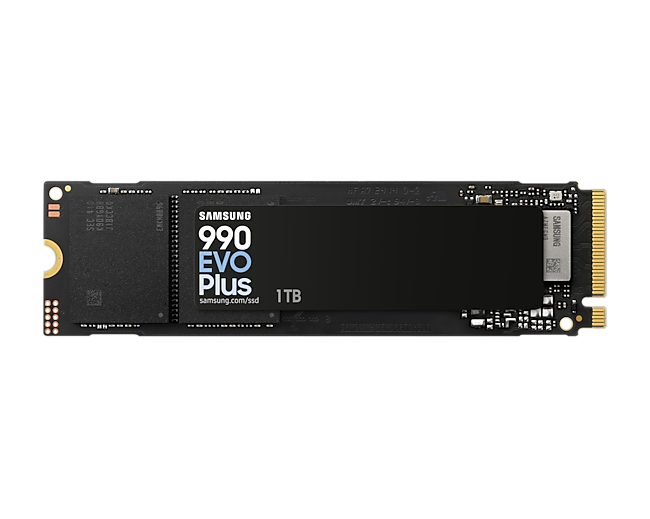

Samsung 1TB 990 EVO Plus MZ-V9S1T0BW M.2 2280 PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 SSD
Samsung 1TB 990 EVO Plus MZ-V9S1T0BW M.2 2280 PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 SSD
Samsung 1TB 990 EVO Plus MZ-V9S1T0BW M.2 2280 PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 SSD
Samsung 1TB 990 EVO Plus MZ-V9S1T0BW M.2 2280 PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 SSD
Samsung 1TB 990 EVO Plus MZ-V9S1T0BW M.2 2280 PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 SSD
Samsung 1TB 990 EVO Plus MZ-V9S1T0BW M.2 2280 PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 SSD
Roll over image to zoom in Click on image to zoom
Samsung 1TB 990 EVO Plus MZ-V9S1T0BW M.2 2280 PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 SSD
Samsung 1TB 990 EVO Plus MZ-V9S1T0BW M.2 2280 PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 SSD
Samsung 1TB 990 EVO Plus MZ-V9S1T0BW M.2 2280 PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 SSD
Samsung 1TB 990 EVO Plus MZ-V9S1T0BW M.2 2280 PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 SSD
Samsung 1TB 990 EVO Plus MZ-V9S1T0BW M.2 2280 PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 SSD
Samsung 1TB 990 EVO Plus MZ-V9S1T0BW M.2 2280 PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 SSD

Samsung 1TB 990 EVO Plus MZ-V9S1T0BW M.2 2280 PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 SSD

SAMSUNG
Price:
HK$639.00

Description

A 990 EVO Plus is installed inside the computer motherboard.

Top 3 features

The phrase "Up to 7,250 MB/s" is written on a rectangle shaped like the 990 EVO Plus.

Performance

Up to 7,250MB/s of sequential read speed, 45% faster speed than the previous model.
It says "73% Enhanced" on the dashboard.

Power efficiency

Power efficiency enhanced by 73% for more MB/s per watt, while maintaining performance and thermal control.
It says "Up to 4TB" inside two connected circles.

Versatility

Up to 4TB expanded capacity and rapid Intelligent TurboWrite 2.0 with enlarged TurboWrite region

Spectacular speed everyday

Blast through tasks faster. 990 EVO Plus with the latest NAND offers boosted sequential read/write speeds up to 7,250/6,300MB/s. Huge files,
instant transfer.With so many curves, the 990 EVO Plus looks like it's going to fly fast. Underneath it are icons that say "Sequential Read up to 7,250MB/s", "Sequential Write up to 6,300MB/s".

* Sequential and random write performance was measured with Intelligent Turbo Write technology being activated. Intelligent Turbo Write operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service center.

* Test system configuration: AMD Ryzen9 7950x 16-Core Processor CPU@4.5GHz, DDR5 4800MHz 16GBx2 (PC5-38400), OS-Windows 11 Pro 64bit, Chipset - ASRock X670E Taichi

* To maximize the performance of the 990 EVO Plus, please check whether your system supports PCIe® 4.0 or PCIe® 5.0 at the Intel or AMD website.

* Product image shown for illustrative purposes only; actual product may differ.

Cool power through your day

Optimized efficiency, extended performance. The nickel-coated controller increases MB/s per Watt by 73%, achieving the same power level and thermal control with less power consumption. Stay focused on work or play with no overheating or battery life worries.On the left is the 990 EVO Plus with the instrument dashboard, and inside it is written "73% up Power Efficiency". On the right is the 990 EVO Plus with a downward arrow, and inside it is written "Thermal Control" with an icon.Extra space. Extra speed.

Harness the full power of your drive with enhanced Intelligent TurboWrite 2.0. Process massive data faster and breeze through heavy graphics with an enlarged TurboWrite region, now available in 4TB capacity.Inside the two connected circles is the 990 EVO Plus, with an icon on the left that says "Up to 4TB" and an icon on the right that says "Turbowrite 2.0".Samsung Magician software

Make your SSD work like magic. Samsung Magician software's optimization tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

* For detailed information, please visit Samsung Magician software website. https://semiconductor.samsung.com/us/consumer-storage/magician/Samsung magician software is running on the PC screen. Below that, the three core functions "Firmware update", "Performance optimization", and "Encrypted drive" are indicated in text and icons.

Bringing innovations to life

For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.Samsung's memory products are installed on the motherboard.Specifications

  • Form Factor
    M.2
  • Capacity
    1TB, 2TB, 4TB
  • Sequential Read Speed
    Up to 7,250 MB/s
  • Sequential Write Speed
    Up to 6,300 MB/s

Model Code (Capacity)

  • MZ-V9S1T0BW(1TB)

  • MZ-V9S2T0BW(2TB)

  • MZ-V9S4T0BW(4TB)

General Feature

  • Application

    Client PCs

  • FORM FACTOR

    M.2 (2280)

  • INTERFACE

    PCIe® Gen 4.0 x4 / 5.0 x2 NVMe™ 2.0

  • DIMENSION (WxHxD)

    80.15 x 22.15 x 2.38mm

  • WEIGHT

    Max 9.0g Weight

  • STORAGE MEMORY

    Samsung V-NAND TLC

  • CONTROLLER

    Samsung in-house Controller

  • CACHE MEMORY

    HMB(Host Memory Buffer)

Special Feature

  • TRIM Support

    Supported

  • S.M.A.R.T Support

    Supported

  • GC (GARBAGE COLLECTION)

    Auto Garbage Collection Algorithm

  • ENCRYPTION SUPPORT

    AES 256-bit Encryption (Class 0) TCG/Opal
    IEEE1667 (Encrypted drive)

  • WWN SUPPORT

    Not supported

  • DEVICE SLEEP MODE SUPPORT

    Yes

Performance

  • SEQUENTIAL READ

    1TB: Up to 7,150 MB/s
    2TB: Up to 7,250 MB/s
    4TB: Up to 7,250 MB/s

  • SEQUENTIAL WRITE

    1TB: Up to 6,300 MB/s
    2TB: Up to 6,300 MB/s
    4TB: Up to 6,300 MB/s

  • RANDOM READ (4KB, QD32)

    1TB: Up to 850,000 IOPS
    2TB: Up to 1,000,000 IOPS
    4TB: Up to 1,050,000 IOPS

  • RANDOM WRITE (4KB, QD32)

    1TB: Up to 1,350,000 IOPS
    2TB: Up to 1,350,000 IOPS
    4TB: Up to 1,400,000 IOPS

Environment

  • AVERAGE POWER CONSUMPTION
    (System Level)3)

    1TB: Average: Read 4.3 W / Write 4.2 W
    2TB: Average: Read 4.6 W / Write 4.2 W
    4TB: Average: Read 5.5 W / Write 4.8 W

  • POWER CONSUMPTION (IDLE)

    1TB: Typical 60 mW
    2TB: Typical 60 mW
    4TB: Typical 60 mW

  • POWER CONSUMPTION (DEVICE SLEEP)

    1TB: Typical 5mW
    2TB: Typical 5mW
    4TB: Typical 5mW

  • ALLOWABLE VOLTAGE

    3.3 V ± 5 % Allowable voltage

  • RELIABILITY (MTBF)

    1.5 Million Hours Reliability (MTBF)

  • OPERATING TEMPERATURE

    0 - 70 ℃ Operating Temperature

  • Shock

    1,500 G & 0.5 ms (Half sine)

Accessories

  • INSTALLATION KIT

    Not Available

Software

Warranty

  • MZ-V9S1T0BW(1TB)

    5-year or 600 TBW limited warranty

  • MZ-V9S2T0BW(2TB)

    5-year or 1200 TBW limited warranty

  • MZ-V9S4T0BW(4TB)

    5-year or 2400 TBW limited warranty
