Description
| Specifications | ||
|---|---|---|
| 80PLUS® | Platinum | |
| Cybenetics Efficiency Level | Platinum | |
| Cybenetics Noise Level | A | |
| Form Factor | ATX/EPS | |
| Dimensions | 160 × 150 × 86 mm | |

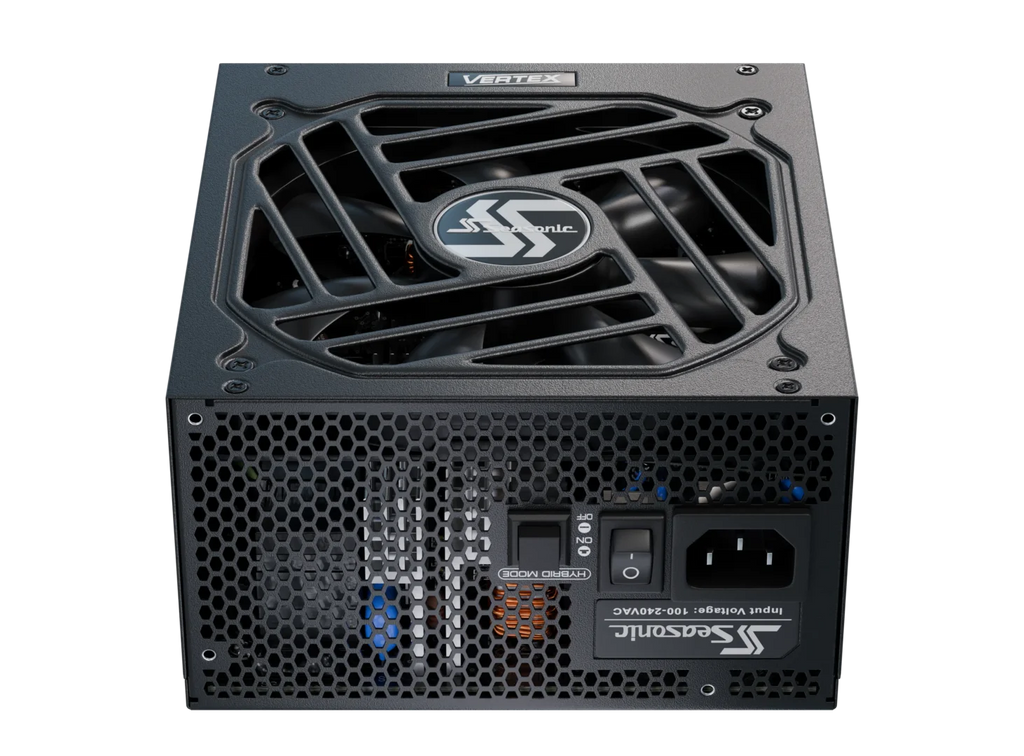

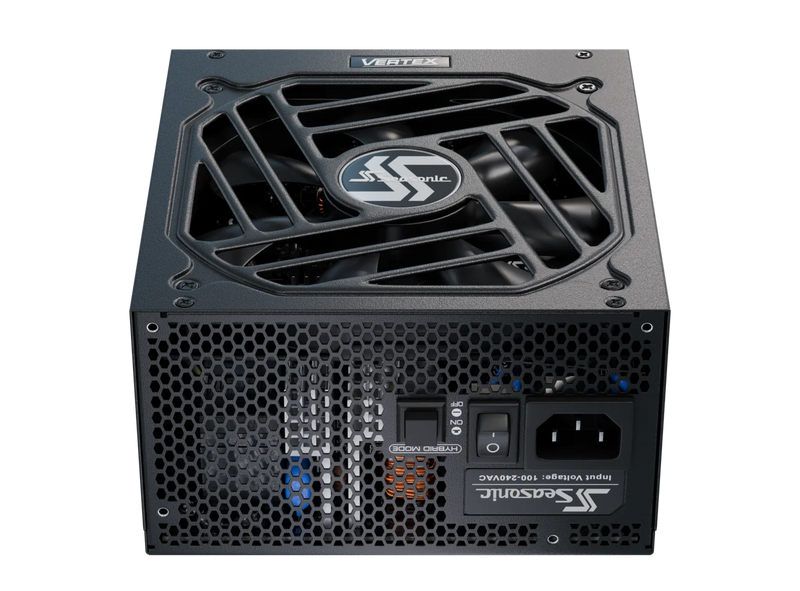

| Fan Information | Fan Size | 135 mm |
| Fan Control | Digital Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15% - 65% RH | |

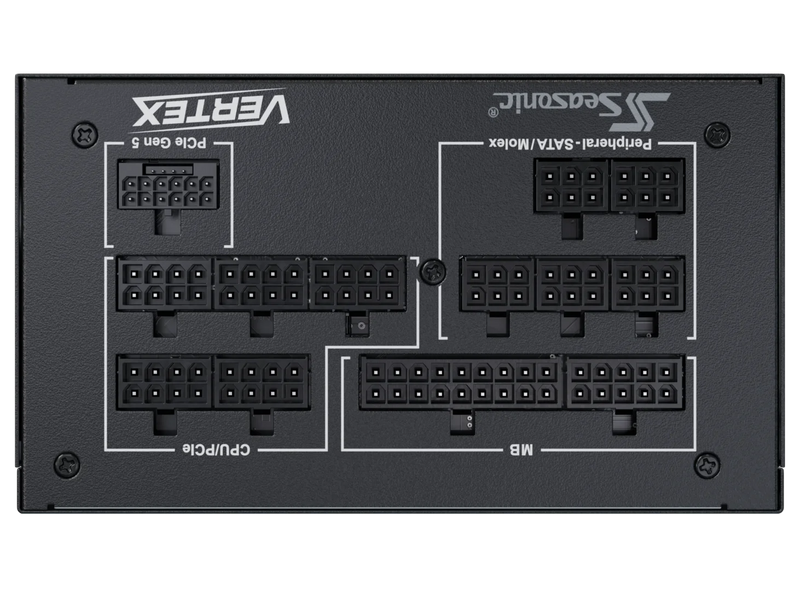

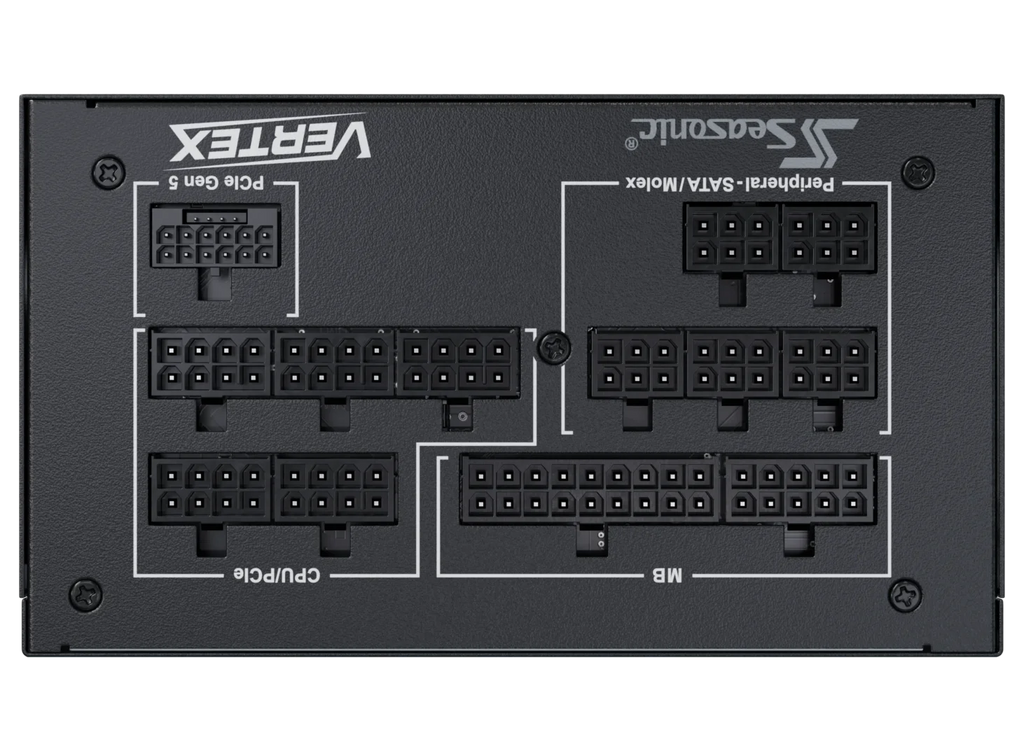

| Cable Information | Modularity | Fully Modular |
| Cable type | Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 - 50°C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 12 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100V-240V | |||||
| 13-6.5A | ||||||
| 50Hz-60Hz | ||||||
| DC Output | Rail | +3.3V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 25A | 25A | 83A | 0.3 A | 3A | |
| 125W | 996W | 3.6 W | 15W | |||
| Total continuous power | 1000W | |||||
