Description
Efficiency certification
The Rebel P20 has received a Gold Certificate from independent Cybenetics Laboratories for overall efficiency of at least 87% at 115 V, at least 89% at 230 V, and 5 VSB efficiency of 75%. The 1,000-watt and 1,200-watt Rebel P20 models even received Platinum certification.
Designed for the latest graphics cards
With its ATX 3.1 compatibility and 12V-2x6 connectivity, the Rebel P20 is designed for high-performance operation with the latest generation of high-end graphics cards.

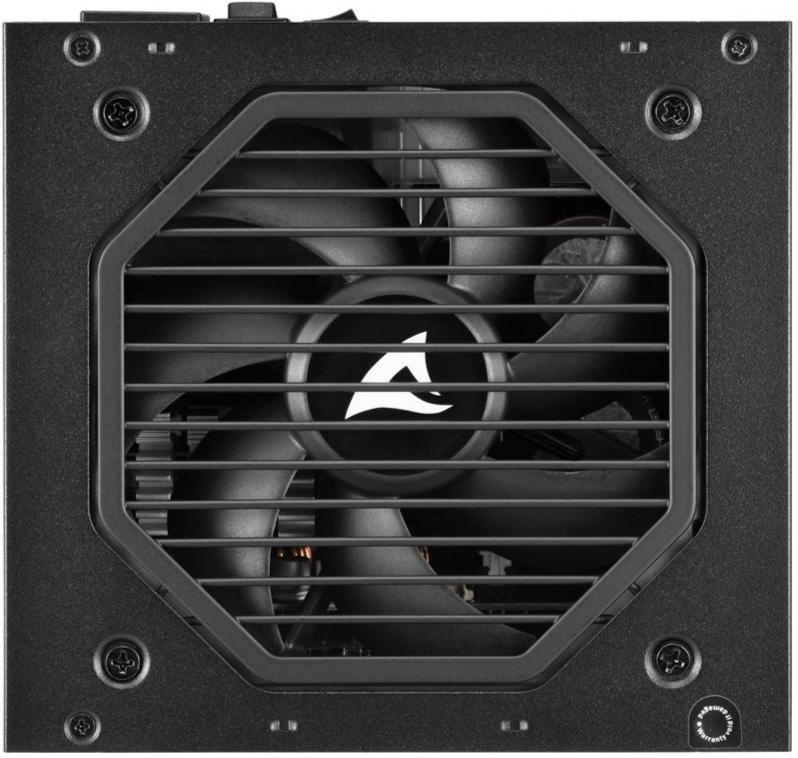

Zero RPM mode silent fan
The Rebel P20 is equipped with a 120 mm fan, is certified for low noise, and offers Zero PRM mode. At low and medium loads, the fan rotation will be turned off completely for virtually silent operation.

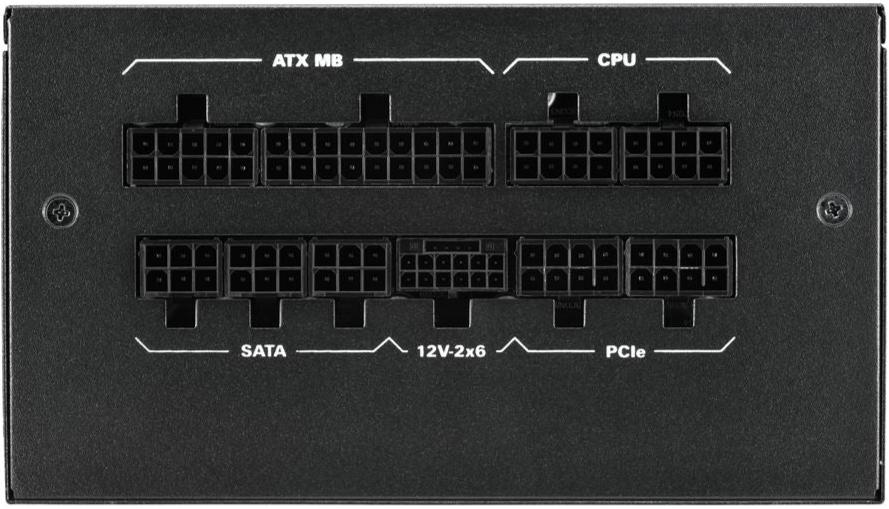

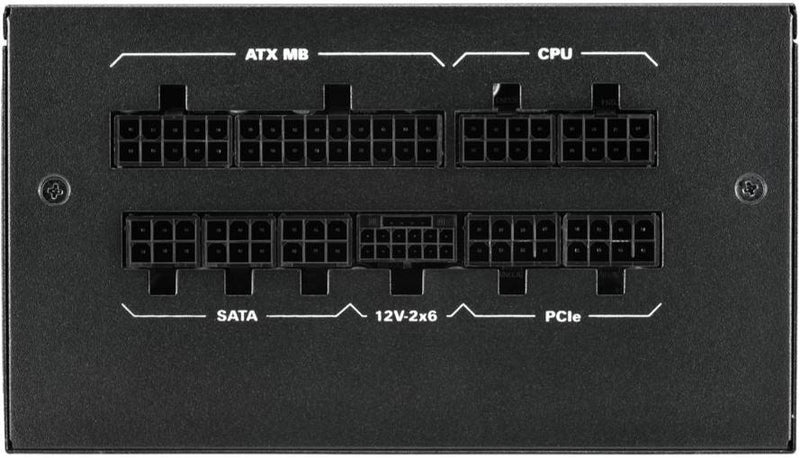

Fully modular wire
For cleaner and better organization inside your computer case, the Rebel P20 comes with a fully modular cable set. This ensures that only the wires that are actually needed are connected to the power supply.
High quality components
Rebel P20 is equipped with all Japanese capacitors, stable LLC resonant converter and DC/DC technology to ensure perfect operation.
Comprehensive protection
Whether overcurrent protection or overload protection: Rebel P20 is equipped with all protection functions to ensure the continuous safe operation of the hardware system.
-
Basic information
- Certification:
- Cybenetics Gold
- Power supply type:
- ATX 3.1
- Continuous output power:
- 850W
- Comply with ErP:
- ✓
- technology:
- DC/DC
- All Japanese capacitors:
- ✓
- Zero RPM mode:
- ✓
- Working hours:
- Greater than 100,000 hours
- Working temperature:
- 0 to +40 °C
- Standby power consumption:
- 0.25 W maximum
- Weight does not include wires:
- 1.6kg
- Dimensions (length x width x height):
- 150 x 140 x 86mm
- Shell color:
- black
- enter
- Voltage:
- 100-240VAC
- frequency:
- 50-60 Hz
- Input current (110/230 V):
- 10/5A
- output
- Number of 12 V output groups:
- 1
- 3.3 V load:
- 20A
- 5 V load:
- 20A
- 3.3 V + 5 V maximum combined load:
- 100W
- 12 V1 load:
- 70.8A
- 12 V maximum combined load:
- 849.6 W
- 5 VSB load:
- 3A
- −12 V load:
- 0.3 A
- 12V-2x6 load:
- 600W
- Wires and connectors
- Wire configuration:
- Fully modular
- Flat wire:
- ✓
- Maximum wire length:
- 97cm
- ATX connector cable length:
- 60cm
- CPU connector wire length:
- 70cm
- 12V-2x6 wire length:
- 60cm
- PCIe connector wire length:
- 55 cm + 15 cm
- Wire length to first peripheral connector:
- 50cm
- 24-pin motherboard connector:
- 1
- 4+4-pin CPU connector:
- 2
- 6+2-pin PCIe connector:
- 4
- 12V-2x6 connector type:
- 1
- SATA connector:
- 11
- IDE connector:
- 1
- fan
- Fan size:
- 120mm
- Bearing type:
- Liquid bearings
- protection mechanism
- OCP (over current protection):
- ✓
- OVP (over voltage protection):
- ✓
- UVP (Under Voltage Protection):
- ✓
- SCP (short circuit protection):
- ✓
- OTP (over temperature protection):
- ✓
- OPP (overload protection):
- ✓
- Safety certification
- CE:
- ✓
- FCC:
- ✓
- CB:
- ✓
- Package contents
- Rebel P20 850
- power cord
- Modular wire set
- mounting screws
