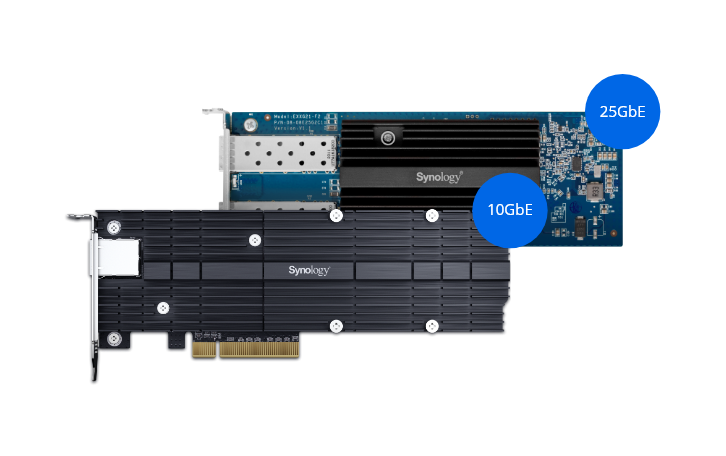

With 10/25GbE transmission capability
Supports 10/25GbE network interface cards to increase network bandwidth and transmission capacity through Link Aggregation.
Description

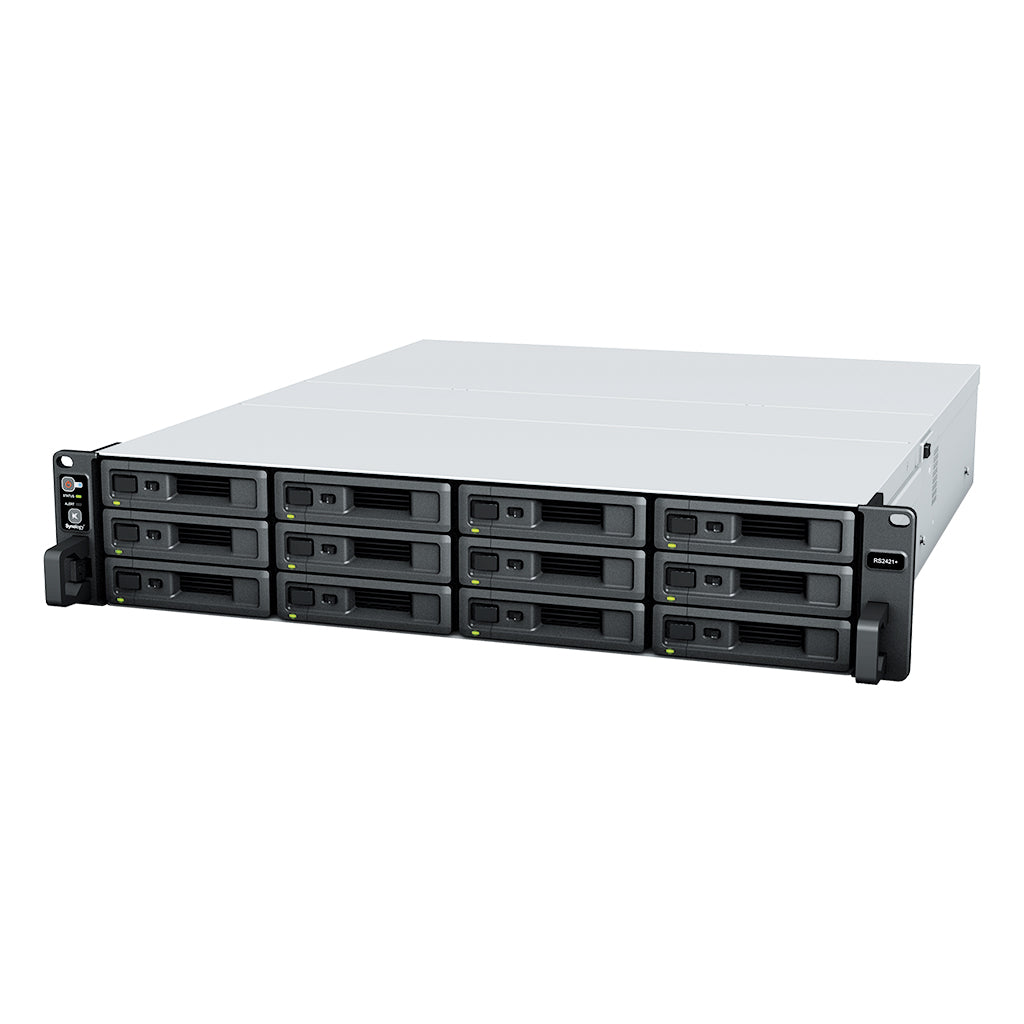

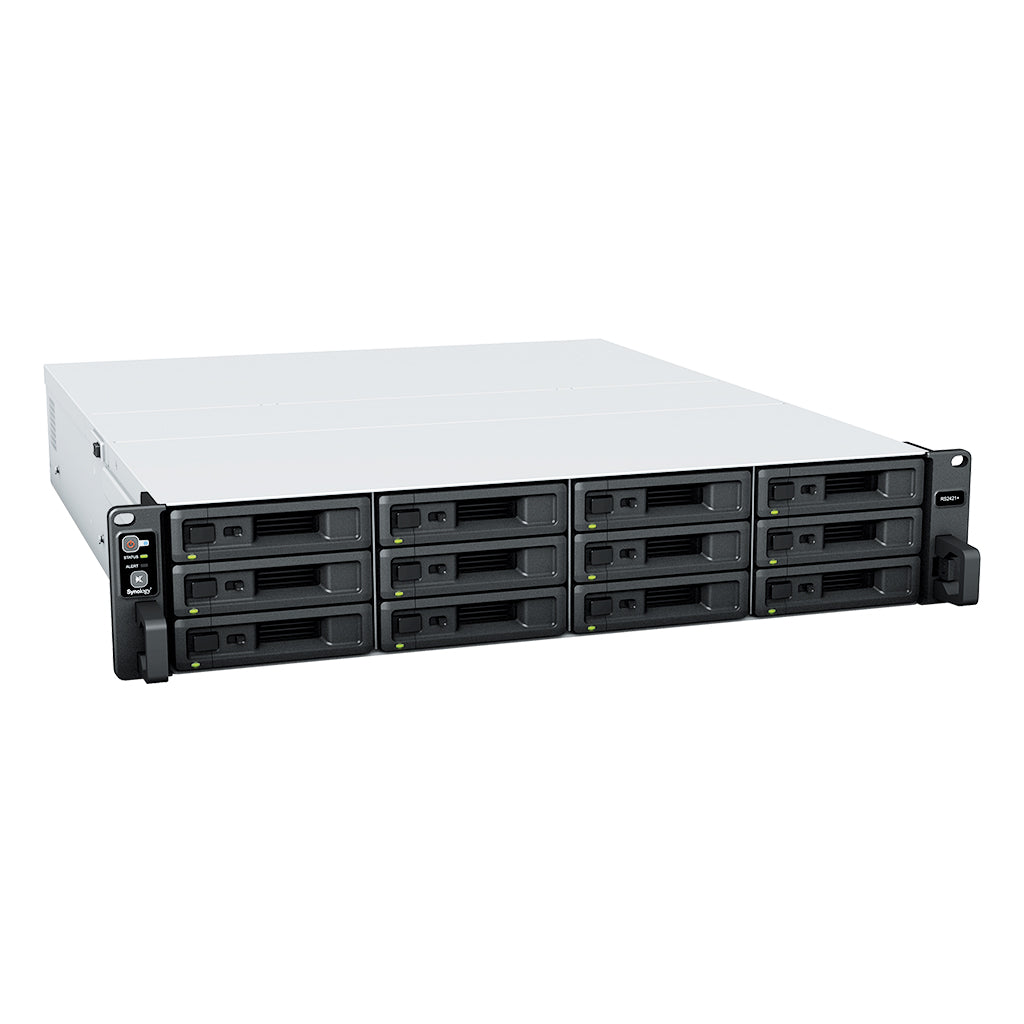

RackStation® RS2421+
High-performance, multi-functional storage solutions designed for small and medium-sized businesses.
Secure storage solutions for businesses
Synology RS2421+/RS2421RP+ is a NAS server with a 2U chassis and 12 hard drive slots. It can be expanded to up to 24 hard drives and provides 64K sequential read/write performance of up to 2,200/1,154 MB per second1 . Paired with SSD cache and 10/25 GbE network port to improve performance2, it is suitable for deployment in various enterprise environments. In addition, RS2421+/RS2421RP+ has built-in support for enterprise-level applications such as deduplication backup and second-level restore, providing cost-effective file storage and management solutions for organizations with continuous data growth.
processor
AMD Ryzen™ V1500B 4 Core 2.2 GHz
efficacy
2,200 MB per second sequential read and 1,154 MB sequential write1
Memory
4 GB ECC DDR4, expandable to 32 GB
Scalability

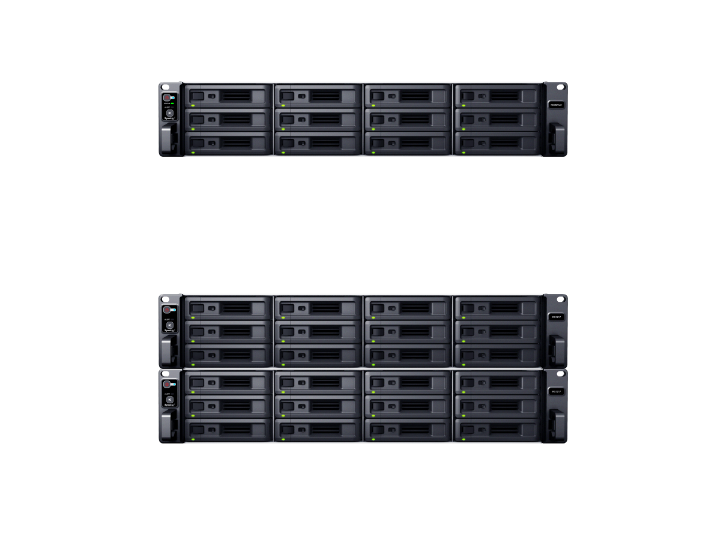

With RX1217(RP), it can be expanded to 24 hard drives.
High-performance storage systems for any need
Random read/write speeds exceed 106K/59K IOPS, and sequential read/write speeds reach 2,200/1,154 MB per second, meeting the performance requirements of high workload environments. 1
4K random IOPS read sequentially
*Comparison with previous generation model RS2418(RP)+
read
161 %
Increase*
write
103 %
Increase*
read
0 %
Increase*
write
0 %
Increase*
Built for high stability
Backup power supply 3
Reduce power interference generated on a single supply channel or power distributor to ensure data integrity and service availability.
Uninterrupted service
Combining two Synology NAS servers through Synology High Availability ensures that if one of the servers fails, it can automatically resume operations within minutes. learn more
Ensure data integrity and security
ECC memory improves system stability; the Btrfs file system prevents file corruption, supports snapshot functions, and simplifies data protection. learn more
License-free backup solution
Hyper Backup
Back up files, iSCSI LUNs, applications and system settings to destinations such as Synology C2, public cloud, USB devices, file servers or other Synology NAS.
Back up your files through scheduled backup tasks, improve security with detailed user permissions and encryption, reduce file size with built-in deduplication technology5 , and flexibly restore files through multi-version backup. learn more
Snapshot Replication
Snapshot Replication provides elastic snapshots of shared folders and virtual machines at any point in time, achieving RPO as low as 5 minutes and restore in seconds. learn more
virtualized storage
by VMware® vSphere ™ , Microsoft ® Hyper-V ® , Citrix ® XenServer ™ Certified with OpenStack, DSM simplifies virtual machine configuration and allows users to efficiently manage virtual environments.
Designed specifically for VMware and Windows, Synology Storage Console allows you to manage storage space directly through the hypervisor. VMware VAAI integration with Windows ODX helps offload storage operations and improve data transfer. learn more
Paired with Synology hard drive
Synology hard drives are designed for intensive workloads, delivering long-term, stable and consistent performance.
Powered by Synology DiskStation Manager
Synology DiskStation Manager (DSM) web-based operating system provides productivity and file management solutions.
Central Management System
Manage multiple Synology NAS simultaneously through a centralized interface to improve management efficiency and flexibility.
learn moreCollaboration Suite Portfolio
Tools such as Synology Office, Calendar, Chat ensure secure and efficient private communication services and provide user-friendly content organization.
learn moreVirtual Machine Manager
Run multiple operating systems in a completely isolated sandbox environment. Seamlessly copy, restore and migrate virtual machines.
learn moresafety
Comprehensive built-in security tools are constantly updated to protect your device from ever-changing threats.
learn moreSurveillance Station
Provide a complete home monitoring solution to meet your recording and monitoring needs.
learn moreAn extra layer of protection
RS2421+/RS2421RP+ comes with Synology’s three-year hardware warranty. In some areas, you can purchase a two-year extended warranty, giving you a maximum five-year warranty. learn more

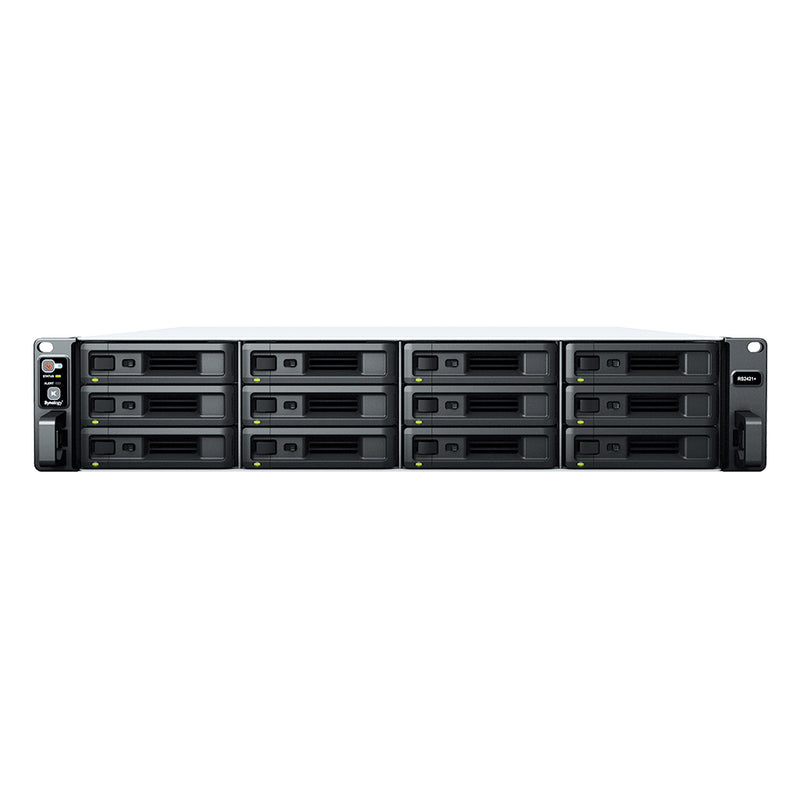

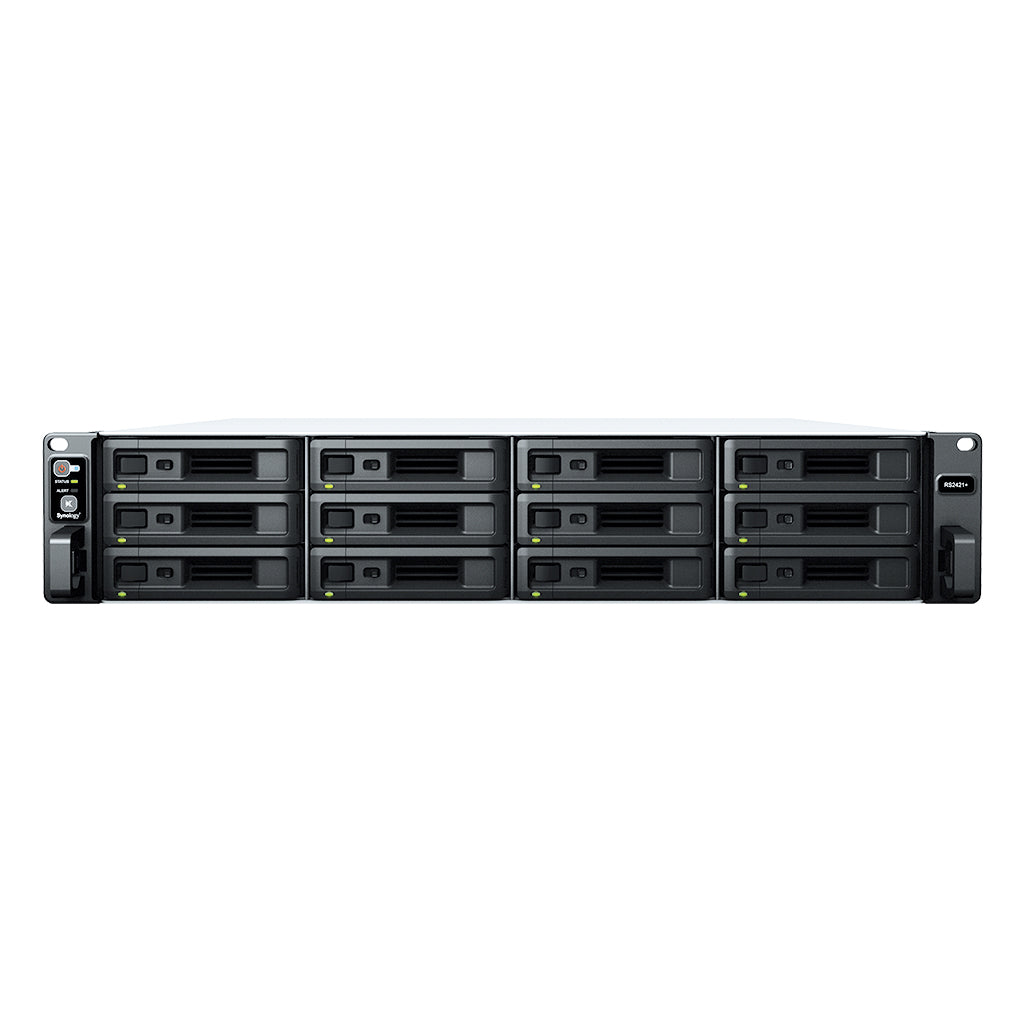

- 1Power button and indicator light
- 2 status indicators
- 3 warning lights
- 4 alarm stop button
- 5 hard drive tray
- 6 hard disk status indicator light
- 7 rack kit lock
- 8 power ports
- 9 PSU indicator light & shutdown warning button (RS2421RP+)
- 10 PSU fans
- 11 PSU switch
- 12 Console port
- 13 1GbE RJ-45 network port
- 14 USB 3.2 ports
- 15 expansion ports
- 16 Reset button
- 17 PCIe expansion slot
Notice:
- Performance data is measured by installing a 10GbE network interface card and tested by Synology. Actual test results will vary depending on system configuration, testing method or other environmental factors. For more information, please refer to the performance page. learn more
- Network interface cards, expansion devices, other PCIe expansion cards and storage drives need to be purchased separately. For more information about compatible devices, please refer to the compatibility list .
- Only the RS2421RP+ model provides backup power.

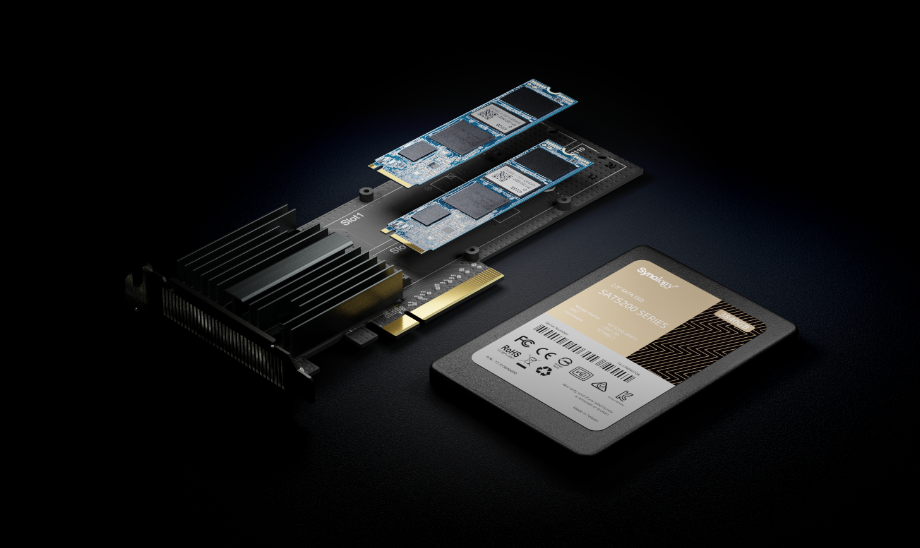

- You can use the Synology SAT5200 2.5-inch SSD to activate the SSD cache, or install the Synology SNV3500 M.2 22110 NVMe SSD (need to be purchased separately) through the M2D20 or E10M20-T1 riser card, so that it does not occupy any hard drive slots. Start the SSD cache.
- It has been verified by enterprises that data deduplication technology can save more than 50% of storage space when backing up multiple systems.
