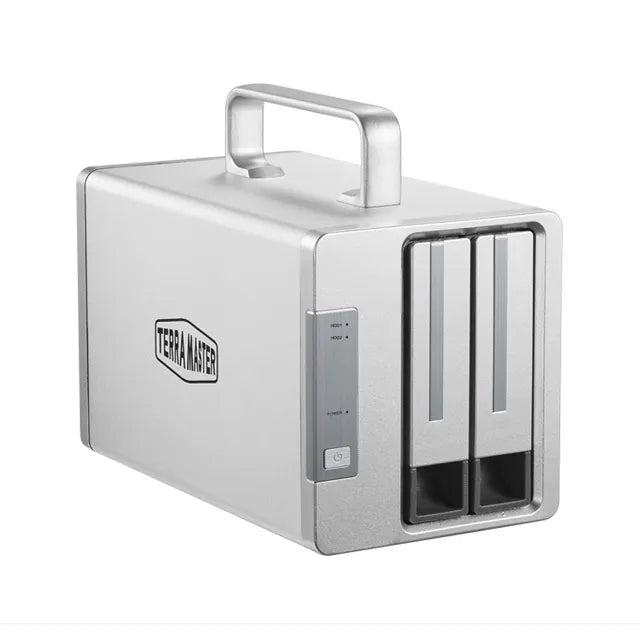

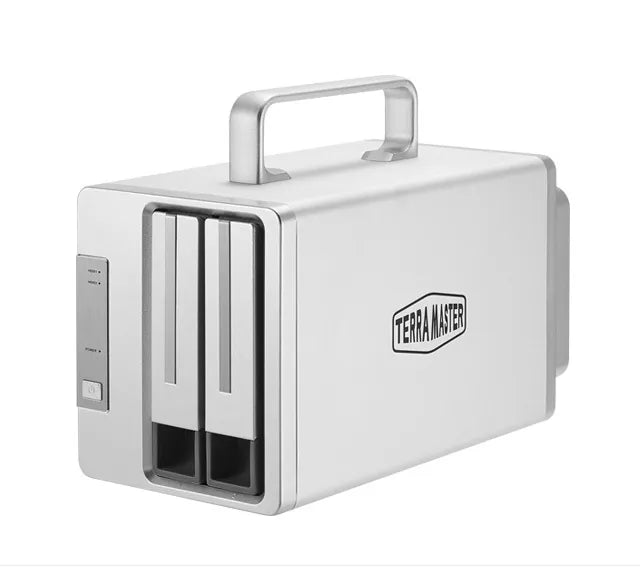

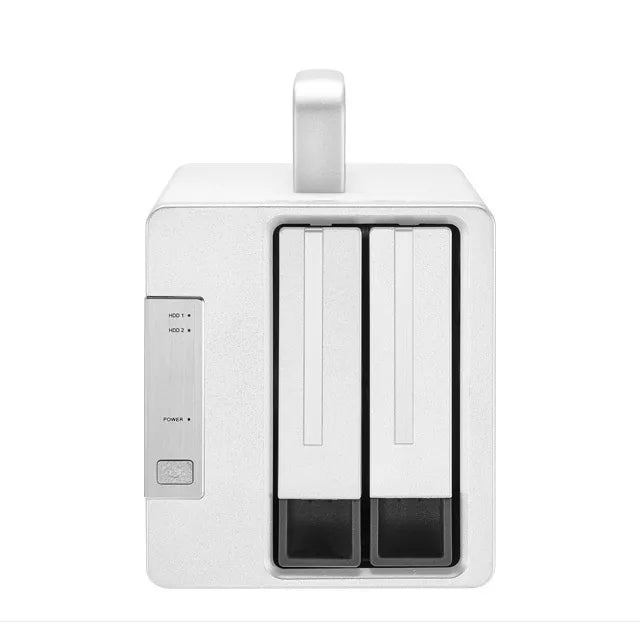

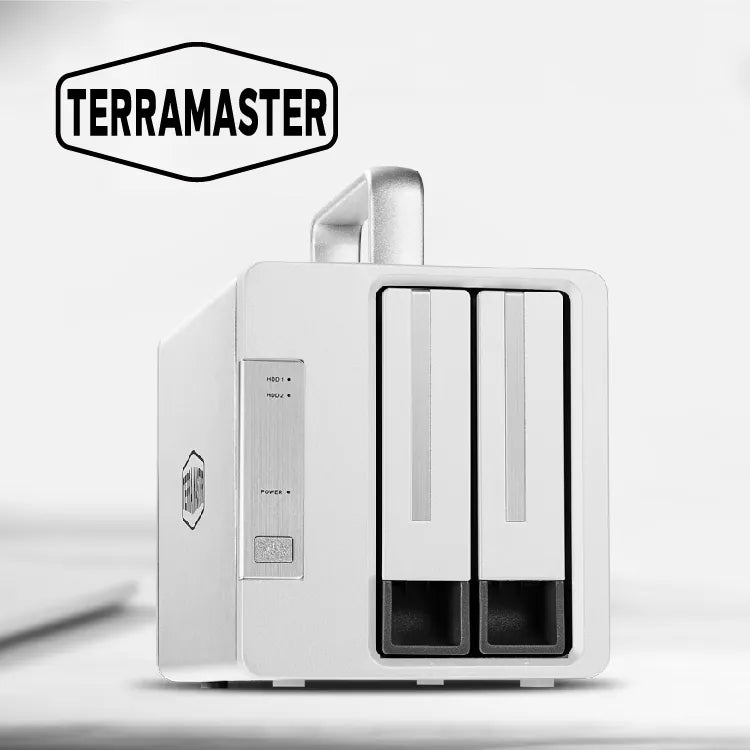

TerraMaster 2-Bay TD2 Thunderbolt 3 專業級硬體 RAID 外置儲存盒

▸ 雙 Thunderbolt 3 (40Gbps)
▸ 支援 2 顆 SATA HDD/SSD 及熱拔插 (最大容量 36TB)
▸ 硬體 RAID 控制器：RAID 0/1, JBOD & Single Disk
▸ 讀取速度最高 810MB/s (2 SSDs, RAID 0)
▸ 通過 Thunderbolt 3 投影智能手機畫面至高清顯示器
▸ 附 TPC Backupper 備份軟體，適用於 Windows

TD2 Thunderbolt 3

2-Bay Professional-Grade RAID

Features

• Dual Thunderbolt 3 (40Gbps)
• Supports 2 x SATA HDD/SSD with hot swapping (up to 36TB)
• Hardware RAID controller: RAID 0/1, JBOD & Single Disk
• Reading speed up to 810MB/s (2 SSDs, RAID 0)
• DP 1.4 for single 8K or dual 4K displays with Thunderbolt 3 (serve up to 3 display screens)
• Project smartphone screen to HD display through Thunderbolt 3 (Huawei, Honor, Samsung, Oppo)
• Daisy-chain up to 5 Thunderbolt 3 devices (total 6 devices)
• Intelligent Disk Sleep
• TPC Backupper for Windows (incremental / differential backup)
• Compatible with Windows & macOS
• Aluminum casing + 80mm temperature-controlled smart fan
• Bundle with 0.8m Thunderbolt 3 cable
• 2-Year Warranty
• Compatibility list of TerraMaster hard disks

---

Professional 8K Display

Using DisplayPort 1.4 and Thunderbolt 3 interfaces, you can link the TD2 Thunderbolt 3 to a single 8K or dual 4K displays. The device can serve up to 3 display screens.

HD Projection

Using a Thunderbolt 3 cable, you can project your phone’s screen to a high-definition display. This will help you to streamline your workflow, moving seamlessly between your handset and your desktop.

Supported smartphones：

• Huawei：Mate30/30 pro, P30/30 pro, P20/20 pro, Mate20/20 pro/20 X, Mate10/10 pro, Honor V20/Note 10;
• SAMSUNG：Galaxy S8/S8+, S9/S9+, S10/10+, Note 10/10+, Note 9;
• OPPO: R17 pro

Daisy-chaining

TD2 Thunderbolt 3 supports daisy-chained connections. You can connect to 5 other Thunderbolt 3 devices via a Thunderbolt 3 interface.

More Storage Space

TD2 Thunderbolt 3 is equipped with two SATA hard drive slots. You can install two 3.5-inch or 2.5-inch hard drives or SSDs using these slots, offering a maximum storage space of 32 TB.

Hardware RAID Controller

TD2 Thunderbolt 3 is equipped with a hardware RAID controller. Use this to switch between RAID 0, RAID 1, JBOD, and Single freely. The device also supports automatic rebuilding of RAID 1.

USB Interface Compatibility

As a truly universal device, the Thunderbolt 3 interface of TD2 Thunderbolt 3 is compatible with your computer’s USB 3.0/3.1 interface.

Optimized for Video Professionals

With aluminum casing and a built-in, temperature-controlled smart fan, TD2 Thunderbolt 3 ensures total heat dissipation. Therefore, it maintains an optimal working performance – all the time.

Intelligent, Energy-saving Design

With its automatic power-on design, TD2 Thunderbolt 3 benefits from its intelligent approach to energy conservation. Once your computer is powered off or set to sleep, TD2 Thunderbolt 3 will automatically enter sleep mode. When you switch your computer back on, the device will exist sleep mode. During sleep, only the hard drive and the fan stop running, while other functions operate normally. In case of an accidental power outage, TD2 Thunderbolt 3 will power on automatically when the power supply is reconnected.

Exclusive worry-free warranty

Brand new replacement for 2 years, quick service in 24 hours!

---

Specifications

Storage

• Disk Slot Number：2
• Compatible Disk Types
• 3.5" SATA HDD
• 2.5" SATA HDD
• 2.5" SATA SSD
• File System：NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
• Maximum Internal Raw Capacity：36TB (18 TB drive x 2) (Capacity will vary along with the RAID type)
• RAIDs Supported：SINGLE DISK, JBOD, RAID 0, RAID 1
• Hardware RAID：√
• RAID Manager Software：N/A
• RAID Manager Software Language：N/A
• RAID Online Expansion：N/A
• RAID Migration：N/A
• RAID Auto-rebuilding：√
• Drive Hot Swap：√
• HDD Sleep：√
• HDD S.M.A.R.T. Inspection：N/A
• Sector Inspection and Parity Check：N/A
• SSC Cache：N/A
• Daisy Chain：N/A
• HDD NCQ Technology：N/A
• Alert Notice：N/A
• Event Log：N/A

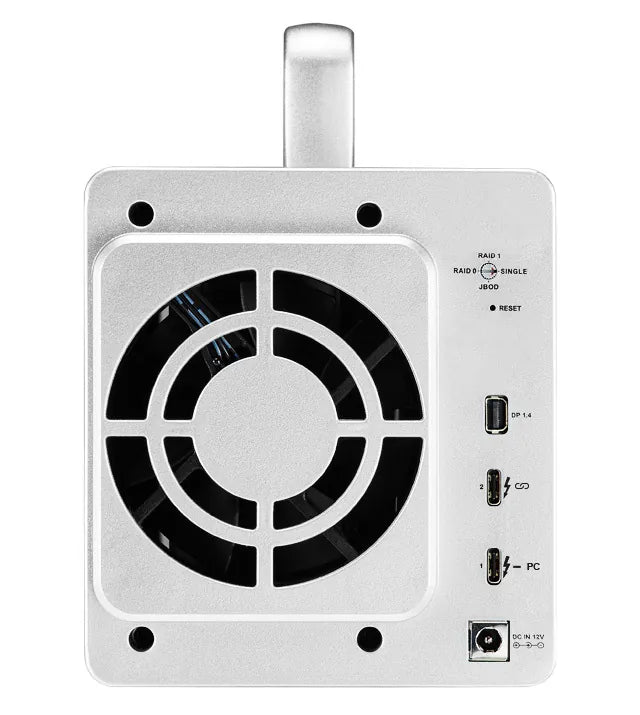

External Ports

• USB：N/A
• Thunderbolt Data Transmission：40Gb Thunderbolt 3 x 1
• Thunderbolt Daisy Chain：40Gb Thunderbolt 3 x 1
• USB Host：N/A
• DP Interface：DP 1.4 x 1

• Power Socket：DC IN 12V

Performance

• Reading Speed (max.)
• Read: 810MB /sec (Use SSD under RAID 0 mode)
• Read: 521MB /sec (Use HDD under RAID 0 mode)
• Writing Speed (max.)
• Write: 806MB /sec (Use SSD under RAID 0 mode)
• Write: 506MB /sec (Use HDD under RAID 0 mode)

Appearance

• Size (H*W*D)：227 x 119 x 173 mm
• Packaging Size (H*W*D)：258*220*200 mm
• Weight：Net Weight: 1.4Kg  Gross Weight: 2.2Kg

Others

• System fan：80 mm x 80 mm x25mm (x 1)
• Fan mode：Smart
• Noise Level：18.6dB(A)

Power Supply

• Power Supply ：90W
• AC Input Voltage：100V - 240V AC
• Current Frequency：50/60 Hz, single frequency
• Power Consumption：65.6W

Environment Temperature：

• Working Temperature：5°C  ~ 40°C (40°F ~ 104°F)
• Storage Temperature：-20°C ~ 60°C (-5°F ~ 140°F)
• Relative Humidity：5% ~ 95% RH
• Supported OS：Windows OS、Mac OS、Linux
• Warranty：2 years
• Certificate：CE, FCC, CCC, KC
• Environment：RoHS compliance

Package Contents

• Host unit (x1)
• Power cord (x1)
• Thunderbolt 3 cable (40Gbps) 0.8 Meter (x1)
• Quick Installation Guide (x1)
• Power adapter (x1)
• Screws (several)
• Limited Warranty Note x 1
