Description
Product introduction
Technical specifications:
Radiator specifications:

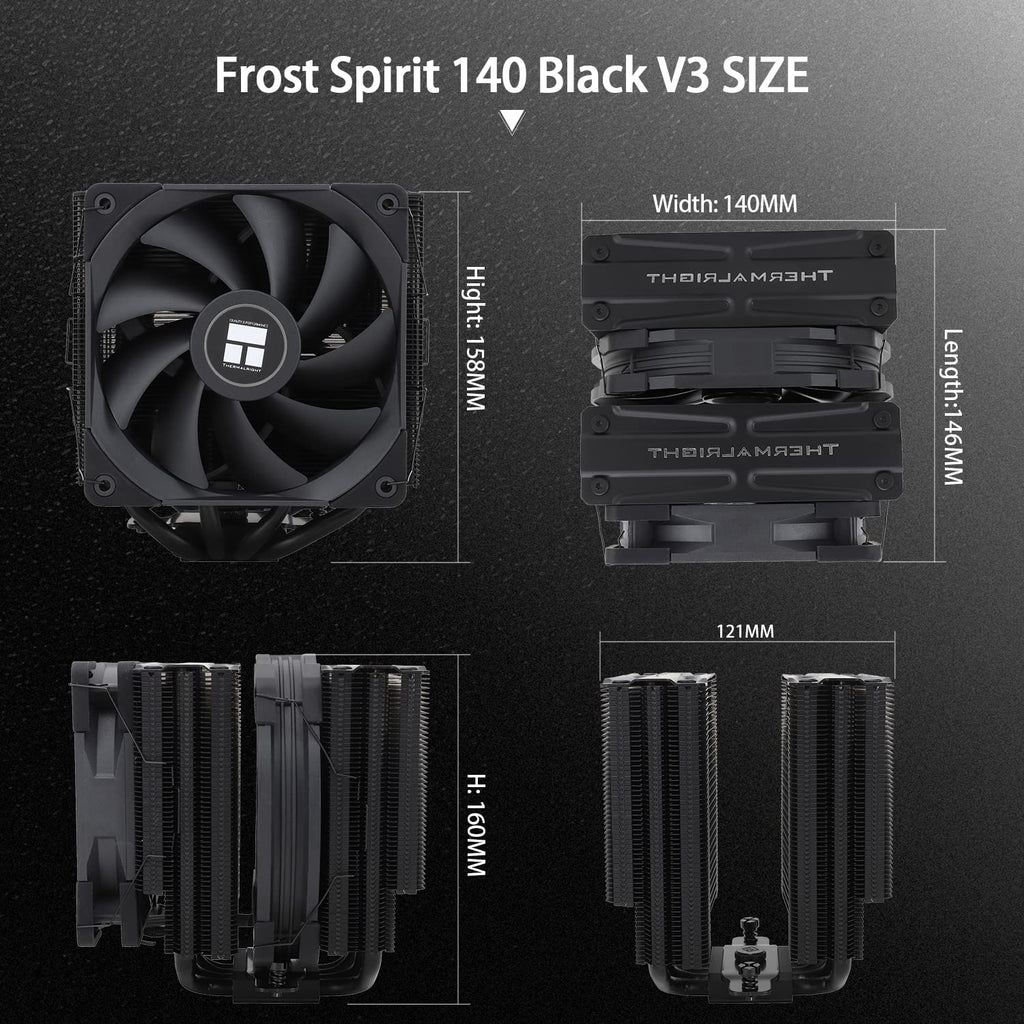

Dimensions: 140 mm long × 121 mm wide × 158 mm high

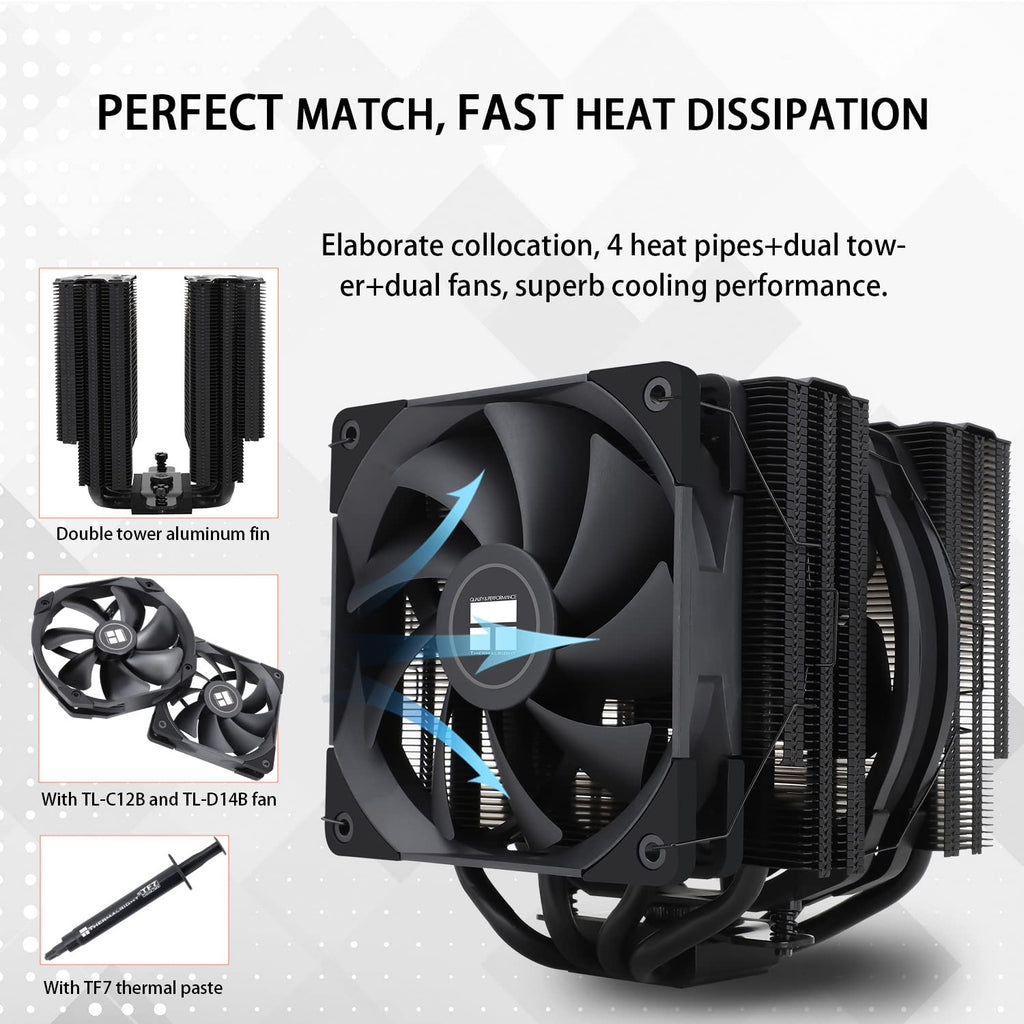

Weight: 1000g Heat pipe: 8 mm heat pipe × 4 heat sinks: T = 0.4 mm; gap = 1.6 mm
Copper base: C1100 pure copper with nickel plating
TL-C12B fan specifications:
Dimensions: 120 mm long × 120 mm wide × 25 mm high
Weight: 135g
Fan speed: 1500 RPM±10% (MAX)
Fan noise: 25.6 dBA
Air volume: 66.17 CFM (MAX)
Wind pressure: 1.53 mm H2O (MAX)
Abe: 0.2 A
Connector Type: 4 Pin PWM Connector Bearing Type: S-FDB Bearing
TL-D14B fan specifications:
Dimensions: 140 mm long × 152 mm wide × 27 mm high
Weight: 145g
Fan speed: 1500 RPM±10% (MAX)
Fan noise: 25.6 dBA
Air volume: 77.8 CFM (MAX)
Wind pressure: 2.09 mm H2O (MAX)
Abe: 0.2 A
Connector Type: 4 Pin PWM Connector Bearing Type: S-FDB Bearing
